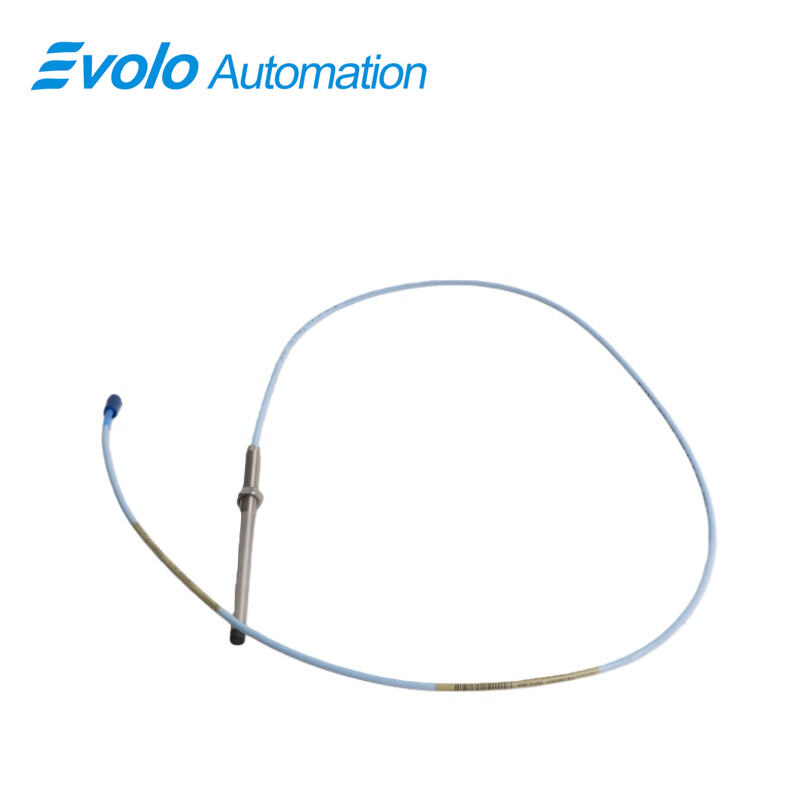

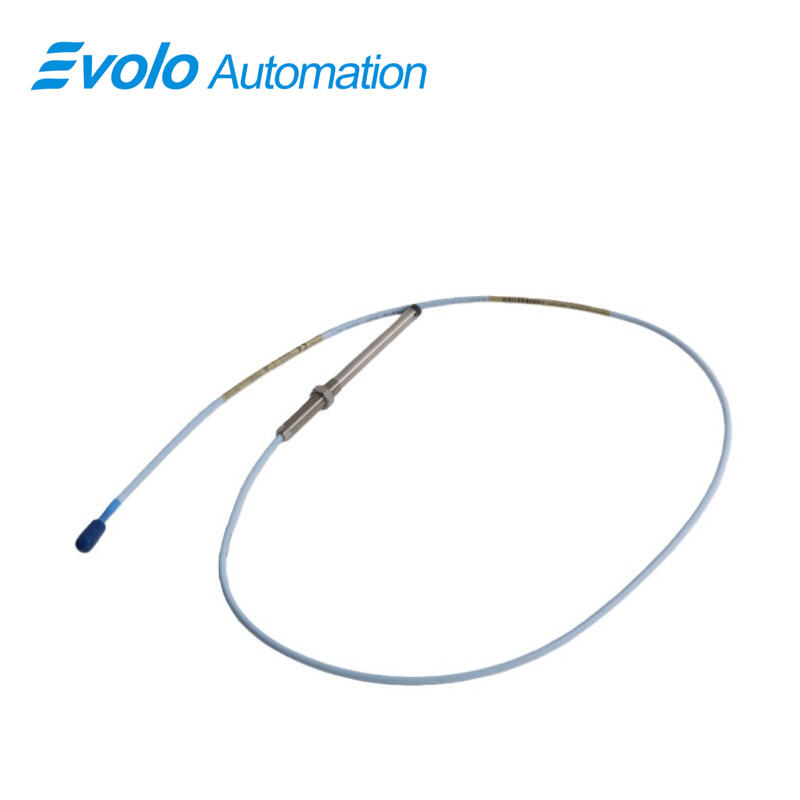

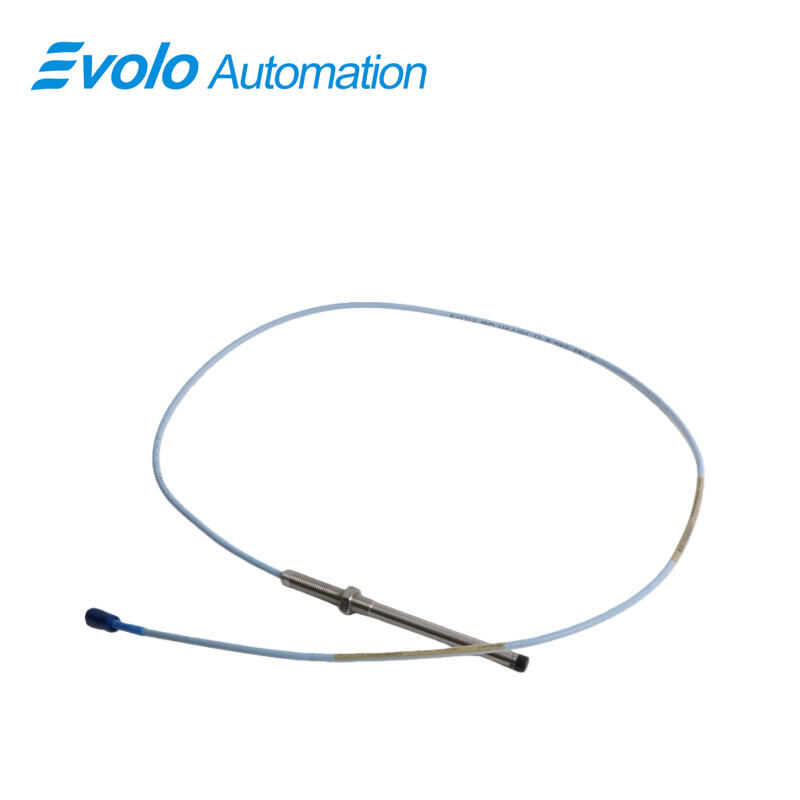

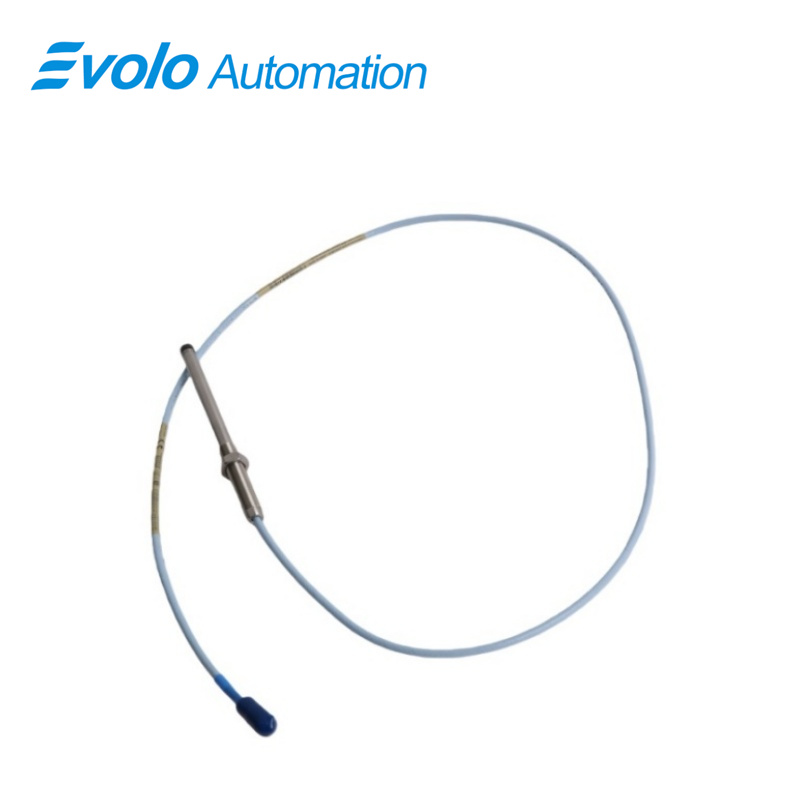

330101-28-43-10-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-28-43-10-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-28-43-10-12-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current sensor designed for industrial automation, predictive maintenance, and real-time machinery monitoring. Featuring a 4.3 in overall case length and 2.8 in unthreaded length, this probe integrates a 1.0-meter miniature coaxial ClickLoc cable with FluidLoc protection to prevent oil ingress, ensuring reliable operation in harsh environments. With a linear measurement range of 2 mm (80 mils), output resistance of 50 Ω, and supply sensitivity of less than 2 mV per volt, it delivers precise static and dynamic position or vibration measurements on fluid-film bearing machines. Certified to CSA, ATEX, and IECEx standards and operating from −52°C to +177°C, this probe meets stringent industrial safety requirements. Patented TipLoc and CableLoc features ensure 330 N pull strength, enhancing mechanical reliability in high-vibration and high-temperature applications. Fully compatible with all 3300 and 3300 XL series components, this probe allows seamless system upgrades and interchangeability of probes, extension cables, and Proximitor sensors, providing maximum flexibility and minimal calibration effort.

Applications

Application 1: Turbomachinery Vibration Monitoring
Provides high-resolution vibration detection on turbine shafts, detecting imbalance or misalignment early to prevent catastrophic failures and reduce maintenance downtime by 20%.

Application 2: Pump and Compressor Shaft Positioning
Monitors shaft displacement in centrifugal pumps and compressors, maintaining optimal fluid-film bearing clearance, extending bearing life by 15%, and improving operational efficiency by up to 10%.

Application 3: Keyphasor Reference for Speed Measurement
Generates precise Keyphasor signals for synchronous speed monitoring, supporting ±0.1% accuracy in speed and phase measurements for critical rotating equipment.

Application 4: Predictive Maintenance Integration
Integrates with SCADA and condition monitoring systems to analyze vibration trends and predict bearing wear, enabling preemptive maintenance and reducing unplanned outages by 15–20%.

Application 5: Harsh Environment Machinery Monitoring
Operates reliably in extreme temperatures (−52°C to +177°C) and hazardous locations, enabling continuous monitoring in petrochemical, power generation, and oil & gas facilities.

Specifications

Competitive Advantage

Competitive Advantage 1: Global Hazardous Area Certifications
CSA, ATEX, and IECEx approvals allow deployment in explosive environments, ensuring compliance with international safety standards and minimizing regulatory barriers.

Competitive Advantage 2: Superior Mechanical Robustness
TipLoc and CableLoc patented designs provide 330 N pull strength, securing the probe in high-vibration applications and ensuring long-term mechanical integrity.

Competitive Advantage 3: FluidLoc Oil Protection
FluidLoc cable option prevents oil and liquid ingress along the cable, minimizing contamination risk and reducing maintenance interruptions by up to 40%.

Competitive Advantage 4: Backward Compatibility
Fully interchangeable with 3300 and 3300 XL series probes, extension cables, and Proximitor sensors, supporting system upgrades and reducing calibration and installation effort.

Competitive Advantage 5: High-Precision Measurement
2 mm linear range and <2 mV/V supply sensitivity provide highly accurate voltage-to-gap conversion for both static and dynamic measurements, enhancing predictive maintenance and automation accuracy.
