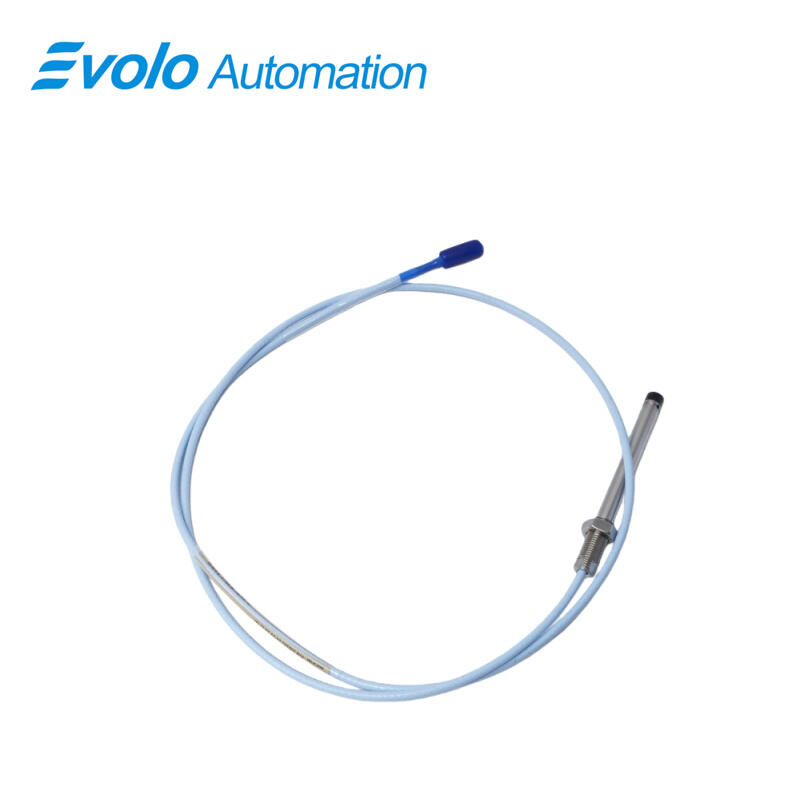

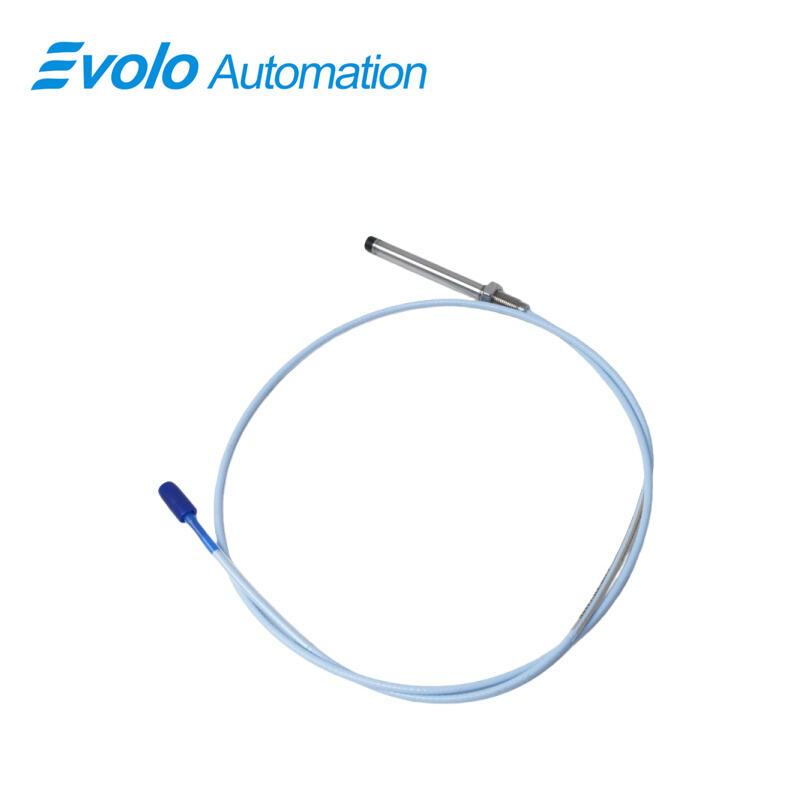

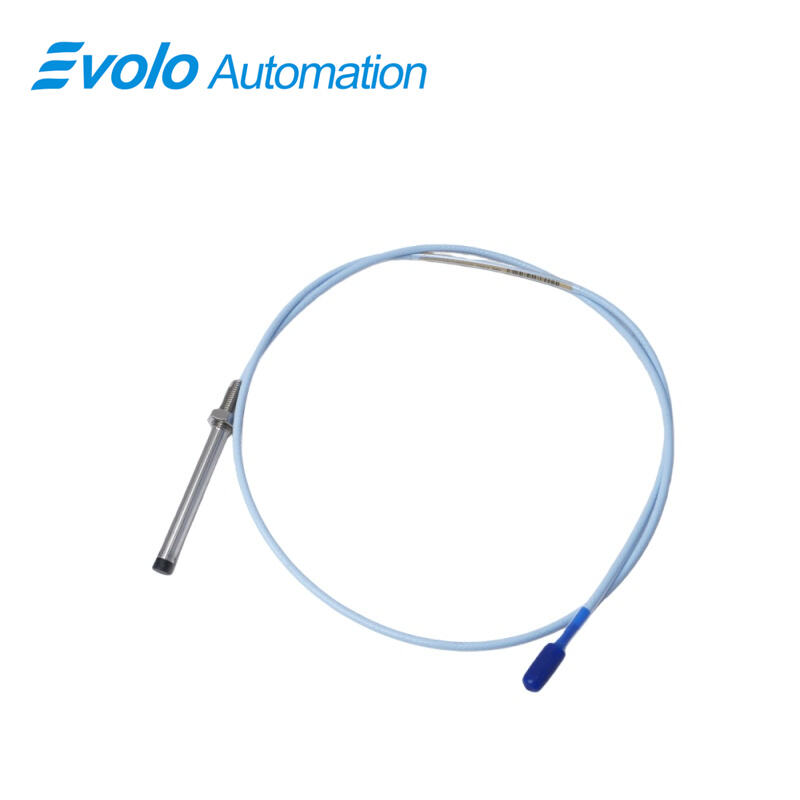

330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-25-44-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe delivers precise measurements of both static (position) and dynamic (vibration) motion in automated machinery. Designed for fluid-film bearing machines, the 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe features a 2 mm (80 mils) linear range, 3/8-24 UNF threaded probe case, and a total length of 1.0 meter (3.3 feet). It includes a miniature coaxial ClickLoc connector and standard extension cable with 69.9 pF/m capacitance, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). Operating temperatures range from -52°C to +177°C (-62°F to +350°F), while supply sensitivity remains under 2 mV per volt input. The 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe provides robust pull strength of 330 N (75 lbf) via patented CableLoc design and TipLoc molding, ensuring secure cable attachment. Optional FluidLoc cables prevent fluid ingress, maintaining reliable signal output. This probe meets CSA, ATEX, and IECEx approvals and complies with API 670 standards, allowing seamless integration into automated vibration monitoring and position measurement systems.

Applications

Measure Radial Vibration on Fluid-Film Bearings
The 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe monitors radial shaft vibration on small to medium shafts. Its 2 mm (80 mils) linear range and precise 3/8-24 UNF threaded probe tip allow accurate measurement even in tight installation areas.

Monitor Axial (Thrust) Position
The probe’s total length of 1.0 meter (3.3 feet) with ClickLoc connector enables measurement of axial displacement in centrifugal compressors or motors. The 330 N (75 lbf) CableLoc pull strength ensures secure attachment for consistent data collection.

Generate Keyphasor Signals for Speed Control
Using the 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe in automated machinery allows precise Keyphasor outputs for speed reference. Supply sensitivity below 2 mV per volt ensures minimal signal variation under fluctuating input voltage.

Integrate with Automation Systems
The probe supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and operates between -52°C to +177°C (-62°F to +350°F), making it suitable for automated systems in diverse environmental conditions.

Specifications

Competitive Advantage

Secure Cable Connection
The patented CableLoc design of the 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe provides 330 N (75 lbf) pull strength, preventing cable loosening during operation and maintaining accurate automated monitoring.

Enhanced Probe Bonding
The TipLoc molding ensures the probe tip remains firmly attached to the probe body, protecting measurements from mechanical stress in automated vibration sensing.

Prevent Fluid Ingress
Optional FluidLoc cables on the 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe block oil and other liquids from entering the cable interior, ensuring reliable data transmission in process compressors.

Compact Installation in Tight Spaces
With a 4.4 in case length and 2.5 in unthreaded length, the 330101-25-44-10-02-05 3300 XL 8 mm Proximity Probe fits small installation areas, allowing automated machinery to be monitored without disassembly.

Compliance with Industry Standards
This probe meets CSA, ATEX, and IECEx approvals and complies with API 670, enabling integration into automated systems while satisfying regulatory and operational requirements.
