Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-23-39-10-12-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
2.3 in |
|
Overall Case Length Option(Minimum case length): |
3.9 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.4x119cm |
|
Weight: |
0.05 kg |
Description

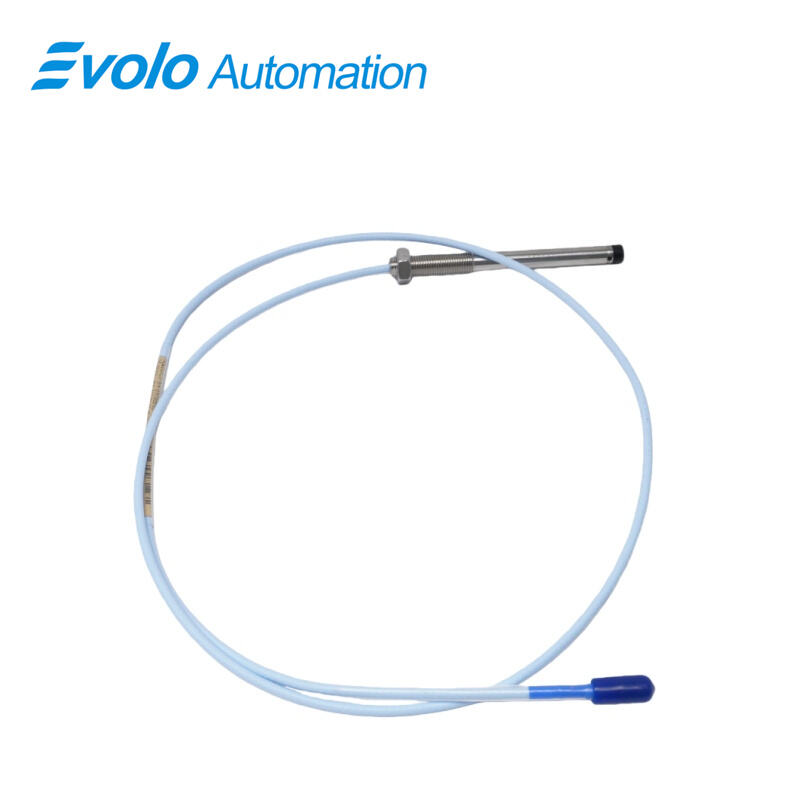

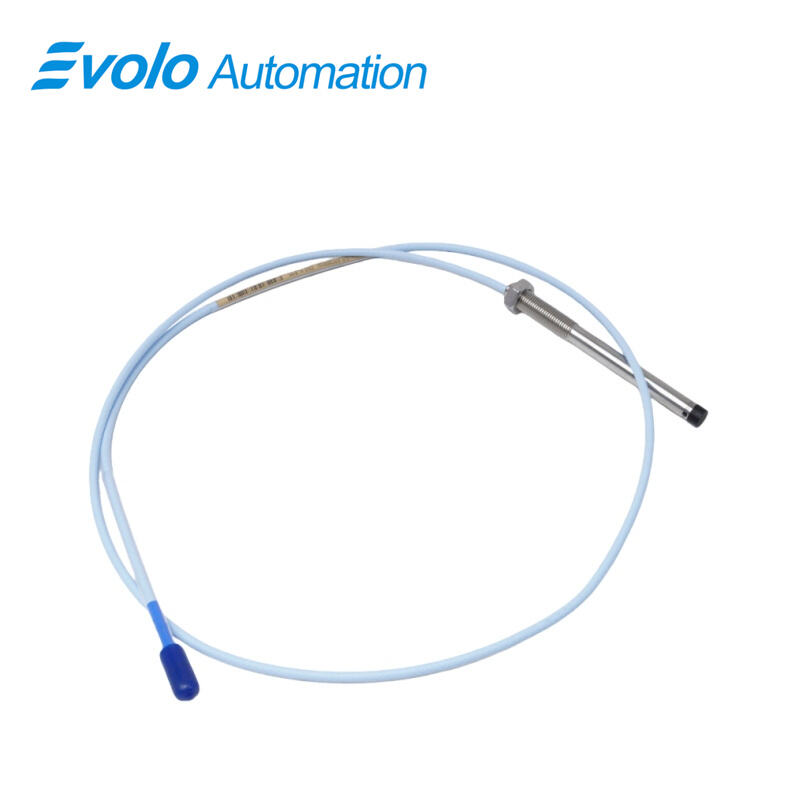

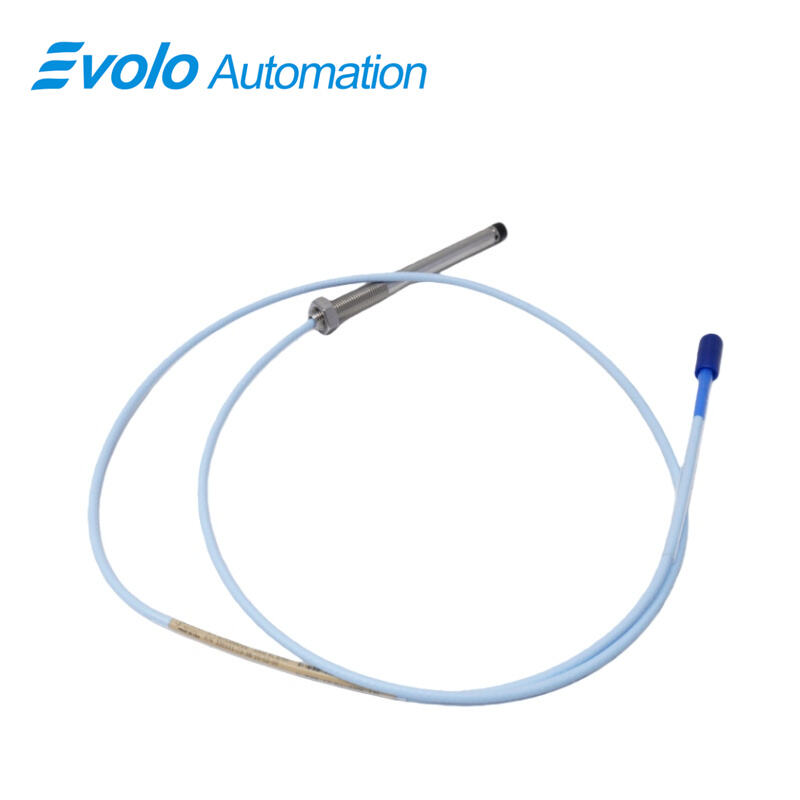

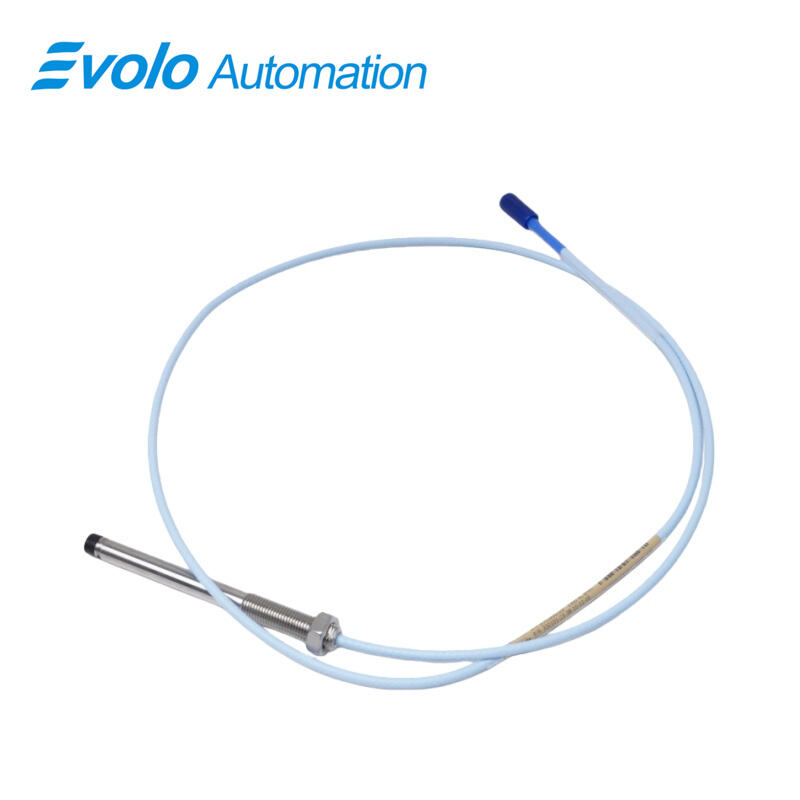

The 330101-23-39-10-12-05 3300 XL 8 mm Proximity Probe provides automated measurement of shaft vibration and position on fluid-film bearing machines. With a 1.0-meter FluidLoc cable, 3/8-24 UNF thread, 2 mm linear range, 50 Ω output resistance, and less than 2 mV supply sensitivity, the 330101-23-39-10-12-05 3300 XL 8 mm Proximity Probe outputs a voltage proportional to the distance from the probe tip to conductive surfaces. Operating from -52°C to +177°C, it includes miniature ClickLoc connectors for secure attachment and 69.9 pF/m extension cable capacitance for accurate signal transmission. The 330101-23-39-10-12-05 3300 XL 8 mm Proximity Probe supports Keyphasor and speed measurements, complies with API 670 standards, and allows interchangeability with 3300 XL 5 mm and 8 mm transducer systems. TipLoc molding and CableLoc design provide 330 N pull strength, while the optional FluidLoc cable prevents fluid leakage, ensuring precise automated monitoring in industrial applications.
Applications
Application – Measure Radial Shaft Vibration
Install the 330101-23-39-10-12-05 3300 XL 8 mm Proximity Probe on fluid-film bearing shafts to monitor radial vibration. The 2 mm linear range and 50 Ω output enable accurate automated readings in industrial machines.
Application – Monitor Axial (Thrust) Position
Use the 330101-23-39-10-12-05 3300 XL 8 mm Proximity Probe to detect axial displacement on machine shafts. The PPS probe tip and AISI 304 stainless steel case allow precise automated measurement under -52°C to +177°C conditions.
Application – Capture Keyphasor and Speed Signals
The 330101-23-39-10-12-05 3300 XL 8 mm Proximity Probe outputs signals for Keyphasor reference and rotor speed monitoring, supporting automated machinery control and diagnostics.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Competitive Advantage – Secure Probe and Cable Attachment
TipLoc molding and CableLoc design on the 330101-23-39-10-12-05 3300 XL 8 mm Proximity Probe provide 330 N pull strength, keeping the probe tip and cable securely connected during automated monitoring.
Competitive Advantage – Install in Tight Machine Spaces
With a 3/8-24 UNF probe thread and 1.0-meter cable, the 330101-23-39-10-12-05 3300 XL 8 mm Proximity Probe fits compact spaces, enabling automated measurement in small mounting areas.
Competitive Advantage – Prevent Fluid Leakage
Optional FluidLoc cable on the 330101-23-39-10-12-05 3300 XL 8 mm Proximity Probe prevents oil or liquid from entering the machine, maintaining reliable automated vibration and position monitoring.
Competitive Advantage – Compatible with 3300 XL Systems
The 330101-23-39-10-12-05 3300 XL 8 mm Proximity Probe is interchangeable with 3300 XL 5 mm and 8 mm probes, allowing easy upgrades and automated monitoring without recalibration.
