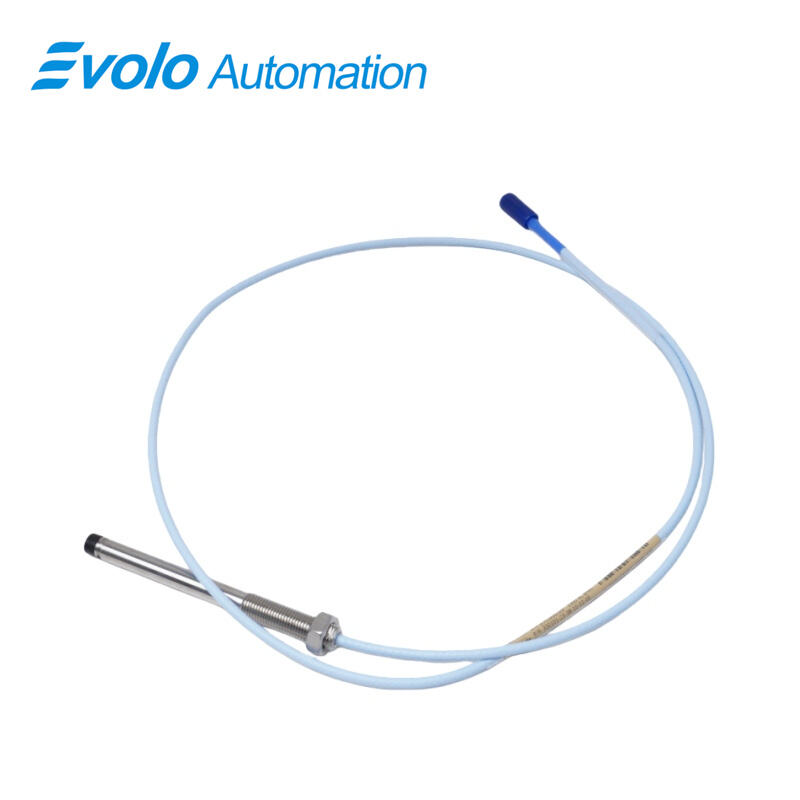

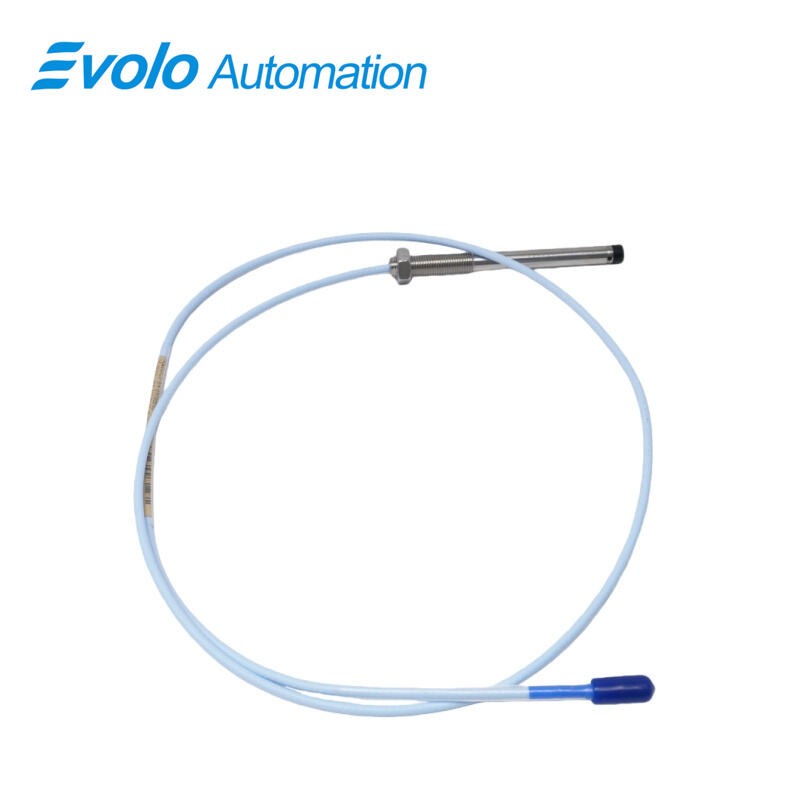

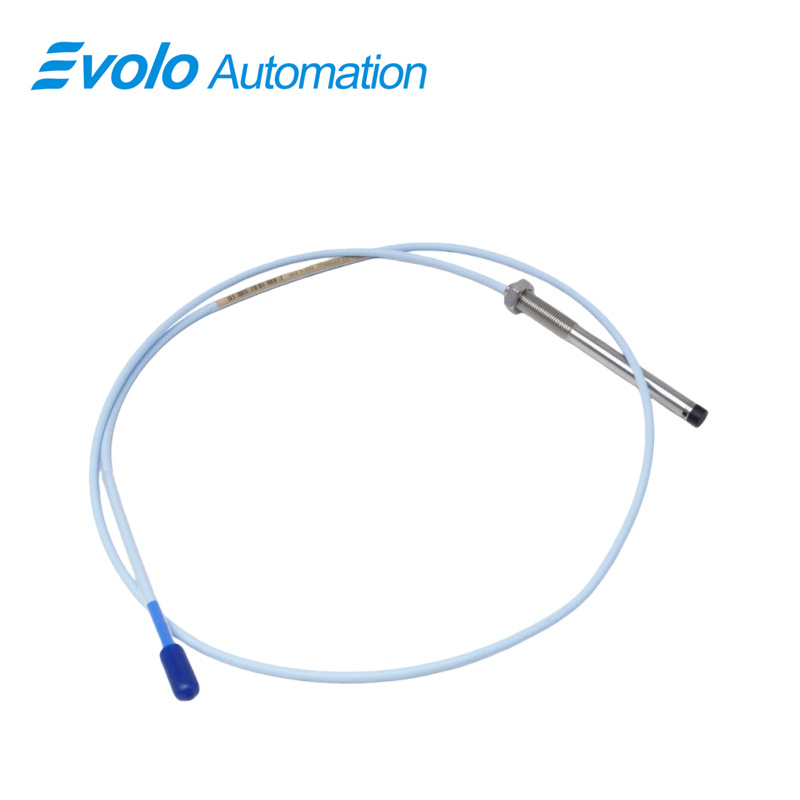

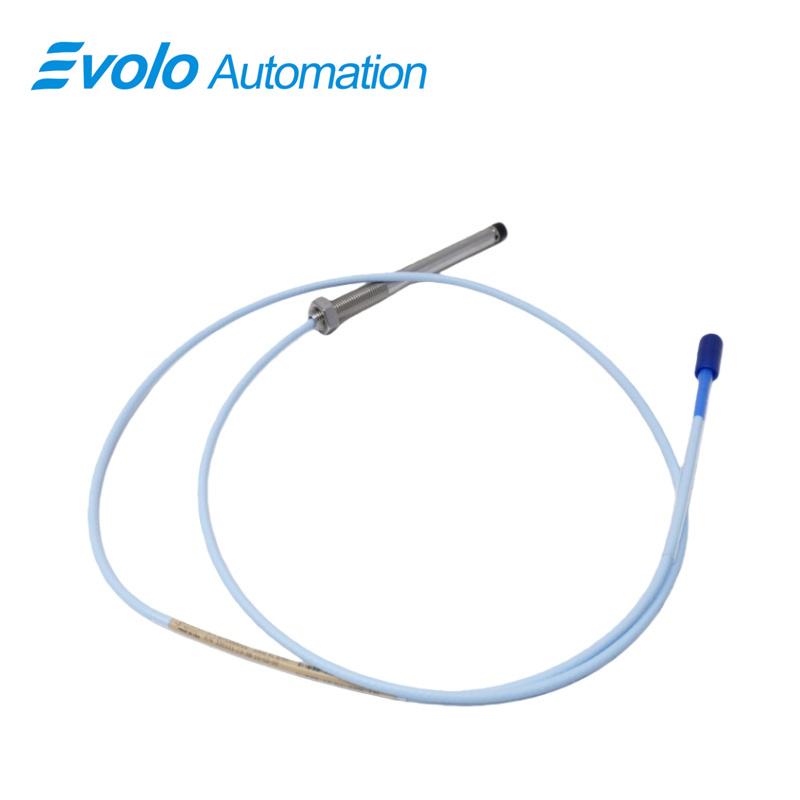

330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-23-34-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe delivers a voltage output directly proportional to the distance between the probe tip and conductive surfaces, enabling precise measurement of both static position and dynamic vibration. With a 2 mm linear range and total length of 1.0 meter (3.3 feet), the 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe is ideal for fluid-film bearing machines, shaft vibration monitoring, and Keyphasor reference speed measurements. Its 3/8-24 UNF probe thread and 0.563 in maximum thread engagement provide reliable mounting, while the miniature coaxial ClickLoc connector with protector ensures secure connection to extension cables. The probe operates in extreme temperatures from -52°C to +177°C (-62°F to +350°F) and maintains output accuracy with less than 2 mV change per volt of supply variation. The 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe supports full interchangeability with 3300 series 5 mm and 8 mm components, eliminating bench calibration requirements. Optional FluidLoc cable and patented CableLoc and TipLoc designs enhance attachment strength to 330 N (75 lbf) and prevent oil ingress, ensuring reliable operation in industrial automation environments.

Applications

Measure Shaft Vibration with High Accuracy
The 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe measures radial and axial vibration on fluid-film bearing shafts, enabling precise tracking of machine health. Its 2 mm linear range allows detection of minute vibration changes.

Capture Keyphasor Phase Signals
Install the 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe to acquire accurate Keyphasor signals for phase reference and zero-speed detection. The 50 Ω output resistance and high supply sensitivity (<2 mV/V) maintain signal integrity.

Monitor Position in Tight Spaces
The 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe supports position measurements where compact mounting is necessary, using its 3/8-24 UNF threaded case and 1.0-meter cable to reach constrained areas.

Specifications

Competitive Advantage

Secure Cable Connection in Industrial Environments
The 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe incorporates CableLoc design providing 330 N (75 lbf) pull strength, preventing accidental cable detachment during operation.

Prevent Oil and Fluid Ingress
Optional FluidLoc cables for the 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe stop oil and liquids from entering the probe, protecting measurements and extending maintenance intervals.

Easy Component Replacement
The 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe is fully interchangeable with other 3300 5 mm and 8 mm probes, extension cables, and Proximitor sensors, removing the need for bench calibration when upgrading systems.

Operate in Extreme Temperatures
With an operating range of -52°C to +177°C (-62°F to +350°F), the 330101-23-34-10-02-05 3300 XL 8 mm Proximity Probe performs reliably in demanding automation environments such as compressors, turbines, and fluid-film bearing machines.
