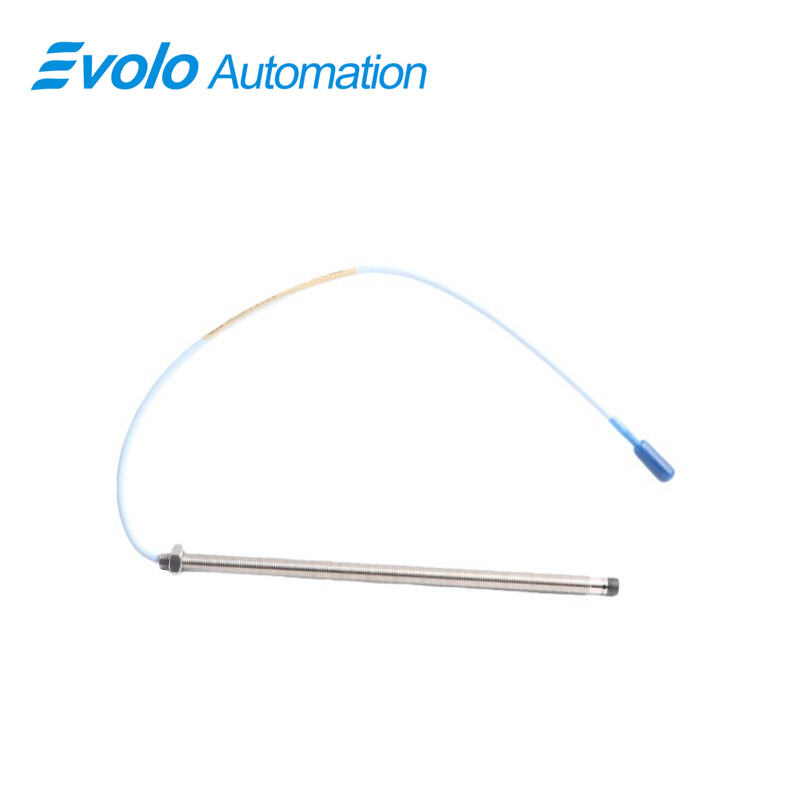

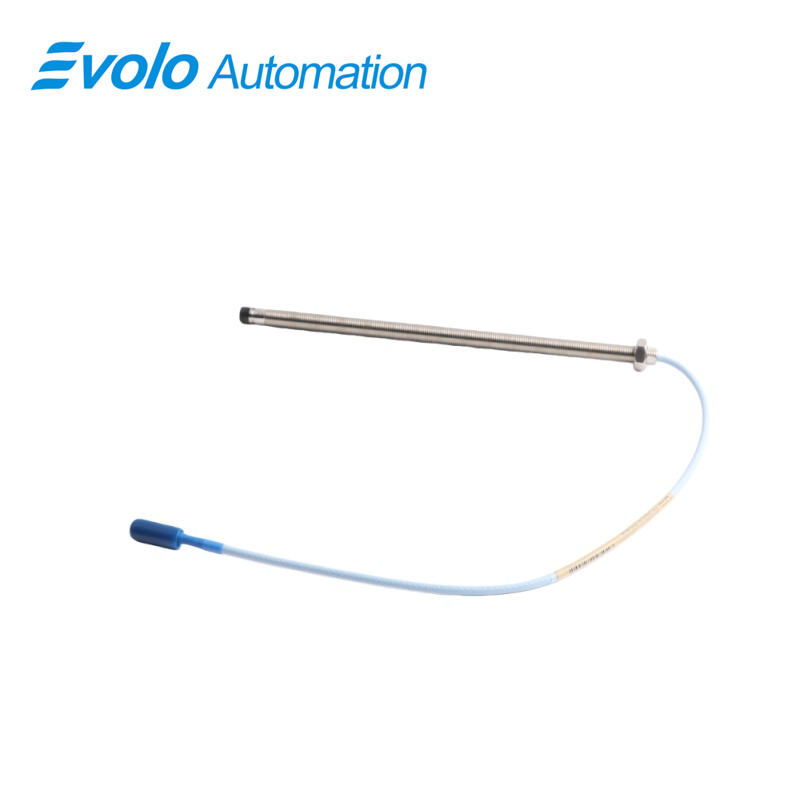

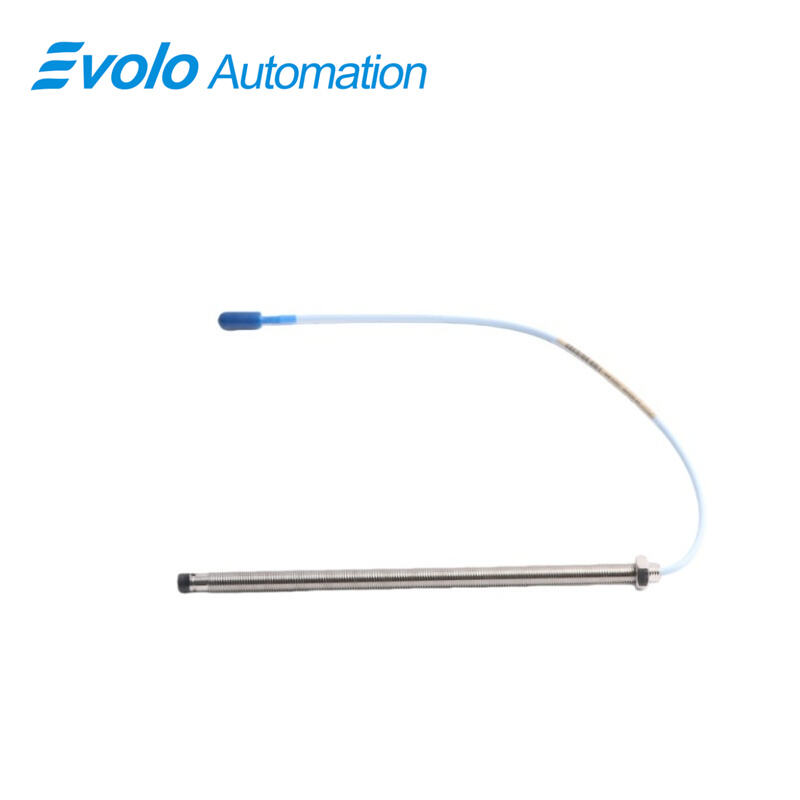

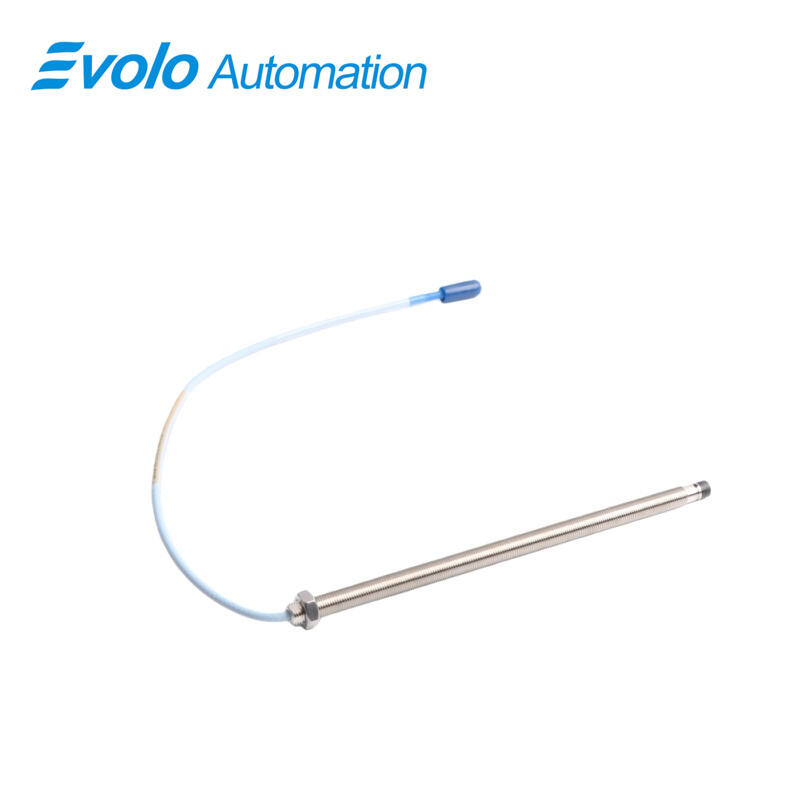

330101-02-12-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-02-12-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-02-12-10-02-05 3300 XL 8 mm Proximity Probes is engineered for precision vibration and position monitoring in industrial automation systems. Designed with a 2 mm linear range and a 3/8-24 UNF threaded case, the 330101-02-12-10-02-05 probe ensures stable sensor-to-target measurements even in high-temperature environments from -52°C to +177°C. Its miniature ClickLoc connector and 1.0 m standard cable integrate efficiently with automated machinery, enabling continuous vibration diagnostics and equipment health tracking.

With CSA, ATEX, and IECEx approvals, the 330101-02-12-10-02-05 proximity probe supports safety-critical industrial automation tasks on turbines, compressors, and rotating assets. The probe delivers consistent eddy-current performance with a supply sensitivity below 2 mV/V, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance to maintain signal fidelity. The compact 1.2 in case length and 0.2 in minimum unthreaded section fit constrained mechanical envelopes common in automated systems.

In automation environments, the 330101-02-12-10-02-05 probe enables reliable static and dynamic measurement for predictive maintenance, rotor tracking, and closed-loop vibration control, improving uptime while reducing mechanical wear.

Applications

Vibration Monitoring on Rotating Machinery
The 330101-02-12-10-02-05 probe supports vibration monitoring on turbines, compressors, and pumps equipped with fluid-film bearings. Its linear 2 mm measuring range and high thermal tolerance allow dynamic vibration analysis during startup, steady-state, and transient operation.

Keyphasor and Speed Reference Applications
The 330101-02-12-10-02-05 probe also supports Keyphasor referencing for phase relationship analysis and rotational speed measurement. This helps operators monitor mechanical behavior and conduct predictive maintenance in high-speed rotating machinery.

Hazardous Area Industrial Automation Systems
With CSA, ATEX, and IECEx certifications, the 330101-02-12-10-02-05 allows deployment in oil & gas, chemical, and petrochemical facilities where flammable materials and high ambient temperature demand compliance.

Specifications

Competitive Advantage

High Accuracy and Linearity
The 330101-02-12-10-02-05 proximity probe provides a stable linear output proportional to distance within a 2 mm range, outperforming many standard displacement probes in accuracy and consistency during industrial vibration measurement.

Robust Environmental Performance
Operating from -52°C to +177°C, the 330101-02-12-10-02-05 supports long-term reliability in turbines, refineries, and offshore environments. Low supply sensitivity (<2 mV/V) prevents measurement drift caused by fluctuating power conditions.

Enhanced Mechanical Integrity
Using ClickLoc connector technology and robust mechanical threading, the 330101-02-12-10-02-05 ensures secure installation under vibration load, reducing failure risk in continuous-operation industrial environments.
