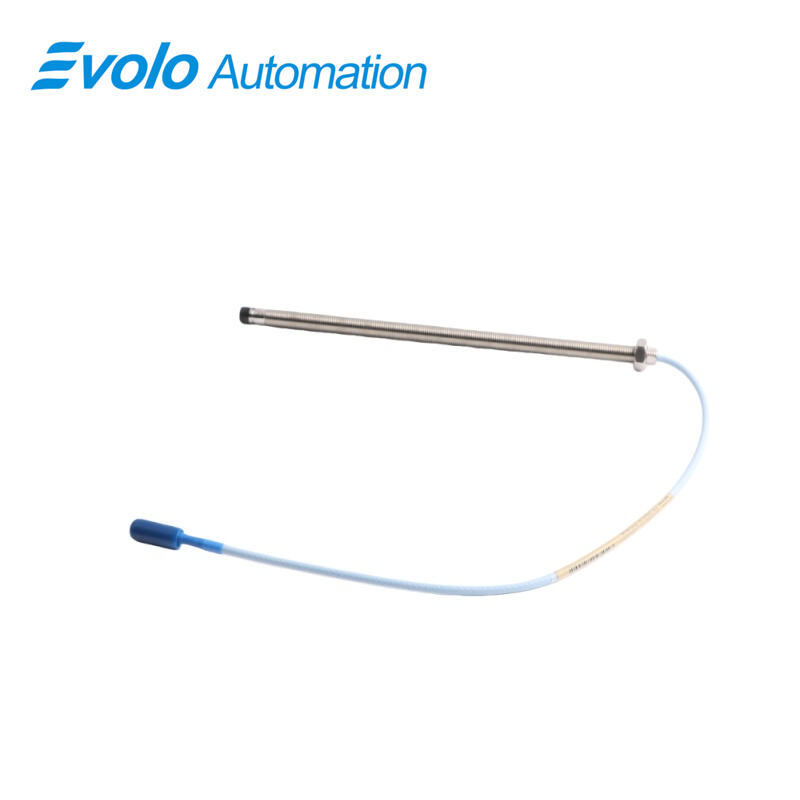

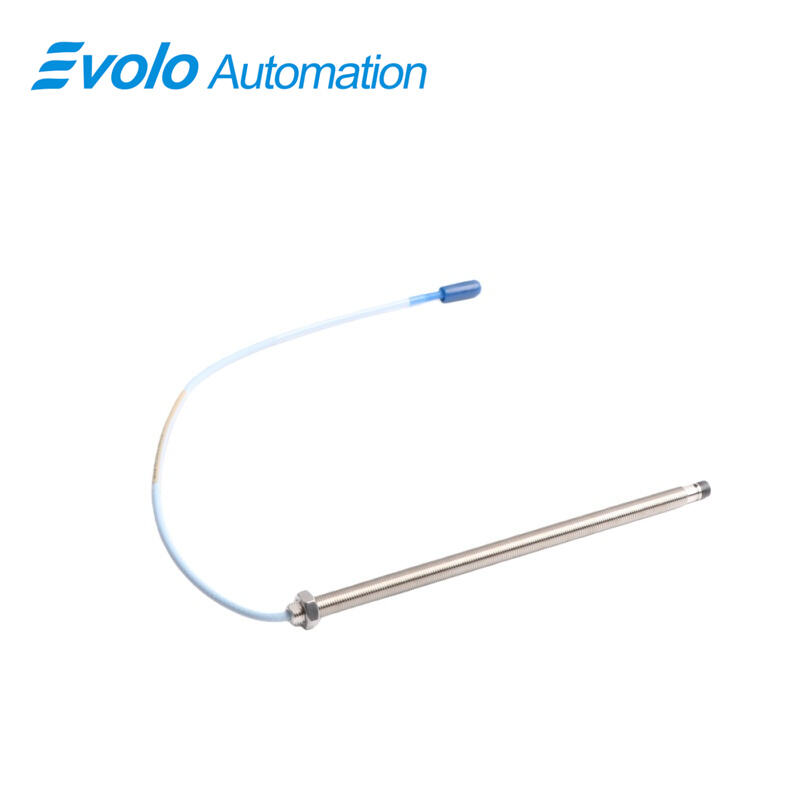

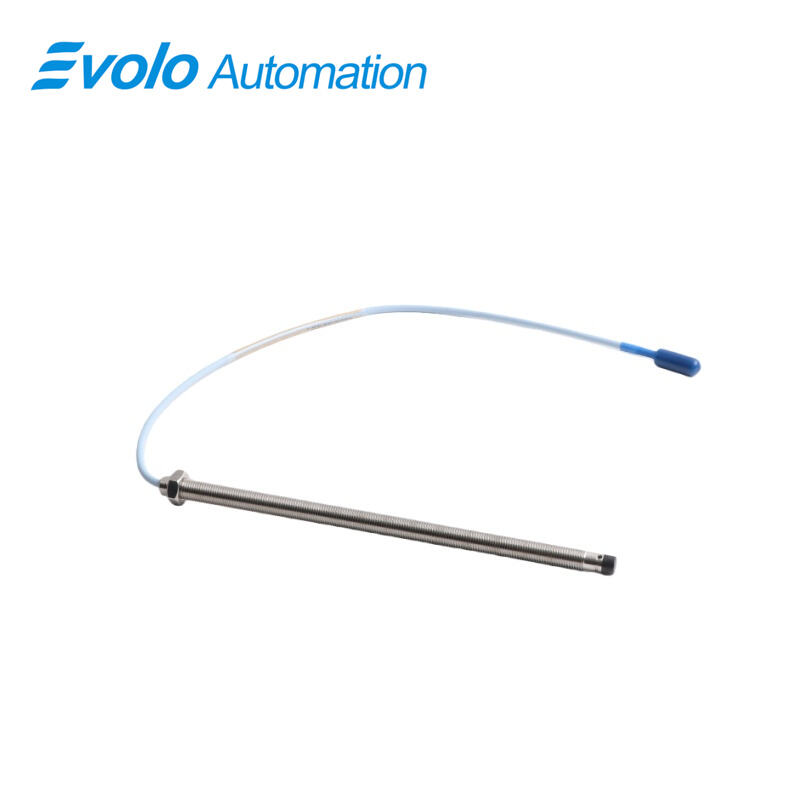

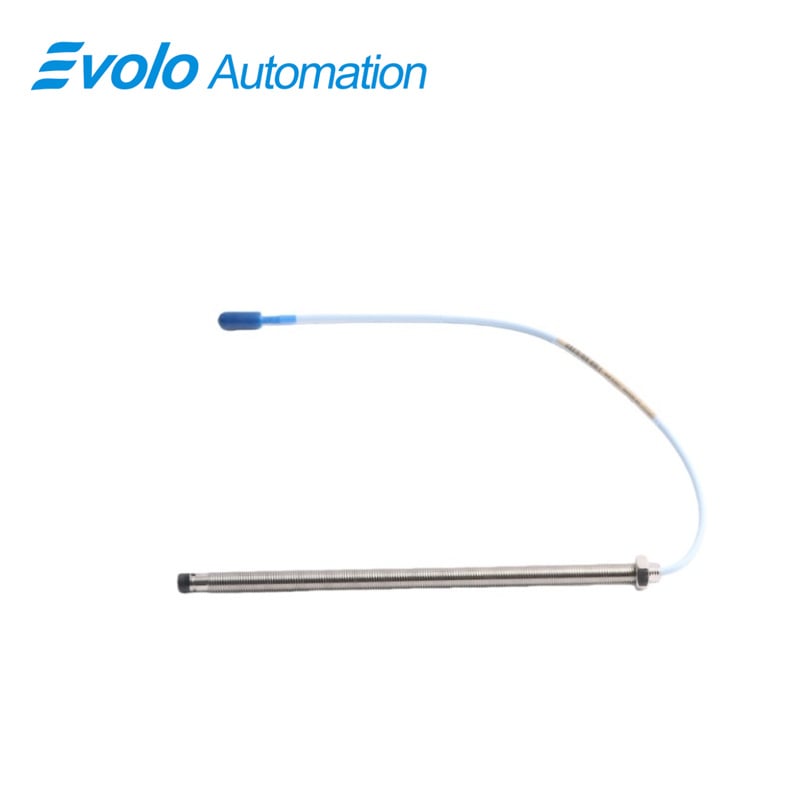

330101-02-12-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-02-12-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-02-12-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered for industrial automation, machinery monitoring, and predictive maintenance applications. It delivers an output voltage directly proportional to the gap between the probe tip and the target conductive surface, enabling both static (position) and dynamic (vibration) measurements.

With a linear range of 2 mm (80 mils) and a 3/8-24 UNF threaded stainless steel housing, this probe is designed for fluid-film bearing machines, high-speed rotors, and applications where compact probe installation is required. The miniature coaxial ClickLoc connector with standard cable ensures secure electrical connections, and the probe can be optionally supplied with FluidLoc cable to prevent oil or liquid leakage, enhancing operational safety in lubricated environments.

The 3300 XL probe features Bently Nevada’s patented TipLoc molding method, providing a robust mechanical bond between the probe tip and the body, and a CableLoc design with 330 N (75 lbf) pull strength to securely attach the probe cable. This system is backward compatible with other 3300 series probes and Proximitor sensors, reducing calibration effort and facilitating flexible system upgrades. The probe’s temperature range of -52°C to +177°C (-62°F to +350°F) ensures stable performance in harsh industrial environments.

Ideal for precision monitoring, speed measurement, and condition-based maintenance, this probe maximizes reliability and efficiency in automated and high-demand industrial systems.

Applications

Rotating Machinery Monitoring
The 330101-02-12-10-02-00 measures axial and radial shaft vibration in turbines, motors, and compressors with a 2 mm linear range, detecting misalignment or imbalance to prevent mechanical failures.

Compact Industrial Installations
With a 1.2 in case and 1.0-meter cable, the 330101-02-12-10-02-00 is suitable for confined machinery spaces requiring short-range, high-precision monitoring.

Predictive Maintenance Programs
The 330101-02-12-10-02-00 provides continuous displacement and vibration data, supporting predictive maintenance and reducing unplanned downtime.

Harsh Environment Operation
Operating from -52°C to +177°C, the 330101-02-12-10-02-00 performs reliably under extreme temperatures, mechanical stress, and electrical fluctuations

Specifications

Competitive Advantage

Compact and Flexible Installation
The 330101-02-12-10-02-00 combines a 1.2 in case, 1.0-meter cable, and 3/8-24 UNF mounting for installation in tight or complex machinery layouts.

High-Precision Measurement
With a 2 mm linear range, 50 Ω output resistance, and low supply sensitivity (<2 mV/V), the 330101-02-12-10-02-00 delivers accurate vibration and displacement readings.

Reliable Performance in Extreme Conditions
Operating between -52°C and +177°C, the 330101-02-12-10-02-00 ensures stable output under thermal stress, vibration, and electrical variations.

Seamless Integration with Control Systems
The Miniature coaxial ClickLoc connector and field wiring compatibility (16–24 AWG) allow the 330101-02-12-10-02-00 to integrate easily with monitoring and automated control systems.

Durable Construction
The 330101-02-12-10-02-00 features robust threaded mounting and low-capacitance cable (69.9 pF/m), ensuring long-term reliability in industrial operations.
