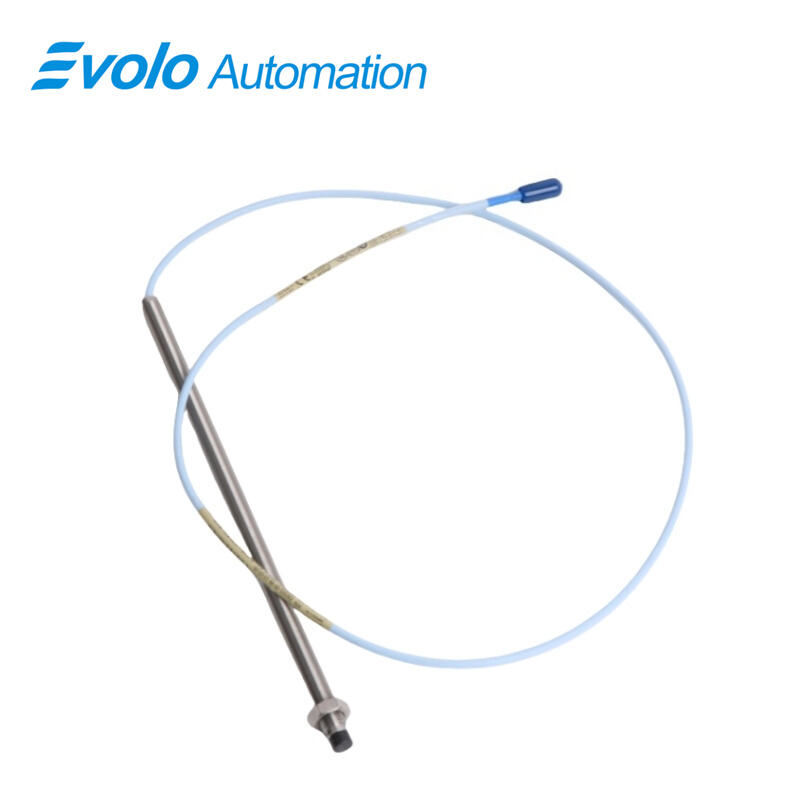

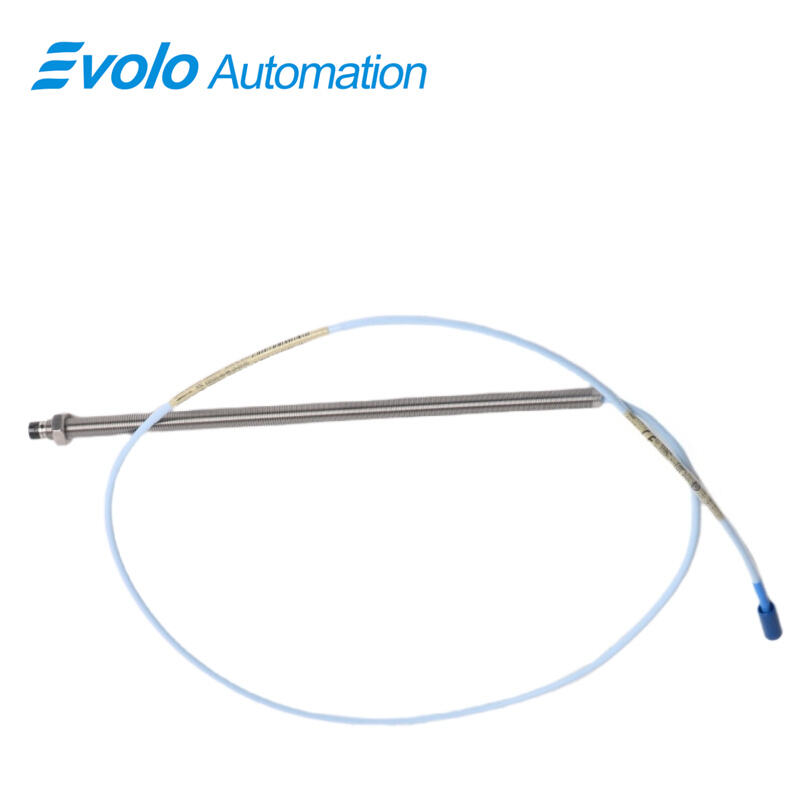

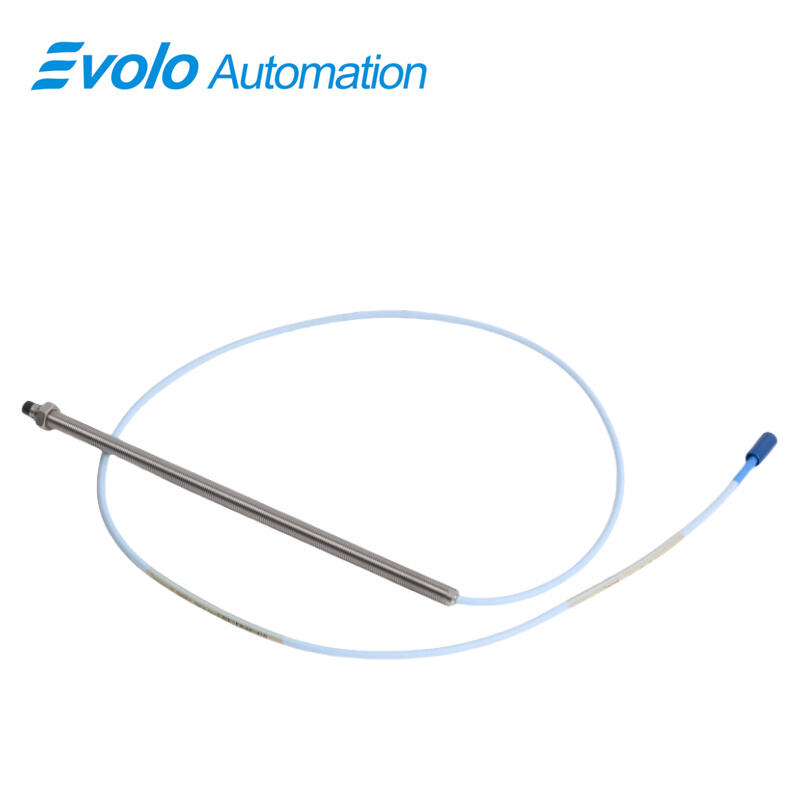

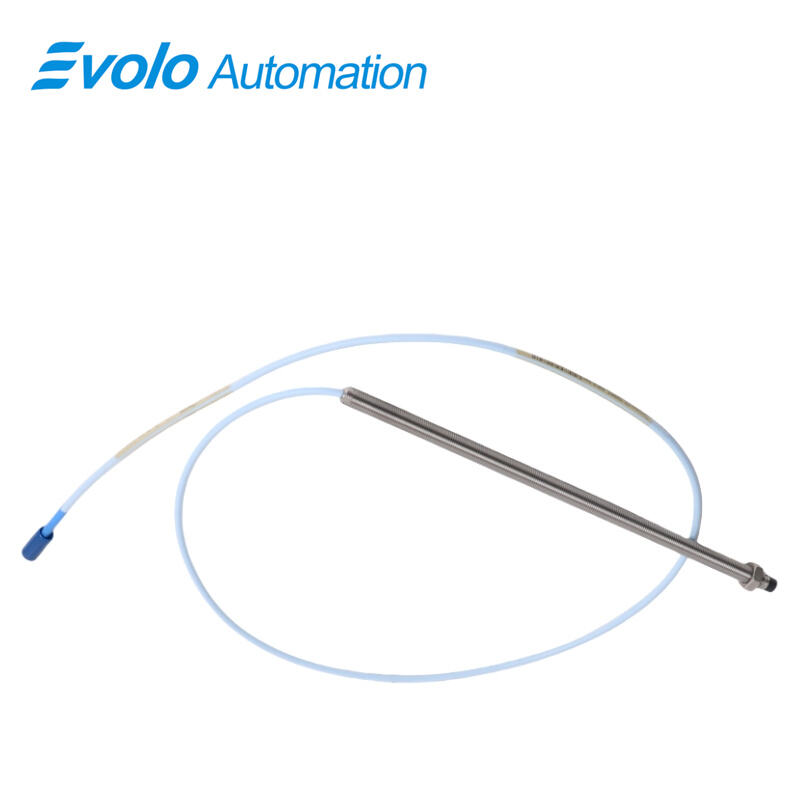

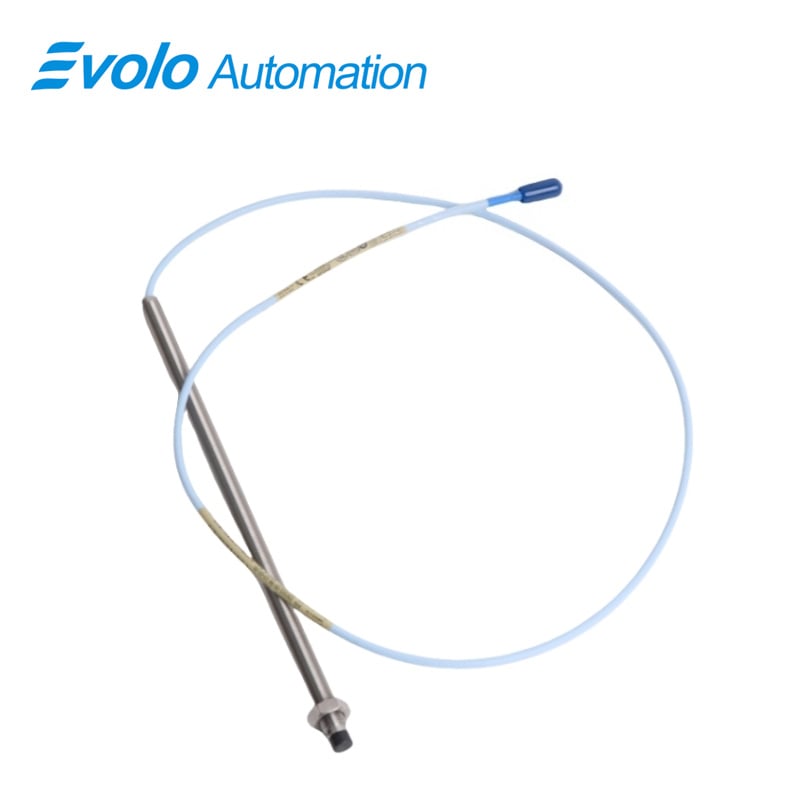

330101-00-96-20-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-96-20-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-96-20-02-CN 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for industrial automation, rotor vibration monitoring, and precision shaft position measurement. This probe delivers an output voltage directly proportional to the distance between the probe tip and the conductive target, accurately capturing both static position and dynamic vibration data. With a linear range of 2 mm (80 mils), a robust 3/8-24 UNF stainless steel probe case, and Miniature coaxial ClickLoc connector, the probe ensures reliable performance in extreme industrial conditions. It supports field wiring from 0.2 to 1.5 mm² (16 to 24 AWG) and operates within a temperature range of -52°C to +177°C (-62°F to +350°F). Built with TipLoc molded probe tips and CableLoc cable retention providing 330 N (75 lbf) pull strength, it ensures long-term mechanical reliability. Optional FluidLoc cable sealing prevents ingress of oil or other process fluids, reducing maintenance and ensuring continuous operation. CSA, ATEX, and IECEx approvals allow safe deployment in hazardous zones, while backward compatibility with other 3300 series probes and extension cables enables straightforward integration and system upgrades for advanced automation and monitoring systems.

Applications

Vibration Monitoring on High-Speed Bearings
Measures radial and axial vibration on fluid-film bearings in pumps, compressors, and motors, allowing predictive maintenance and automated shutdown triggers at predefined vibration limits.

Precision Shaft Position Measurement
Provides accurate axial and radial shaft positioning, enabling automated control and rotor stability monitoring in turbines, compressors, and industrial machinery.

Keyphasor and Speed Reference
Generates precise Keyphasor signals for speed, phase, and rotational synchronization, supporting automation systems for energy and manufacturing applications.

Hazardous Area Machinery Monitoring
CSA, ATEX, and IECEx certifications make the probe suitable for chemical, petrochemical, and gas-processing plants, ensuring automation systems can safely operate in explosive atmospheres.

OEM and Compact Machine Integration
Optimized for small spaces, the 8 mm probe can be installed in compact machinery without requiring system modifications, supporting automation upgrades and tight industrial layouts.

Specifications

Competitive Advantage

High Accuracy and Linear Range
Delivers a 2 mm linear range and <2 mV output variation per volt input change, ensuring precise measurements for critical automation and control systems.

Durable Materials and Temperature Tolerance
Stainless steel and PPS construction withstands harsh environments and temperature extremes from -52°C to +177°C, providing reliable industrial performance.

Mechanical Reliability
TipLoc molded probe tips and CableLoc design with 330 N pull strength provide secure cable attachment and long-term measurement stability under high vibration conditions.

Global Safety Compliance
CSA, ATEX, and IECEx approvals allow deployment in hazardous areas, enabling safe automation solutions for high-risk industrial processes.
