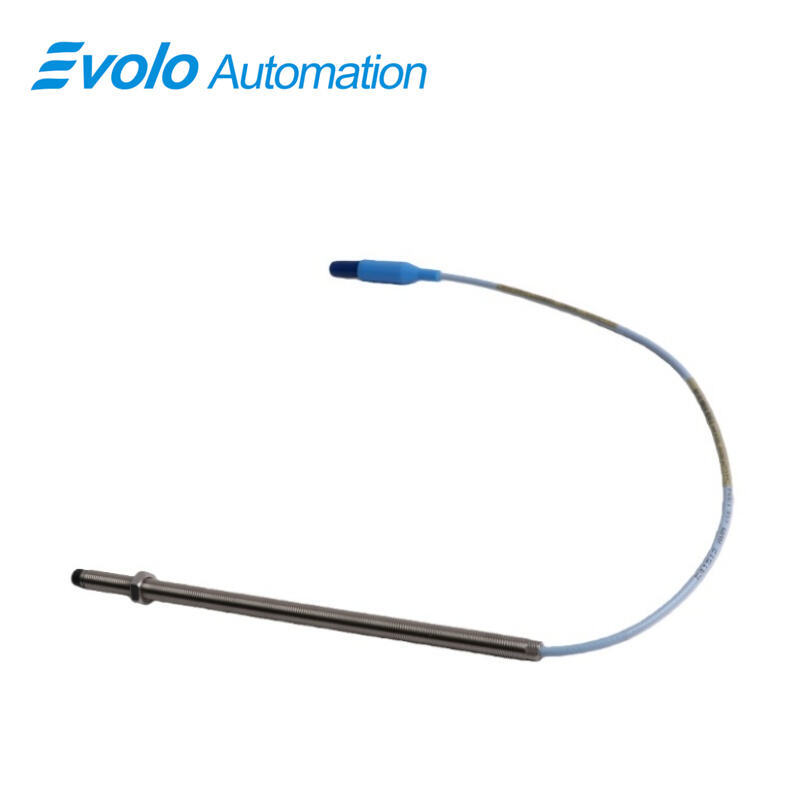

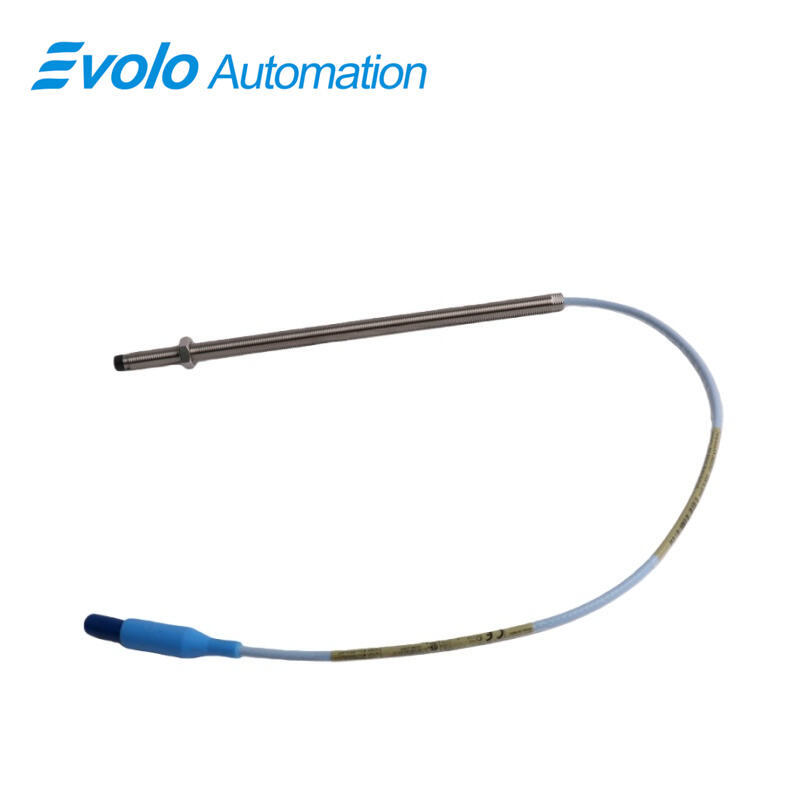

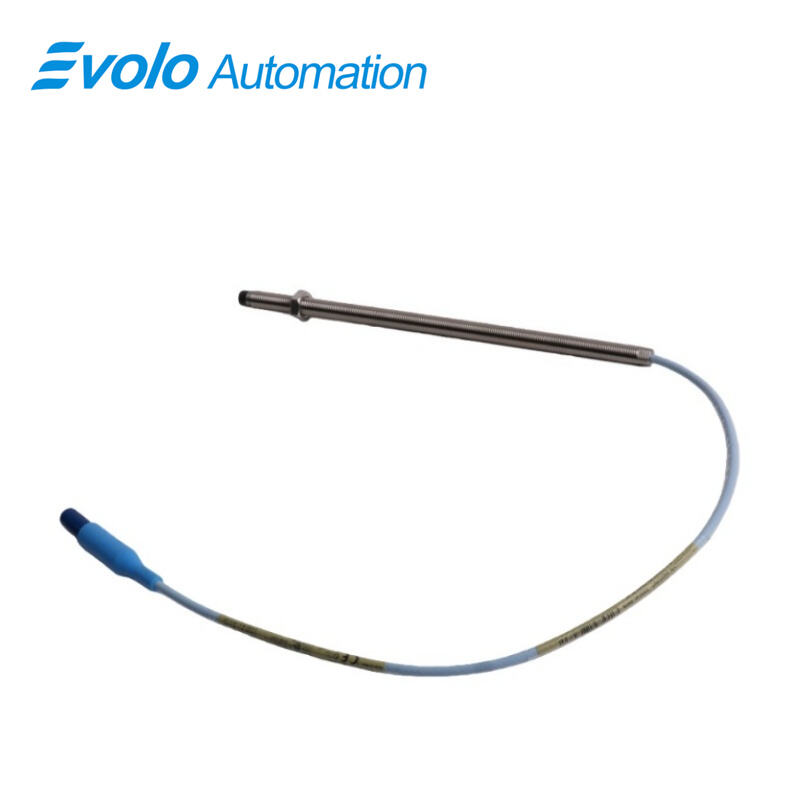

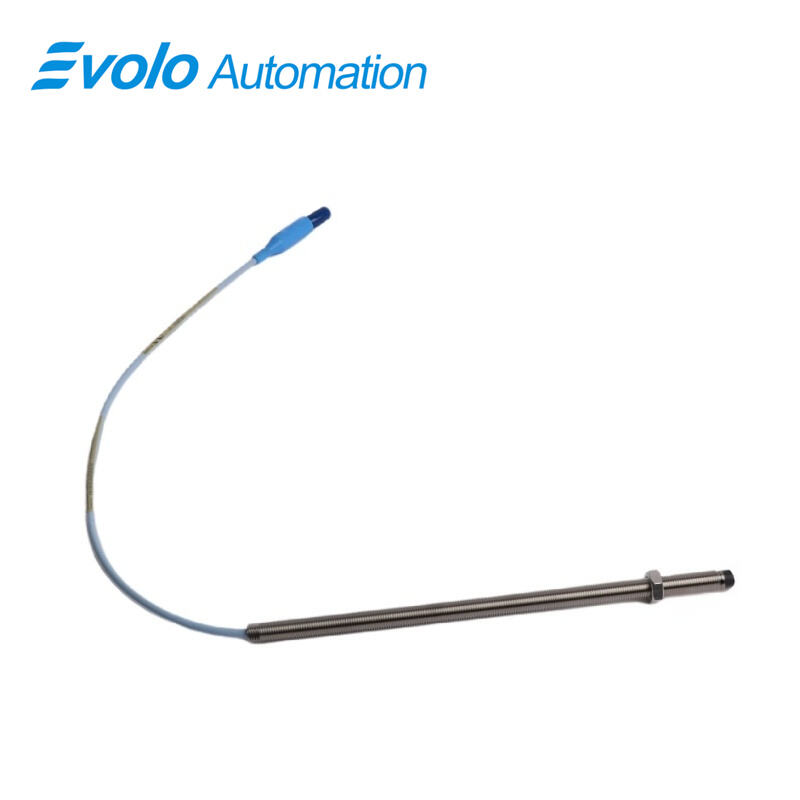

330101-00-80-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-80-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-80-10-02-00 3300 XL 8 mm Proximity Probe is designed for precise shaft position and vibration measurement in rotating machinery automation systems. The 330101-00-80-10-02-00 features a minimum unthreaded length of 0.0 in and an overall probe case length of 8.0 in, allowing direct installation in compact bearing housings and machine frames. With a total probe and cable length of 1.0 meter (3.3 ft), the 330101-00-80-10-02-00 supports short-distance signal routing in local monitoring layouts.

The probe uses a 3/8-24 UNF threaded stainless steel case with a maximum thread engagement of 0.563 in, ensuring secure mounting under continuous machine operation. The 330101-00-80-10-02-00 operates across a wide temperature range from -52°C to +177°C, supporting deployment near turbines, compressors, and motors. A miniature coaxial ClickLoc connector with standard cable simplifies probe replacement during maintenance.

With a 2 mm (80 mils) linear measurement range, 50 Ω output resistance, and extension cable capacitance of 69.9 pF/m, the 330101-00-80-10-02-00 delivers consistent displacement signal output for condition monitoring, protection systems, and automated machinery diagnostics.

Applications

Vibration Monitoring in Fluid-Film Bearings
The 330101-00-80-10-02-00 3300 XL 8 mm Proximity Probe precisely measures dynamic vibration on fluid-film bearing machines. Its 2 mm linear range and supply sensitivity <2 mV/V allow accurate detection of rotor imbalance and misalignment, enabling automated predictive maintenance and reducing unplanned downtime.

Static Position Measurement
This 330101-00-80-10-02-00 3300 XL 8 mm Proximity Probe monitors shaft or rotor positions in real-time. The 3/8-24 UNF probe thread with 0.563 in maximum thread engagement ensures secure mounting, providing reliable position data for process control automation in turbines, pumps, and compressors.

Speed and Keyphasor Reference Signals
The 330101-00-80-10-02-00 3300 XL 8 mm probe delivers precise Keyphasor and speed signals. Coupled with its 1.0-meter cable and 69.9 pF/m capacitance, it supports long-distance, high-fidelity signal transmission for automated control systems.

Extreme Environment Automation
With an operating temperature range of −52°C to +177°C, the 330101-00-80-10-02-00 3300 XL probe functions reliably in harsh industrial settings, including chemical, petrochemical, and power generation plants, ensuring consistent automated monitoring of critical machinery.

Specifications

Competitive Advantage

Robust Mechanical Design
The 330101-00-80-10-02-00 3300 XL probe features patented TipLoc and CableLoc designs providing 330 N (75 lbf) pull strength, preventing detachment of the probe or cable in high-vibration, automated environments.

High-Precision Feedback
With 50 Ω output resistance and a linear response over 2 mm, the 330101-00-80-10-02-00 3300 XL probe provides accurate automated feedback for control systems, supporting optimized energy use and improved production efficiency.

Wide Temperature Tolerance
The 330101-00-80-10-02-00 3300 XL probe maintains stable performance from −52°C to +177°C, making it suitable for extreme industrial environments and ensuring reliable automation monitoring.
