Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-76-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
7.6 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
57.8x1.2x1.2cm |
|
Weight: |
0.1kg |
Description

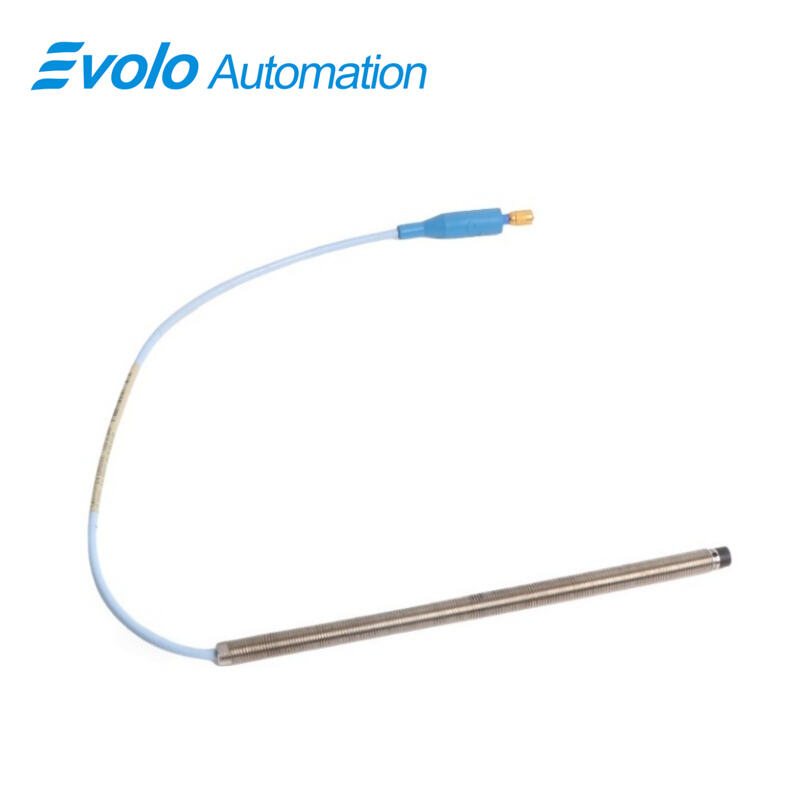

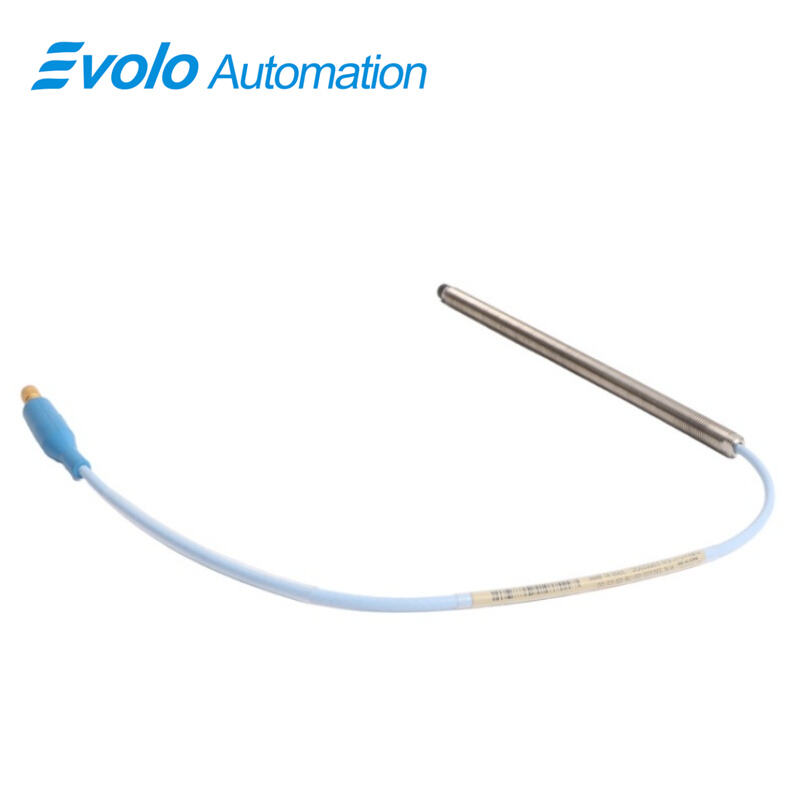

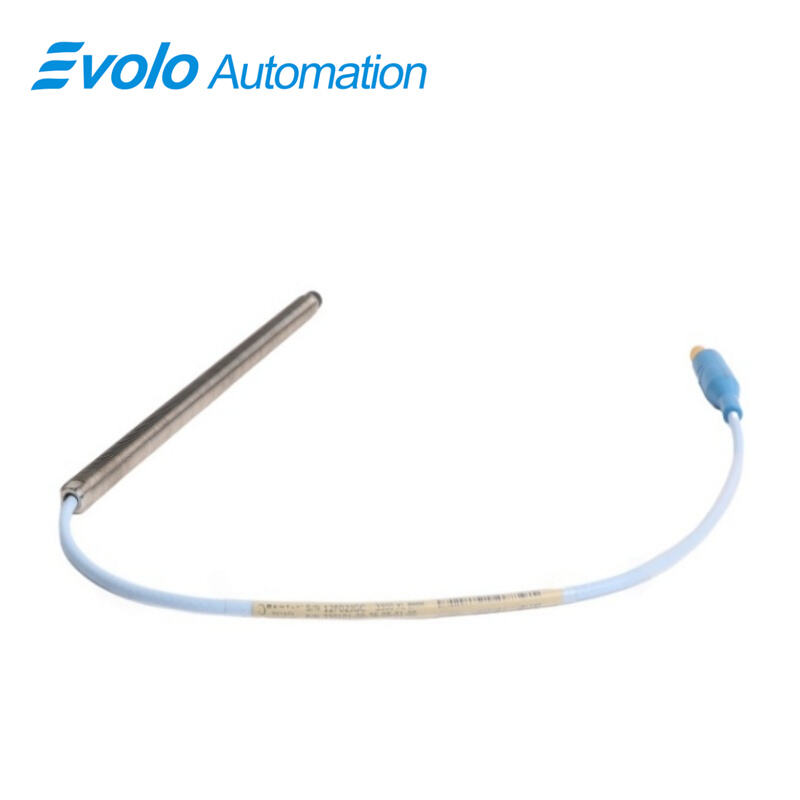

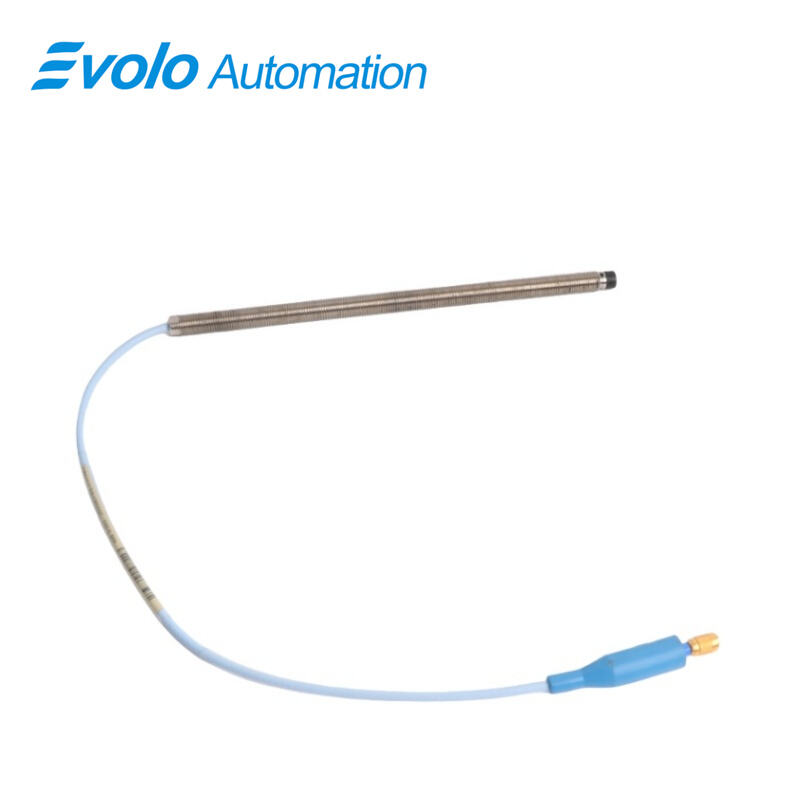

The 330101-00-76-10-02-05 3300 XL 8 mm Proximity Probe is a precision automation sensor engineered for high-accuracy non-contact vibration and displacement measurements on fluid-film bearing machinery. The 330101-00-76-10-02-05 probe features a 2 mm linear range, 3/8-24 UNF probe thread, and 7.6 in overall case length, delivering robust performance in automated monitoring systems. With a 1.0-meter total cable and miniature coaxial ClickLoc connector, the 330101-00-76-10-02-05 3300 XL 8 mm probe ensures stable 50 Ω output resistance and supply sensitivity of less than 2 mV per volt, providing reliable integration into SCADA, DCS, and PLC-based automation platforms. Approved for CSA, ATEX, and IECEx environments, the 330101-00-76-10-02-05 probe is ideal for predictive maintenance, process automation, and industrial condition monitoring where durability and measurement precision are critical.
Applications
Rotating Machinery Vibration Monitoring
The 330101-00-76-10-02-05 probe measures high-frequency vibrations on pumps, compressors, and turbines, providing real-time data for automated condition monitoring systems.
Axial and Radial Shaft Position Measurement
With a 2 mm linear range and 7.6 in case length, the 330101-00-76-10-02-05 3300 XL 8 mm probe accurately monitors rotor displacement for predictive maintenance in industrial automation.
Keyphasor and Speed Reference Signals
The 330101-00-76-10-02-05 probe provides reliable Keyphasor reference and tachometer outputs for automated rotor phase monitoring in process control systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Plug-and-Play Automation Integration
ClickLoc connectors and optional FluidLoc cables of the 330101-00-76-10-02-05 probe allow seamless integration into PLC, DCS, and SCADA systems without additional calibration.
High Accuracy under Extreme Conditions
The 330101-00-76-10-02-05 3300 XL 8 mm probe maintains precision across −52°C to +177°C, making it ideal for harsh industrial environments.
Robust Mechanical Design
TipLoc molding and CableLoc design with 330 N pull strength provide superior mechanical durability for long-term, stable operation.
