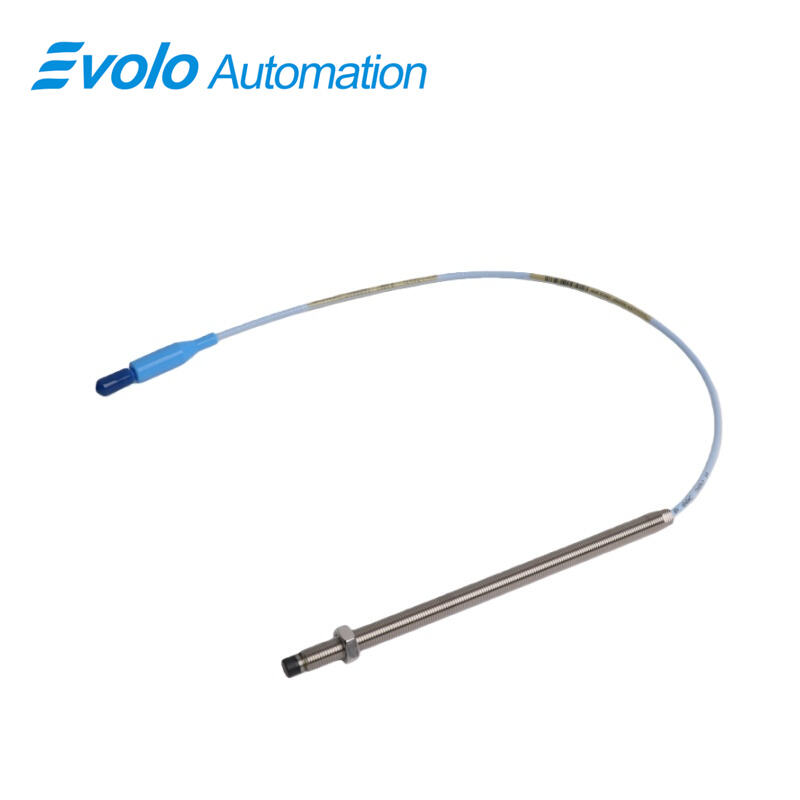

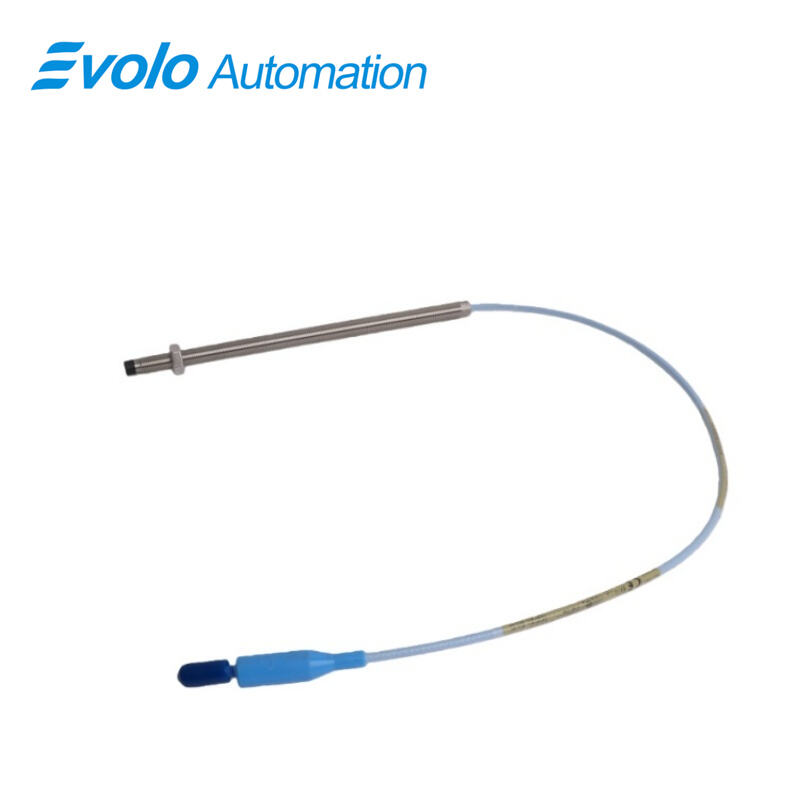

330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-72-10-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe features a 7.2 in case length, 1.0-meter total length, and a 3/8-24 UNF probe thread, providing precise output voltage proportional to the distance from conductive surfaces. Designed for automated monitoring, the 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe captures both static position and dynamic vibration signals. Its FluidLoc cable and ClickLoc miniature coaxial connector ensure secure attachment and prevent oil or fluid leakage into machinery. The probe operates across -52°C to +177°C (-62°F to +350°F) with less than 2 mV change per volt of input, and features 50 Ω output resistance and 2 mm linear range for accurate measurement. Extension cable capacitance is 69.9 pF/m (21.3 pF/ft), supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). Fully compliant with CSA, ATEX, and IECEx approvals, the 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe integrates seamlessly into 3300 XL transducer systems, enabling interchangeability with probes, extension cables, and Proximitor sensors while providing consistent measurement performance in automated industrial applications.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe monitors dynamic shaft vibration on fluid-film bearings using its 2 mm linear range and 50 Ω output resistance. Its operating range of -52°C to +177°C ensures accurate data even under high-temperature conditions, while the miniature coaxial ClickLoc connector delivers reliable signal transmission for precise vibration analysis.

Track Rotor Position in Rotating Machinery
With a total length of 1.0 meter and a case length of 7.2 in, the 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe accurately measures shaft position. The 3/8-24 UNF thread and maximum thread engagement of 0.563 in provide secure mounting for position monitoring in automated systems.

Provide Keyphasor Reference for Speed Measurement
The 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe outputs voltage directly proportional to distance, enabling Keyphasor systems to detect rotational speed. Its supply sensitivity of less than 2 mV per volt change ensures minimal signal deviation during operation.

Monitor Position in Automated Industrial Systems
The 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe supports automation by providing consistent displacement readings. Extension cable capacitance of 69.9 pF/m allows accurate transmission over field wiring up to 1.5 mm² (16–24 AWG).

Specifications

Competitive Advantage

Fluid-Resistant Installation with FluidLoc Cable
The FluidLoc cable in the 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe prevents oil and liquid ingress, maintaining accurate signal output in lubricated or wet environments.

High-Temperature Performance for Industrial Operation
The 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe withstands temperatures from -52°C to +177°C, allowing operation in extreme industrial conditions without affecting the 2 mm linear range or 50 Ω output.

Secure Attachment with Patented TipLoc and CableLoc
The TipLoc and CableLoc designs of the 330101-00-72-10-12-05 3300 XL 8 mm Proximity Probe provide 330 N pull strength, ensuring the probe and cable stay connected during high-vibration operation.
