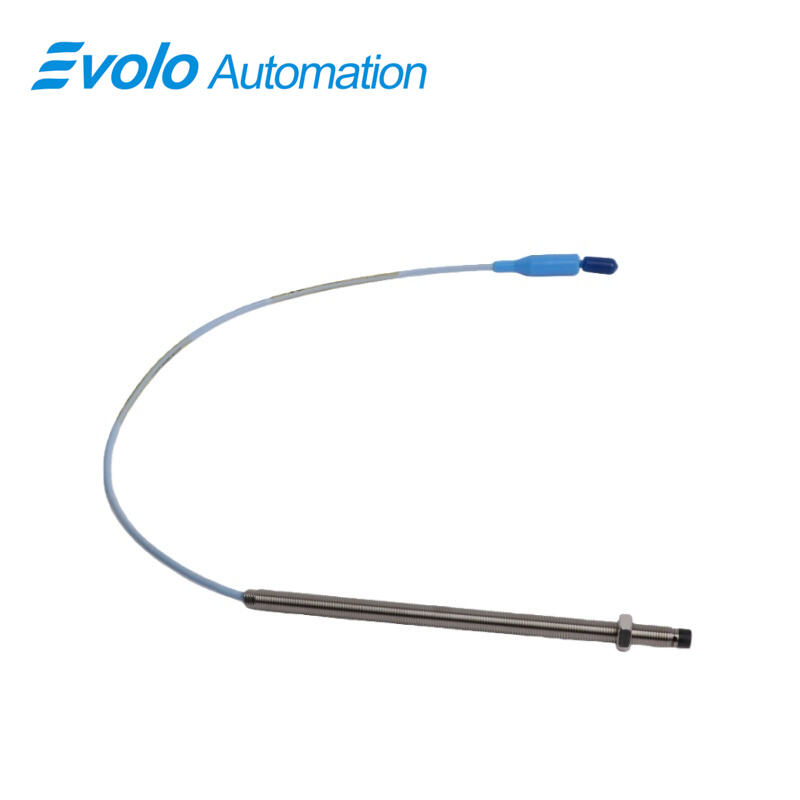

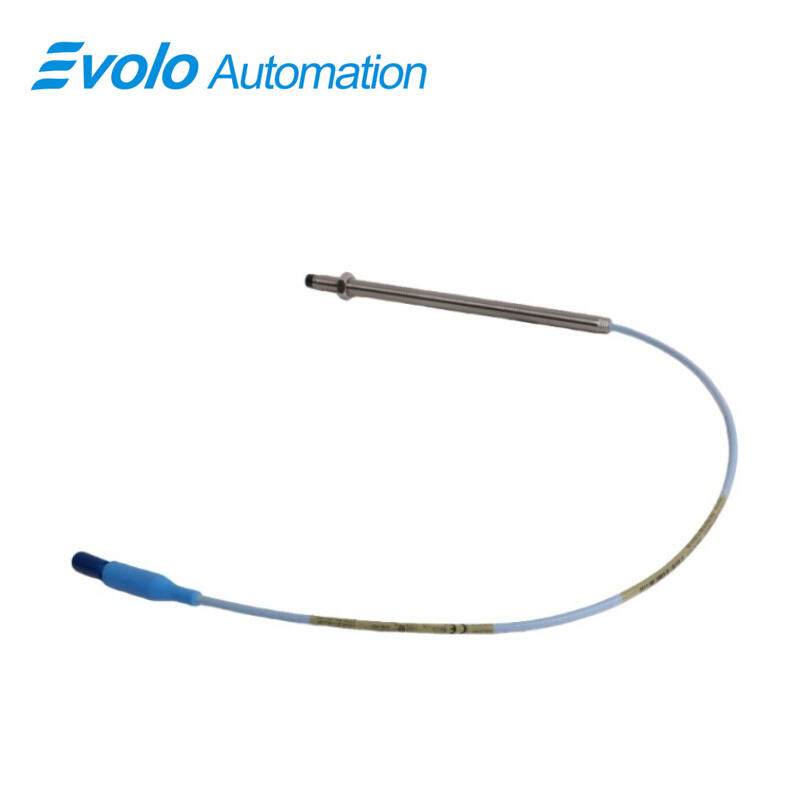

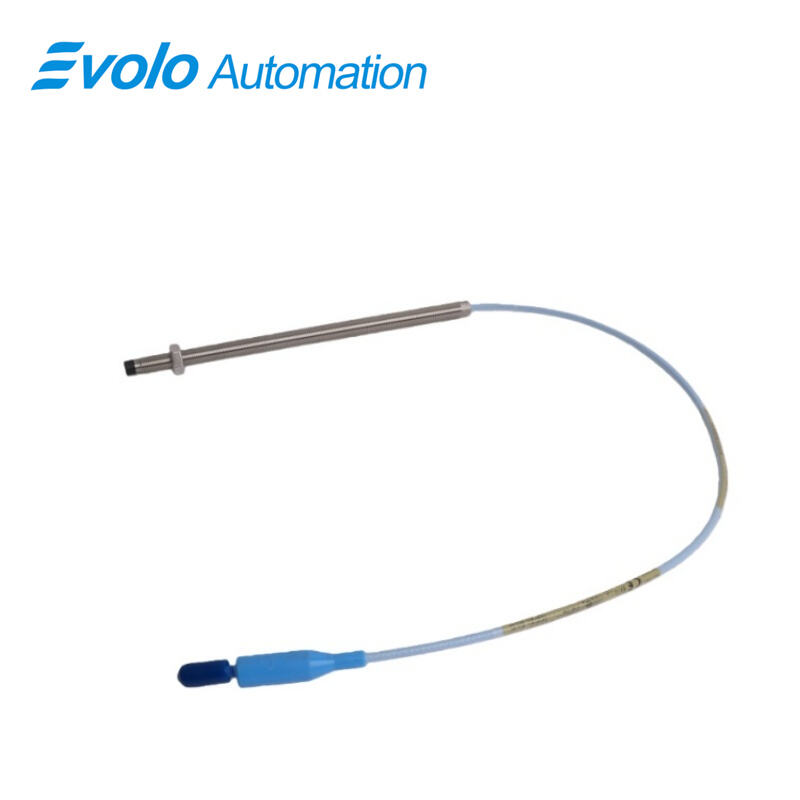

330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-71-05-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe delivers precise, non-contacting measurement of shaft vibration and position in automated machinery. Featuring a 0.5-meter (1.6 ft) standard cable with miniature coaxial ClickLoc connector and connector protector, the 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe supports automated monitoring of fluid-film bearing machines, providing Keyphasor signals for speed and zero-speed detection. Its 2 mm linear range, 50 Ω output resistance, and supply sensitivity under 2 mV per volt allow consistent signal output for process control systems. Constructed with a 3/8-24 UNF probe thread, AISI 304 stainless steel case, and PPS probe tip, the 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe operates in temperatures from -52°C to +177°C (-62°F to +350°F), with field wiring support from 0.2 to 1.5 mm² (16–24 AWG). Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength between probe and cable, while optional FluidLoc cable prevents oil or liquid ingress. The 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe is compatible with 3300-series Proximitor sensors and extension cables, enabling automation upgrades without extensive rewiring.

Applications

Monitor Radial Shaft Vibration
The 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe measures radial vibration on shafts smaller than 50 mm (2 in), using its 2 mm linear range and 7.87 V/mm scale factor to provide precise data for automated machinery control systems.

Measure Axial (Thrust) Position
With a PPS probe tip and 3/8-24 UNF thread, the 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe captures axial shaft displacement on fluid-film bearings, ensuring accurate feedback for process automation and motor protection.

Generate Keyphasor Signals for Speed Detection
The 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe outputs a consistent 50 Ω signal for Keyphasor and tachometer monitoring, enabling automated speed and zero-speed detection on compressors and turbines.

Support Small Target Installations
Its 0.5-meter (1.6 ft) cable with ClickLoc connector and optional FluidLoc cable allows the 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe to operate in tight spaces without signal loss, ideal for retrofitting existing automation systems.

Specifications

Competitive Advantage

Resists Harsh Operating Conditions
The 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe functions between -52°C and +177°C (-62°F to +350°F) and uses an AISI 304 stainless steel case with PPS tip, ensuring long-term performance in chemical and high-humidity environments.

Secures Probe-to-Cable Connection
Patented TipLoc and CableLoc designs on the 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe provide 330 N (75 lbf) pull strength, preventing cable loosening and maintaining reliable data transmission in automated control loops.

Minimizes Signal Degradation
With a supply sensitivity below 2 mV per volt and 50 Ω output resistance, the 330101-00-71-05-01-05 3300 XL 8 mm Proximity Probe delivers consistent measurements over its 0.5 m cable, reducing errors in automated monitoring systems.
