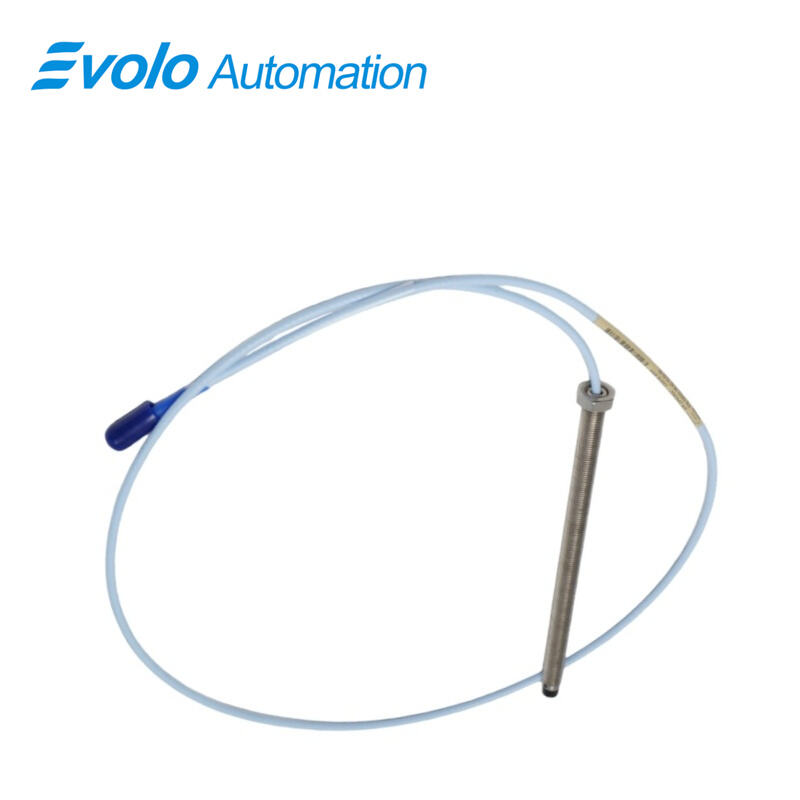

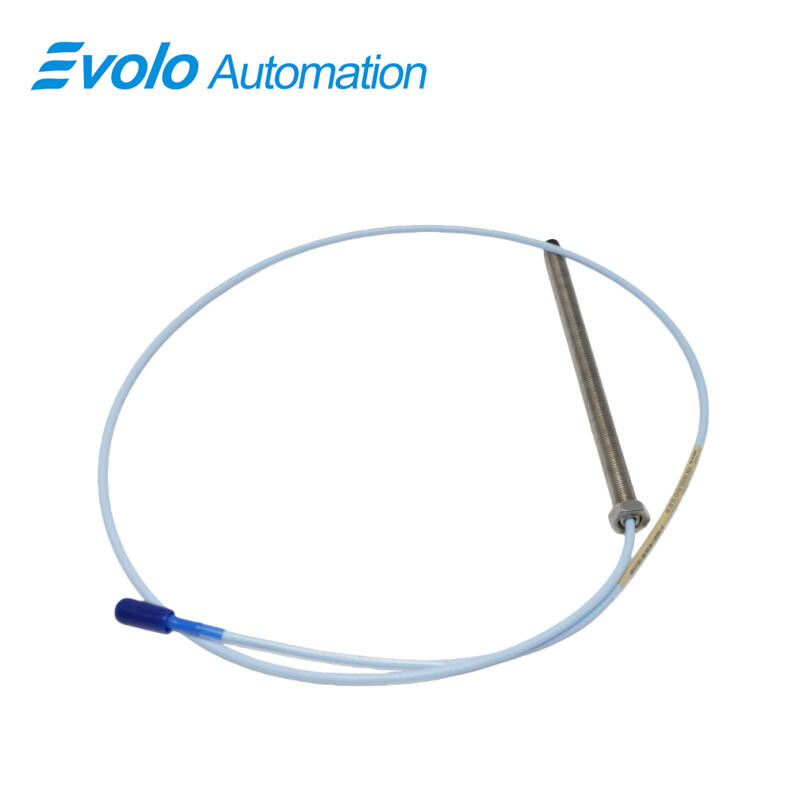

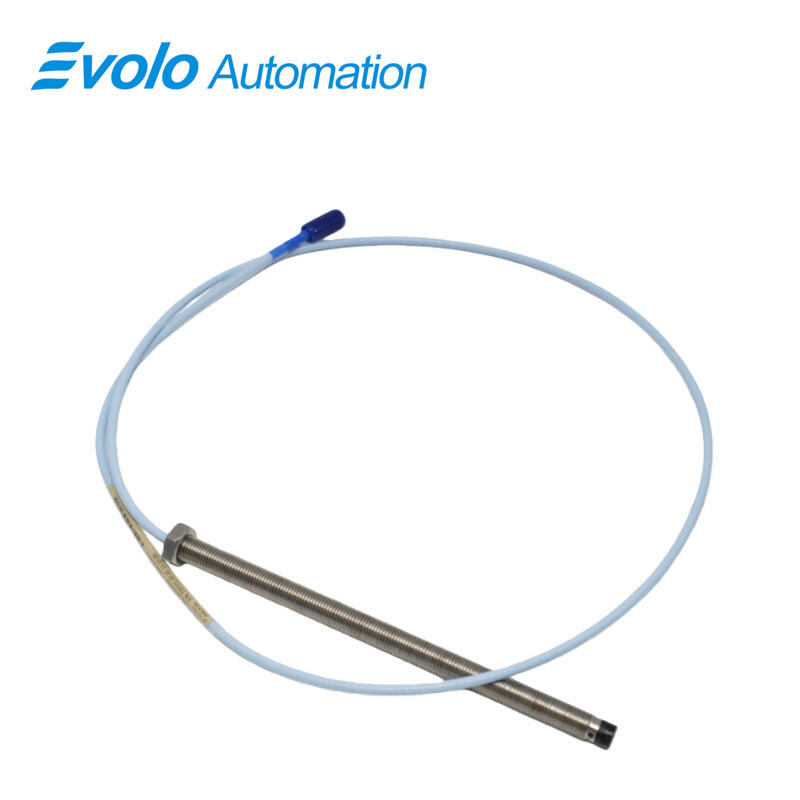

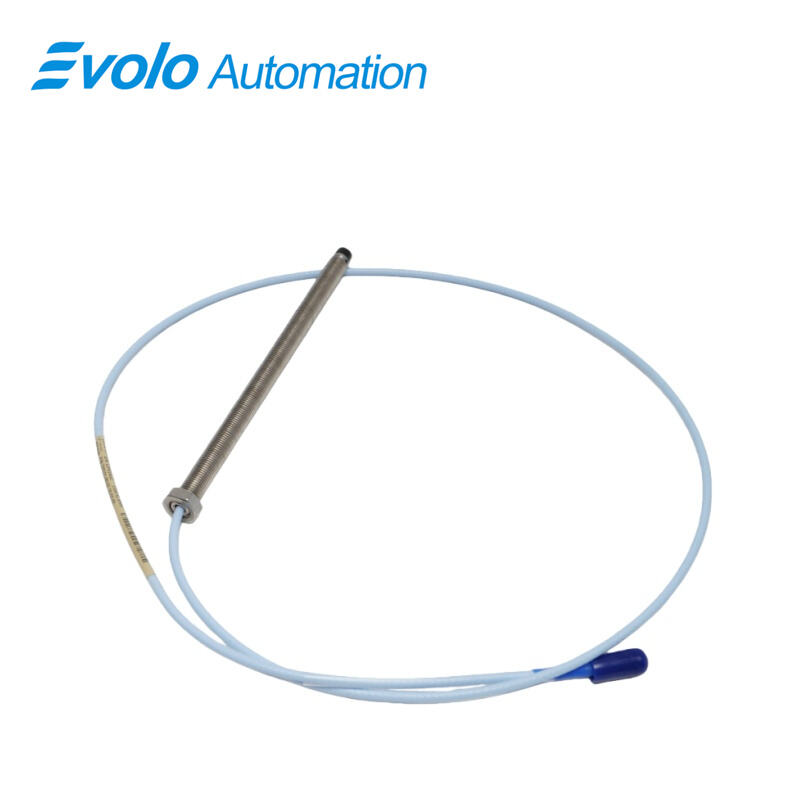

330101-00-65-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-65-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-65-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for vibration and displacement measurements in fluid-film bearing machinery. Featuring a 2 mm linear range (80 mils) and a 1-meter ClickLoc coaxial cable, it produces an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. This enables accurate measurement of both static positions and dynamic vibration, providing critical data for condition monitoring and predictive maintenance.

Constructed with a Polyphenylene Sulfide (PPS) probe tip and AISI 303/304 stainless steel housing, the probe ensures high chemical, thermal, and mechanical durability. The patented TipLoc molding method strengthens the bond between the probe tip and the body, while the CableLoc design delivers 330 N (75 lbf) pull strength, preventing cable detachment under harsh industrial conditions. Optional FluidLoc cables prevent leakage of oil or other fluids through the cable interior, making this probe suitable for high-temperature and high-vibration environments from -52°C to +177°C (-62°F to +350°F).

Fully backward compatible with non-XL 3300 series 5 mm and 8 mm components, this probe allows seamless integration or retrofitting without requiring bench calibration. The CSA, ATEX, and IECEx approvals ensure the probe meets international safety and industrial standards.

Applications

Rotating Machinery Protection
The 330101-00-65-10-02-05 is widely used for shaft vibration and displacement monitoring in turbines, compressors, and large motors. Its 2 mm linear range enables early warning of rotor-to-stator clearance issues and axial migration events, improving equipment uptime.

Hazardous Zone Petrochemical Equipment
Due to CSA, ATEX, and IECEx approvals, the 330101-00-65-10-02-05 is suited for monitoring critical equipment in refineries, LNG terminals, and gas compression facilities where temperature, vibration, and explosive atmosphere compliance are mandatory.

High-Temperature Power Generation Assets
The -52°C to +177°C operating range allows the 330101-00-65-10-02-05 to operate in steam turbines and gas turbines under high load and high temperature conditions, providing reliable non-contact sensing across extreme thermal profiles.

Specifications

Competitive Advantage

High Measurement Accuracy at Wide Temperature Spectrum
With a -52°C to +177°C capability, the 330101-00-65-10-02-05 maintains precision during thermal cycling, outperforming conventional proximity probes limited to narrower temperature envelopes.

Hazardous Area Certifications for Global Deployment
CSA, ATEX, and IECEx approvals allow multinational deployment of the 330101-00-65-10-02-05 in regulated environments, reducing procurement complexity for EPC contractors and OEM automation integrators.

Low Electrical Sensitivity for Stable Monitoring
Supply sensitivity of less than 2 mV per volt change ensures that the 330101-00-65-10-02-05 retains stable output in facilities with fluctuating electrical loads, a common condition in heavy industrial automation.

Robust Mechanical and Electrical Integration
With a secure ClickLoc connector and 1.0 m total length option, the 330101-00-65-10-02-05 supports straightforward cable routing, improved EMI immunity, and reduced maintenance time during system upgrades.

Extended Asset Protection in Predictive Monitoring Ecosystems
By offering a 2 mm linear measurement range and 50 Ω output resistance, the 330101-00-65-10-02-05 enhances automated data acquisition reliability, accelerating the transition from periodic maintenance toward continuous predictive diagnostics.
