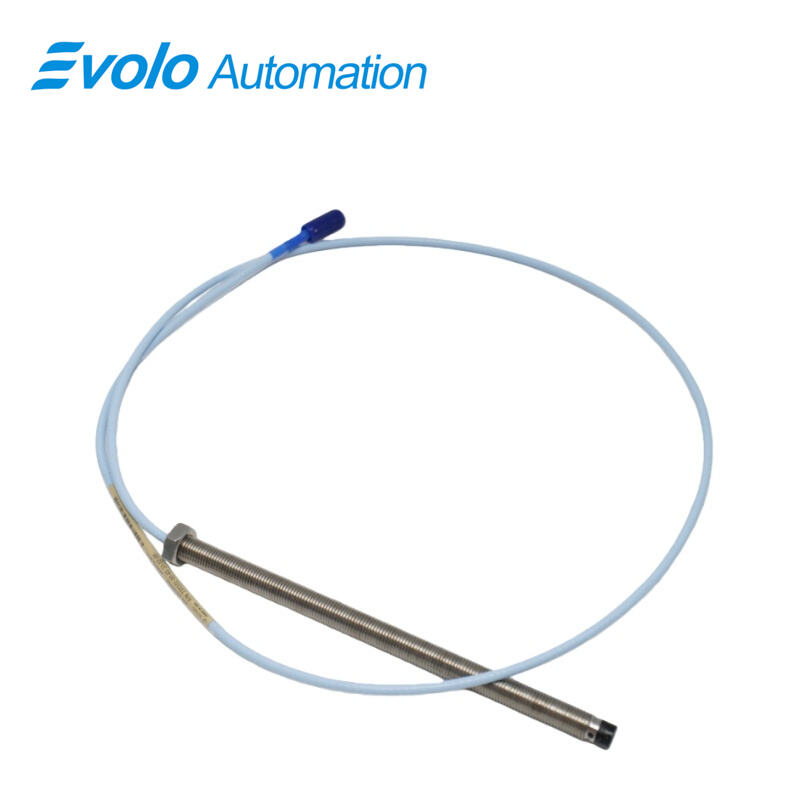

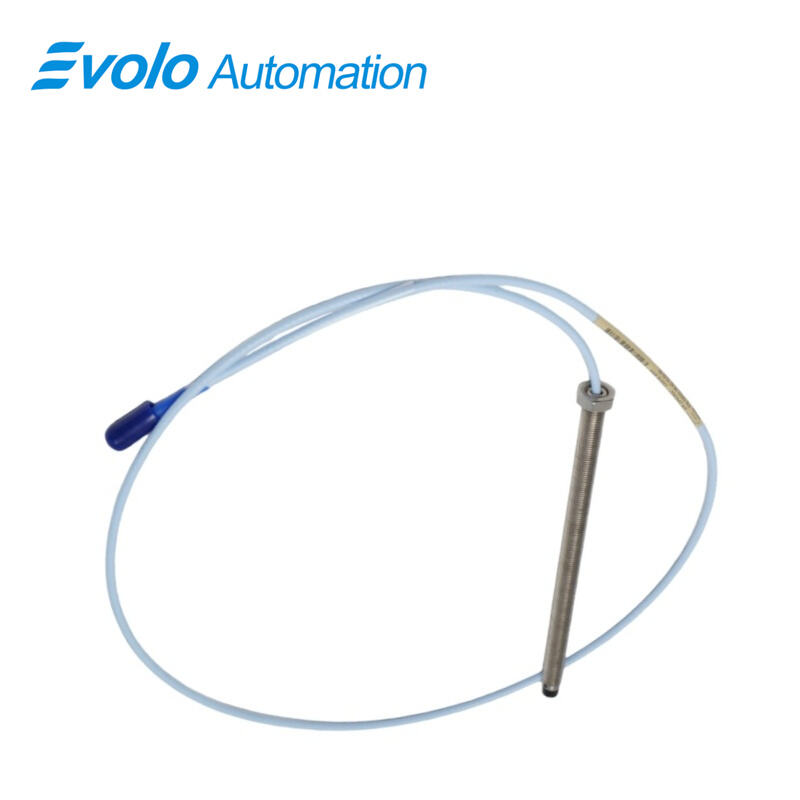

330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-64-10-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe delivers a voltage output directly proportional to the distance between its 8 mm probe tip and a conductive surface, supporting both static position and dynamic vibration measurements. With a 2 mm linear range, 50 Ω output resistance, and a 69.9 pF/m extension cable capacitance, the 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe operates with minimal voltage variation (<2 mV per volt) across its -52°C to +177°C operating range. The 1.0-meter standard length, 3/8-24 UNF threaded case, and miniature coaxial ClickLoc connector allow rapid integration into automated systems. Designed to comply with API 670 mechanical and linear standards, the 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe works seamlessly with extension cables and Proximitor sensors, supporting high-density plant installations. Optional FluidLoc cables prevent fluid ingress, while patented TipLoc and CableLoc features reinforce probe-to-cable attachment, ensuring reliable signal capture in high-speed rotating machinery. This 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe is ideal for vibration monitoring, Keyphasor speed measurement, and axial position tracking in motors, pumps, and compressors within automated control systems.

Applications

Measure Shaft Position in Rotating Machines
The 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe captures precise axial and radial shaft displacement with a 2 mm linear range, supporting accurate position tracking in pumps, motors, and compressors for automated control systems.

Monitor Vibration on Fluid-Film Bearings
With high-frequency response up to 10 kHz and low supply sensitivity (<2 mV per volt), the 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe records dynamic vibration, enabling real-time condition monitoring and predictive maintenance in automated plants.

Provide Keyphasor Signals for Speed Measurement
The 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe outputs DC voltage proportional to the shaft position, allowing integration with Keyphasor sensors to measure rotational speed and synchronize control logic in automation systems.

Integrate into Dense Control Panels
Compact 3/8-24 UNF threaded case and miniature ClickLoc connectors on the 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe allow rapid installation in high-density DIN-rail or panel-mounted automation configurations.

Specifications

Competitive Advantage

Prevent Fluid Ingress with FluidLoc Cable
Optional FluidLoc cable on the 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe blocks oil and liquids from entering the probe, maintaining accurate voltage output in automated lubrication environments.

Enhance Probe-Cable Connection
Patented CableLoc design on the 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe provides 330 N pull strength, ensuring secure attachment during high-speed machine operation and reducing downtime.

Reinforce Probe Tip Bond
TipLoc molding in the 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe strengthens the bond between probe tip and body, delivering reliable position and vibration data in rotating machinery.

Support Long-Term Signal Integrity
The 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe maintains <2 mV change per volt supply variation over -52°C to +177°C, providing consistent signal output under temperature fluctuations in automated plants.

Enable Modular Automation Installation
1.0-meter standard length and API 670 compliance of the 330101-00-64-10-12-05 3300 XL 8 mm Proximity Probe allow seamless integration with extension cables and Proximitor sensors, simplifying setup and expansion in automated monitoring systems.
