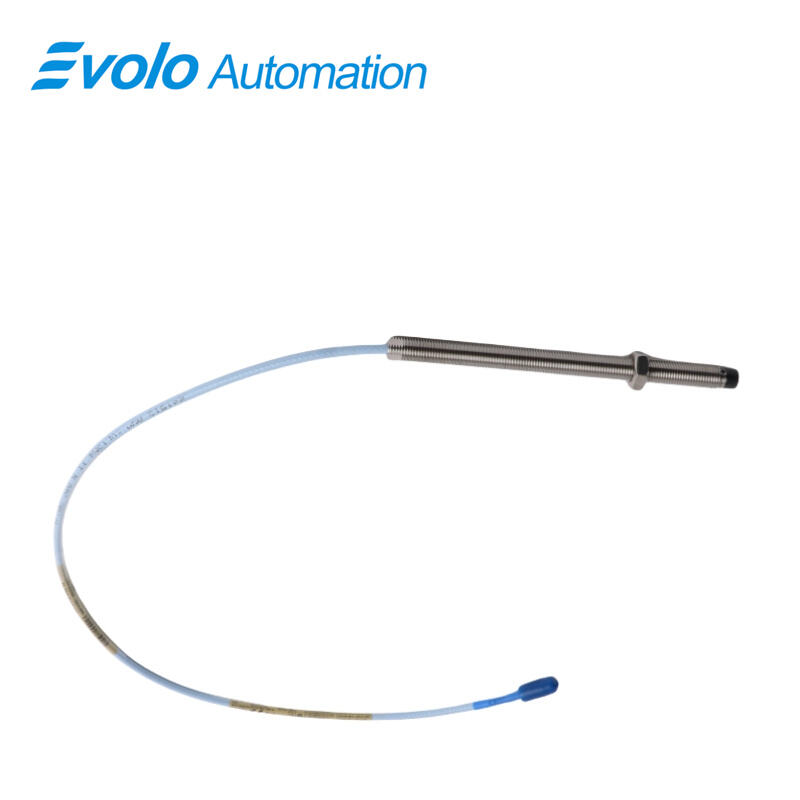

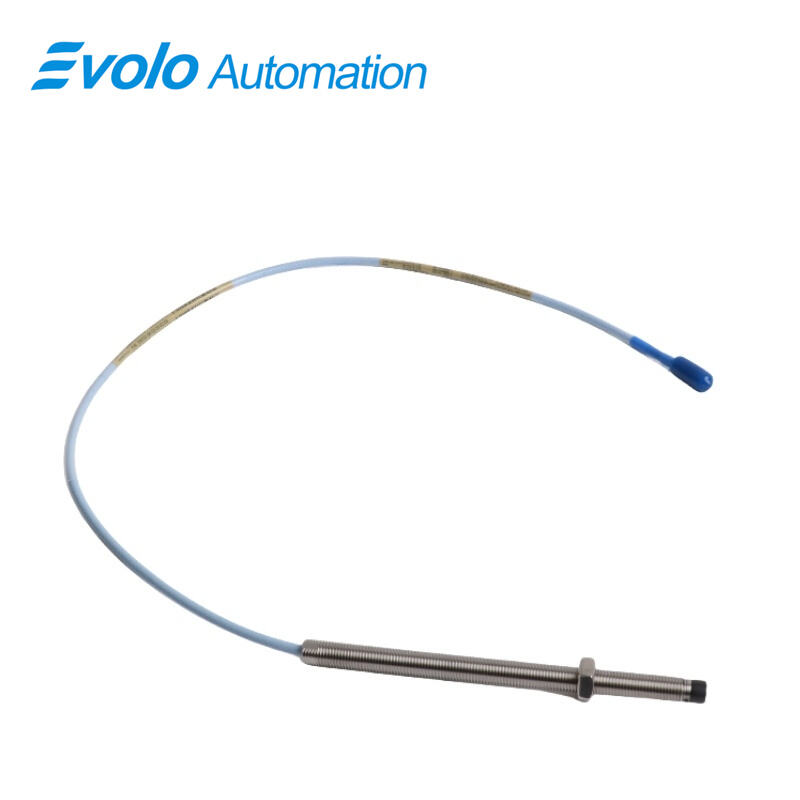

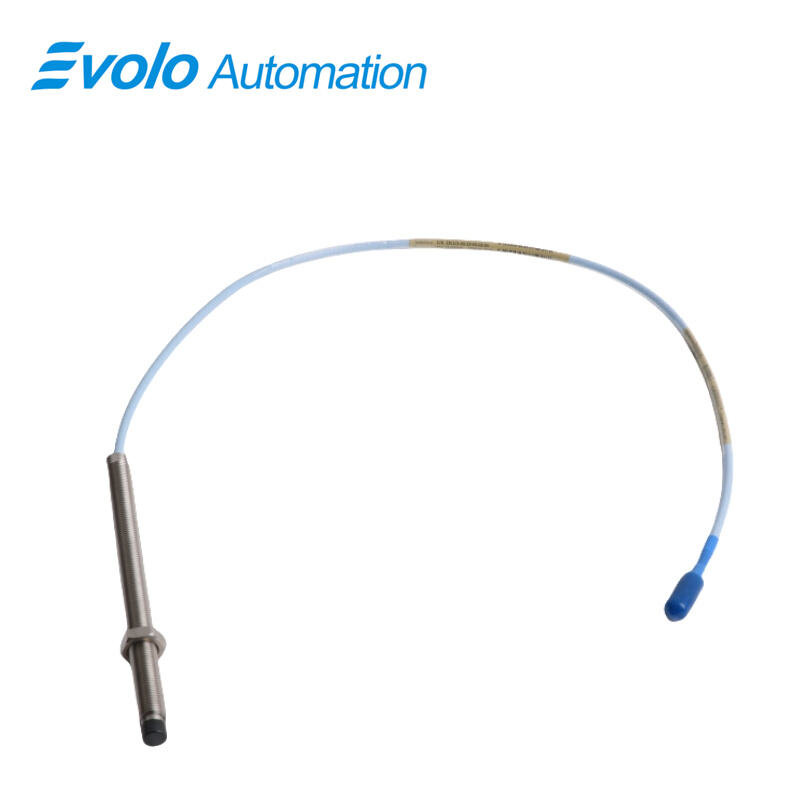

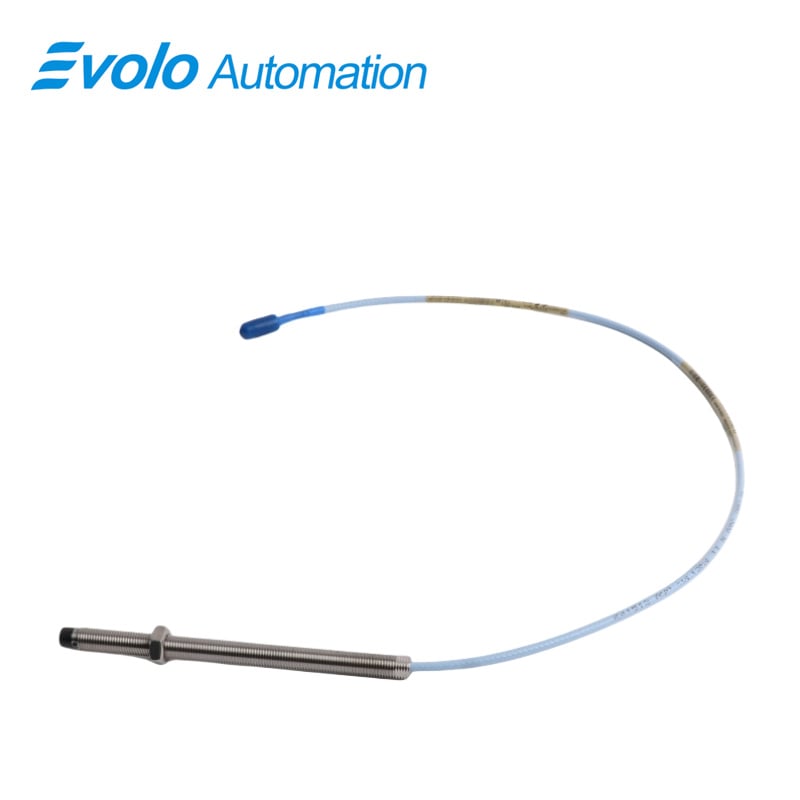

330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-57-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered for automated monitoring of fluid-film bearing machinery. Featuring a 2 mm (80 mils) linear range, 50 Ω output resistance, and supply sensitivity under 2 mV per volt, the 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe delivers reliable static position and dynamic vibration measurements. Its 3/8-24 UNF threaded case with 0.563 in maximum engagement, miniature coaxial ClickLoc connector, and 1.0-meter (3.3 feet) cable enable secure installation and precise signal transmission in automation systems. CSA, ATEX, and IECEx approvals allow safe use in hazardous environments, while operation across -52°C to +177°C (-62°F to +350°F) ensures stability in extreme conditions.

Applications

Axial and Radial Position Monitoring
The 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe is ideal for measuring axial and radial shaft positions in turbines, pumps, and compressors. Its 2 mm (80 mils) linear range and output directly proportional to tip-to-target distance allow automated systems to detect minute displacements. With a 3/8-24 UNF threaded probe case and 0.563 in maximum thread engagement, the 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe ensures stable installation, while its miniature coaxial ClickLoc connector and 1.0-meter (3.3 feet) cable maintain high-fidelity signal transmission.

Vibration Analysis on Fluid-Film Bearings
The 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe provides accurate vibration measurements for predictive maintenance. Extension cable capacitance of 69.9 pF/m (21.3 pF/ft) and 50 Ω output resistance allow automated monitoring systems to capture high-resolution dynamic data. Operating across -52°C to +177°C (-62°F to +350°F), the 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe maintains stability even under extreme thermal conditions, making it suitable for critical industrial automation.

Keyphasor and Speed Signal Generation
The 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe generates precise Keyphasor reference and tachometer signals, supporting automated control of rotational machinery. With supply sensitivity of less than 2 mV per volt, it ensures consistent signal quality, while CSA, ATEX, and IECEx approvals make the 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe suitable for hazardous environments.

Specifications

Competitive Advantage

Robust Mechanical and Electrical Design
The 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe features patented TipLoc molding and CableLoc designs, delivering 330 N (75 lb) pull strength for secure cable and probe tip attachment in high-vibration applications. Its 3/8-24 UNF thread and 0.563 in engagement ensure stable, repeatable mounting.

Wide Temperature and Environmental Tolerance
Operating from -52°C to +177°C and using optional FluidLoc cables, the 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe resists oil ingress, maintains signal integrity, and ensures reliable operation in extreme automation environments.

High Signal Stability and Accuracy
With 50 Ω output resistance, <2 mV per volt supply sensitivity, and extension cable capacitance of 69.9 pF/m, the 330101-00-57-10-02-05 3300 XL 8 mm Proximity Probe delivers highly stable and precise measurements for static and dynamic applications.
