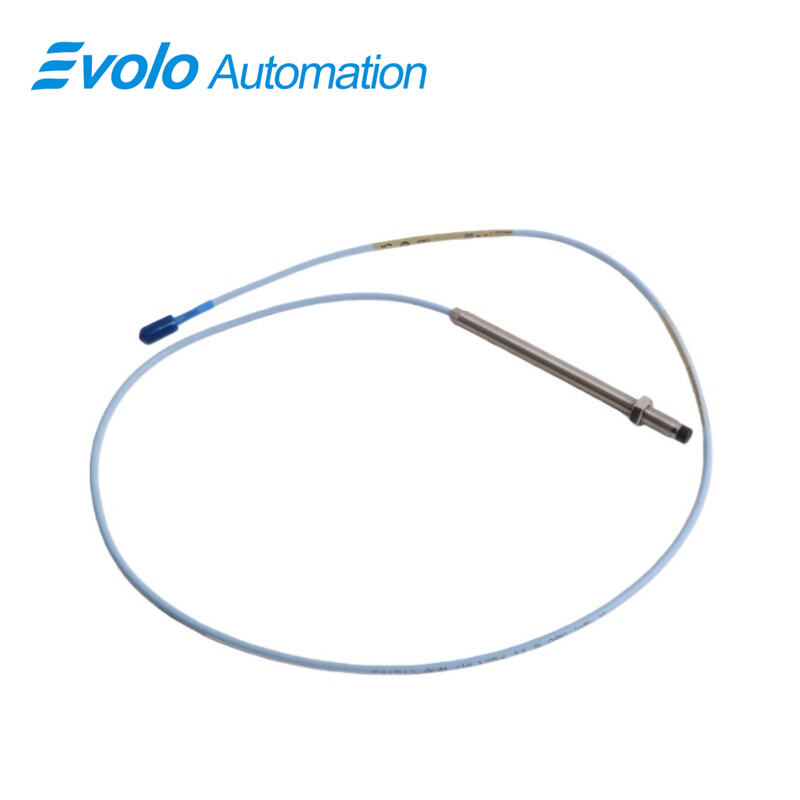

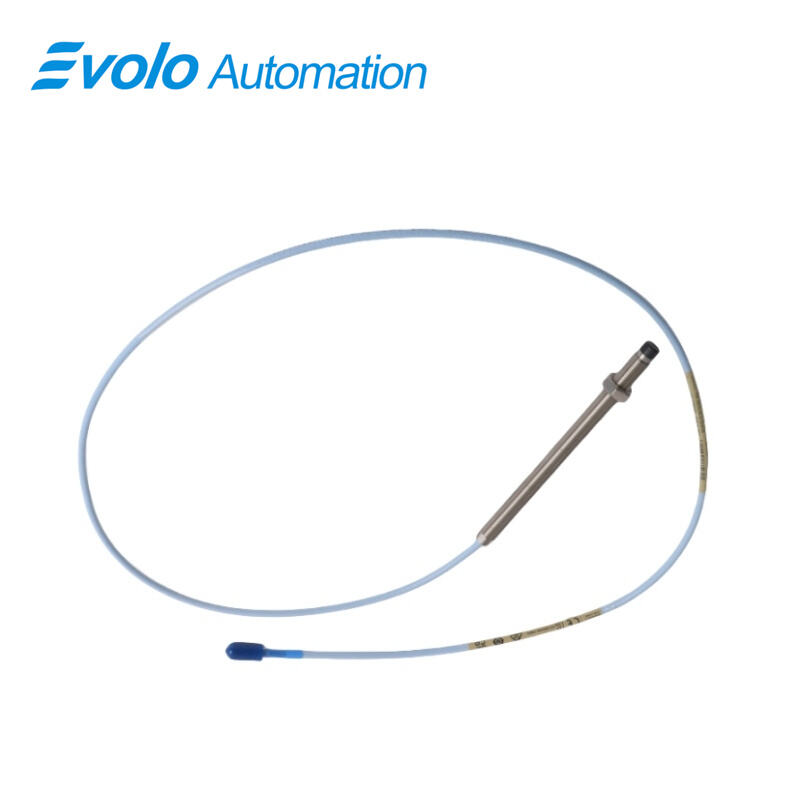

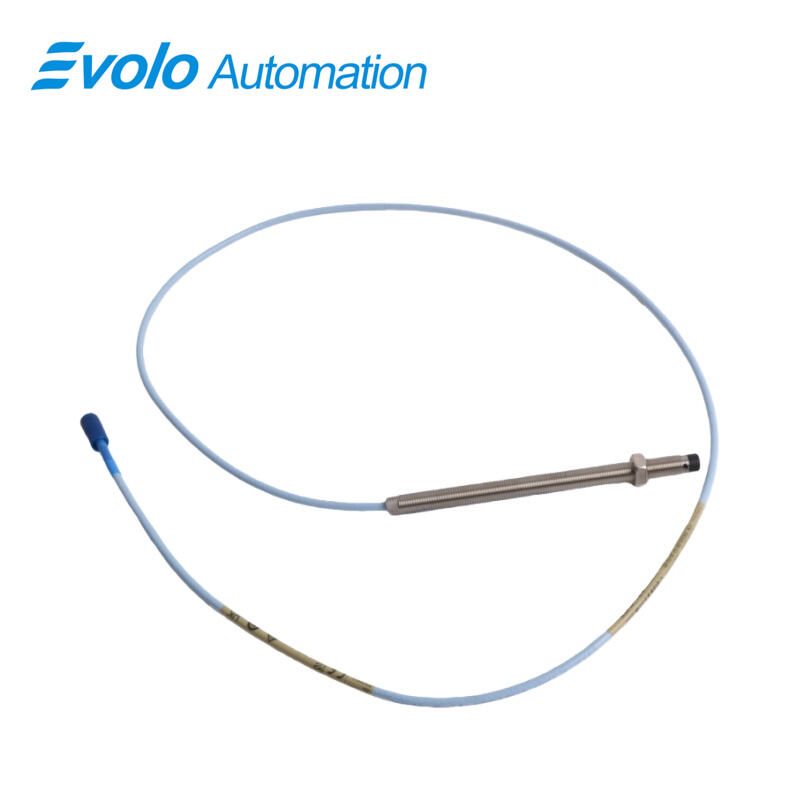

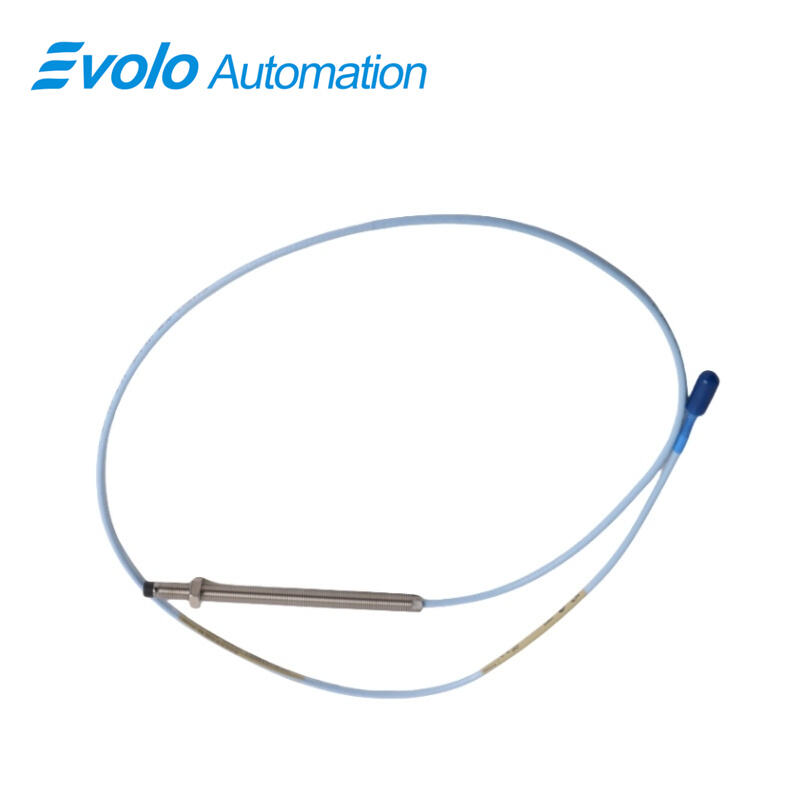

330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-55-20-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe is an eddy current probe designed for industrial automation and rotating machinery monitoring where both position and vibration measurements are required. With a 52.5 in overall case length and 3/8-24 UNF threaded stainless steel body, the 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe allows secure installation on fluid-film bearing machines, turbines, compressors, and motor-driven equipment.

The 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe provides a 2 mm (80 mils) linear range for accurate radial and axial displacement measurements in automated monitoring systems. Equipped with a 2.0 meter FluidLoc cable and miniature coaxial ClickLoc connector, the probe ensures clean signal transfer and prevents oil or fluid leakage. Output resistance is 50 Ω, and supply sensitivity remains below 2 mV per volt to maintain consistent signal quality to Proximitor sensors and monitoring racks.

Operating from -52 °C to +177 °C, the 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe meets CSA, ATEX, and IECEx approvals and is widely applied in automated vibration monitoring, Keyphasor reference, speed measurement, and shaft position monitoring on high-performance rotating machinery.

Applications

Measure radial vibration on long-shaft machinery
The 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe is applied on turbines, compressors, and pumps to capture radial vibration along extended shafts. Its 2 mm linear range and 50 Ω output allow accurate displacement measurement in automated condition monitoring systems.

Monitor axial shaft position on fluid-film bearings
The 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe measures axial displacement on thrust collars and flat targets. The 52.5 in overall case length and 3/8-24 UNF threaded body provide secure mounting in automation panels and machinery frames.

Provide Keyphasor reference signals for speed and phase detection
The 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe delivers Keyphasor signals for rotational speed monitoring, enabling precise phase tracking for automated vibration and position analysis.

Specifications

Competitive Advantage

Supports long-probe installations for extended machinery
The 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe features a 52.5 in case length, allowing monitoring along long shafts where standard probes cannot reach.

Maintains accurate signal in varying supply conditions
With output resistance of 50 Ω and supply sensitivity below 2 mV per volt, the 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe provides reliable signal input for Proximitor sensors and PLC monitoring systems.

Secures probe tip and cable under mechanical stress
The 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe incorporates TipLoc and CableLoc designs, providing 330 N pull strength and preventing accidental detachment during operation.

Complies with hazardous location standards
The 330101-00-55-20-12-05 3300 XL 8 mm Proximity Probe meets CSA, ATEX, and IECEx approvals, enabling safe installation in industrial automation systems exposed to explosive or regulated environments.
