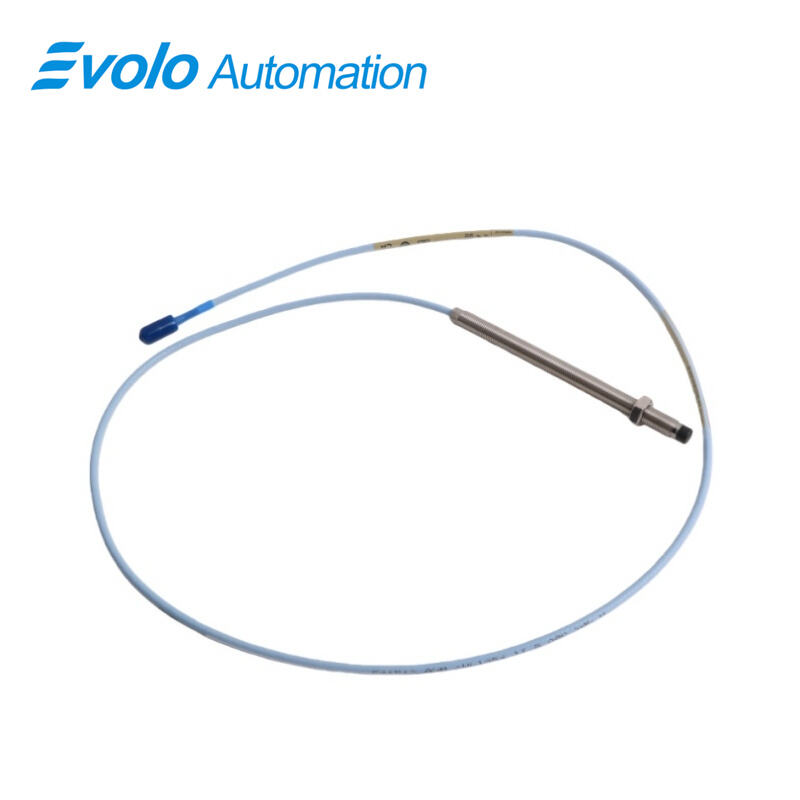

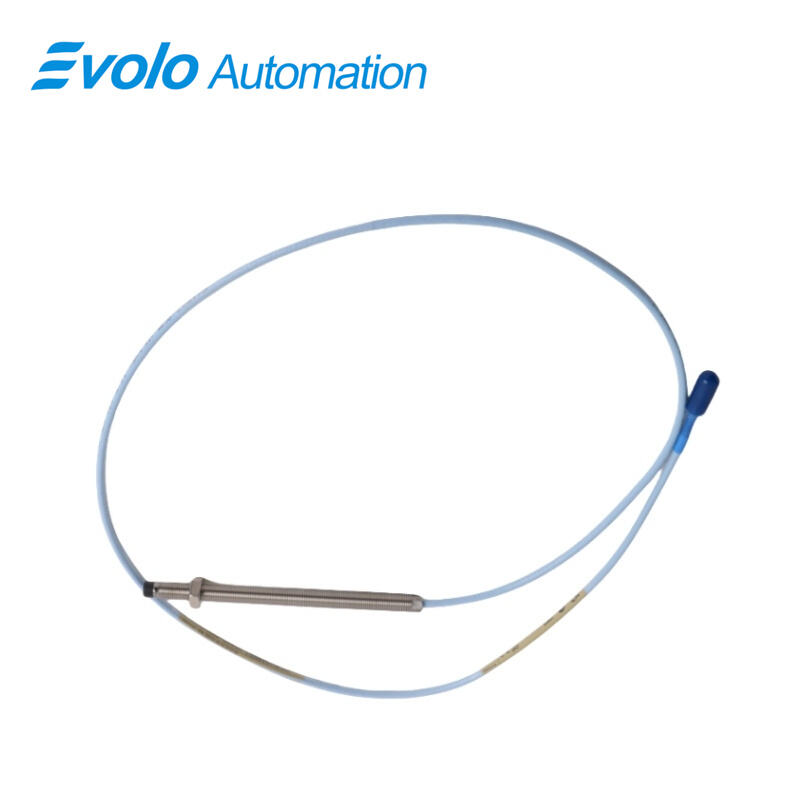

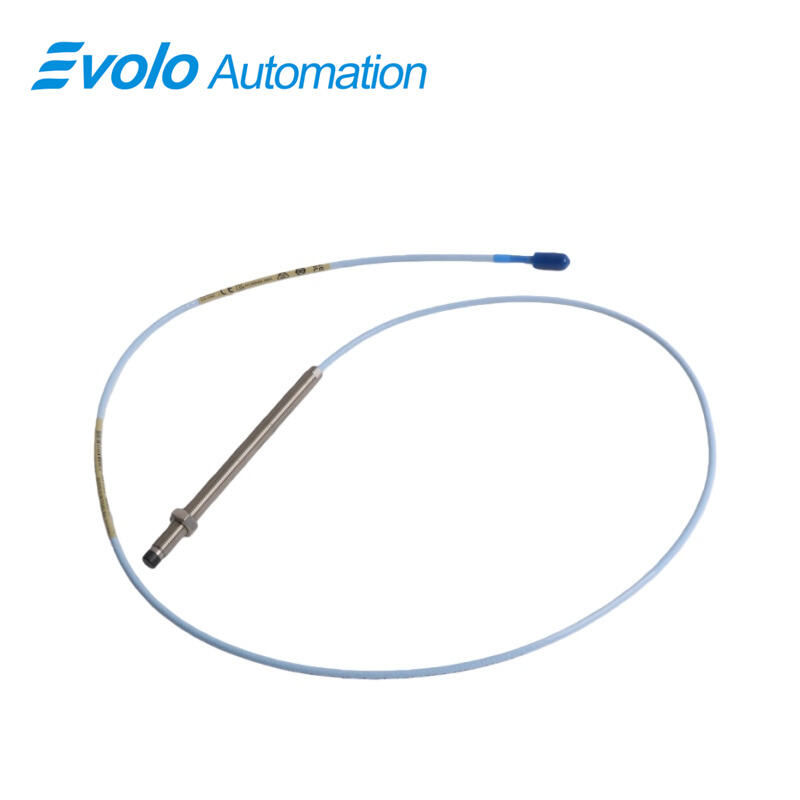

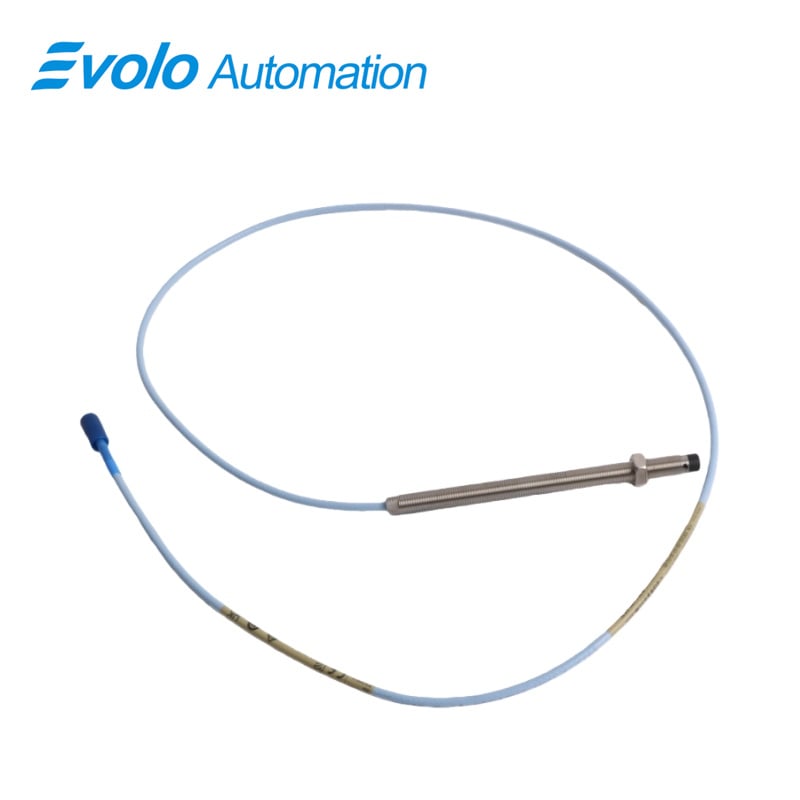

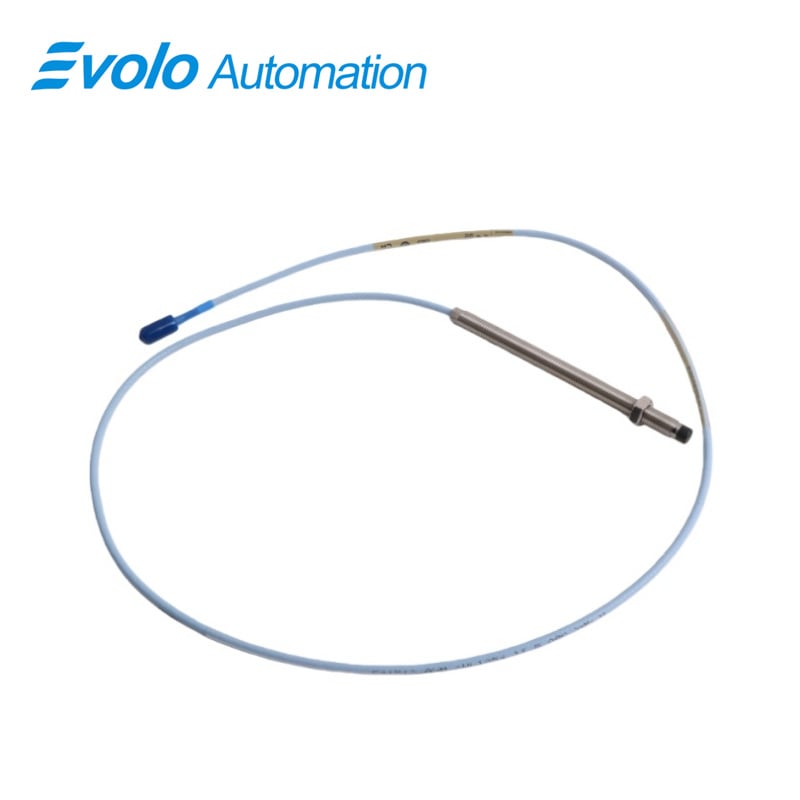

330101-00-52-10-12-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-52-10-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-52-10-12-05 3300 XL 8 mm Proximity Probes delivers a voltage output directly proportional to the distance between the probe tip and conductive surfaces, enabling precise static (position) and dynamic (vibration) measurements. The 330101-00-52-10-12-05 3300 XL 8 mm Proximity Probes features a 5.2 in overall case length and 1.0 meter total cable length with a miniature coaxial ClickLoc connector and optional FluidLoc cable, ensuring secure installation and protection against oil or liquid ingress.

Designed for fluid-film bearing machines, the 330101-00-52-10-12-05 3300 XL 8 mm Proximity Probes supports radial vibration, axial position, Keyphasor reference, and speed monitoring applications. With a 3/8-24 UNF thread, maximum thread engagement of 0.563 in, and a linear range of 2 mm (80 mils), it integrates seamlessly into automated systems. Supply sensitivity is under 2 mV per volt, and output resistance is 50 Ω, ensuring consistent readings. Field wiring supports 16–24 AWG, and extension cable capacitance is 69.9 pF/m (21.3 pF/ft) for reliable signal transmission.

The 330101-00-52-10-12-05 3300 XL 8 mm Proximity Probes complies with CSA, ATEX, and IECEx approvals, supporting automation in industrial process environments. Patented TipLoc and CableLoc designs enhance mechanical durability and cable retention under 330 N (75 lbf) pull, reducing maintenance and ensuring continuous automated operation.

Applications

Measure Radial Vibration on Shafts
Use the 330101-00-52-10-12-05 3300 XL 8 mm Proximity Probes to monitor radial vibration on fluid-film bearing machines with shafts under 50 mm. Linear range of 2 mm (80 mils) allows precise gap measurements, enhancing real-time monitoring.

Axial Position Detection
The probe’s 1.0 mm recommended gap and robust ClickLoc connector allow accurate thrust position measurements on rotating machinery.

Keyphasor Reference Signal Generation
With stable output and 50 Ω output resistance, the 330101-00-52-10-12-05 3300 XL 8 mm Proximity Probes provides reliable Keyphasor signals for tachometer synchronization and speed monitoring.

Integration in Restricted Spaces
Compact 5.2 in case length and FluidLoc cable allow installation in tight counterbores or sideview restrictions without compromising measurement accuracy.

Specifications

Competitive Advantage

Enhanced Cable Retention
Patented CableLoc design provides 330 N (75 lbf) pull strength, reducing probe disconnections in automated operations.

Robust Probe Tip Bond
TipLoc molding ensures secure attachment of the probe tip to the body, supporting repetitive vibration measurement without mechanical degradation.

Flexible Automation Integration
Backward compatible with other 5 mm and 8 mm 3300 series components, the 330101-00-52-10-12-05 3300 XL 8 mm Proximity Probes allows seamless upgrades without changing extension cables or Proximitor sensors.

High-Temperature and Chemical Tolerance
Operating range -52°C to +177°C (-62°F to +350°F) and FluidLoc cable option enable long-term deployment in process environments with potential oil or chemical exposure.

Standardized Output for System Compatibility
Average scale factor ensures predictable signal per mm, allowing integration with existing monitoring systems without recalibration.
