Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-50-15-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
5.0 in |
|
Total Length Option: |
1.5 meter (4.9 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
20.5x22.4x3.3cm |
|
Weight: |
0.14kg |
Description

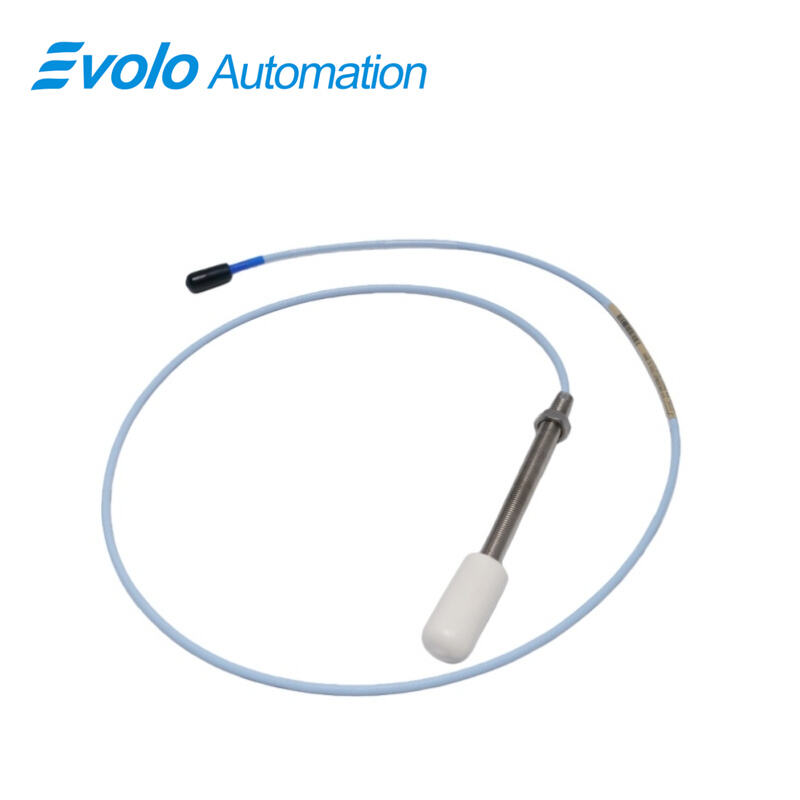

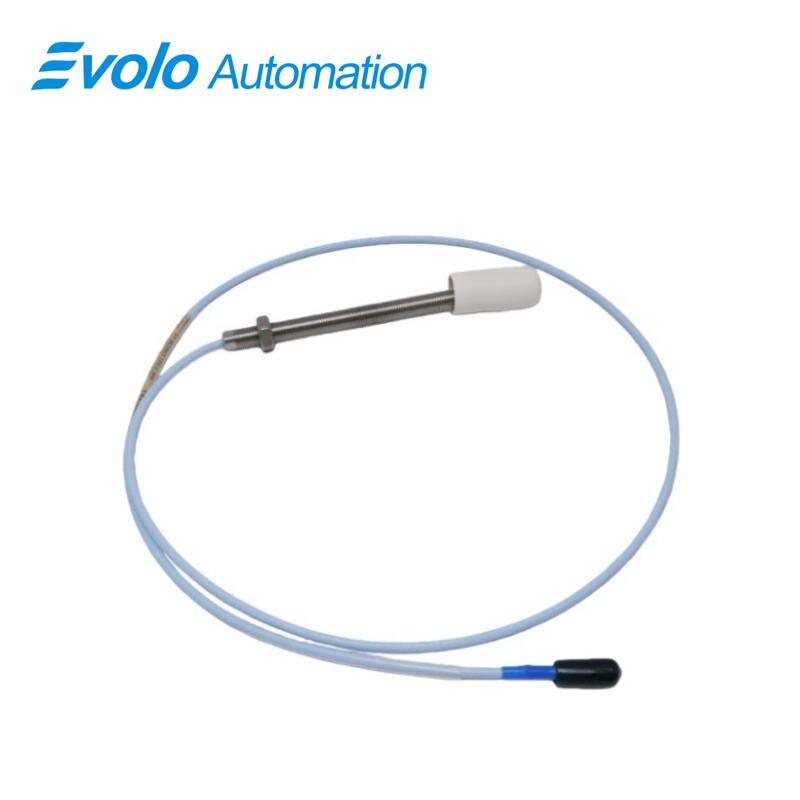

The 330101-00-50-15-02-05 3300 XL 8 mm Proximity Probe is a high-precision industrial automation sensor designed for dynamic vibration and static position monitoring on critical rotating machinery. The 330101-00-50-15-02-05 probe provides a linear output proportional to shaft-to-probe distance, making it ideal for turbines, compressors, pumps, and fluid-film bearing equipment where predictive maintenance and automated trip protection are essential. Featuring 3/8-24 UNF threaded mounting, 5.0 in case length, 1.5 m total probe length, and operation across −52°C to +177°C, the 330101-00-50-15-02-05 probe integrates seamlessly into DCS, SCADA, and condition monitoring systems. Its patented TipLoc and CableLoc designs deliver robust tip bonding and 330 N pull strength, while optional FluidLoc cables prevent oil or liquid ingress, ensuring reliable performance for fully automated industrial environments.
Applications
Turbine Shaft Vibration Monitoring
The 330101-00-50-15-02-05 probe measures high-speed turbine rotor vibration within 2 mm linear range and −52°C to +177°C operation, delivering reliable Keyphasor and speed reference signals into automated DCS systems.
Compressor Bearing Position Control
In fluid-film compressors, the 330101-00-50-15-02-05 probe uses 3/8-24 UNF threading and 1.5 m total length to track axial shaft movement, enabling predictive maintenance and reducing unplanned downtime.
Industrial Pump Displacement Monitoring
The 330101-00-50-15-02-05 probe provides precise shaft displacement feedback with ClickLoc connectors and optional FluidLoc cable for oil leak protection, integrating easily with automation platforms for process optimization.
Keyphasor & Zero-Speed Detection
With 50 Ω output resistance and <2 mV/V supply sensitivity, the 330101-00-50-15-02-05 probe delivers stable Keyphasor signals and tachometer references compatible with modern automated monitoring systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Extended Probe Length for Flexible Mounting
The 330101-00-50-15-02-05 probe’s 1.5 m total length and 5.0 in case length allow versatile installation in large machinery housings, reducing retrofitting complexity in automation upgrades.
High Thermal Reliability
Operating from −52°C to +177°C, the 330101-00-50-15-02-05 maintains measurement accuracy in turbines, compressors, and pumps under extreme thermal cycling.
Robust Mechanical Bonding
Patented TipLoc and CableLoc designs provide 330 N pull strength, minimizing mechanical failure in high-vibration industrial environments.
