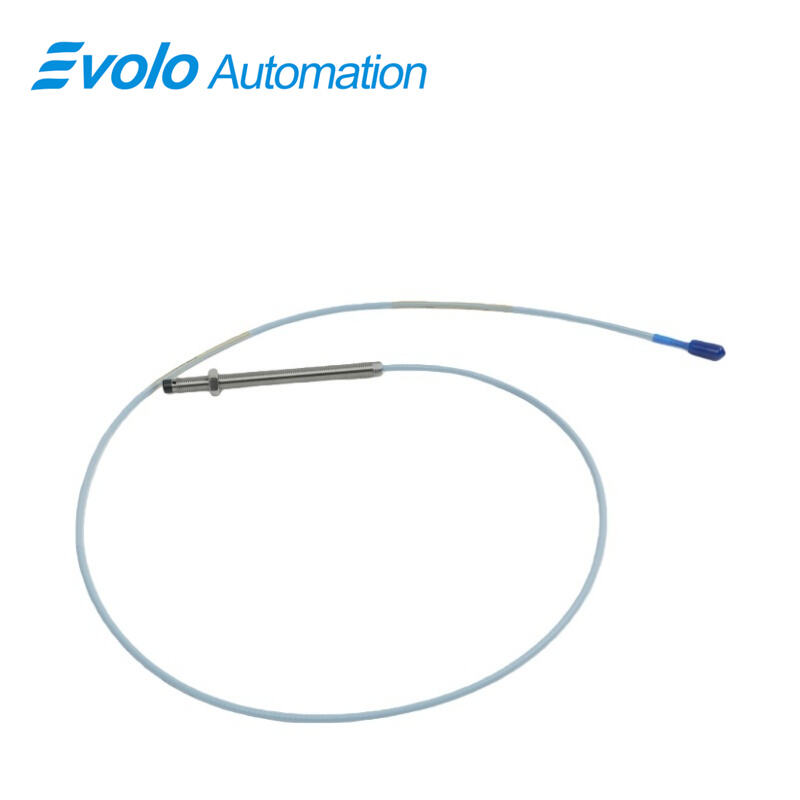

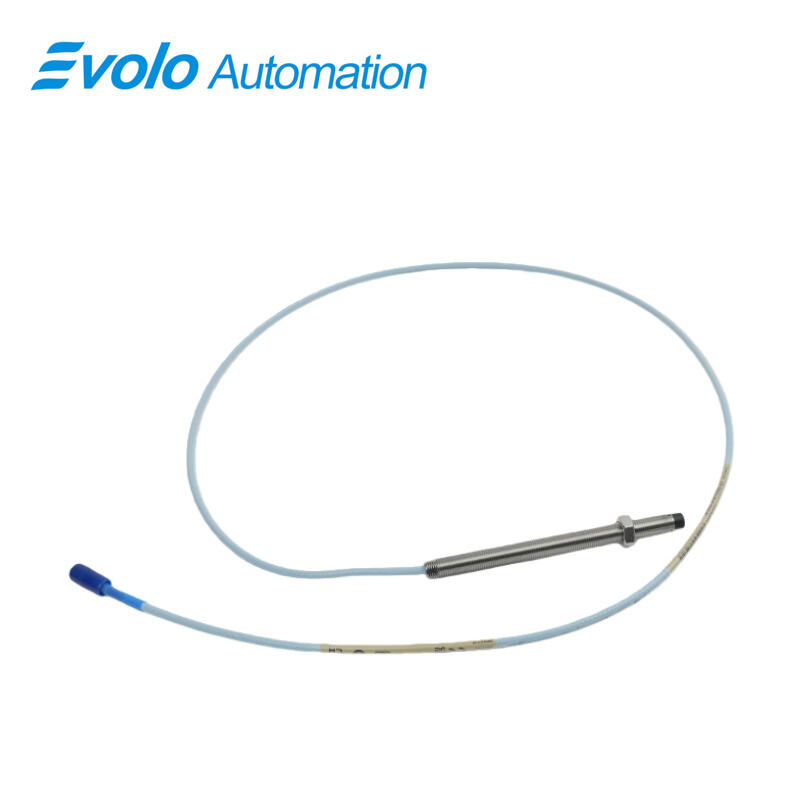

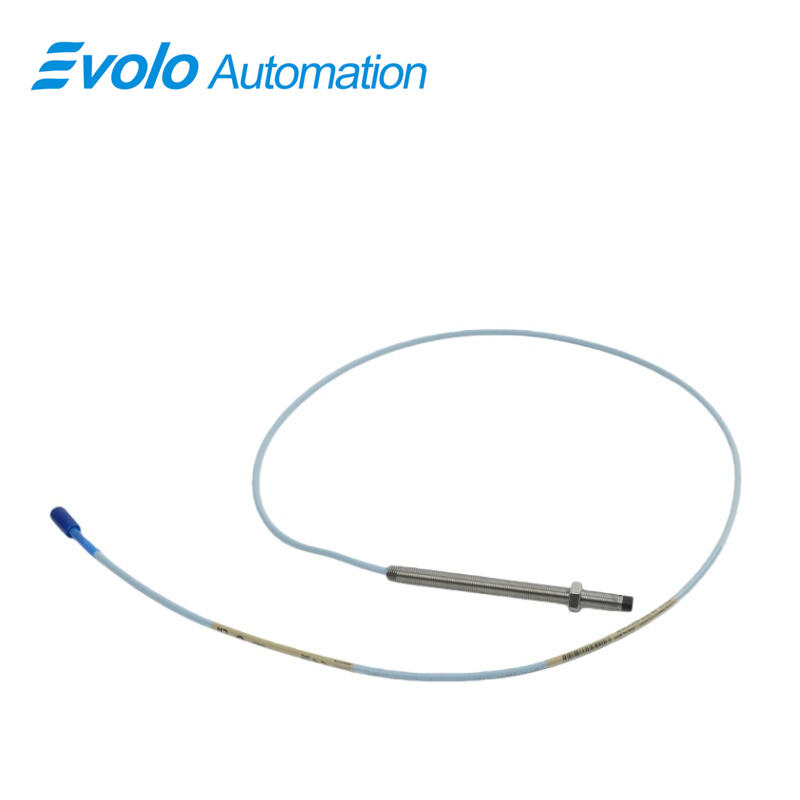

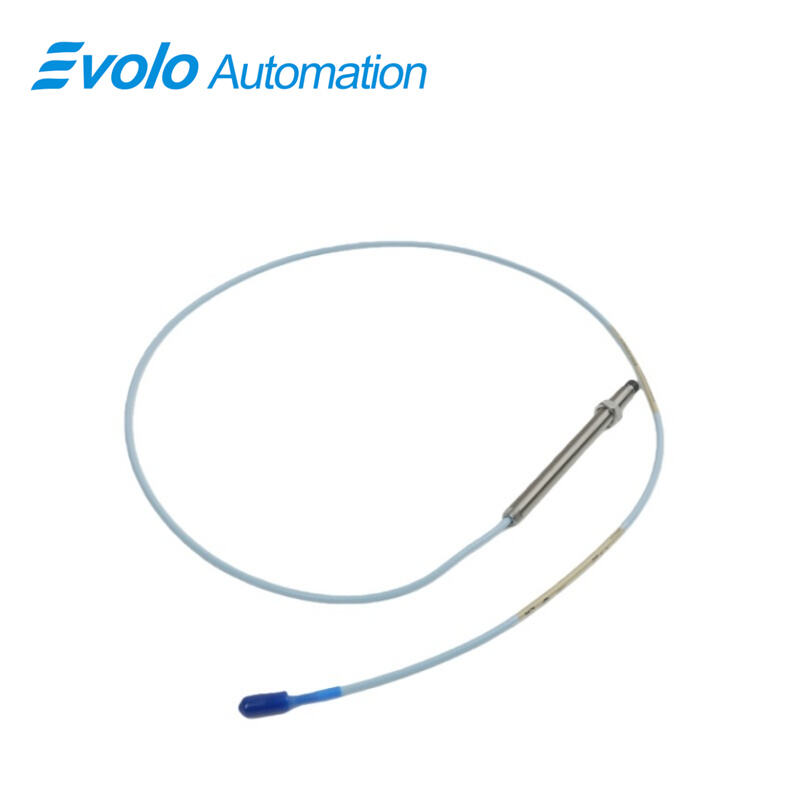

330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-45-05-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for advanced industrial automation and machinery monitoring. The 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe produces an output voltage directly proportional to the distance between the probe tip and the measured conductive surface, enabling accurate static (position) and dynamic (vibration) measurement. With a 2 mm (80 mils) linear range, an operating temperature range from -52°C to +177°C (-62°F to +350°F), and a 3/8-24 UNF threaded case, the 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe is ideal for monitoring compact fluid-film bearing machines where precision and reliability are critical. Its miniature ClickLoc coaxial connector with protector ensures robust signal transmission, while the patented TipLoc and CableLoc designs provide superior mechanical stability with 330 N (75 lb) pull strength, securing the probe tip and cable in demanding industrial environments. Optional FluidLoc cables prevent oil or other fluid ingress, maintaining signal integrity over long-term operation. Fully compliant with API 670 standards, the 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe is backward compatible with non-XL 3300 series 5 mm and 8 mm transducer components, enabling seamless integration, cost-effective upgrades, and uninterrupted automation system performance. The 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe ensures precise, durable, and versatile monitoring for industrial compressors, turbines, pumps, and other high-speed rotating machinery.

Applications

Radial Vibration Measurement
The 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe monitors radial vibrations on shafts as small as 50 mm in diameter, supporting predictive maintenance in automated industrial systems.

Axial (Thrust) Position Sensing
Using its 2 mm linear range, the 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe accurately measures axial shaft movements, enabling high-precision control in fluid-film bearing machines.

Keyphasor and Rotor Speed Detection
The 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe provides reliable Keyphasor signals for phase reference, rotor speed monitoring, and automated control feedback in critical rotating machinery.

Installation in Compact Spaces
With its 0.5-meter cable and compact design, the 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe fits into tight counter bore, side-view, and reverse-mount installations, enhancing automation in limited-space machinery environments.

API 670-Compliant System Upgrades
The 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe is fully interchangeable with non-XL 3300 series 5 mm and 8 mm components, supporting rapid upgrades and integration into existing automated monitoring systems.

Specifications

Competitive Advantage

High-Precision Linear Output
The 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe delivers accurate 2 mm (80 mils) linear range measurements, ensuring precise detection of static and dynamic movements in automated industrial applications.

Extreme Temperature and Material Resistance
Operating between -52°C to +177°C, the 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe features a PPS probe tip and stainless steel case for superior chemical and thermal resistance.

Superior Mechanical Bonding
Patented TipLoc and CableLoc designs provide 330 N (75 lb) pull strength in the 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe, ensuring reliable long-term operation even under vibration and harsh industrial conditions.

Compact and Flexible Installation
The 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe supports side-view, reverse-mount, and counter bore configurations, ideal for space-constrained automation setups.

Seamless Compatibility and Upgrade Path
Backward compatible with 3300 series 5 mm and 8 mm components, the 330101-00-45-05-01-00 3300 XL 8 mm Proximity Probe allows cost-effective upgrades and straightforward integration into automated industrial monitoring systems.
