330101-00-40-10-01-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-40-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

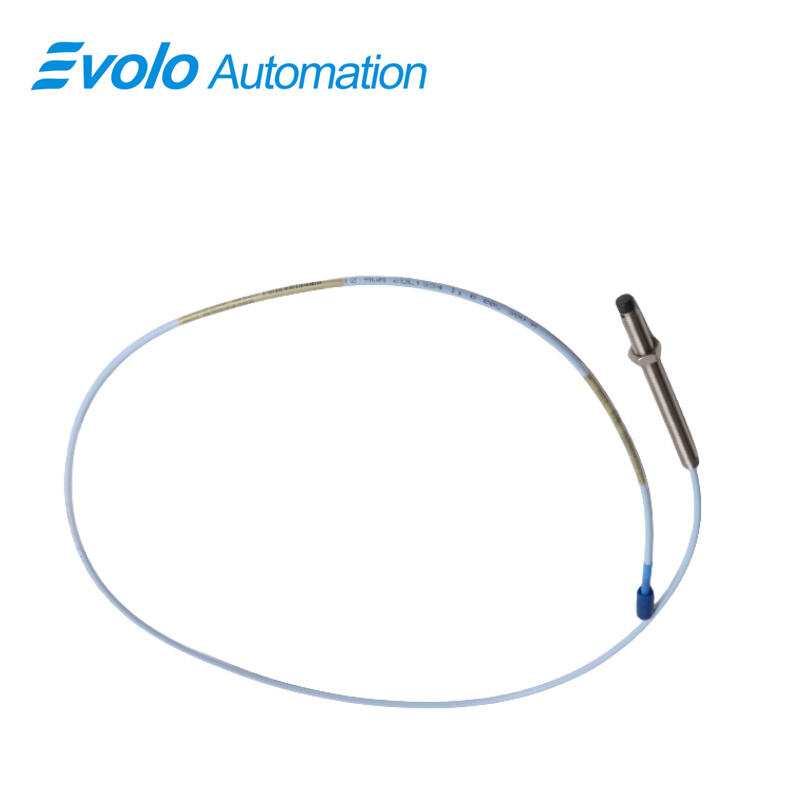

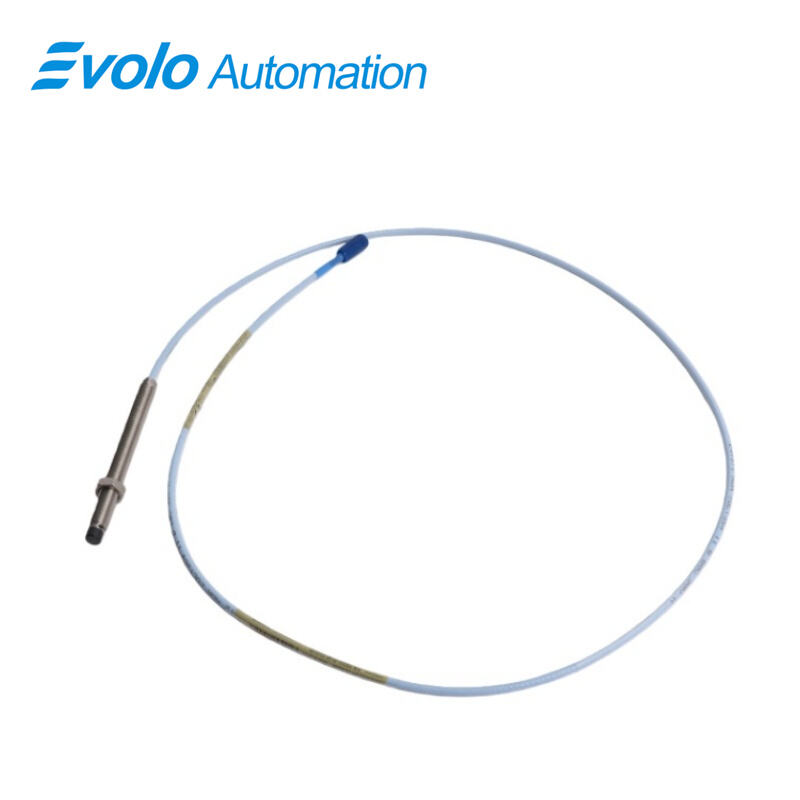

The 330101-00-40-10-01-05 3300 XL 8 mm Proximity Probe is an advanced automation sensor designed for precise position and vibration monitoring in industrial machinery. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 330101-00-40-10-01-05 ensures accurate, real-time measurements on fluid-film bearing machines, reciprocating compressors, and turbine shafts. This probe supports field wiring from 0.2 to 1.5 mm² (16–24 AWG), operates reliably across −52°C to +177°C (−62°F to +350°F), and is compatible with CSA, ATEX, and IECEx-approved automation systems. The probe includes a miniature coaxial ClickLoc connector with connector protector and a 1.0-meter (3.3 feet) standard cable, ensuring secure, durable connections.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330101-00-40-10-01-05 3300 XL 8 mm Proximity Probe provides precise non-contacting vibration measurements on fluid-film bearings. With a linear range of 2 mm (80 mils) and supply sensitivity less than 2 mV per volt change, the probe accurately captures dynamic displacement in real time, ensuring reliable automated monitoring and predictive maintenance.

Axial Position Measurement for Turbines
Used in turbine automation systems, the 330101-00-40-10-01-05 probe measures axial (thrust) position with high precision. Its operating temperature range of −52°C to +177°C ensures stable performance in extreme environments, while the ClickLoc connector with protector provides secure and consistent integration into plant monitoring systems.

Rod Drop and Position Detection in Compressors
The 330101-00-40-10-01-05 3300 XL 8 mm Proximity Probe is ideal for reciprocating compressors, measuring rod drop or rod position. Its output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m (21.3 pF/ft) ensure minimal signal loss, supporting high-speed data acquisition in automated control systems.

Keyphasor and Speed Measurements
In automated industrial monitoring systems, the 330101-00-40-10-01-05 probe provides accurate Keyphasor reference signals for rotational speed measurement. The field wiring capability of 0.2 to 1.5 mm² (16–24 AWG) ensures compatibility with various control system interfaces.

Specifications

Competitive Advantage

Robust Environmental Resistance
The 330101-00-40-10-01-05 probe operates reliably from −52°C to +177°C (−62°F to +350°F) and withstands industrial environments, making it ideal for automation systems in harsh conditions.

High Mechanical Durability
The patented CableLoc design provides 330 N (75 lbf) pull strength, securing the 330101-00-40-10-01-05 probe cable to prevent disconnections or signal loss in automated operations.

Precision and Signal Integrity
With extension cable capacitance of 69.9 pF/m and output resistance of 50 Ω, the 330101-00-40-10-01-05 3300 XL 8 mm Proximity Probe maintains accurate vibration and position measurements for automated monitoring and predictive maintenance systems.
