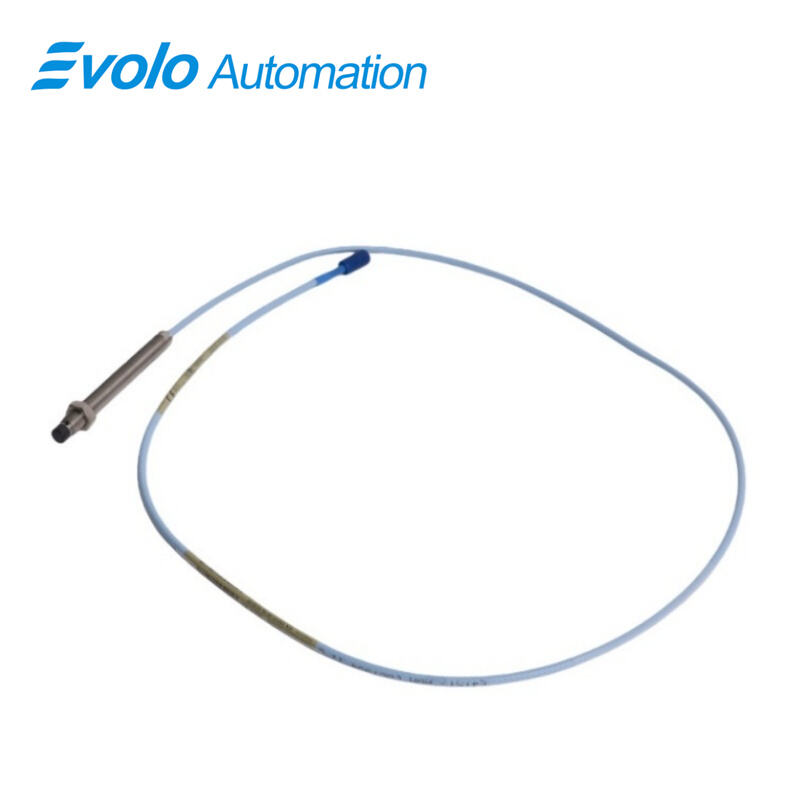

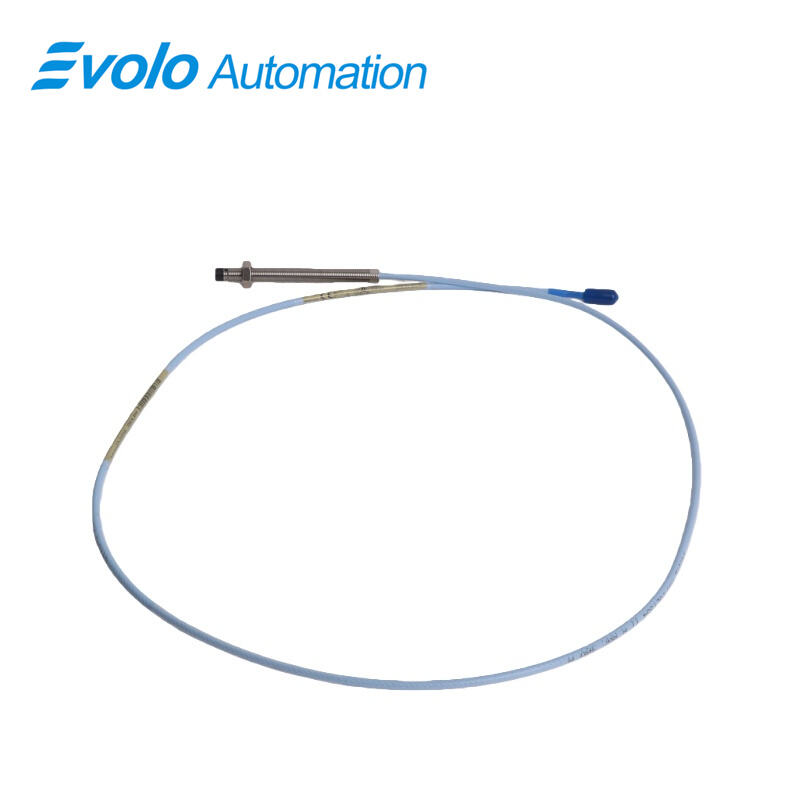

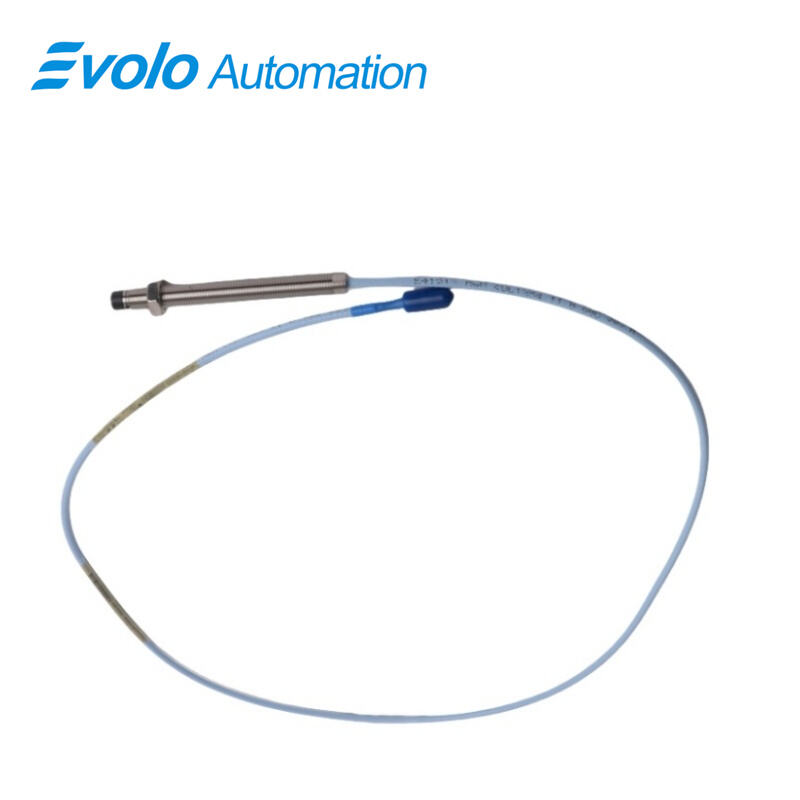

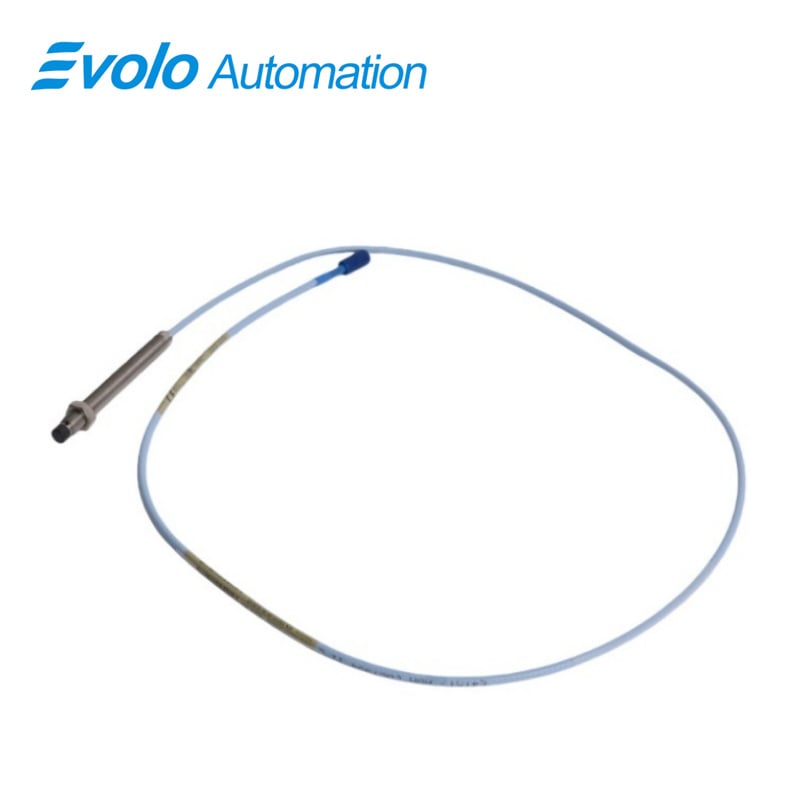

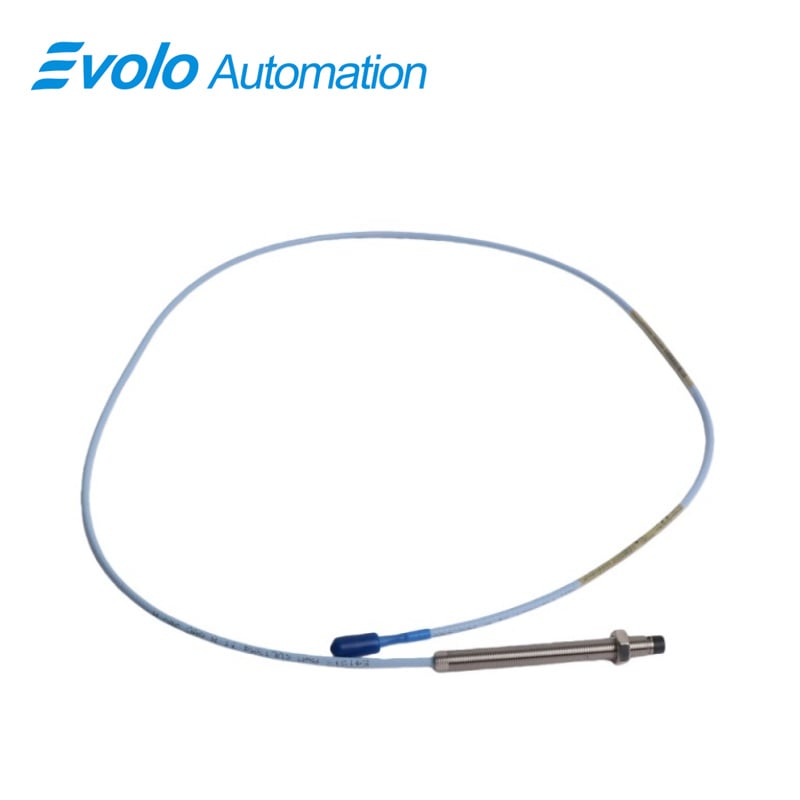

330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-36-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe delivers an output voltage directly proportional to the distance between the probe tip and a conductive surface, enabling precise static (position) and dynamic (vibration) measurements. With a 2 mm linear range, 0.5-meter total cable length, and miniature coaxial ClickLoc connector, the 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe integrates seamlessly into automated monitoring systems. The probe accepts standard 3/8-24 UNF threaded mounting, operates from -52°C to +177°C, and handles field wiring from 16 to 24 AWG. It features <2 mV/V supply sensitivity, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance for consistent signal transmission. Fully compliant with CSA, ATEX, and IECEx approvals, the 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe supports API 670 Standard configurations. Its patented TipLoc molding and CableLoc design ensure secure probe-cable connection, while optional FluidLoc cable prevents fluid ingress, maintaining reliable automated operation in industrial applications.

Applications

Monitor shaft vibration and axial position on fluid-film bearing machines using 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe, utilizing its 2 mm linear range and high sensitivity (<2 mV/V) for precise automated feedback.

Capture rotational speed and phase with Keyphasor systems via 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe, leveraging its 0.5-meter cable and miniature ClickLoc connector for seamless integration.

Measure dynamic displacement on pumps, motors, and compressors with 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe, using 50 Ω output resistance and 69.9 pF/m cable capacitance to ensure accurate signal transmission.

Conduct machinery diagnostics on test stands using 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe, taking advantage of CSA, ATEX, and IECEx approvals for safe operation in hazardous zones.

Specifications

Competitive Advantage

Patented TipLoc molding ensures the 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe tip remains firmly bonded to the probe body, supporting high-precision automated measurements.

CableLoc design provides 330 N pull strength to secure the 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe cable under high vibration, maintaining consistent signal quality.

Optional FluidLoc cable prevents fluid ingress, allowing the 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe to operate reliably in wet or oily industrial environments.

Backward compatible with other 3300 series 5 mm and 8 mm probes, enabling easy replacement or system upgrades using 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe without recalibration.

Operating temperature range of -52°C to +177°C allows the 330101-00-36-05-02-05 3300 XL 8 mm Proximity Probe to function in extreme industrial conditions while maintaining linear accuracy.
