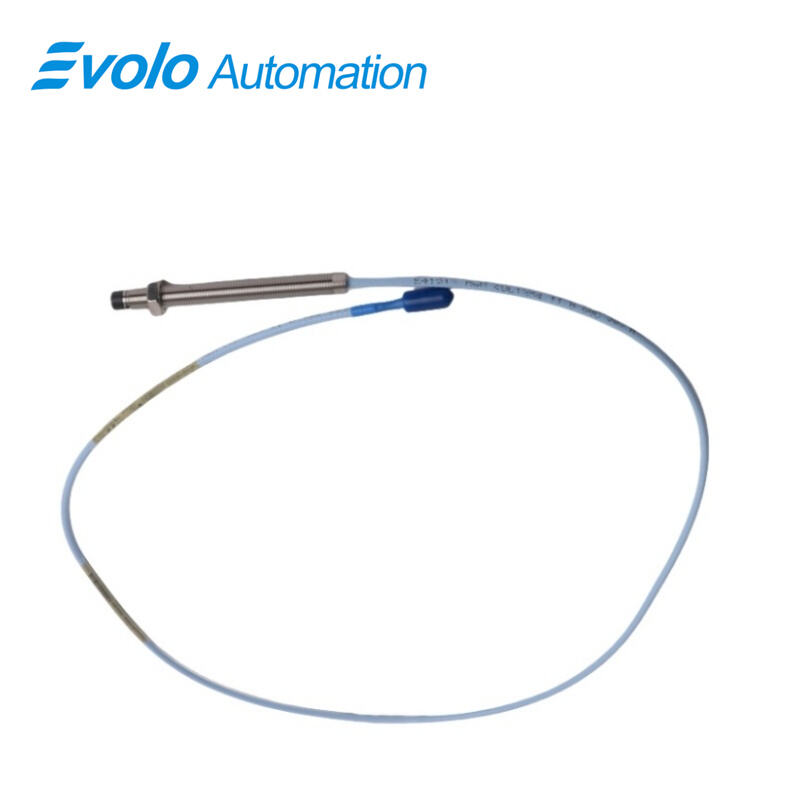

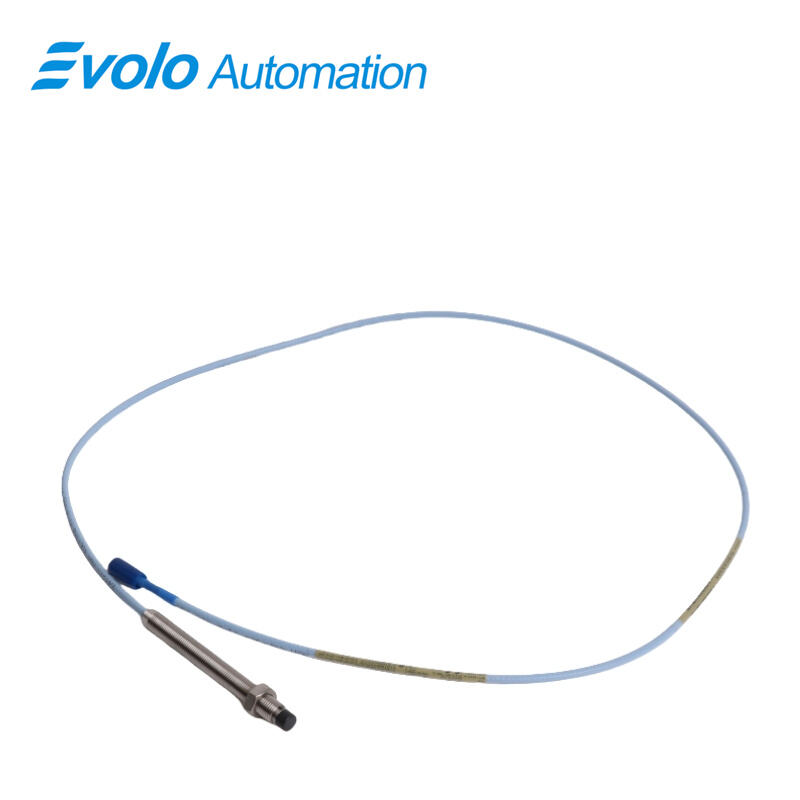

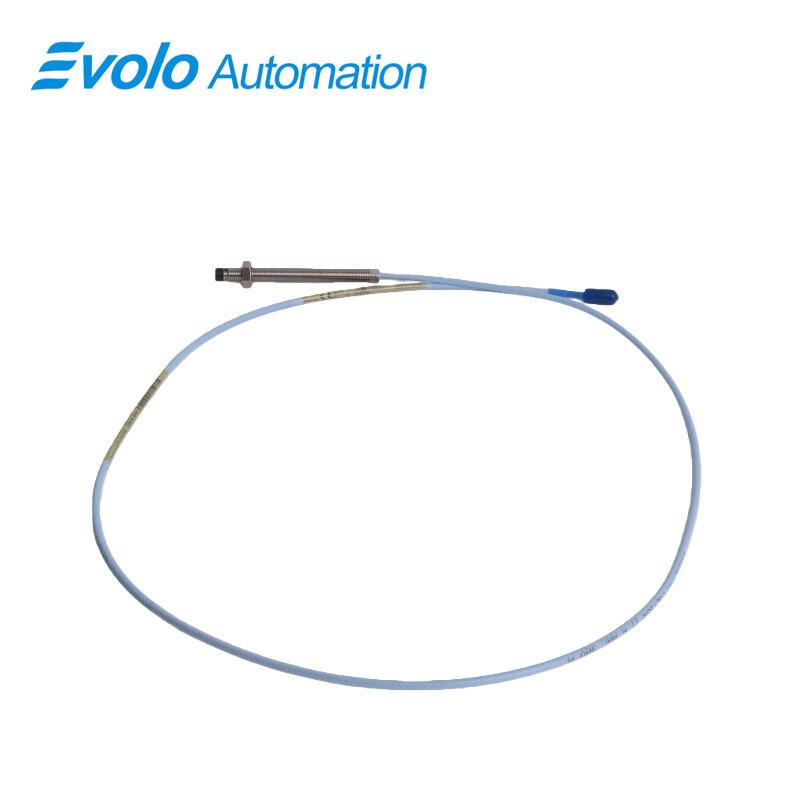

330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-35-10-11-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe delivers precise distance measurements between the probe tip and conductive surfaces in industrial automation systems. Featuring a 3.5 in overall case length, 1.0-meter total length, and a 3/8-24 UNF threaded probe case, the 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe supports tight installation spaces and fluid-film bearing machines. The probe offers a 2 mm (80 mils) linear range, 50 Ω output resistance, and less than 2 mV/V supply sensitivity for accurate static position and dynamic vibration readings. Its miniature coaxial ClickLoc connector with protector, combined with optional FluidLoc cable, ensures secure signal transfer and prevents fluid ingress. Rated for -52°C to +177°C (-62°F to +350°F), the 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe is suitable for high-temperature automation environments. Extension cable capacitance is 69.9 pF/m (21.3 pF/ft), supporting reliable transmission over 0.2–1.5 mm² (16–24 AWG) field wiring. Fully compatible with 3300 XL systems, the 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe integrates seamlessly into existing transducer setups, enabling efficient upgrades and precise monitoring in centrifugal compressors, turbines, and other rotating machinery.

Applications

Measure Radial Vibration on Small Shafts
The 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe measures radial vibration on shafts as small as 51 mm (2 in). Its 2 mm linear range and 1.0 mm recommended gap enable precise automation monitoring of centrifugal compressors and turbines.

Monitor Axial Position on Flat Targets
Use the 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe to track axial displacement on targets smaller than 15 mm (0.6 in). The AISI 304 stainless steel probe body and PPS tip ensure consistent signal output even in high-temperature operations (-52°C to +177°C).

Provide Keyphasor Reference Signals
The 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe outputs reliable tachometer and zero-speed signals. With 50 Ω output resistance and less than 2 mV/V supply sensitivity, it supports precise rotational speed feedback for automated process control.

Upgrade Existing 3300 Systems
The 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe is backward compatible with earlier 3300 series systems. Its 1.0 m standard FluidLoc cable allows reuse of existing Proximitor sensors and extension cables, minimizing system downtime during upgrades.

Specifications

Competitive Advantage

High Linear Range for Accurate Readings
With a 2 mm linear range and recommended gap of 1.0 mm, the 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe delivers precise static and dynamic measurements for small-shaft and flat-target applications.

Robust Mechanical Design
The 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe features a 3/8-24 UNF threaded probe case, miniature ClickLoc connector with protector, and optional FluidLoc cable. This design prevents liquid ingress and ensures reliable mechanical and electrical connections.

Wide Temperature Operation
Rated for -52°C to +177°C, the 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe functions in extreme industrial conditions without signal deviation.

Seamless Integration and Upgrades
The 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe maintains backward compatibility with 5 mm and 8 mm 3300 series probes, allowing automated systems to upgrade without replacing extension cables or Proximitor sensors.

High Signal Integrity
Equipped with patented TipLoc and CableLoc designs, the 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe provides 50 Ω output resistance and strong cable pull strength (330 N), securing accurate vibration and position data in automation systems.
