330101-00-34-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-34-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

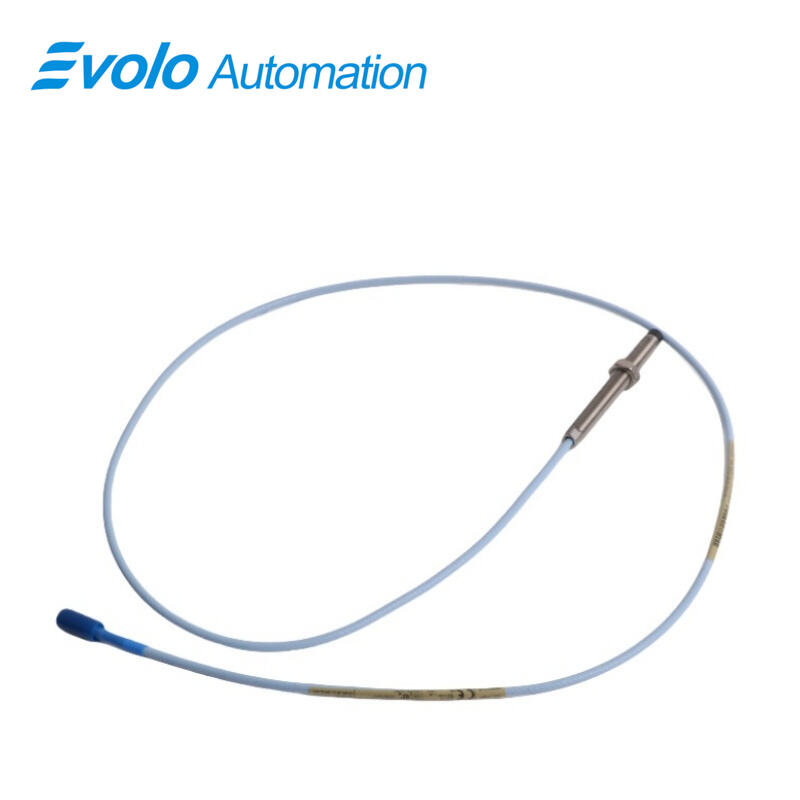

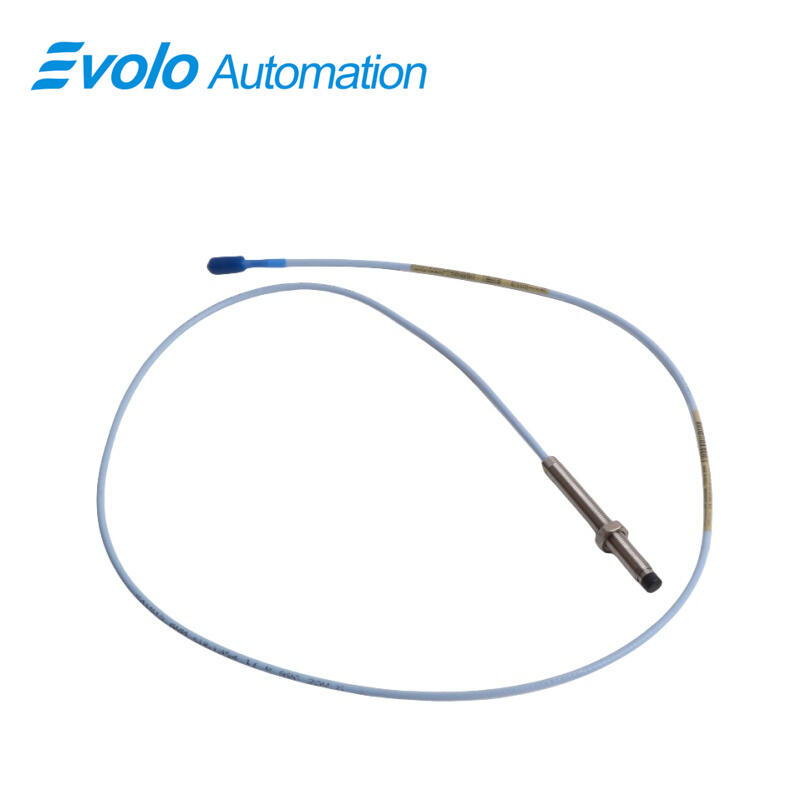

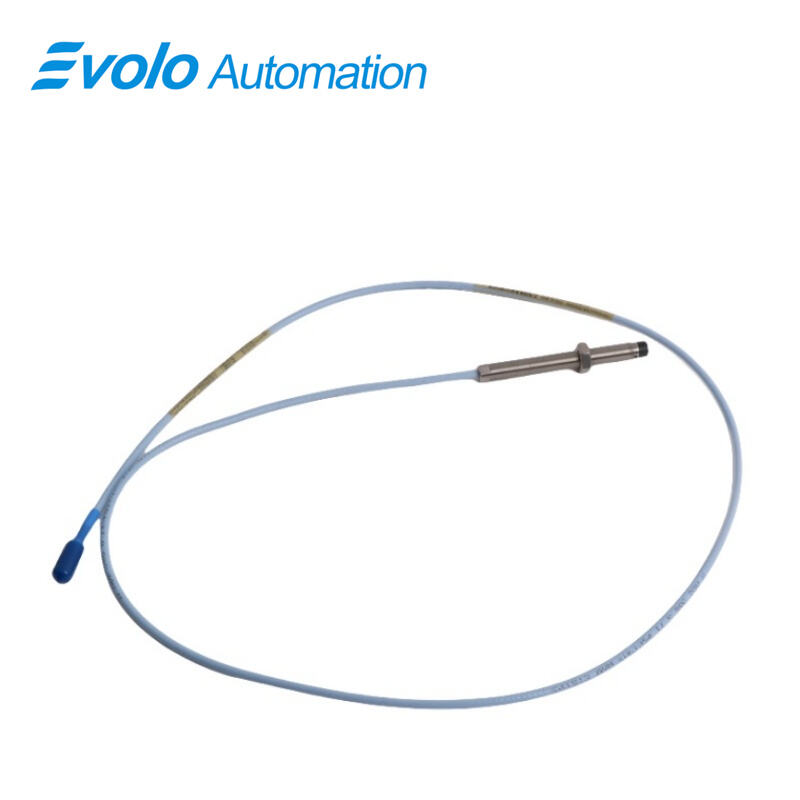

The 330101-00-34-10-02-05 3300 XL 8 mm Proximity Probe is a precision eddy-current transducer designed for advanced automation and industrial machinery monitoring. This probe delivers an output voltage proportional to the distance between the probe tip and a conductive target, enabling accurate measurement of both static position and dynamic vibration in rotating equipment. Featuring a 3.4-inch overall case length and 1.0-meter total cable length, it operates reliably in extreme temperatures ranging from -52°C to +177°C (-62°F to +350°F). The miniature coaxial ClickLoc connector and standard cable with 69.9 pF/m extension capacitance ensure low-noise, stable signal transmission, while the 3/8-24 UNF threaded case with 0.563 in maximum thread engagement allows secure mounting. The 3300 XL 8 mm probe fully complies with API 670 standards for linear range, accuracy, and temperature stability, and supports seamless interchangeability with other XL and standard 3300 series components. Patented TipLoc and CableLoc designs enhance probe-tip bonding and cable attachment strength, providing 330 N (75 lbf) pull resistance. Optional FluidLoc protection prevents lubricant leakage, making this probe ideal for fluid-film bearing systems, vibration monitoring, speed sensing, and Keyphasor reference applications in hazardous industrial environments. This probe combines durability, precision, and automation-ready performance in a compact 8 mm form factor.

Applications

Radial Vibration Measurement on Industrial Rotating Shafts
330101-00-34-10-02-05 captures precise radial vibration data for turbines, compressors, and pumps. With a linear range of 2 mm (80 mils) and 50 Ω output resistance, 330101-00-34-10-02-05 delivers accurate signals for predictive maintenance, reducing unplanned downtime.

Axial Shaft Displacement and Alignment
330101-00-34-10-02-05 measures axial movement using its overall case length and M10x1 probe threads with maximum 15 mm engagement. Using 330101-00-34-10-02-05, operators ensure correct alignment in motors and gearboxes, minimizing mechanical wear and misalignment.

Integration with Automation Systems
Equipped with a miniature coaxial ClickLoc connector and standard cable, 330101-00-34-10-02-05 transmits consistent gap-to-voltage signals. Supply sensitivity under 2 mV per volt ensures reliable readings for automated vibration and position monitoring.

Operation in Harsh Industrial Environments
330101-00-34-10-02-05 functions across temperatures from -52°C to +177°C (-62°F to +350°F) and carries CSA, ATEX, and IECEx approvals. Using 330101-00-34-10-02-05, equipment monitoring continues safely in petrochemical, offshore, and power generation applications.

Flexible Field Wiring and Extension Options
330101-00-34-10-02-05 supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and extension cables with 69.9 pF/m (21.3 pF/ft) capacitance, allowing installation in remote or confined spaces while maintaining precise vibration and displacement measurement.

Specifications

Competitive Advantage

Extreme Temperature Operation
330101-00-34-10-02-05 performs from -52°C to +177°C, allowing continuous monitoring in high-heat or cold industrial environments. Using 330101-00-34-10-02-05, operators can monitor rotating machinery where standard probes fail.

Mechanical and Electrical Durability
Patented TipLoc and CableLoc designs provide 330 N pull strength. 330101-00-34-10-02-05 maintains strong mechanical attachment and signal integrity under high vibration conditions, reducing maintenance needs.

Full Interchangeability with 3300 Series Components
330101-00-34-10-02-05 is compatible with XL and standard 3300 series probes, extension cables, and Proximitor sensors. Using 330101-00-34-10-02-05, systems can be upgraded or maintained without replacing existing components.

High Signal Precision
Less than 2 mV change in output per volt input ensures accurate gap-to-voltage measurement. 330101-00-34-10-02-05 supports precise vibration analysis and automated control of industrial machinery.
