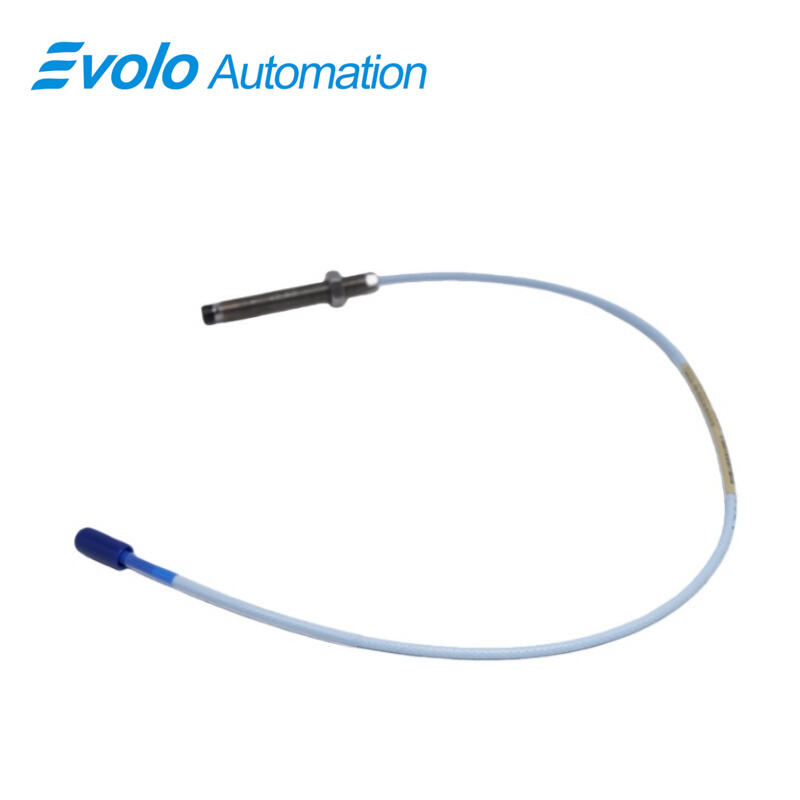

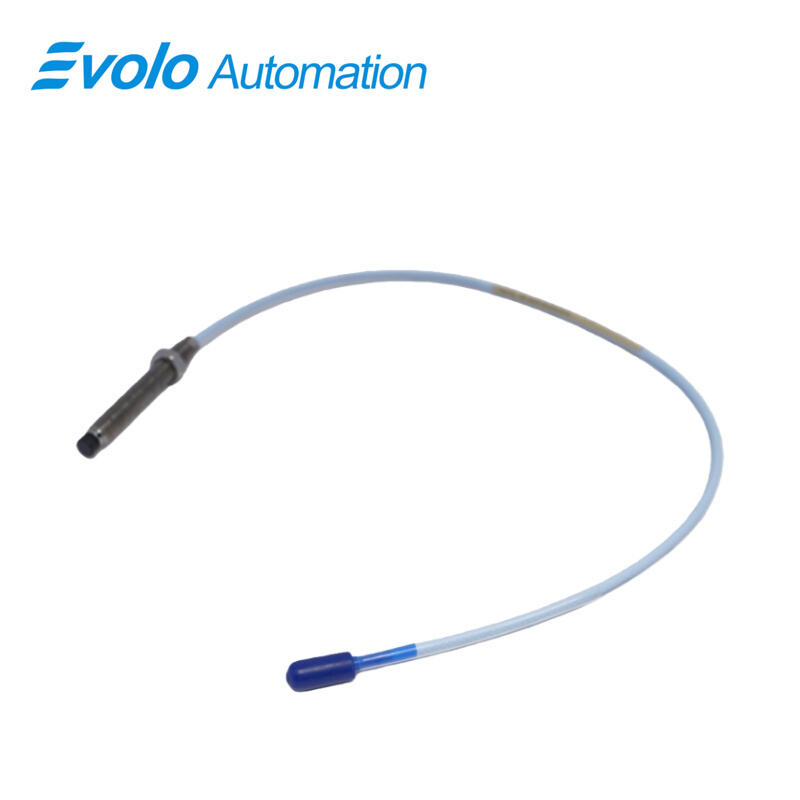

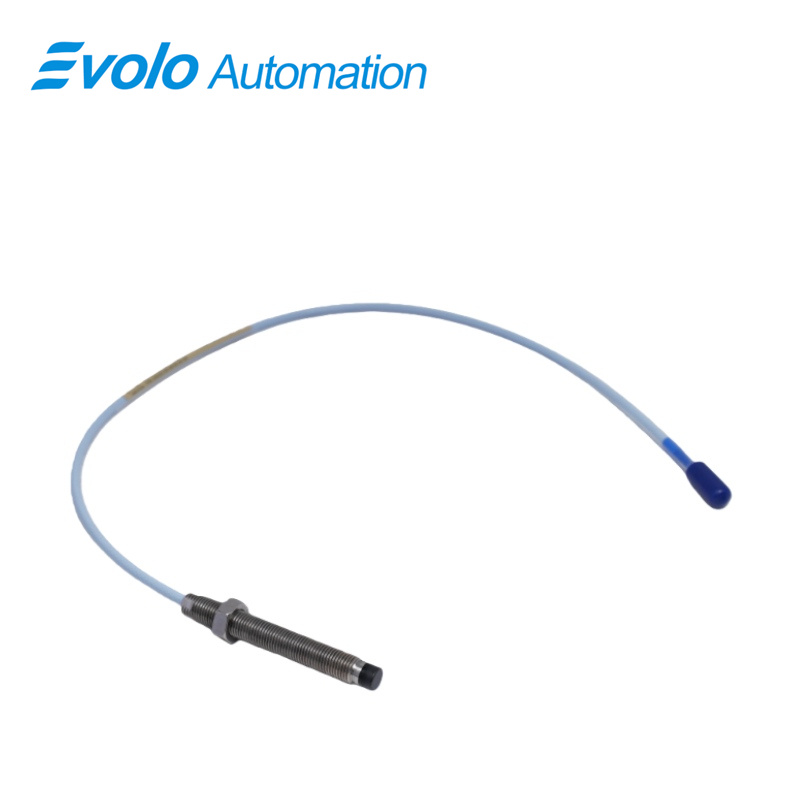

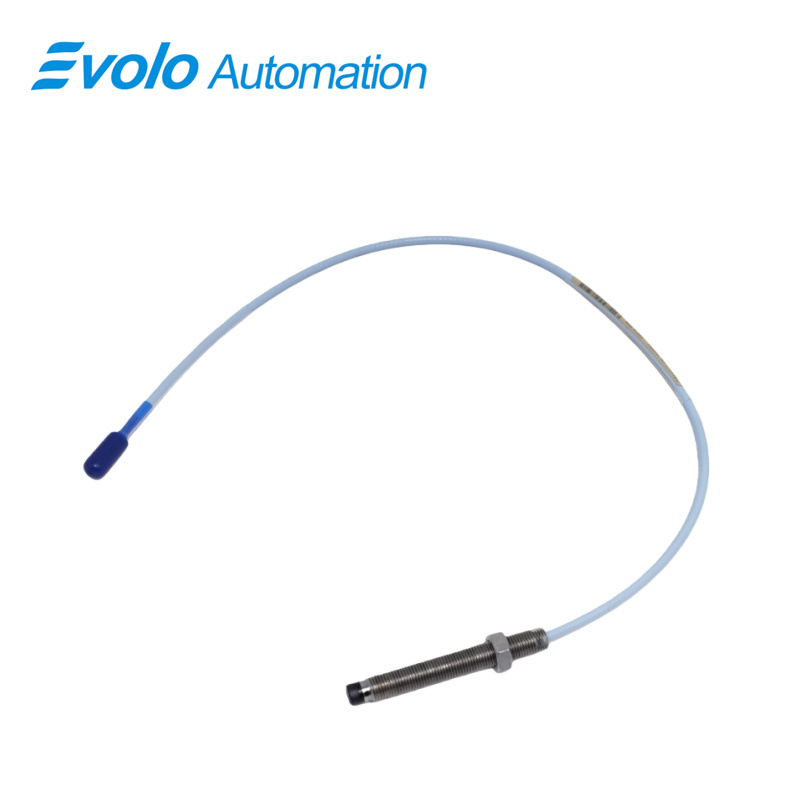

330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-28-20-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe is an eddy current probe designed for industrial automation and rotating machinery monitoring, supporting both vibration and position measurements. With a minimum case length of 2.8 in and a 3/8-24 UNF threaded stainless steel body, the 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe mounts securely on fluid-film bearing machines, compressors, turbines, and motor-driven equipment.

The 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe provides a 2 mm (80 mils) linear range for precise radial and axial shaft displacement measurement. Its 2.0 meter FluidLoc cable with miniature coaxial ClickLoc connector ensures reliable signal routing while preventing oil or fluid leakage. Output resistance is 50 Ω, and supply sensitivity remains below 2 mV per volt to maintain clean signal delivery to Proximitor sensors and automation monitoring racks.

Operating from -52 °C to +177 °C, the 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe meets CSA, ATEX, and IECEx approvals, making it suitable for automated vibration monitoring, shaft position tracking, Keyphasor reference generation, and speed measurement in high-performance rotating industrial machinery.

Applications

Measure radial vibration on rotating shafts
The 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe is used on compressors, turbines, and pumps to capture radial vibration along shafts. Its 2 mm linear range and 50 Ω output support precise data acquisition for automated condition monitoring systems.

Monitor axial shaft position on fluid-film bearings
The 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe measures axial displacement on thrust collars and flat targets. The 2.8 in case length and 3/8-24 UNF threaded body allow secure mounting in automation panels and machinery frames.

Generate Keyphasor signals for speed and phase detection
The 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe provides Keyphasor reference outputs for rotational speed and phase detection, enabling accurate automated vibration and position analysis.

Prevent fluid leakage while measuring vibration
The 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe with FluidLoc cable ensures oil or fluid does not escape from the machine while capturing both static and dynamic shaft movement in industrial automation systems.

Specifications

Competitive Advantage

Supports installation on medium-length shafts
The 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe features a 2.8 in case length, allowing effective monitoring in machinery with limited but non-restricted mounting depth.

Maintains accurate signal under supply variation
With 50 Ω output resistance and supply sensitivity below 2 mV per volt, the 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe delivers clean and predictable signals to Proximitor sensors and PLC monitoring systems.

Secures probe tip and cable under mechanical stress
The 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe uses TipLoc and CableLoc designs, providing 330 N pull strength and preventing accidental detachment during operation.

Complies with hazardous location standards
The 330101-00-28-20-12-05 3300 XL 8 mm Proximity Probe meets CSA, ATEX, and IECEx approvals, supporting installation in industrial automation environments with regulated or explosive conditions.
