330101-00-27-50-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-27-50-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

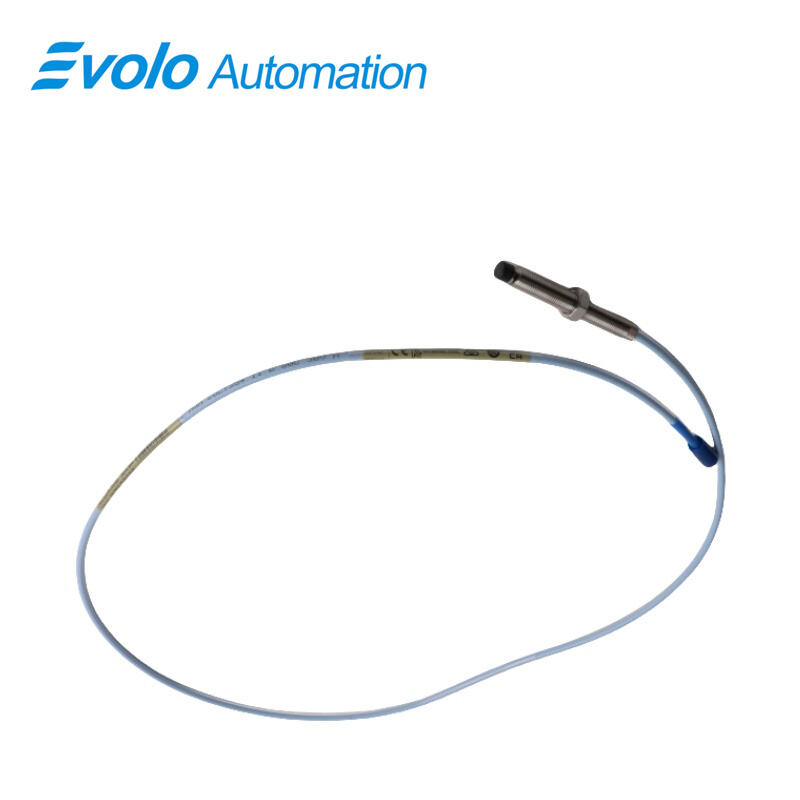

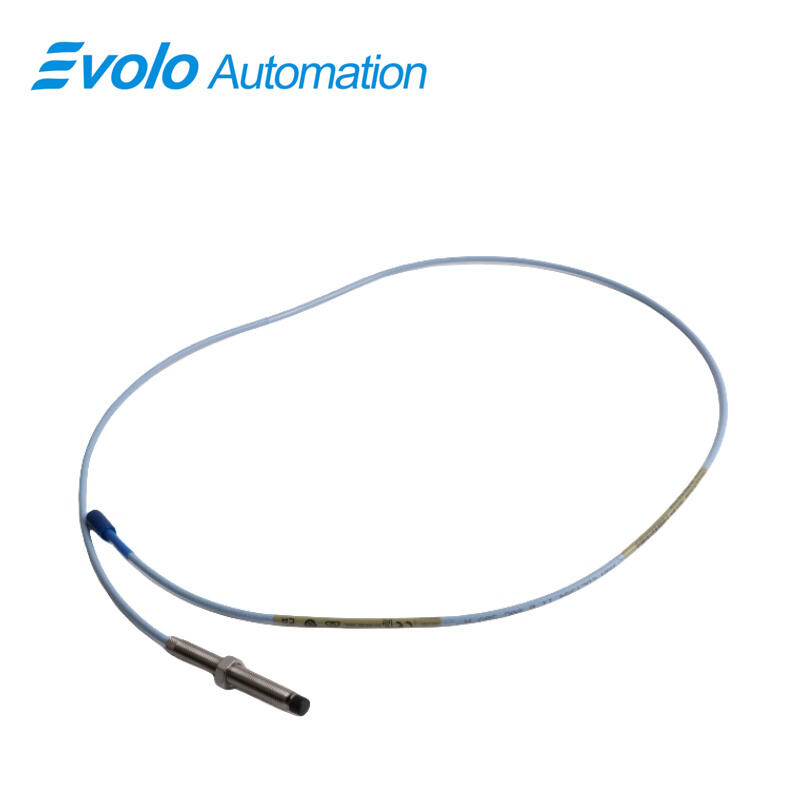

The 330101-00-27-50-02-05 3300 XL 8 mm Proximity Probe is designed for automated monitoring of fluid-film bearing machines, turbines, compressors, and high-speed motors. The 330101-00-27-50-02-05 probe features a 3/8-24 UNF thread with maximum engagement of 0.563 inches, unthreaded length of 0 inches, and overall case length of 2.7 inches. Its 5.0 meter extension cable with miniature coaxial ClickLoc connector supports integration into distributed control and condition monitoring systems. The 330101-00-27-50-02-05 provides a 2 mm linear range and delivers accurate static and dynamic measurements with less than 2 mV change per volt of supply and 50 ohm output resistance. Operating from -52°C to +177°C and carrying CSA, ATEX, and IECEx approvals, the 330101-00-27-50-02-05 probe maintains reliable performance in harsh and hazardous industrial environments. Patented TipLoc molding secures the probe tip while CableLoc design provides 330 N pull strength for durable cable attachment. Optional FluidLoc cables prevent oil or liquid leakage, maintaining machine integrity. Fully compatible with other 3300 XL and standard 3300 series components, the 330101-00-27-50-02-05 3300 XL 8 mm Proximity Probe enhances predictive maintenance, minimizes downtime, and supports advanced automated monitoring strategies.

Applications

Applications in Rotating Machinery Monitoring
The 330101-00-27-50-02-05 3300 XL 8 mm Proximity Probe is used in turbines compressors pumps and fluid-film bearing machines for precise automated measurement of shaft position and vibration. With a linear range of 2 mm, overall case length of 2.7 inches, and unthreaded length of 0 inches, the 330101-00-27-50-02-05 ensures high-accuracy static and dynamic displacement detection. Its 5.0 meter miniature coaxial ClickLoc cable allows seamless integration into distributed control systems and predictive maintenance platforms. The 330101-00-27-50-02-05 supports Keyphasor reference and speed measurements, enhancing automated monitoring and control loops for high-speed industrial machinery.

Applications in Hazardous Area Automation
The 330101-00-27-50-02-05 3300 XL probe is approved for hazardous environments with CSA ATEX and IECEx certifications and operates from minus 52 to plus 177 degrees Celsius. Patented TipLoc molding secures the probe tip, while the CableLoc design provides 330 N pull strength for reliable attachment in automated systems. Optional FluidLoc cables prevent oil and liquid leakage, maintaining machine integrity and consistent automated monitoring.

Specifications

Competitive Advantage

Competitive Advantage in Reliability and Accuracy
The 330101-00-27-50-02-05 provides exceptional measurement stability with less than 2 mV change in output voltage per volt change in supply and output resistance of 50 ohms. Its 3/8-24 UNF thread with 0.563 inch maximum engagement ensures secure mounting and minimal vibration interference. These features allow the 330101-00-27-50-02-05 to deliver precise and repeatable data for condition-based automation strategies.

Competitive Advantage in Integration and Maintenance Efficiency
The 330101-00-27-50-02-05 3300 XL probe is fully compatible with other 3300 XL and standard 3300 series components enabling interchangeable use of probes, extension cables, and Proximitor sensors. Its robust construction and flexible 5.0 meter cabling allow the 330101-00-27-50-02-05 to reduce unplanned downtime, enhance predictive maintenance efficiency, and support automated high-speed machinery performance.
