Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-25-20-12-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
2.5 in |
|
Total Length Option: |
2.0 meters (6.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
18x18x2cm |
|
Weight: |
0.1kg |
Description

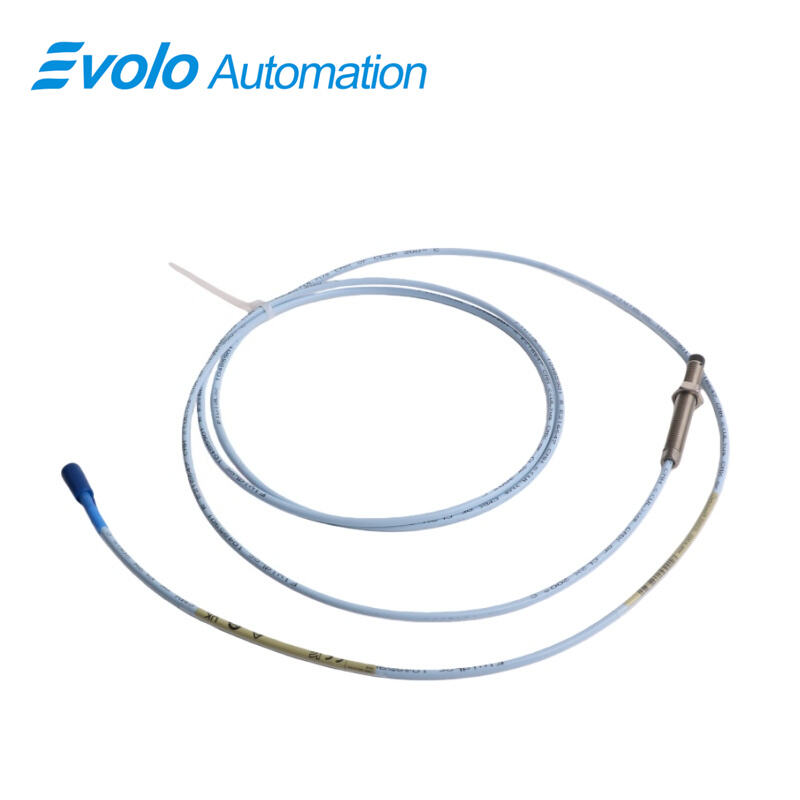

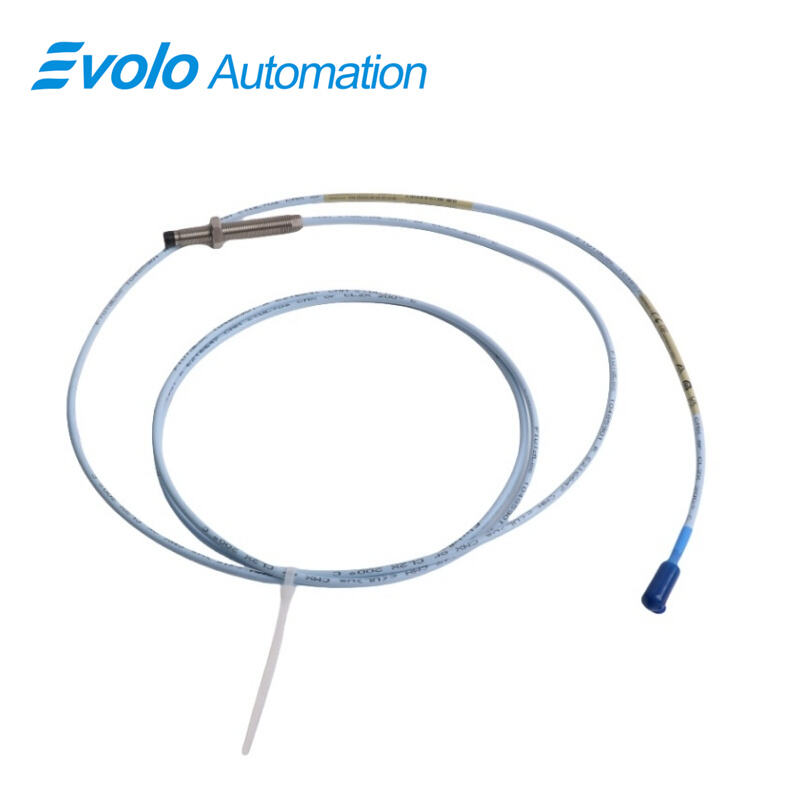

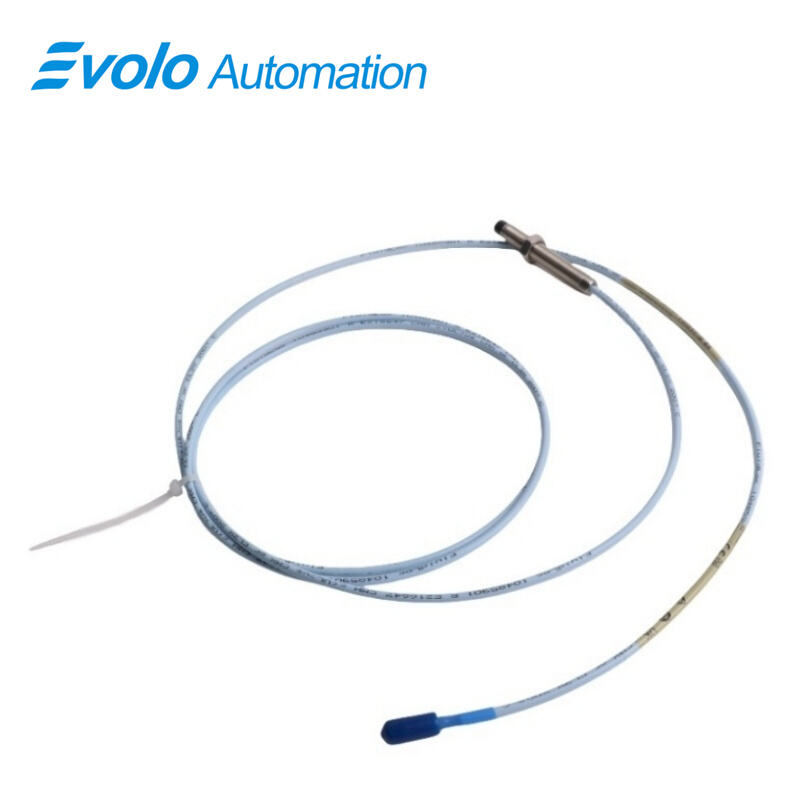

The 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe is an eddy current probe designed for industrial automation and rotating machinery monitoring where both position and vibration data are required. With a minimum case length of 2.5 in and a 3/8-24 UNF threaded stainless steel body, the 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe supports direct mounting on fluid-film bearing machines, compressors, turbines, and motor-driven equipment.
The 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe provides a 2 mm (80 mils) linear range, allowing accurate shaft displacement measurement for automation monitoring systems. It uses a 2.0 meter FluidLoc cable with a miniature coaxial ClickLoc connector to support secure signal routing and limit fluid migration inside the machine. Output resistance is 50 Ω, and supply sensitivity remains below 2 mV per volt to support clean signal delivery to Proximitor sensors and monitoring racks.
Operating across -52 °C to +177 °C, the 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe meets CSA, ATEX, and IECEx requirements and is widely applied in automated vibration monitoring, shaft position measurement, and Keyphasor reference systems.
Applications
Measure radial vibration on fluid-film bearing machines
The 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe is installed on shafts of compressors, turbines, and pumps to capture radial vibration. Its 2 mm linear range and 50 Ω output allow accurate data collection for automated condition monitoring systems.
Monitor axial shaft position on rotating equipment
The 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe is applied to measure axial displacement on thrust collars and flat targets. The 3/8-24 UNF threaded body with 0.563 in maximum thread engagement ensures secure installation on automation hardware.
Provide Keyphasor reference signals for speed monitoring
The 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe delivers Keyphasor signals for rotational speed and phase detection. The 2.0 meter FluidLoc cable with ClickLoc connector enables precise signal transfer to PLCs and monitoring racks.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High linear range for accurate measurement
The 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe provides a 2 mm (80 mils) linear range, allowing precise detection of shaft displacement for automation monitoring and vibration analysis.
Operates across extreme temperatures
With an operating range of -52 °C to +177 °C, the 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe can be used on high-temperature machinery without additional cooling or isolation.
Secures probe tip and cable in industrial environments
The 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe uses a patented TipLoc and CableLoc design, providing 330 N pull strength, preventing accidental detachment, and maintaining reliable signal transfer.
Supports hazardous location approvals
The 330101-00-25-20-12-05 3300 XL 8 mm Proximity Probe meets CSA, ATEX, and IECEx standards, enabling safe installation in explosive or regulated industrial automation areas.
