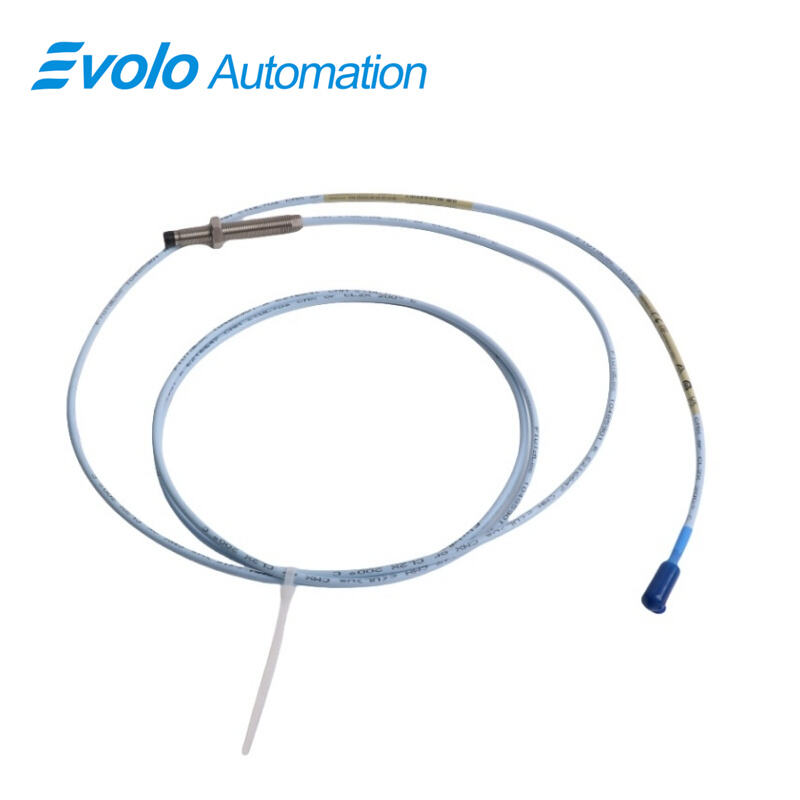

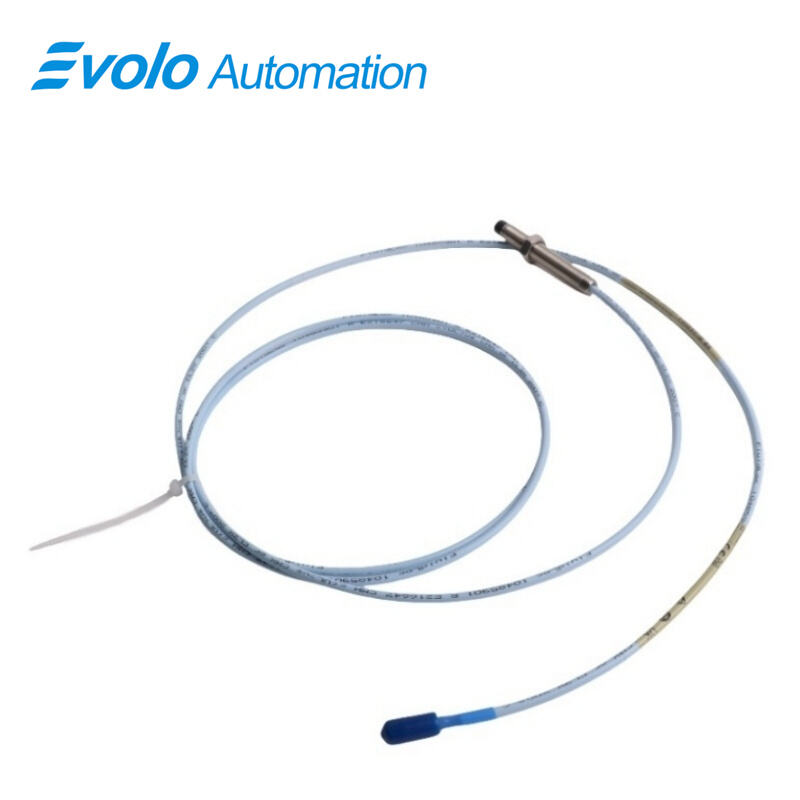

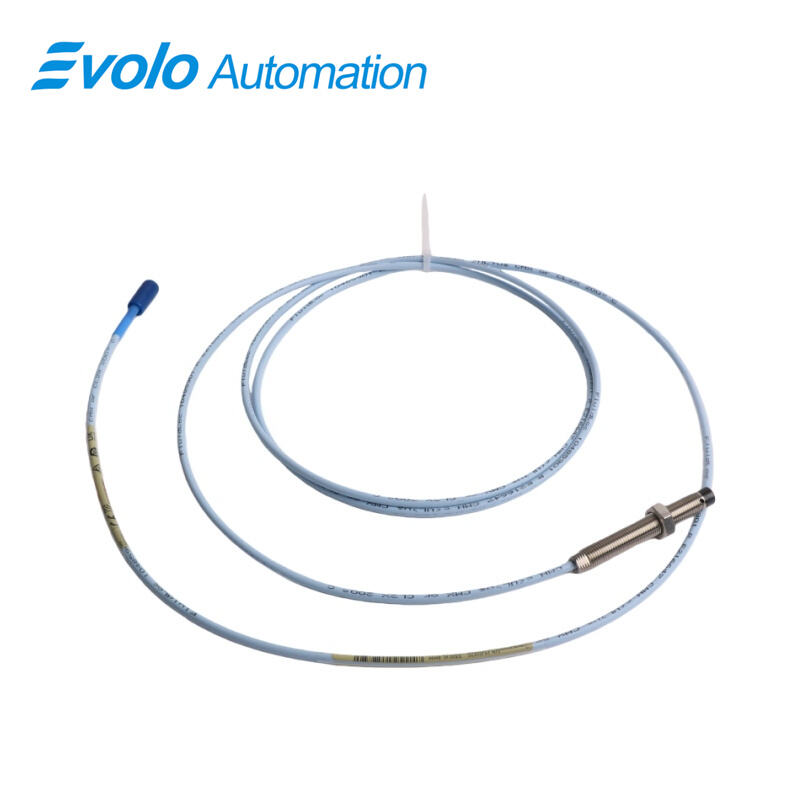

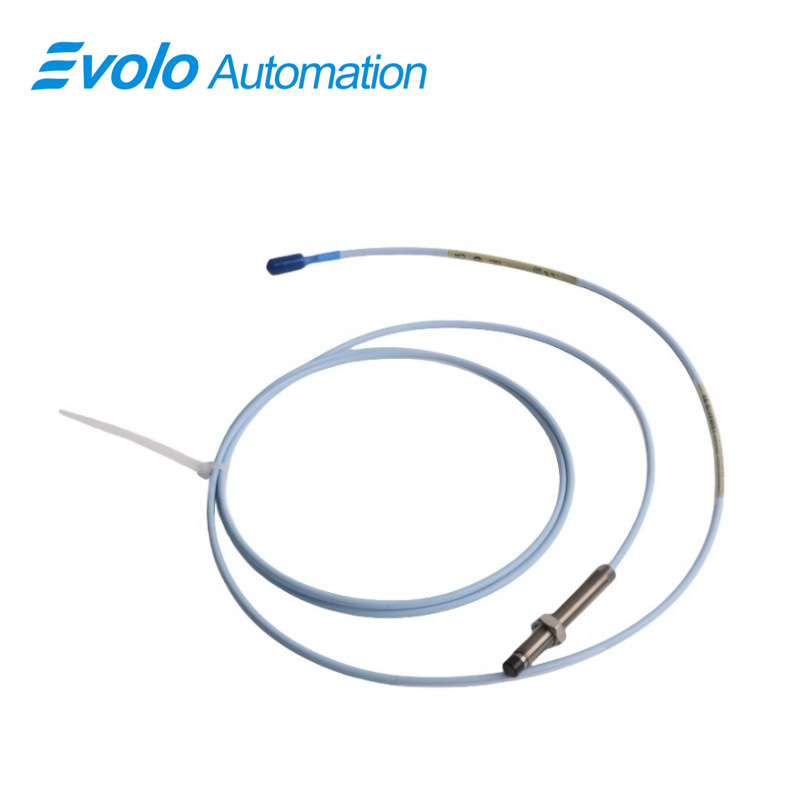

330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-25-20-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe delivers precise non-contact measurements by generating an output voltage proportional to the gap between the probe tip and the target surface. With a 2 mm (80 mils) linear range and 50 Ω output resistance, the 330101-00-25-20-12-00 3300 XL 8 mm is ideal for both static position and dynamic vibration measurements on fluid-film bearing machines. The probe supports Keyphasor reference signals and speed monitoring using its miniature coaxial ClickLoc connector with FluidLoc cable, rated for temperatures from -52°C to +177°C (-62°F to +350°F). Its 2.0-meter (6.6 ft) standard length and 69.9 pF/m extension cable capacitance enable long-range connections without signal loss. The 330101-00-25-20-12-00 3300 XL 8 mm is fully interchangeable with other 3300 XL 8 mm probes, extension cables, and Proximitor sensors, supporting seamless upgrades and system maintenance. Patented TipLoc and CableLoc designs provide 330 N pull strength, securing the probe tip and cable for demanding industrial environments. Optional FluidLoc ensures oil and liquid containment. The 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe integrates directly into 3300 XL monitoring systems for accurate, real-time machine data collection.

Applications

Monitor fluid-film bearing vibrations using linear range
The 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe measures shaft vibration in pumps, turbines, and compressors. With its 2 mm linear range and output resistance of 50 Ω, the 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe delivers precise vibration data for predictive maintenance.

Measure shaft position and alignment with 3/8-24 UNF thread engagement
The 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe accurately detects shaft displacement and misalignment. Its maximum thread engagement of 0.563 in ensures secure mounting, allowing precise positional measurements in industrial machinery.

Generate Keyphasor signals for speed analysis with stable voltage output
The 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe produces reliable Keyphasor signals. With supply sensitivity under 2 mV per volt input, the 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe maintains accurate speed and phase detection for monitoring rotating equipment.

Integration in API 670-compliant systems with temperature resilience
The 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe fully complies with API 670 standards. Operating from -52°C to +177°C (-62°F to +350°F), the 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe ensures reliable performance in turbines, compressors, and refinery applications.

Specifications

Competitive Advantage

Secure probe attachment with CableLoc design rated 330 N pull strength
The 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe features the patented CableLoc design, providing 330 N (75 lbf) pull strength. This prevents accidental detachment during high-vibration operation, ensuring the 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe delivers consistent measurement data.

Enhanced tip bonding with TipLoc for robust performance
The 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe uses TipLoc molding to strengthen the bond between probe tip and body. This reduces tip movement and preserves the 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe’s accuracy even under high dynamic loads.

Prevent fluid leakage with optional FluidLoc cable
Optional FluidLoc cable on the 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe prevents oil or coolant from escaping the machinery. This ensures the 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe can operate safely in lubricated or fluid-rich industrial environments.

Backward compatibility with 5 mm and other 8 mm 3300 series probes
The 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe is fully interchangeable with other 3300 series components. This allows replacement or upgrades without bench calibration, ensuring every 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe maintains consistent operational output.

Extended operational range supporting various field wiring sizes
The 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe supports 16 to 24 AWG field wiring and works across extreme temperatures. This ensures the 330101-00-25-20-12-00 3300 XL 8 mm Proximity Probe delivers accurate vibration and position readings under harsh industrial conditions.
