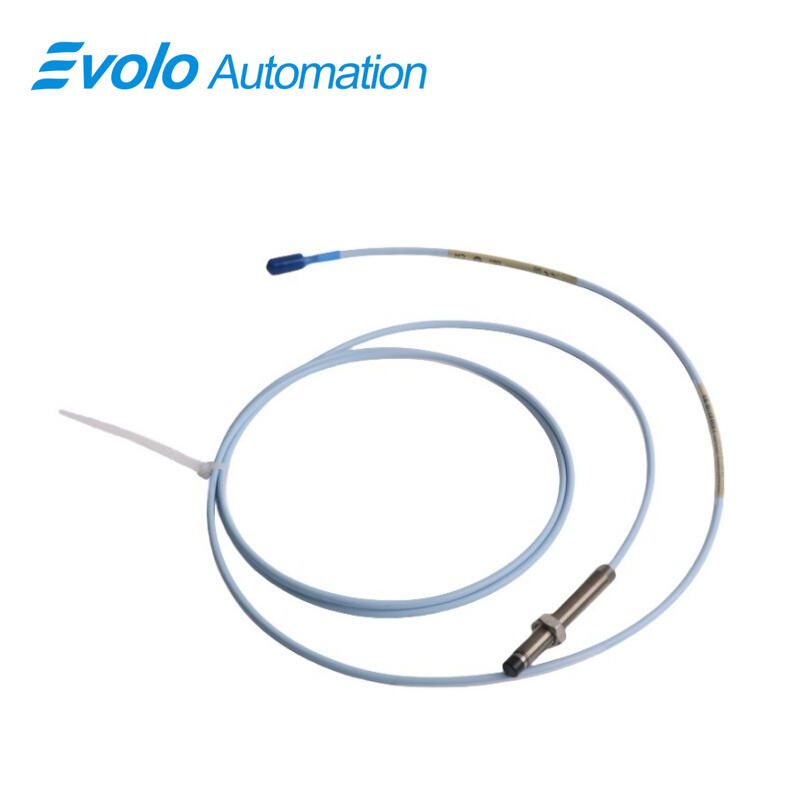

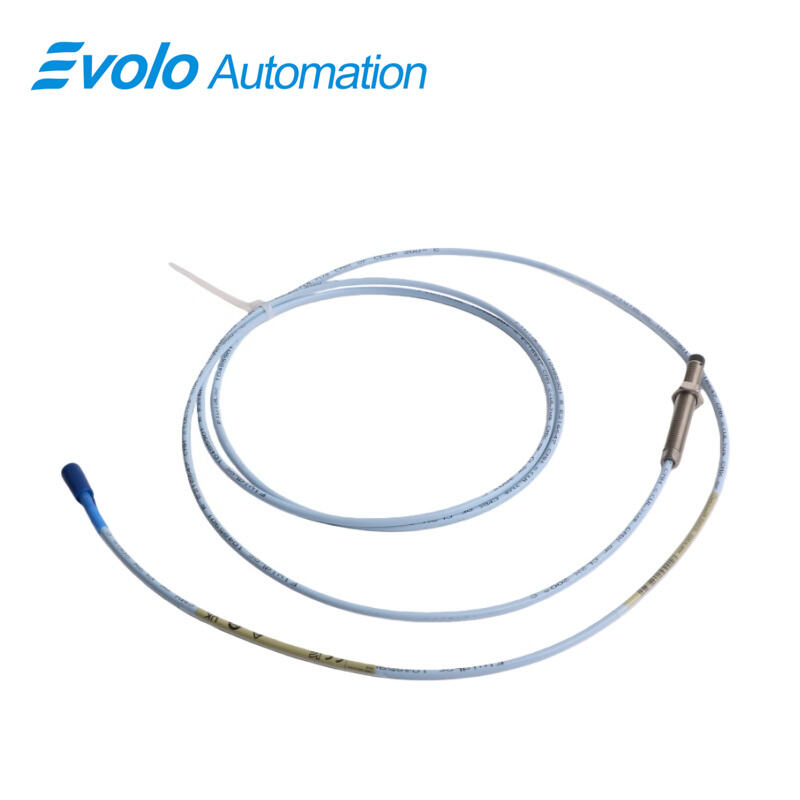

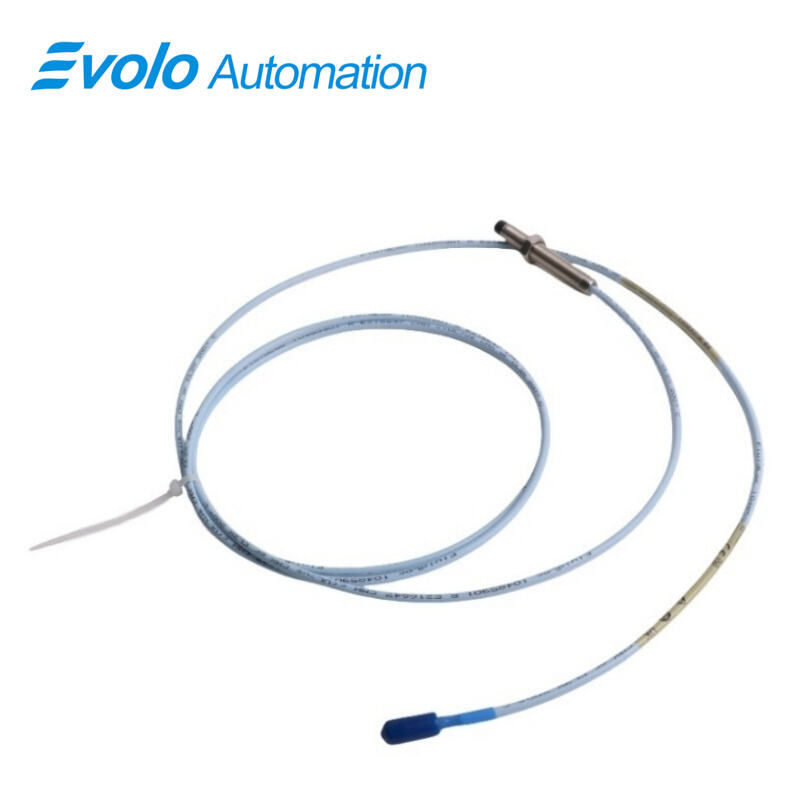

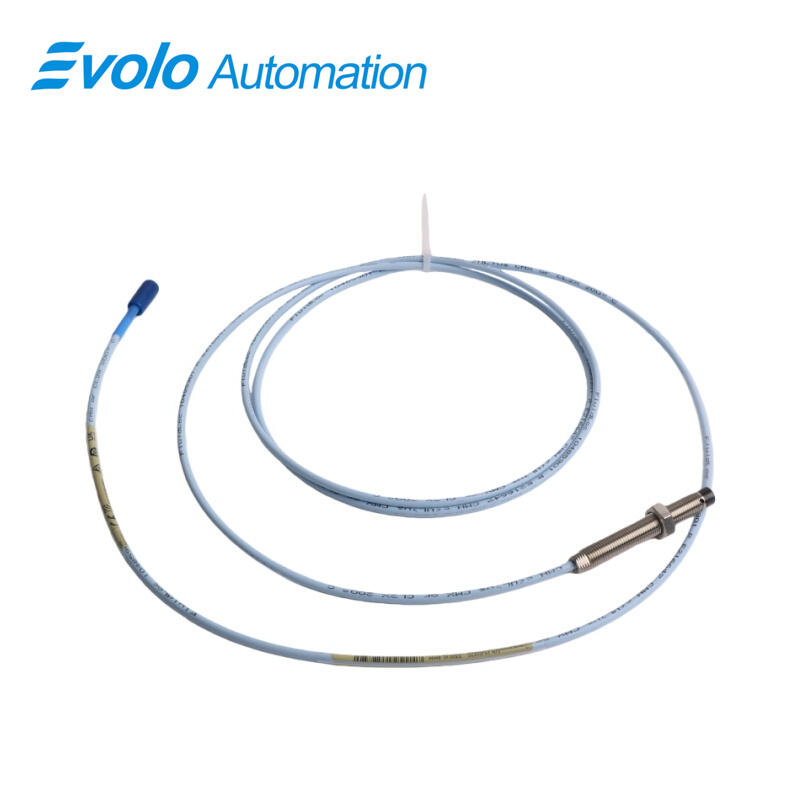

330101-00-25-05-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-25-05-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-25-05-01-05 3300 XL 8 mm Proximity Probe provides 2 mm (80 mils) linear range and 3.94 V/mm output for precise non-contact vibration and position measurements on fluid-film bearing machines. The 330101-00-25-05-01-05 3300 XL 8 mm probe features a 3/8-24 UNF threaded case, miniature coaxial ClickLoc connector with protector, and 0.5 m (1.6 ft) standard cable. Operating from -52°C to +177°C, the 330101-00-25-05-01-05 3300 XL 8 mm probe supports field wiring of 0.2–1.5 mm² and 50 Ω output resistance, ensuring accurate Keyphasor and speed signal generation. Optional FluidLoc cable prevents oil ingress, while TipLoc and CableLoc designs secure the probe tip and cable. The 330101-00-25-05-01-05 3300 XL 8 mm probe integrates directly with 3300 XL Proximitor sensors for automated monitoring, offering reliable, repeatable measurements in compact installation spaces.

Applications

Measure Axial and Radial Shaft Vibration
The 330101-00-25-05-01-05 3300 XL 8 mm probe measures radial and axial vibration on shafts from 50 mm to 76 mm, using its 2 mm linear range and 3.94 V/mm output to detect shaft displacement and vibration amplitude. The 330101-00-25-05-01-05 3300 XL 8 mm probe ensures automated monitoring of fluid-film bearing machines by capturing precise dynamic and static movements.

Track Shaft Position on Compressors
Using the 330101-00-25-05-01-05 3300 XL 8 mm, operators can monitor shaft position and detect rod drop on centrifugal and reciprocating compressors. Its miniature coaxial ClickLoc connector with connector protector enables consistent signal transfer for automation systems.

Generate Keyphasor and Tachometer Signals
The 330101-00-25-05-01-05 3300 XL 8 mm provides high-fidelity Keyphasor signals and tachometer outputs. With field wiring support from 0.2 to 1.5 mm² and <2 mV supply sensitivity, the 330101-00-25-05-01-05 3300 XL 8 mm reliably transmits phase reference data to turbine and motor monitoring systems.

Install in Tight Spaces for Continuous Monitoring
Due to its 8 mm probe tip, the 330101-00-25-05-01-05 3300 XL 8 mm fits in restricted mounting areas, enabling continuous automated measurement where larger probes cannot be used.

Specifications

Competitive Advantage

Direct Integration with 3300 XL Proximitor Sensors
The 330101-00-25-05-01-05 3300 XL 8 mm connects directly to 3300 XL Proximitor sensors, eliminating the need for extension cables. This reduces wiring complexity and ensures consistent data collection in automated monitoring setups.

High Temperature and Electrical Performance
Operating from -52°C to +177°C, with 50 Ω output resistance and less than 2 mV supply sensitivity, the 330101-00-25-05-01-05 3300 XL 8 mm maintains accurate measurement outputs for automated control systems under extreme thermal and electrical conditions.

Enhanced Protection Against Environmental Factors
The optional FluidLoc cable and ClickLoc connector protector on the 330101-00-25-05-01-05 3300 XL 8 mm prevent oil and moisture ingress, ensuring continuous signal integrity in industrial automation environments.

Secure Probe Tip and Cable Attachment
Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, keeping the 330101-00-25-05-01-05 3300 XL 8 mm probe tip aligned with the shaft and maintaining consistent data output for automated vibration and position monitoring.
