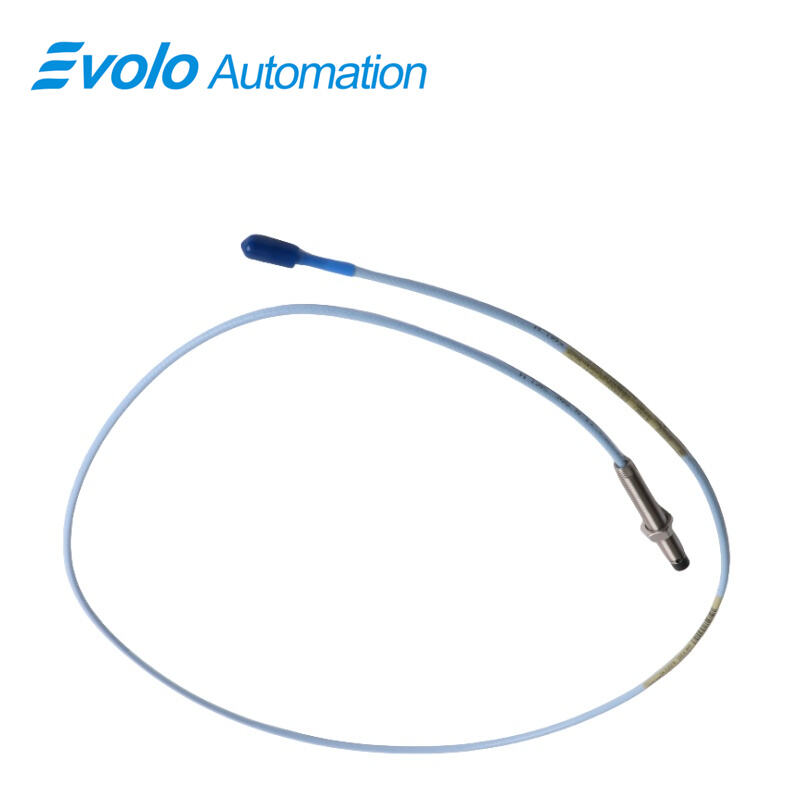

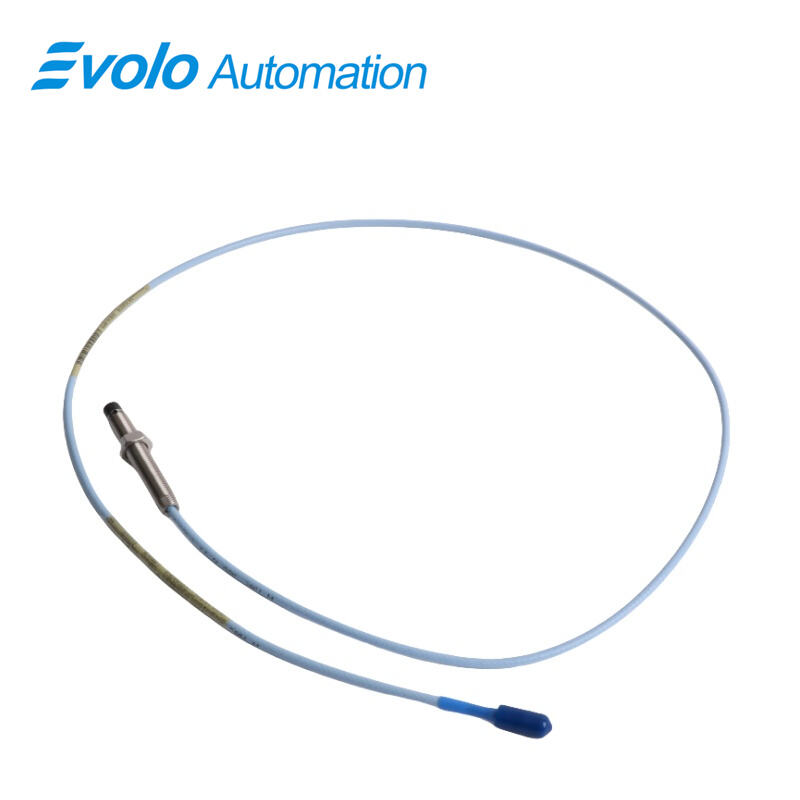

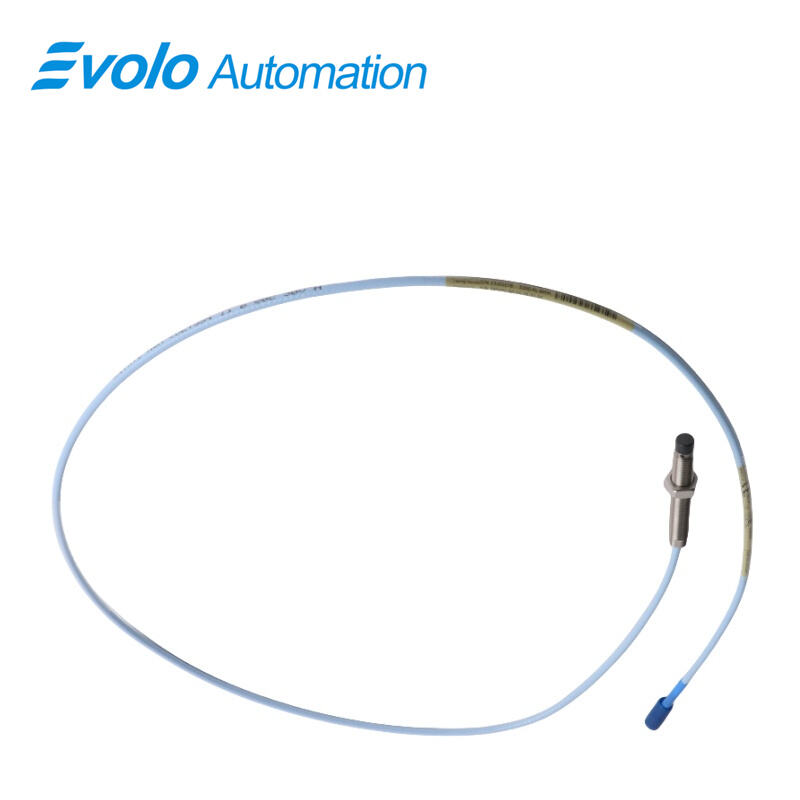

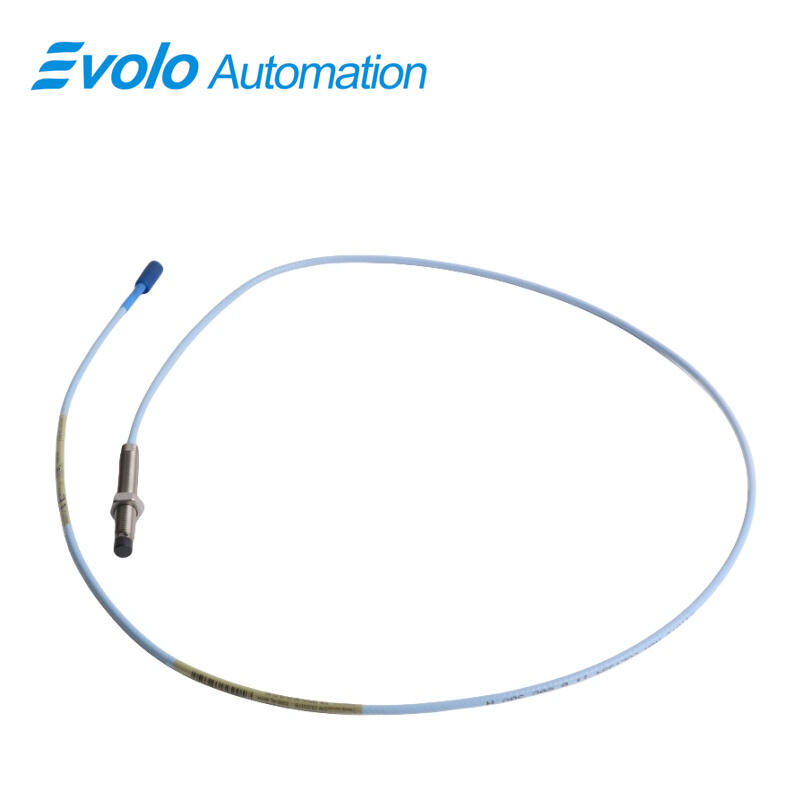

330101-00-24-10-12-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-24-10-12-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-24-10-12-CN 3300 XL 8 mm Proximity Probe is designed for displacement and vibration measurement in industrial automation and rotating equipment monitoring systems. The 330101-00-24-10-12-CN uses eddy current sensing to convert the distance between the probe tip and a conductive surface into a proportional voltage signal for continuous position and vibration monitoring.

With a 2 mm linear range and a total probe length of 1.0 meter, the 330101-00-24-10-12-CN supports shaft movement detection in turbines, compressors, pumps, and fluid-film bearing machines. The probe features a 3/8-24 UNF threaded case with a minimum case length of 2.4 inches and a maximum thread engagement of 0.563 inches, allowing direct installation in automated machinery housings.

The 330101-00-24-10-12-CN operates within a temperature range of -52°C to +177°C, supporting use near high-temperature process equipment. A miniature coaxial ClickLoc connector with FluidLoc cable limits oil migration through the cable path. With 50 Ω output resistance, supply sensitivity below 2 mV/V, and extension cable capacitance of 69.9 pF/m, the 330101-00-24-10-12-CN delivers consistent signal output to automation control and condition monitoring systems. CSA, ATEX, and IECEx approvals allow the 330101-00-24-10-12-CN to be deployed in hazardous-area automation applications.

Applications

Shaft Vibration Measurement in Turbines

The 330101-00-24-10-12-CN measures radial shaft vibration in steam and gas turbines. Its 2 mm linear range allows automation systems to detect vibration changes caused by imbalance or mechanical wear.

Axial Position Monitoring in Compressors

Installed near thrust bearings, the 330101-00-24-10-12-CN tracks axial shaft displacement in compressors. The 3/8-24 UNF thread allows fixed probe positioning inside compressor housings.

Rotational Speed Reference Signal Input

When paired with a Keyphasor target, the 330101-00-24-10-12-CN supplies rotational speed signals to automation controllers. Low supply sensitivity below 2 mV/V supports repeatable pulse detection.

Specifications

Competitive Advantage

Installation in Limited Mounting Depth

With a minimum case length of 2.4 inches, the 330101-00-24-10-12-CN fits into compact machinery where longer probes cannot be installed.

Operation Near High-Temperature Bearings

The 330101-00-24-10-12-CN operates up to +177°C, allowing measurement close to hot bearing zones without relocating the probe.

Controlled Electrical Output for Automation Systems

The 50 Ω output resistance and defined cable capacitance of the 330101-00-24-10-12-CN support predictable signal transmission to monitoring and control modules.

Reduced Oil Migration Through Cable Structure

The FluidLoc cable used in the 330101-00-24-10-12-CN limits oil movement inside the cable, preventing leakage from rotating machinery.

Use in Hazardous Industrial Zones

CSA, ATEX, and IECEx approvals allow the 330101-00-24-10-12-CN to be installed in explosion-risk automation areas.
