Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-22-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
2.2 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.3x113cm |
|
Weight: |
0.06kg |
Description

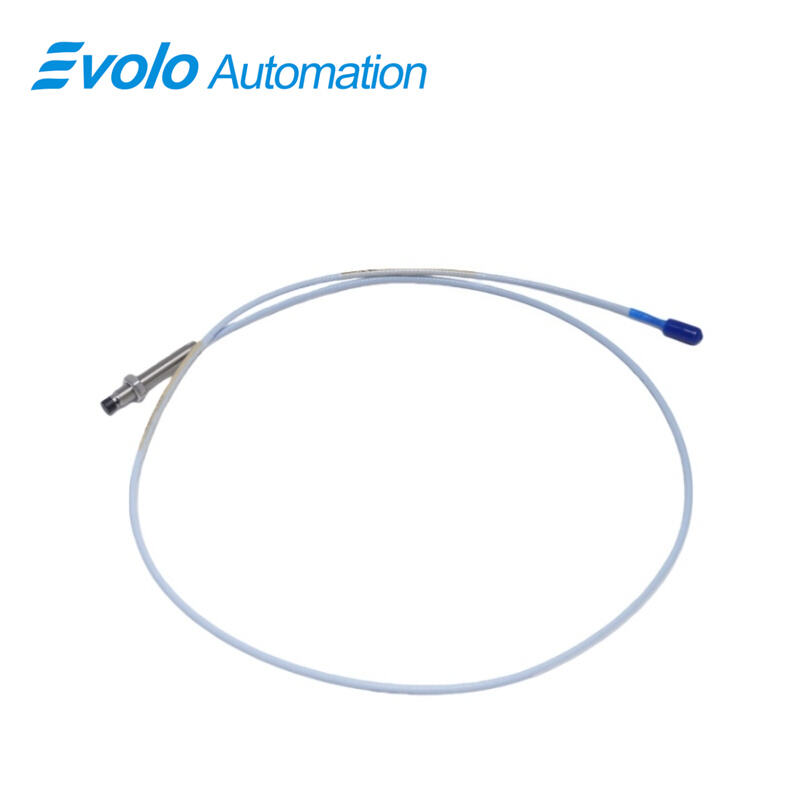

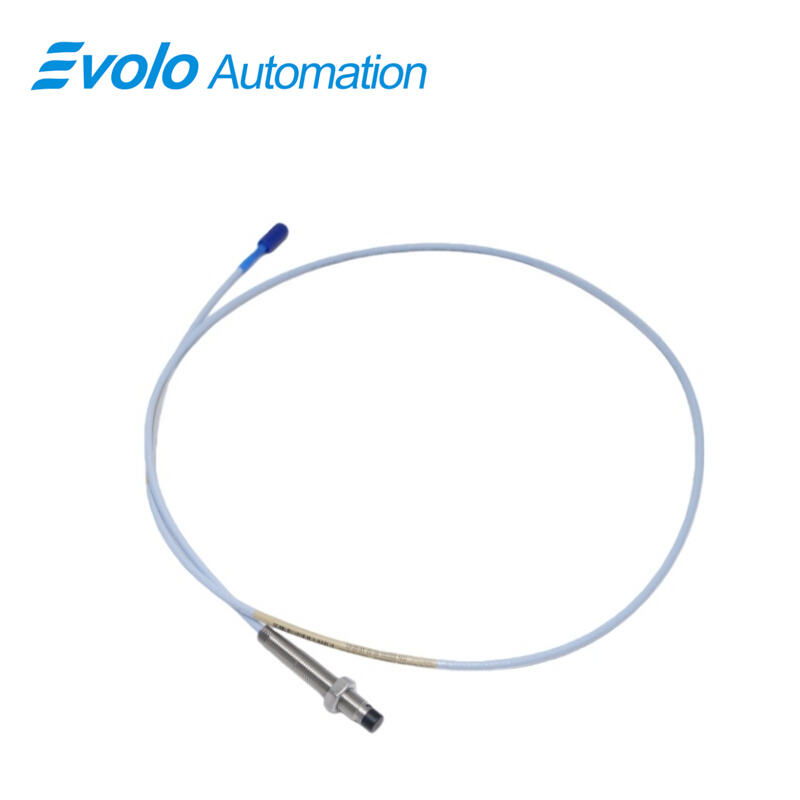

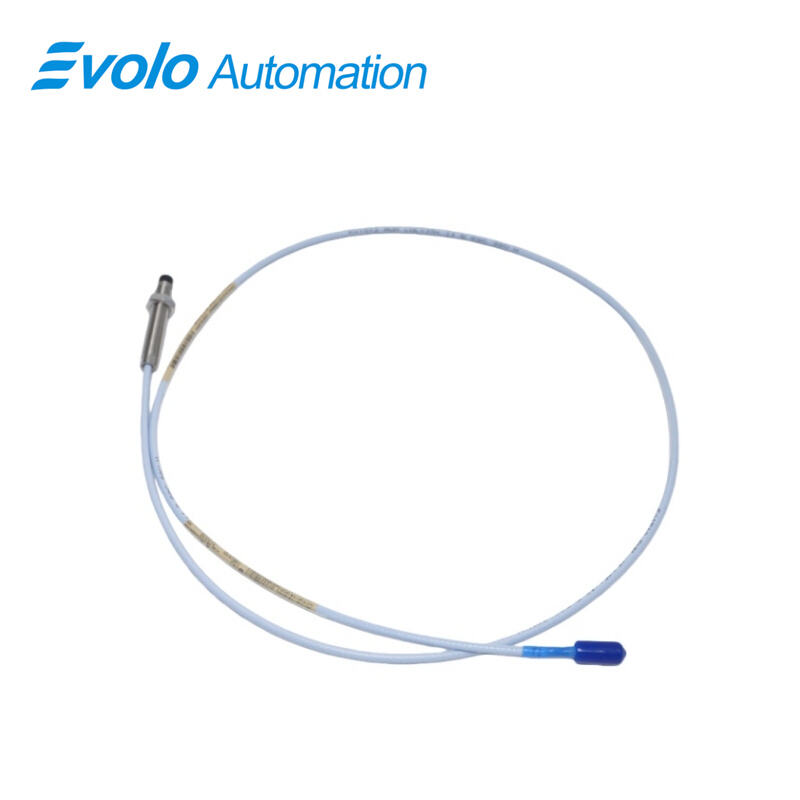

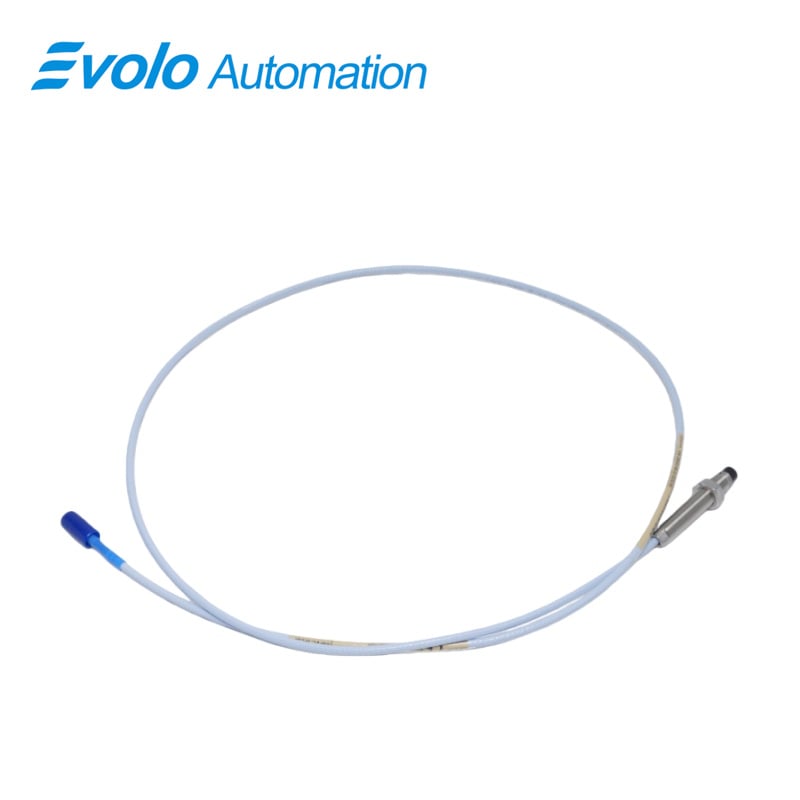

The 330101-00-22-10-02-05 3300 XL 8 mm Proximity Probe is designed for advanced industrial automation and machinery monitoring, offering precise vibration and shaft position measurements on fluid-film bearing machines, turbines, and compressors. The 330101-00-22-10-02-05 probe provides a linear output directly proportional to the distance between the probe tip and conductive surfaces, supporting both static and dynamic measurements. Featuring 2 mm linear range, 2.2 in overall case length, 1.0 m total probe length, and 3/8-24 UNF threaded mounting, the 330101-00-22-10-02-05 probe integrates seamlessly into DCS, SCADA, and condition monitoring systems. Patented TipLoc and CableLoc designs ensure 330 N pull strength, while optional FluidLoc cables prevent oil or liquid ingress. CSA, ATEX, and IECEx approvals make the 330101-00-22-10-02-05 ideal for hazardous industrial environments and fully automated plant operations.
Applications
Turbine Shaft Vibration Monitoring
The 330101-00-22-10-02-05 probe measures rotor vibration with 2 mm linear range and −52°C to +177°C operation, providing high-accuracy Keyphasor and speed signals for automated DCS systems.
Compressor Bearing Position Control
In fluid-film compressors, the 330101-00-22-10-02-05 probe’s 3/8-24 UNF thread and 2.2 in case length allow precise axial shaft movement monitoring for predictive maintenance and automated safety trips.
Industrial Pump Displacement Measurement
The 330101-00-22-10-02-05 probe delivers reliable shaft displacement feedback via ClickLoc connectors and optional FluidLoc cable, supporting fully automated condition monitoring and process optimization.
Zero-Speed & Keyphasor Reference
With 50 Ω output resistance and <2 mV/V supply sensitivity, the 330101-00-22-10-02-05 probe provides stable tachometer and Keyphasor reference signals for integration into automated plant control systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Automation-Ready Design
The 330101-00-22-10-02-05 probe, with FluidLoc cable and robust TipLoc/CableLoc bonding, ensures stable signal output and mechanical reliability for SCADA and DCS automated monitoring.
Compact and Versatile Installation
With 2.2 in overall case length and 1.0 m total length, the 330101-00-22-10-02-05 probe is ideal for tight machinery spaces while maintaining accurate measurements.
Thermal and Mechanical Robustness
Operating from −52°C to +177°C with 330 N pull strength, the 330101-00-22-10-02-05 probe withstands extreme vibration and temperature cycling in turbines, compressors, and pumps.
API 670 Compliance & Signal Accuracy
The 330101-00-22-10-02-05 probe maintains linear range, accuracy, and stable output, fully compatible with 3300 series 5 mm and 8 mm transducer systems for industrial automation applications.
