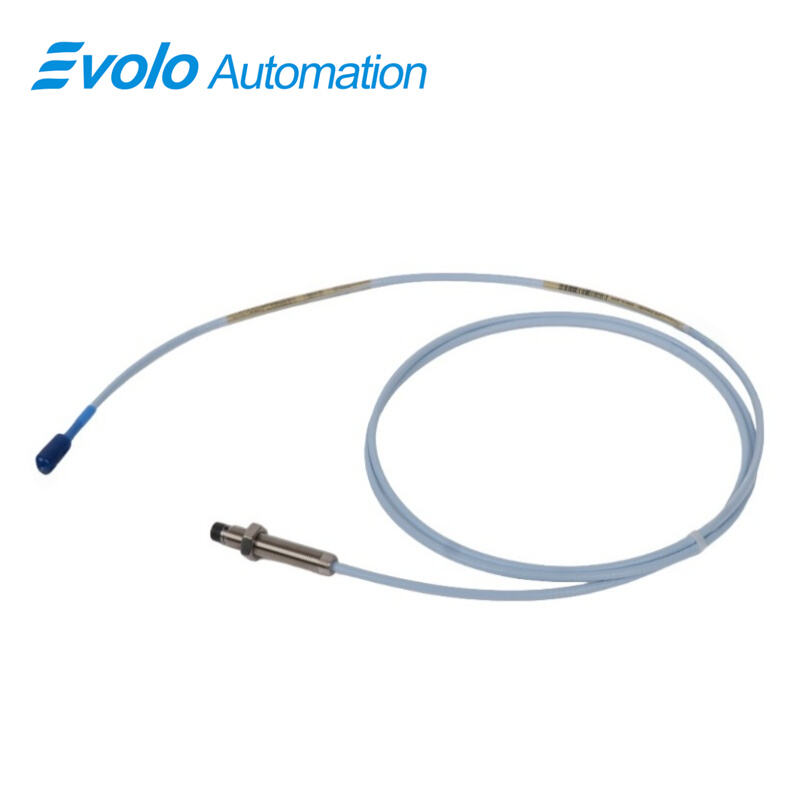

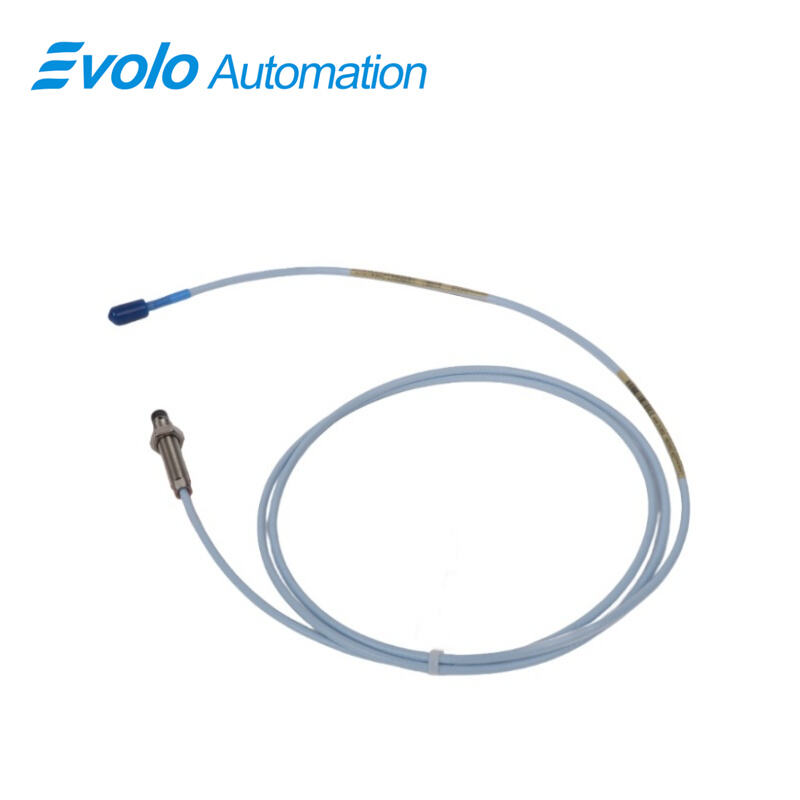

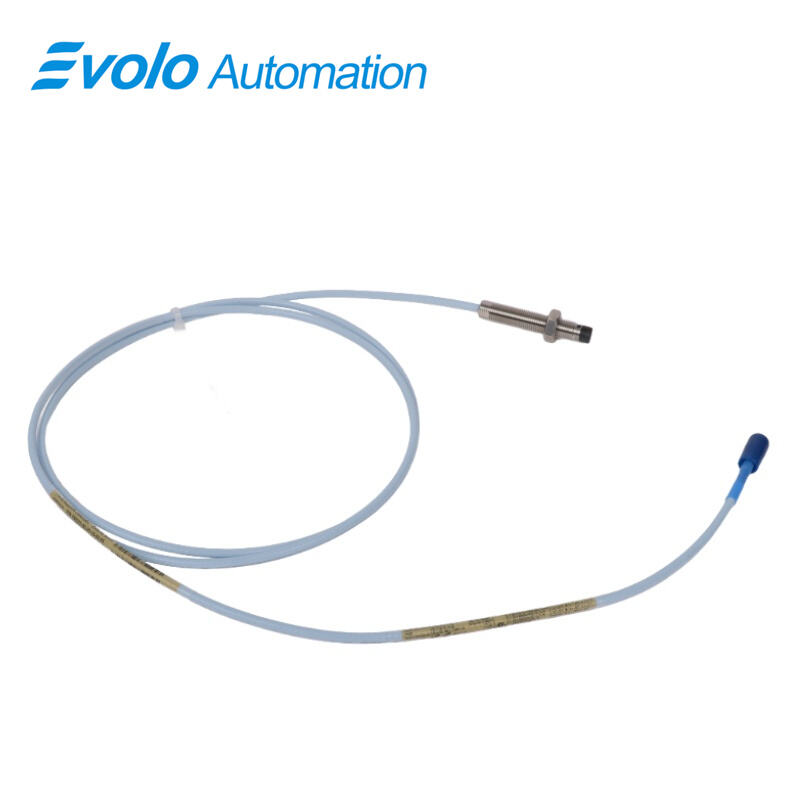

330101-00-20-15-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-20-15-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy-current transducer designed for industrial automation and machinery monitoring. It provides an output voltage directly proportional to the distance between the probe tip and a conductive target, allowing accurate measurement of both static displacement and dynamic vibration. With a 2.0-inch overall case length and 1.5-meter total cable length, this probe offers flexible installation in diverse automation systems. The miniature coaxial ClickLoc connector and standard cable with 69.9 pF/m extension capacitance ensure stable, low-noise signal transmission, while the 3/8-24 UNF threaded case with 0.563-inch maximum thread engagement provides secure mounting. Operating over a wide temperature range of -52°C to +177°C (-62°F to +350°F), it delivers minimal supply sensitivity (<2 mV per volt) and a 50 Ω output resistance, meeting demanding automation requirements. Fully compliant with API 670 standards, the 3300 XL 8 mm probe supports seamless interchangeability with other XL and standard 3300 series components. Patented TipLoc and CableLoc designs improve mechanical reliability with 330 N (75 lbf) pull strength, while optional FluidLoc cable protection prevents oil or liquid leakage, making this probe ideal for fluid-film bearing machines, speed sensing, Keyphasor reference signals, and vibration monitoring in hazardous industrial environments.

Applications

Shaft Displacement Monitoring in Turbines: The 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe uses its 2 mm linear range to measure rotor movements precisely, providing critical feedback for automated turbine control.

Vibration Analysis on Compressors: With less than 2 mV/V supply sensitivity, the 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe delivers accurate vibration monitoring, helping prevent unplanned downtime in industrial automation.

Automated Motor Feedback: The 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe mounts securely with a 3/8-24 UNF thread (max engagement 0.563 in), enabling consistent position measurements in heavy-duty motors.

Process Control in Hazardous Areas: Certified under CSA, ATEX, and IECEx, the 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe can be safely deployed in industrial automation applications in hazardous zones.

Specifications

Competitive Advantage

1. High-Temperature Operation: The 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe operates up to +177°C (-52°C to +177°C), supporting extreme industrial conditions.
2.
   Reliable Signal Transmission: With extension cable capacitance of 69.9 pF/m, the 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe ensures accurate readings over long cable runs.
3.
   Quick Installation: The 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe features a miniature coaxial ClickLoc connector and standardized 1.5 m cable, reducing setup time.
4.
   Precision Measurement: The 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe provides a 2 mm linear range with <2 mV/V supply sensitivity, guaranteeing exact gap-to-voltage feedback for automated systems.
5.
   Global Compliance: CSA, ATEX, and IECEx approvals allow the 330101-00-20-15-02-05 3300 XL 8 mm Proximity Probe to be deployed worldwide, including hazardous industrial environments.
