Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-20-05-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
2.0 in |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.3x63cm |
|
Weight: |
0.08kg |
Description

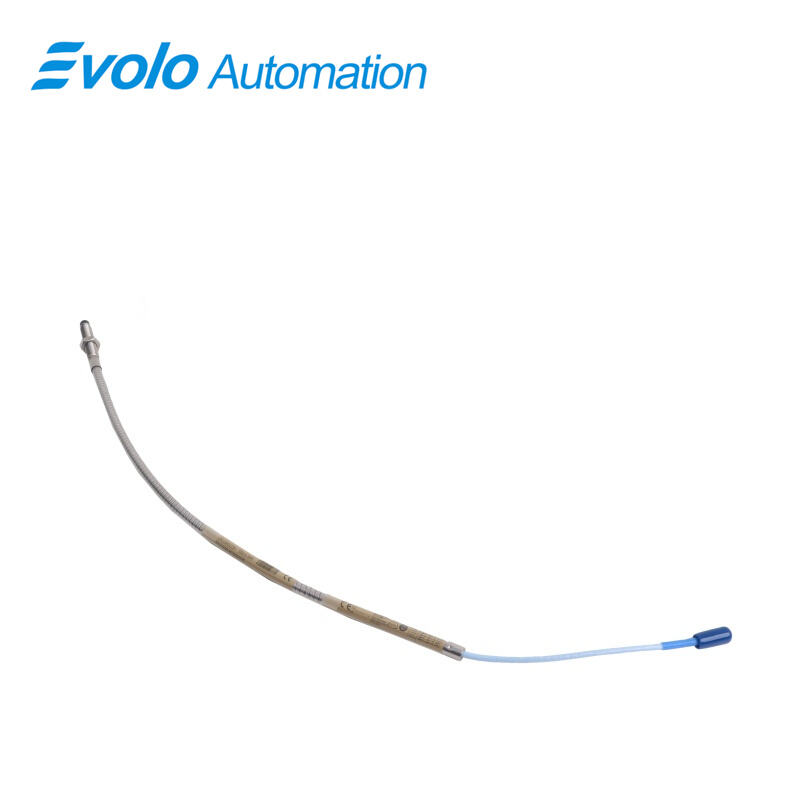

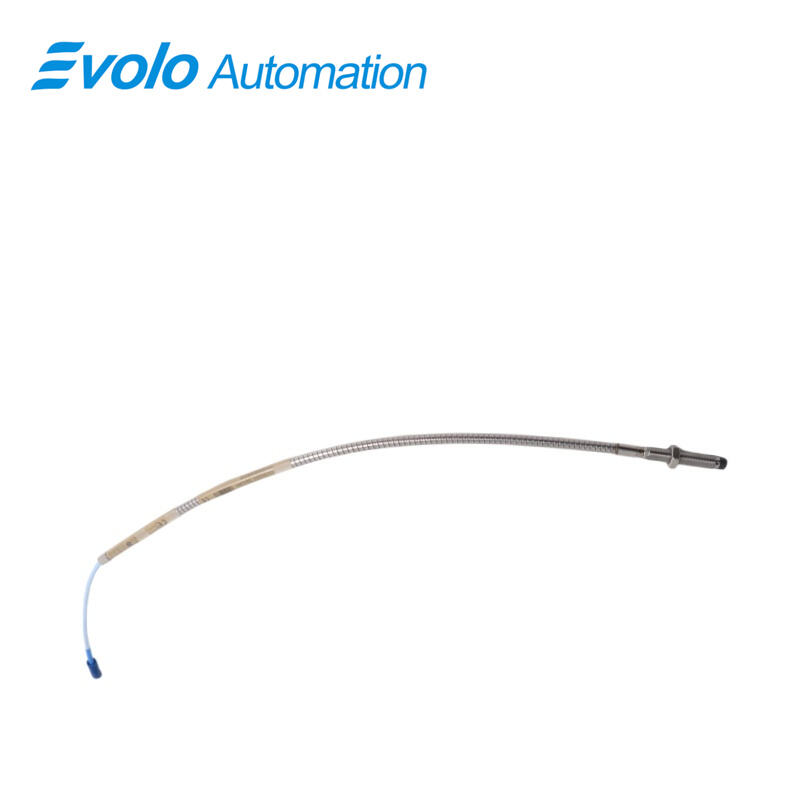

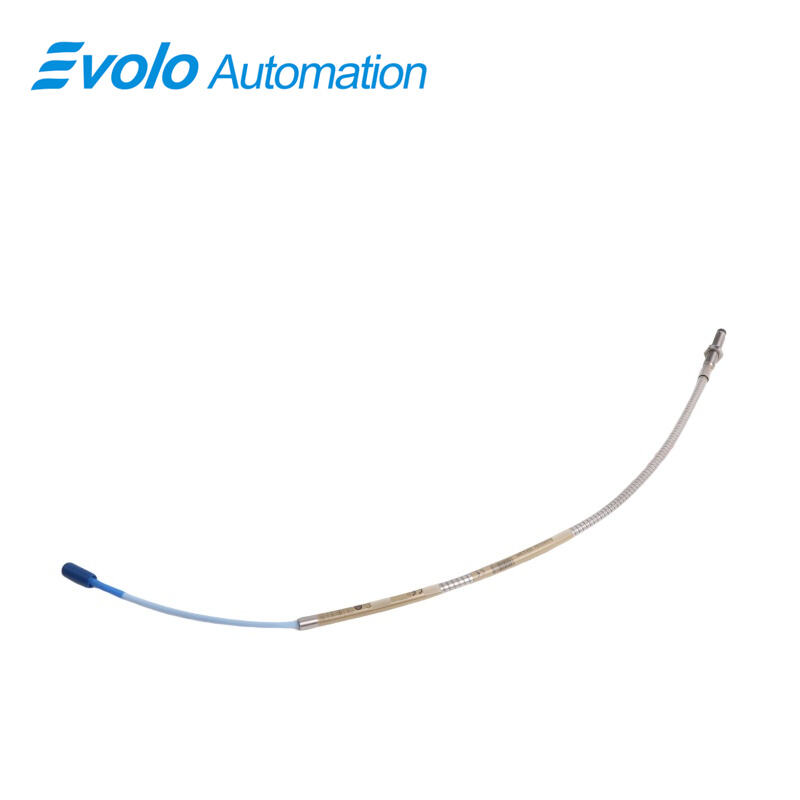

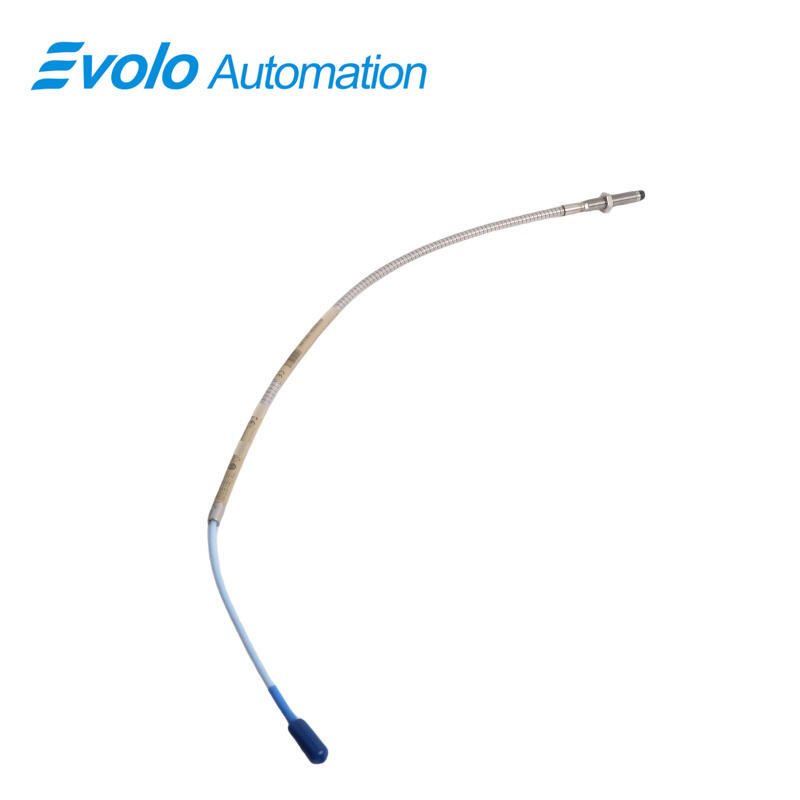

The 330101-00-20-05-02-05 3300 XL 8 mm Proximity Probe is engineered for industrial automation systems and critical rotating machinery monitoring. The 330101-00-20-05-02-05 probe provides a linear output proportional to the distance between the probe tip and conductive surfaces, enabling both dynamic vibration and static position measurements. Designed for turbines, compressors, pumps, and fluid-film bearing machines, the 330101-00-20-05-02-05 probe ensures accurate Keyphasor and speed measurement signals for predictive maintenance and automated trip protection. Featuring 3/8-24 UNF threaded mounting, 0.5 m total length, 2 mm linear range, and operation from −52°C to +177°C, the 330101-00-20-05-02-05 probe integrates seamlessly with DCS, SCADA, and condition monitoring platforms. Its patented TipLoc and CableLoc designs provide a robust probe tip bond and 330 N pull strength on the cable, while the optional FluidLoc cable prevents fluid leakage, making the 330101-00-20-05-02-05 probe ideal for automated, high-reliability industrial environments.
Applications
Turbine Shaft Vibration Monitoring
The 330101-00-20-05-02-05 probe measures turbine rotor vibration across −52°C to +177°C, with 2 mm linear range and 50 Ω output, providing real-time signals for automated trip and speed control in SCADA or DCS platforms.
Compressor Bearing Position Control
Used in fluid-film compressors, the 330101-00-20-05-02-05 probe’s 3/8-24 UNF threaded case and 0.5 m total length allow accurate axial position tracking in confined bearing housings, supporting predictive maintenance and reducing downtime.
Industrial Pump Shaft Displacement
For centrifugal pumps, the 330101-00-20-05-02-05 probe delivers precise shaft displacement feedback using ClickLoc connectors and optional FluidLoc cable to prevent oil leakage, ensuring reliable condition monitoring under automation control.
Keyphasor & Speed Reference Integration
The 330101-00-20-05-02-05 probe outputs stable Keyphasor signals compatible with modern digital monitoring and automation systems, leveraging <2 mV/V supply sensitivity and low-capacitance extension cabling for high signal fidelity.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
API 670 Compliance & Interchangeability
The 330101-00-20-05-02-05 probe meets mechanical and linear range standards, fully compatible with 3300 series 5 mm and 8 mm systems, simplifying upgrades in automation and monitoring setups.
Wide Temperature & Robust Design
Operating from −52°C to +177°C, the 330101-00-20-05-02-05 probe withstands extreme thermal cycles common in turbines, compressors, and pump automation.
Secure Cable & Probe Attachment
Patented CableLoc provides 330 N pull strength, while TipLoc molding ensures robust probe tip bonding, reducing maintenance interruptions in high-vibration environments.
