Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-20-05-02-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
2.0 in |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.3x63cm |
|
Weight: |
0.08kg |
Description

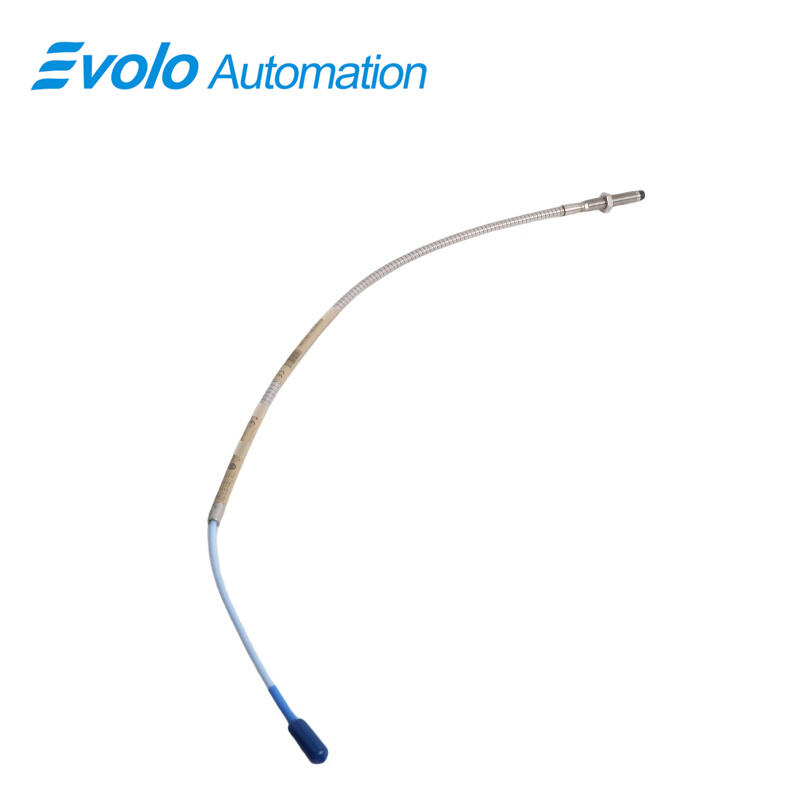

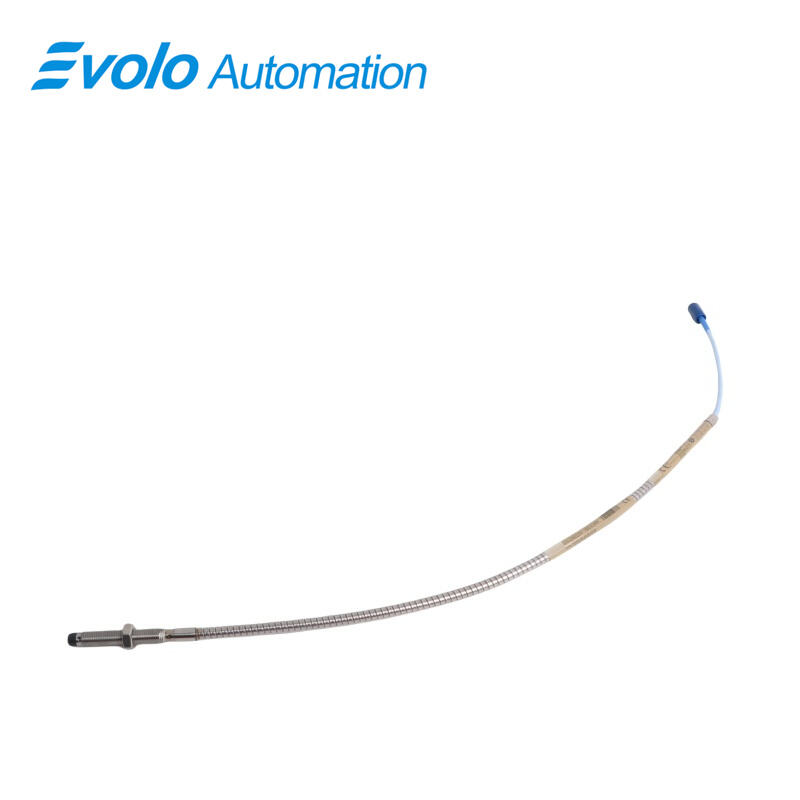

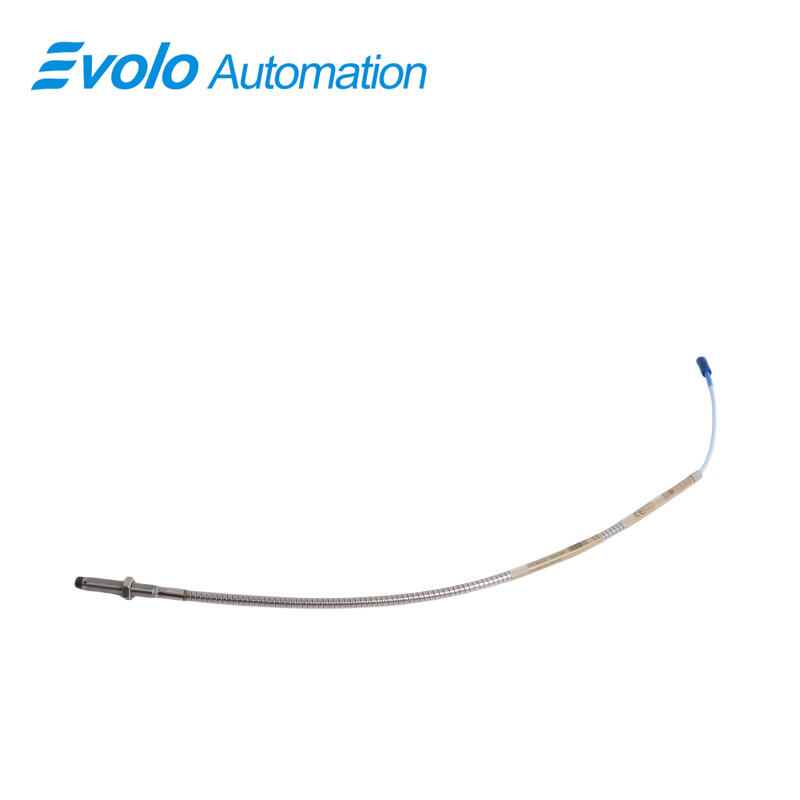

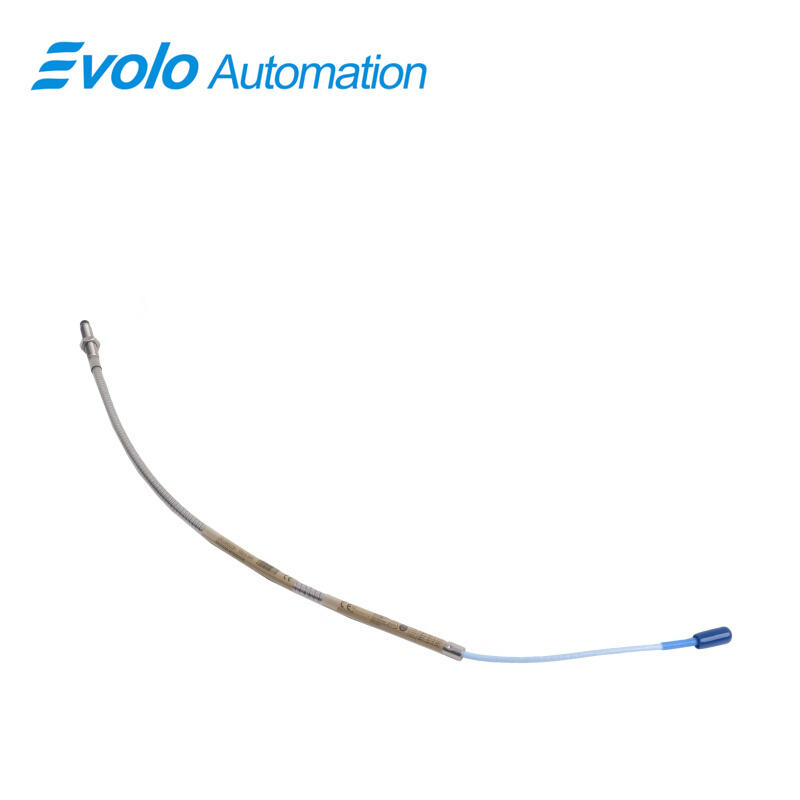

The 330101-00-20-05-02-02 3300 XL 8 mm Proximity Probe provides precise measurement of shaft position and vibration on fluid-film bearing machinery. With a 2 mm linear range, 50 Ω output, 2.0 in case length, 0.5-meter total cable, and 3/8-24 UNF thread, the 330101-00-20-05-02-02 3300 XL 8 mm Proximity Probe delivers output voltage proportional to displacement for automated monitoring systems. Its miniature coaxial ClickLoc connector enables direct integration with Proximitor sensors and industrial automation controllers. Operating from -52°C to +177°C with less than 2 mV change per volt input, the 330101-00-20-05-02-02 3300 XL 8 mm Proximity Probe supports Keyphasor signals, speed measurement, and vibration detection. TipLoc molded probe tip and CableLoc cable with 330 N pull strength secure the probe, and optional FluidLoc cable prevents oil or liquid leakage during automated operation.
Applications
Measure Shaft Vibration on Fluid-Film Bearings
The 330101-00-20-05-02-02 3300 XL 8 mm Proximity Probe measures shaft vibration within its 2 mm linear range and 50 Ω output, feeding automated monitoring systems with real-time vibration data to detect misalignment or imbalance on high-speed rotating machinery.
Track Shaft Position for Speed Control
The 330101-00-20-05-02-02 3300 XL 8 mm Proximity Probe provides voltage proportional to shaft displacement, enabling automated controllers to read Keyphasor signals and adjust turbine or pump speeds precisely.
Integrate with Automated Monitoring Systems
The 330101-00-20-05-02-02 3300 XL 8 mm Proximity Probe features a ClickLoc connector and 0.5-meter cable, allowing direct integration with Proximitor sensors and industrial automation controllers for continuous vibration and position measurement.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High-Precision Signal Output
The 330101-00-20-05-02-02 3300 XL 8 mm Proximity Probe delivers linear 2 mm range output with less than 2 mV variation per volt input, providing automated systems with accurate and repeatable vibration and displacement data.
Secure Probe Attachment
TipLoc molded probe tip and CableLoc cable with 330 N pull strength ensure the 330101-00-20-05-02-02 3300 XL 8 mm Proximity Probe remains securely attached during high-vibration operations, reducing installation errors in automated monitoring setups.
Wide Operating Temperature for Industrial Automation
The 330101-00-20-05-02-02 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C, allowing installation on machinery exposed to extreme temperature ranges without manual adjustment.
Easy Integration with Controllers and Sensors
The 330101-00-20-05-02-02 3300 XL 8 mm Proximity Probe outputs 50 Ω via ClickLoc connector, allowing direct connection to Proximitor sensors and automation controllers for real-time monitoring and control.
