330101-00-15-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-15-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

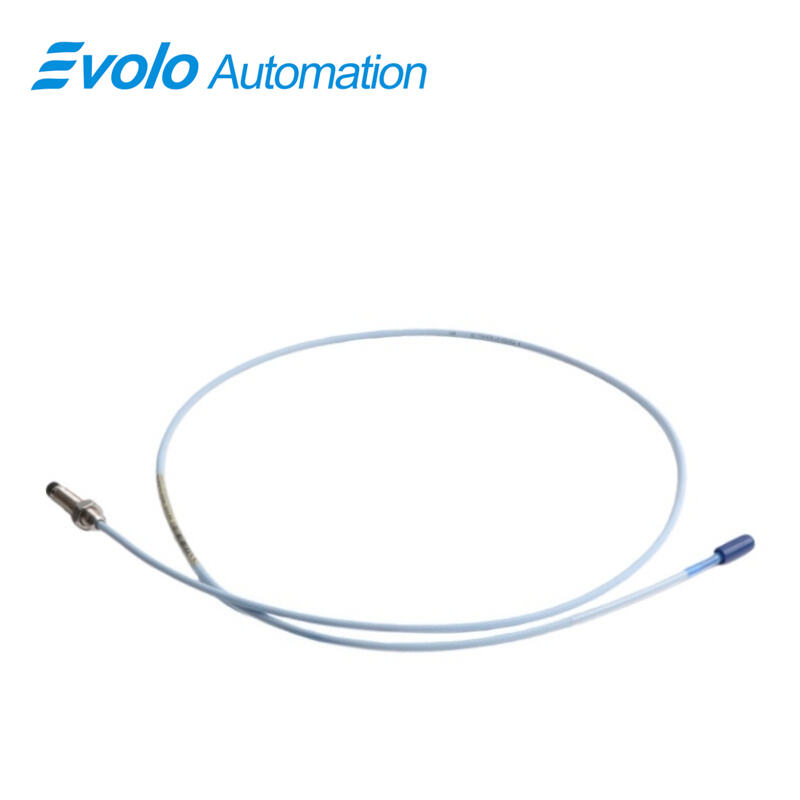

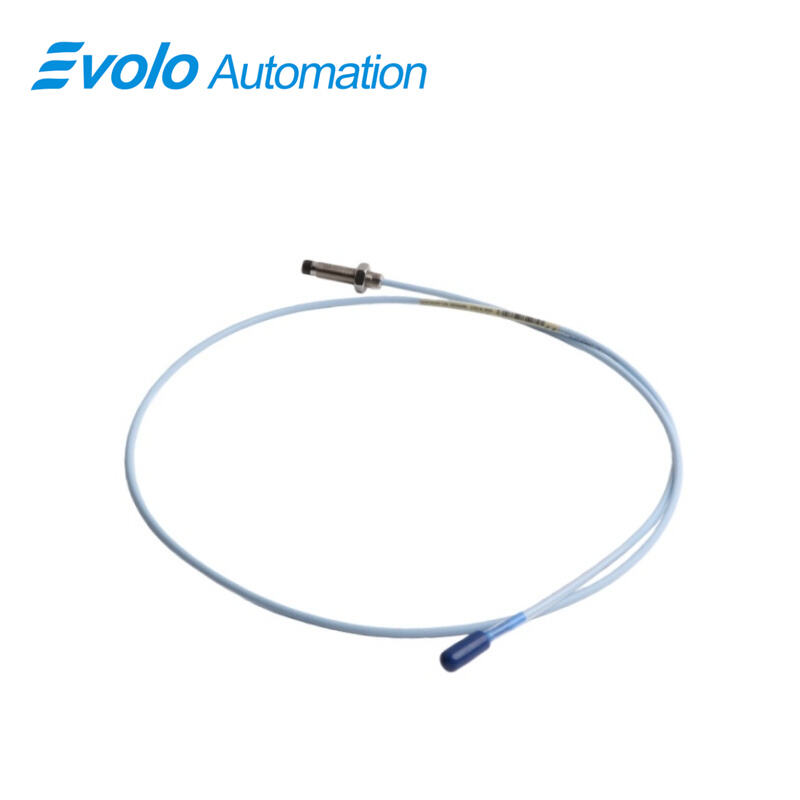

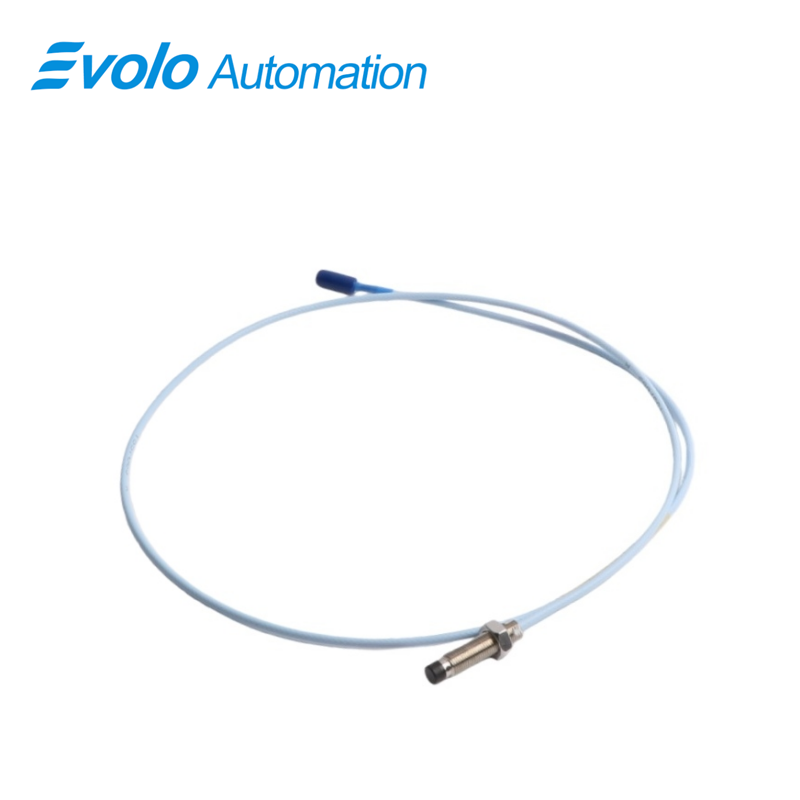

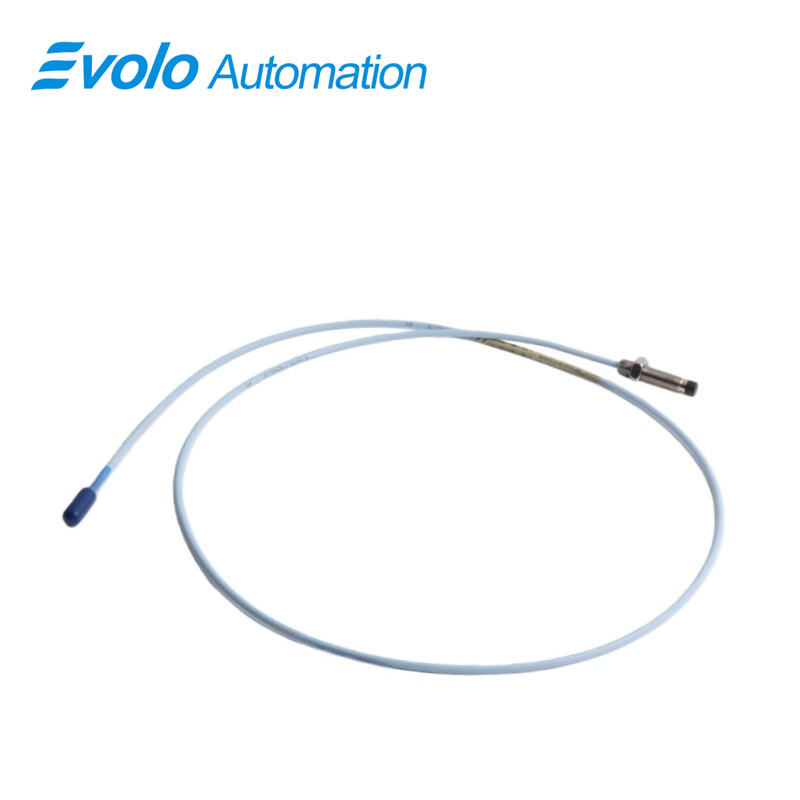

The 330101-00-15-10-02-05 3300 XL 8 mm Proximity Probe is engineered for automated monitoring of fluid-film bearing machines, turbines, compressors, and high-speed motors. The 330101-00-15-10-02-05 probe features a 3/8-24 UNF thread with maximum engagement of 0.563 inches, unthreaded length of 0 inches, and overall case length of 1.5 inches. Its 1.0 meter standard cable with miniature coaxial ClickLoc connector enables seamless integration into distributed control and condition monitoring systems. The 330101-00-15-10-02-05 delivers high-accuracy measurements over a 2 mm linear range, capturing both static shaft position and dynamic vibration signals with less than 2 mV output variation per volt of supply. Operating from -52°C to +177°C and carrying CSA, ATEX, and IECEx approvals, the 330101-00-15-10-02-05 probe performs reliably in hazardous industrial zones. Patented TipLoc molding strengthens the bond between the probe tip and body, while CableLoc design provides 330 N pull strength for secure attachment. Optional FluidLoc cables prevent leakage of oils or liquids, preserving machine integrity. Fully compatible with other 3300 XL and standard 3300 series components, the 330101-00-15-10-02-05 3300 XL 8 mm Proximity Probe enhances predictive maintenance, minimizes downtime, and supports advanced automated monitoring strategies.

Applications

Applications in Rotating Machinery Monitoring
The 330101-00-15-10-02-05 3300 XL 8 mm Proximity Probe is applied to turbines compressors pumps and fluid-film bearing machines where precise measurement of shaft position and vibration is essential for automated condition monitoring. With a linear range of 2 mm overall case length of 1.5 inches and unthreaded length of 0 inches the 330101-00-15-10-02-05 provides highly accurate static and dynamic displacement data. Its 1.0 meter standard cable and miniature coaxial ClickLoc connector allow seamless integration into distributed control systems and predictive maintenance platforms. The 330101-00-15-10-02-05 supports Keyphasor reference and speed measurements enhancing automated control loops and real-time vibration analytics.

Applications in Hazardous Area Automation
The 330101-00-15-10-02-05 3300 XL probe operates reliably in hazardous zones with CSA ATEX and IECEx approvals and a temperature range from minus 52 to plus 177 degrees Celsius. Patented TipLoc molding secures the probe tip while the CableLoc design provides 330 N pull strength ensuring stable connection in automated industrial systems. Optional FluidLoc cables prevent oil or liquid leakage maintaining machine integrity during continuous monitoring.

Specifications

Competitive Advantage

Competitive Advantage in Reliability and Accuracy
The 330101-00-15-10-02-05 provides exceptional measurement stability with less than 2 mV change in output per volt change in supply and output resistance of 50 ohms. Its 3/8-24 UNF thread and maximum engagement of 0.563 inches secure the probe in high-speed machinery minimizing vibration artifacts. These features allow the 330101-00-15-10-02-05 to deliver precise and repeatable data for condition-based automation strategies.

Competitive Advantage in Integration and Maintenance Efficiency
The 330101-00-15-10-02-05 3300 XL probe is fully compatible with other 3300 XL and standard 3300 series components enabling interchangeable use of probes extension cables and Proximitor sensors. Its robust construction and flexible cabling options allow the 330101-00-15-10-02-05 to reduce unplanned downtime and enhance predictive maintenance efficiency in automated high-speed machinery.
