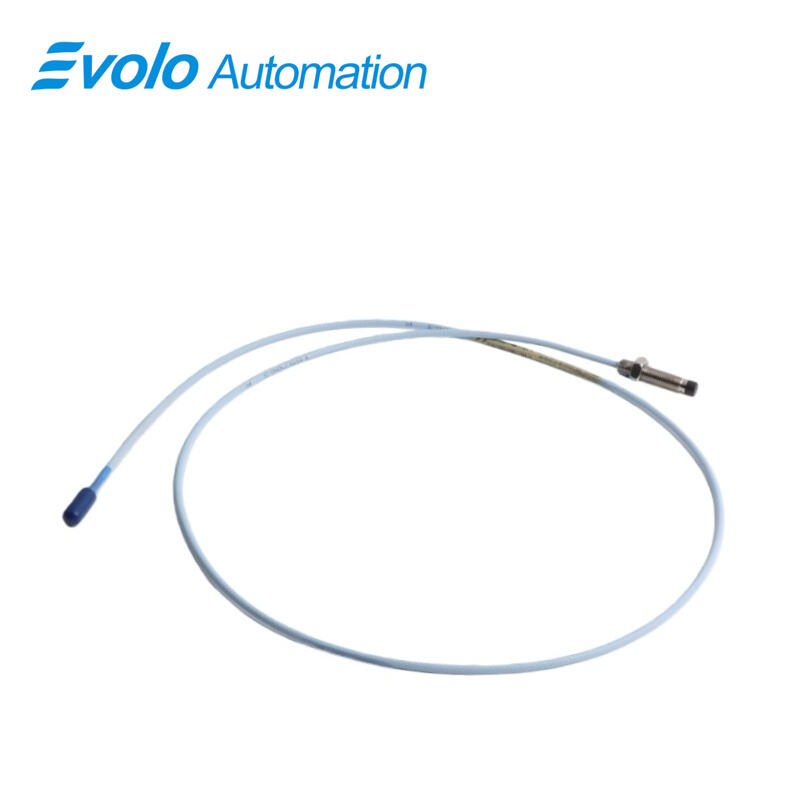

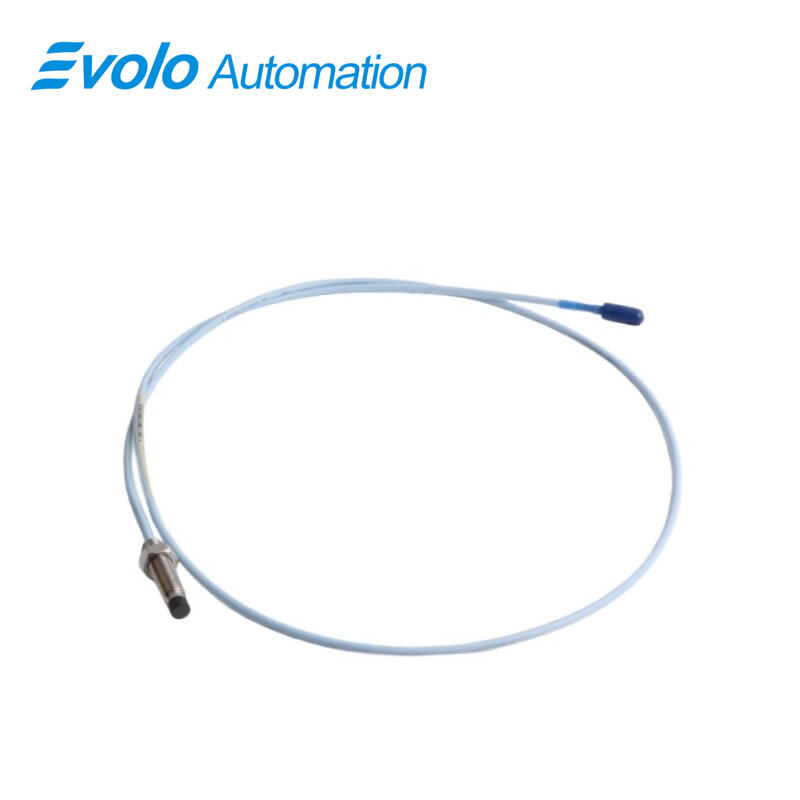

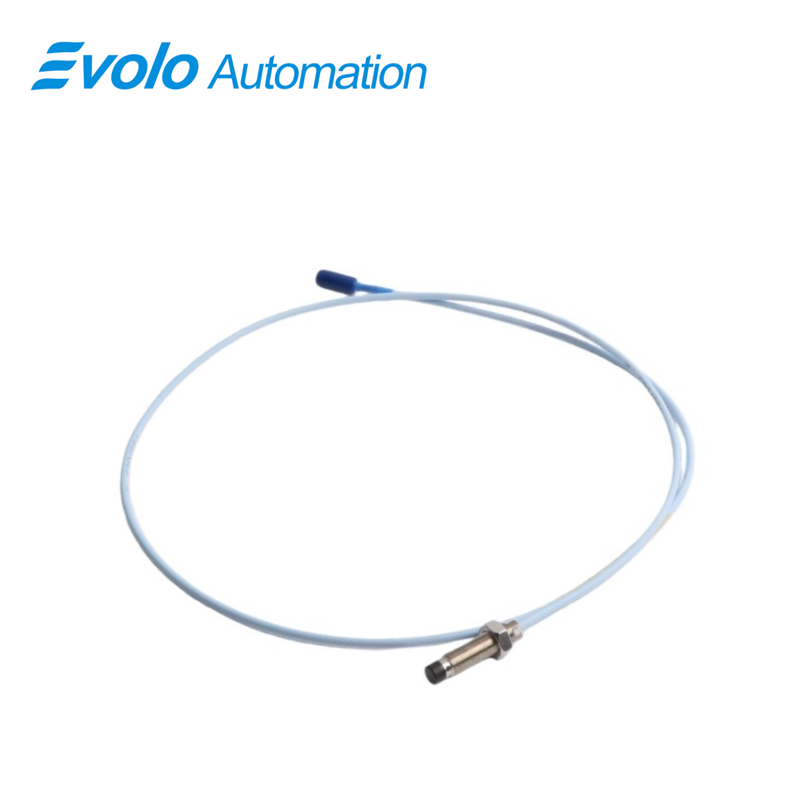

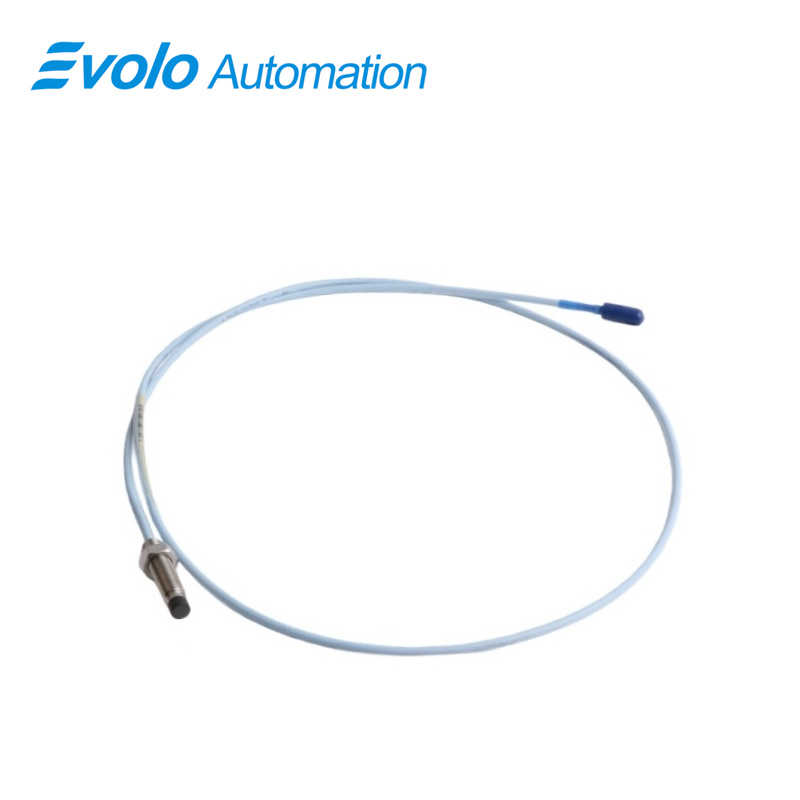

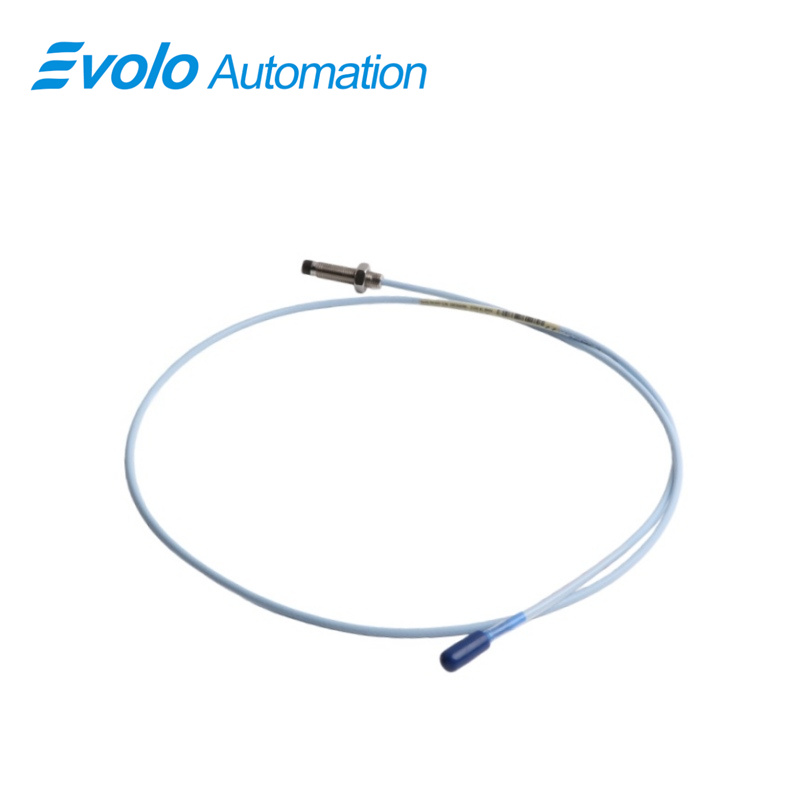

330101-00-15-10-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-15-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330101-00-15-10-01-00 3300 XL 8 mm Proximity Probe is built for non-contact displacement and vibration measurement in industrial automation and machinery protection systems. 330101-00-15-10-01-00 converts the distance between the probe tip and a conductive target into a proportional voltage signal, supporting both static position and dynamic vibration monitoring on fluid-film bearing machines.

The 330101-00-15-10-01-00 probe has a 1.0 m total length with a minimum case length of 1.5 in and an unthreaded length of 0.0 in. A 3/8-24 UNF probe case thread with a maximum engagement of 0.563 in allows direct mounting on bearing housings. 330101-00-15-10-01-00 operates across a wide temperature range from -52°C to +177°C, meeting demanding automation environments.

Signal performance of 330101-00-15-10-01-00 includes a 2 mm linear range, 50 Ω output resistance, and extension cable capacitance of 69.9 pF/m. The miniature coaxial ClickLoc connector with connector protector enables secure field wiring using 16 to 24 AWG conductors. 330101-00-15-10-01-00 is commonly used for shaft vibration, axial position, Keyphasor reference, and speed measurement within automated monitoring systems.

Applications

Shaft Vibration Measurement on Fluid-Film Bearings
330101-00-15-10-01-00 is used to measure shaft vibration on turbines, compressors, and pumps equipped with fluid-film bearings. With a 2 mm linear range and a 50 Ω output resistance, 330101-00-15-10-01-00 delivers proportional voltage signals that can be processed directly by machinery protection racks and condition monitoring systems.

Radial Shaft Position Measurement
330101-00-15-10-01-00 supports radial shaft position monitoring by converting probe-to-target distance into a continuous voltage output. The 3/8-24 UNF mounting thread and 0.563 in maximum thread engagement allow precise probe placement on bearing housings used in automated rotating equipment.

Keyphasor Reference Signal Generation
330101-00-15-10-01-00 is applied as a Keyphasor reference probe for speed and phase measurement. The 1.0 m probe length and miniature coaxial ClickLoc connector enable direct routing to monitoring modules, supporting accurate speed calculation and phase comparison in automation systems.

High-Temperature Machine Monitoring
With an operating range from -52°C to +177°C, 330101-00-15-10-01-00 is installed on machines exposed to elevated temperatures such as steam turbines and hot process compressors, allowing continuous displacement and vibration measurement without additional cooling hardware.

Specifications

Competitive Advantage

Defined Linear Measurement Range
The 2 mm linear range of 330101-00-15-10-01-00 supports accurate vibration and position tracking without frequent mechanical readjustment during machine operation.

Low Sensitivity to Supply Voltage Variation
330101-00-15-10-01-00 shows less than 2 mV output change per volt of supply variation, helping monitoring systems maintain consistent signal levels under fluctuating power conditions.

Secure Mechanical and Electrical Connection
The 3/8-24 UNF thread and ClickLoc connector with connector protector allow 330101-00-15-10-01-00 to remain firmly mounted and electrically connected in high-vibration automation environments.

Efficient Signal Transmission to Monitoring Racks
With an extension cable capacitance of 69.9 pF/m and support for 16 to 24 AWG field wiring, 330101-00-15-10-01-00 enables clean signal transmission from the probe location to machinery protection and control systems.
