Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-13-05-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.3 in |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.4x112cm |
|
Weight: |
0.06kg |
Description

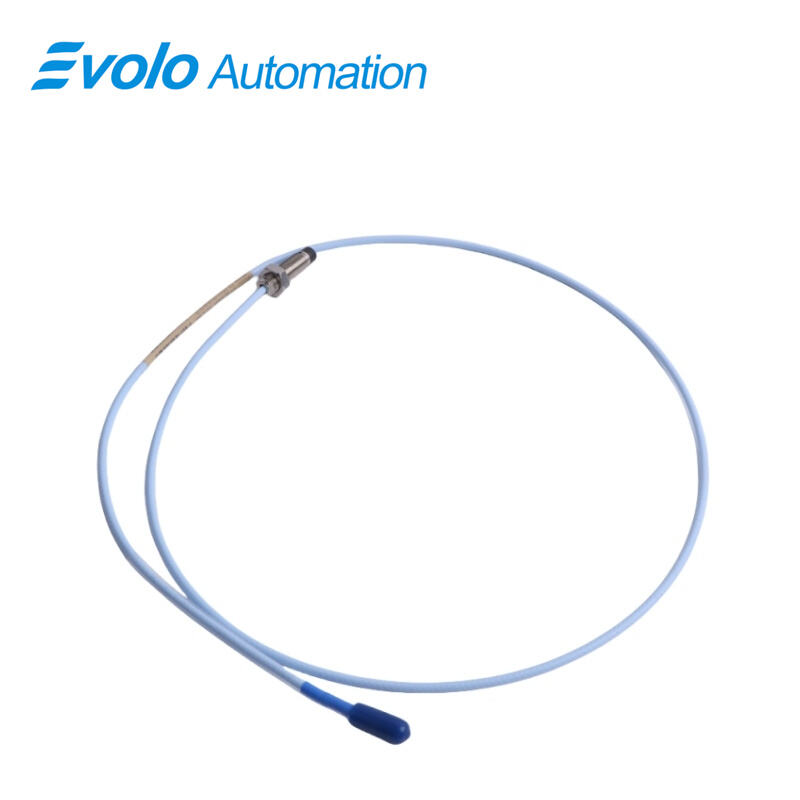

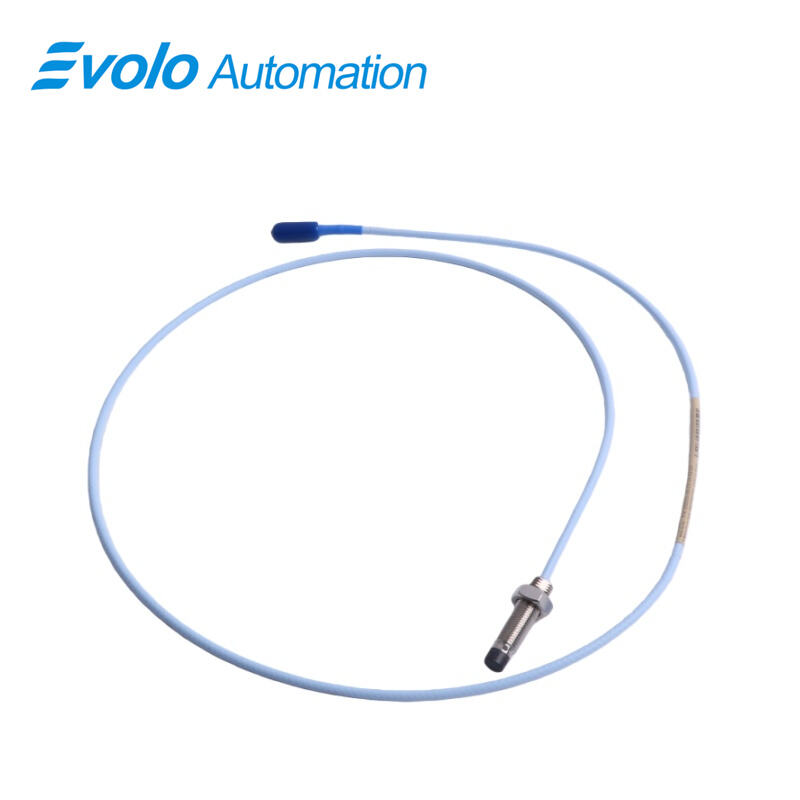

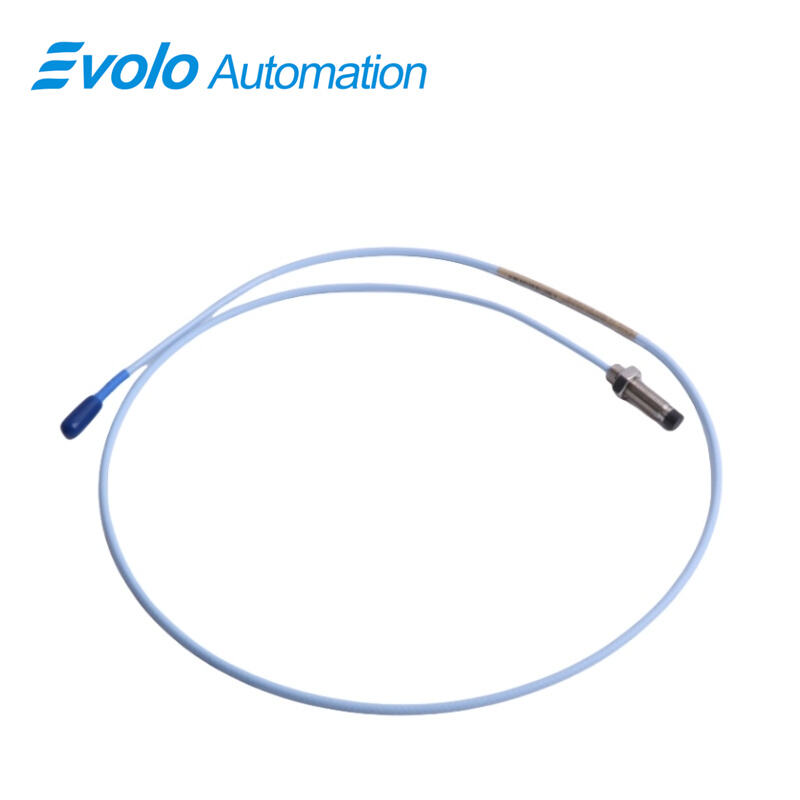

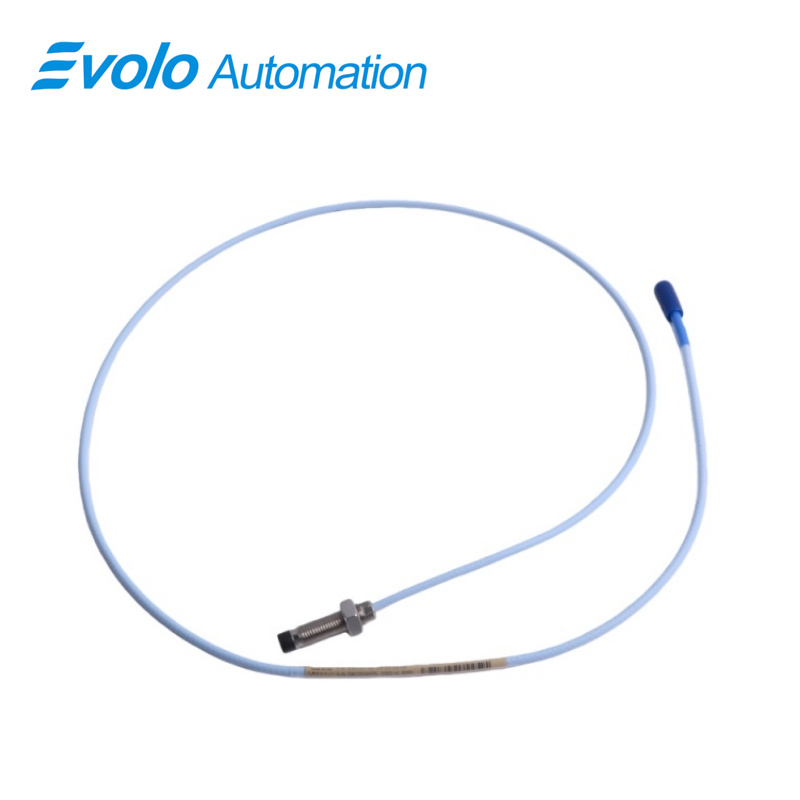

The 330101-00-13-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for automated monitoring of fluid-film bearing machinery. With a 2 mm (80 mils) linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, the 330101-00-13-05-02-00 3300 XL 8 mm Proximity Probe provides highly accurate static position and dynamic vibration measurements. Its 3/8-24 UNF thread with 0.563 in engagement, miniature coaxial ClickLoc connector, and standard 0.5-meter (1.6 feet) cable allow secure and reliable installation in tight automation applications. Operating across -52°C to +177°C (-62°F to +350°F), the 330101-00-13-05-02-00 3300 XL 8 mm Proximity Probe maintains stability in extreme industrial environments.
Applications
Axial and Radial Position Monitoring
The 330101-00-13-05-02-00 3300 XL 8 mm Proximity Probe measures axial and radial positions on turbines, pumps, and compressors. Its 2 mm linear range and precise output enable real-time monitoring of critical shaft alignment in automated machinery systems.
Vibration Analysis on Fluid-Film Bearings
The 330101-00-13-05-02-00 3300 XL 8 mm Proximity Probe provides high-resolution vibration detection with extension cable capacitance of 69.9 pF/m (21.3 pF/ft), allowing predictive maintenance and early fault detection in automated industrial operations.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Robust Mechanical and Electrical Design
The 330101-00-13-05-02-00 3300 XL 8 mm Proximity Probe features patented TipLoc molding and CableLoc designs, providing a 330 N (75 lb) pull strength that secures the probe tip and cable in high-vibration environments. Its 3/8-24 UNF threaded probe case with 0.563 in maximum thread engagement ensures stable mounting, preventing probe displacement during operation in automated industrial systems.
Wide Temperature and Environmental Tolerance
Operating reliably from -52°C to +177°C (-62°F to +350°F) and supporting extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 330101-00-13-05-02-00 3300 XL 8 mm Proximity Probe maintains measurement accuracy even in extreme thermal conditions. Optional FluidLoc cables prevent oil and fluid ingress, preserving signal integrity and ensuring long-term operation in harsh automation environments.
High Signal Stability and Accuracy
The 330101-00-13-05-02-00 3300 XL 8 mm Proximity Probe provides an output directly proportional to the distance between the probe tip and target, with 50 Ω output resistance and supply sensitivity of less than 2 mV per volt. This ensures stable, repeatable readings for both static position and dynamic vibration monitoring, critical for predictive maintenance and automated control systems.
