Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-12-90-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.2 in |
|
Total Length Option: |
9.0 meters (29.5 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.4x117cm |
|
Weight: |
0.06kg |
Description

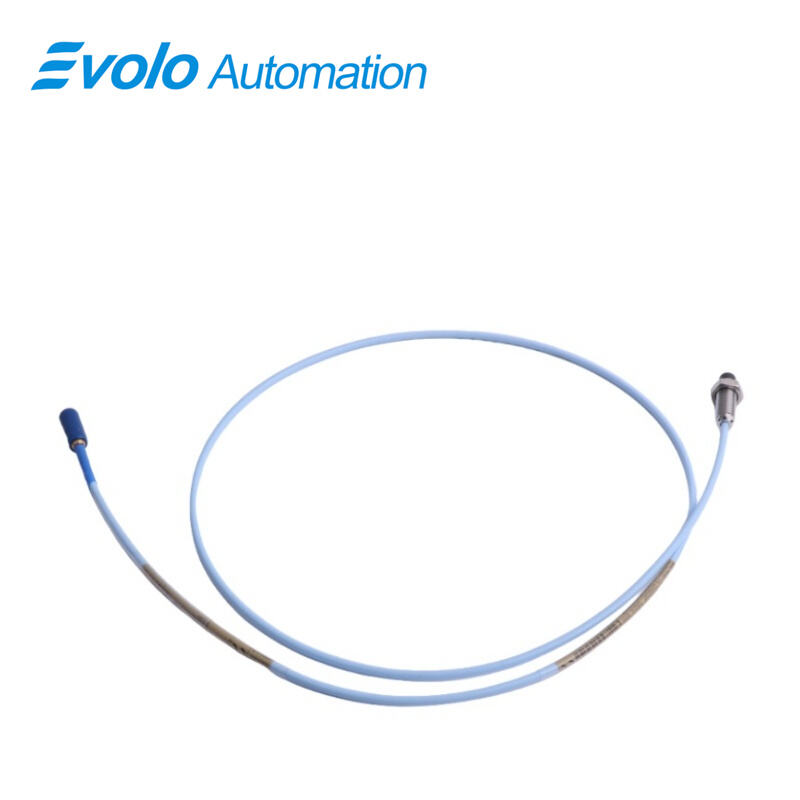

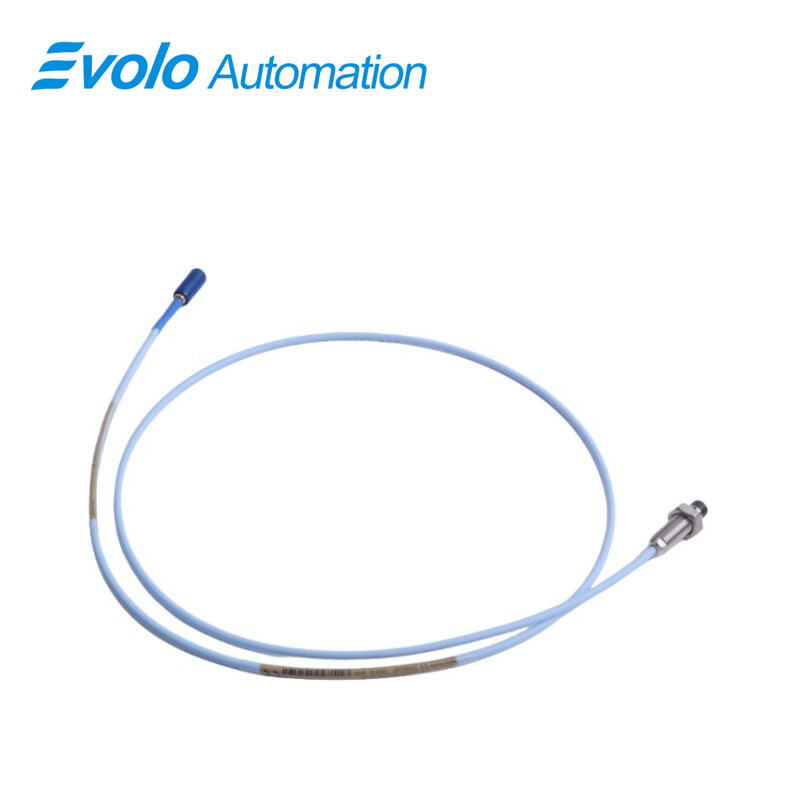

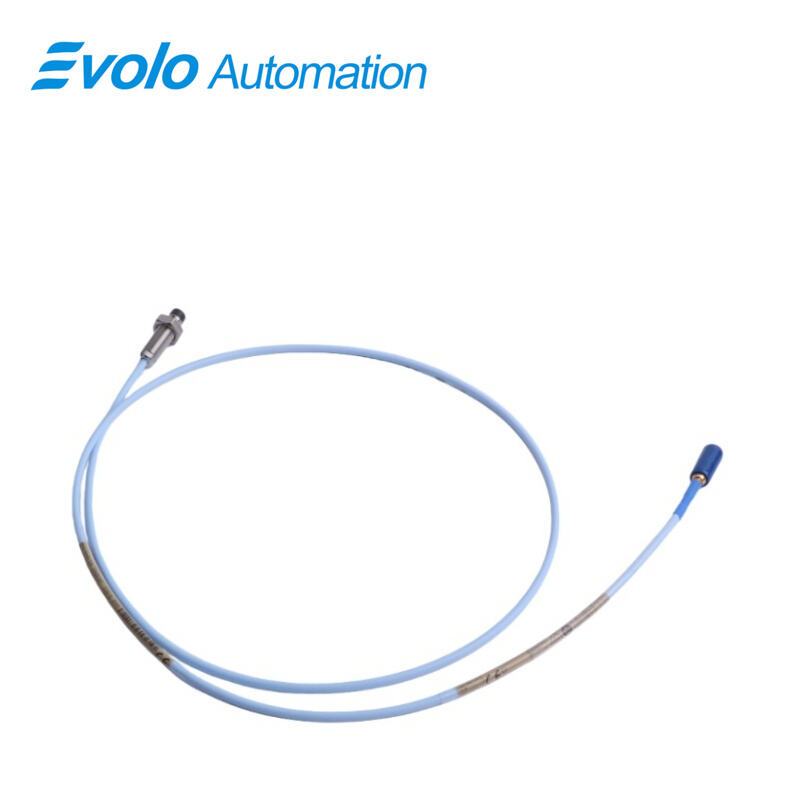

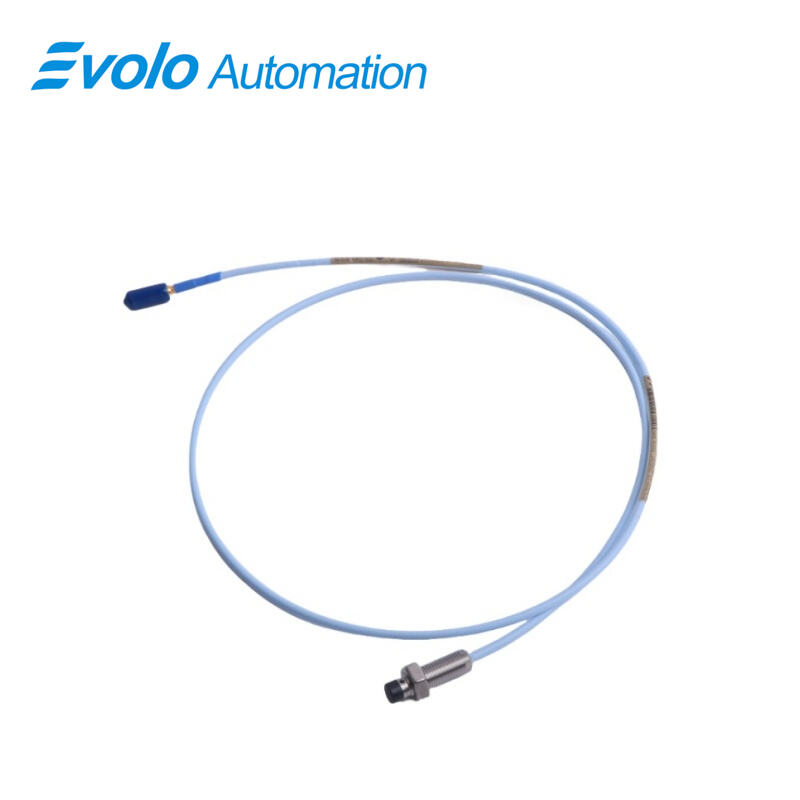

The 330101-00-12-90-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current sensor engineered for industrial automation and machinery monitoring. With a total length of 9.0 meters (29.5 feet) and a miniature coaxial ClickLoc connector, it provides reliable transmission of both static (position) and dynamic (vibration) signals to the 3300 XL Proximitor sensor. The probe is designed for extreme industrial environments, operating between -52°C to +177°C (-62°F to +350°F), and maintains linearity over a 2 mm (80 mils) measurement range. Its 3/8-24 UNF threaded case ensures secure installation, and patented TipLoc and CableLoc designs enhance mechanical robustness with a 330 N (75 lbf) pull strength, preventing disconnections and signal degradation. The optional FluidLoc cable protects against oil and liquid ingress, extending equipment life. Fully backward compatible with non-XL 3300 series components, this probe allows seamless integration into existing monitoring systems while meeting API 670 mechanical configuration, linear range, and temperature stability standards.
Applications
1. High-Precision Vibration Monitoring
Ideal for fluid-film bearing machines, turbines, and compressors, providing accurate vibration data for predictive maintenance.
2. Extended Reach Machinery Monitoring
With 9-meter cable length, the probe supports monitoring of machinery in remote or difficult-to-access locations.
3. Keyphasor Reference and Speed Measurement
Delivers precise signals for rotor phase detection, enabling accurate speed and position analysis.
4. Harsh Industrial Environments
Operates in extreme temperatures and high-humidity conditions, maintaining reliable signal integrity.
5. Lubricated and Oil-Exposed Equipment
The optional FluidLoc cable ensures no oil ingress, suitable for pumps, compressors, and turbines with oil-lubricated bearings.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
1. Patented TipLoc and CableLoc Designs
Provide robust mechanical attachment with 330 N pull strength, preventing probe or cable detachment under high vibration conditions.
2. Extended Cable Length Support
Maintains signal fidelity over 9 meters, allowing flexible probe placement without loss of accuracy.
3. Wide Temperature Operating Range
Reliable performance from -52°C to +177°C, suitable for the most demanding industrial environments.
4. Backward Compatibility
Fully compatible with older non-XL 3300 series probes and components, simplifying system upgrades.
5. Fluid-Resistant Design
Optional FluidLoc cable prevents oil or liquid contamination, increasing safety and reducing maintenance requirements.
