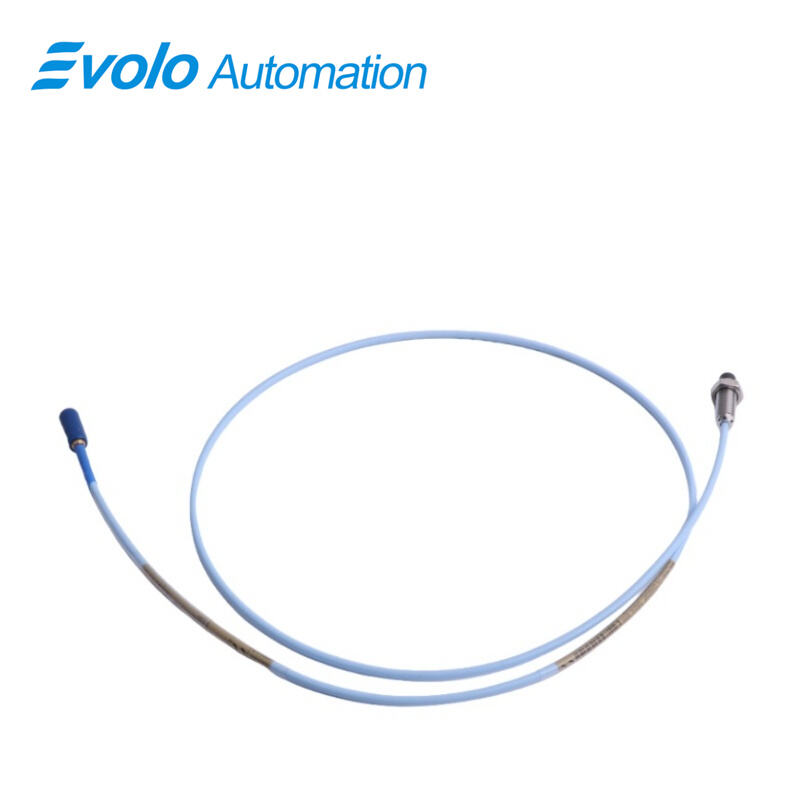

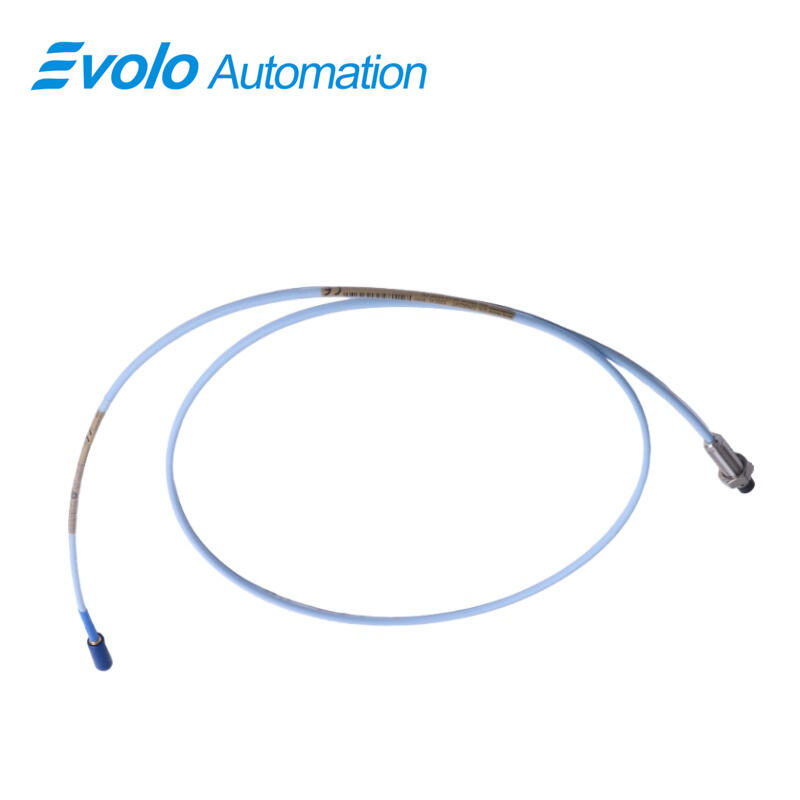

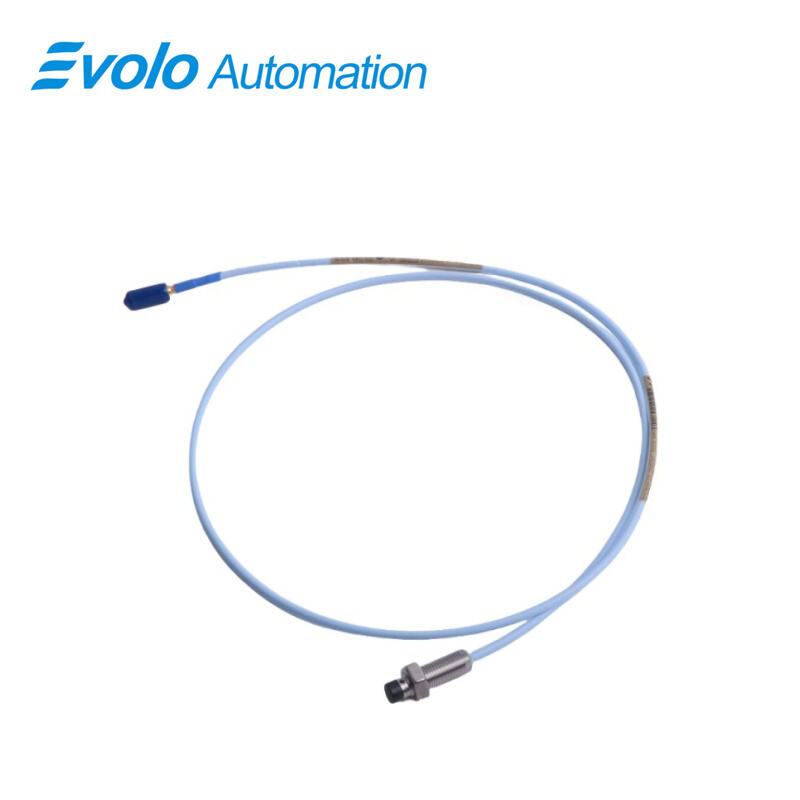

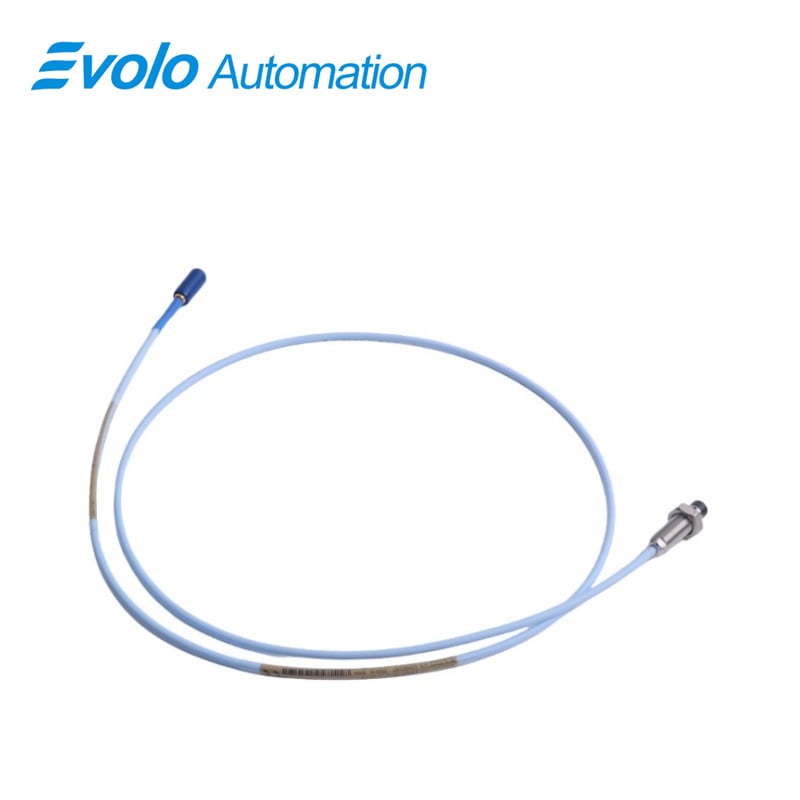

330101-00-12-50-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-12-50-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-12-50-01-05 3300 XL 8 mm Proximity Probe is a precision sensor engineered for advanced industrial automation applications. Designed to measure both static (position) and dynamic (vibration) values, this 5-meter (16.4 feet) probe is compatible with the 3300 XL Proximity Transducer System, delivering high-fidelity signals directly proportional to the distance between the probe tip and the monitored conductive surface. Constructed with a 3/8-24 UNF threaded stainless steel case, and incorporating a miniature coaxial ClickLoc connector with protector, it provides secure and reliable connections even in harsh industrial environments. With an operating temperature range of -52°C to +177°C (-62°F to +350°F), a linear range of 2 mm (80 mils), and an output resistance of 50 Ω, this probe ensures precise and repeatable measurements in fluid-film bearing machines, compressors, turbines, and pumps. Its CSA, ATEX, and IECEx approvals make it suitable for hazardous environments, while the patented TipLoc molding and CableLoc designs enhance durability and protect against cable pull forces of up to 330 N (75 lbf). The optional FluidLoc cable prevents fluid ingress, maintaining integrity in lubrication-heavy machinery. The 3300 XL probe is fully backward compatible with previous 3300 series 5 mm and 8 mm probes and is interchangeable with existing extension cables and Proximitor sensors, minimizing installation complexity and maintenance requirements.

Applications

1. Fluid-Film Bearing Vibration Monitoring
Monitors shaft vibrations in turbines, compressors, and pumps, providing high-resolution dynamic data for predictive maintenance.

2. Shaft Position Measurement
Delivers accurate static displacement measurements with a linear range of 2 mm, essential for shaft alignment and machinery protection.

3. Keyphasor Reference Signal Generation
Enables precise speed and phase reference signals for rotating machinery, supporting automation and control systems.

4. Harsh Environment Machinery
Operates reliably in extreme temperatures from -52°C to +177°C, suitable for chemical, petrochemical, and oil & gas industries.

5. Hazardous Area Equipment Monitoring
Certified with CSA, ATEX, and IECEx approvals, allowing safe use in explosive and flammable environments.

Specifications

Competitive Advantage

1. TipLoc and CableLoc Design
Patented methods provide robust attachment of probe tip and cable, ensuring 330 N (75 lbf) pull strength and enhanced durability.

2. FluidLoc Cable Option
Prevents leakage of oils and liquids, maintaining signal integrity and reducing maintenance in fluid-lubricated machinery.

3. Wide Temperature Operation
Handles extreme environments from -52°C to +177°C, ensuring reliable performance under harsh conditions.

4. High Signal Fidelity
Low extension cable capacitance (69.9 pF/m) and 50 Ω output resistance preserve precise voltage-to-distance correlation for both vibration and position measurements.

5. Backward Compatibility and Interchangeability
Fully compatible with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, simplifying installation, inventory, and maintenance.
