Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-12-15-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.2 in |
|
Total Length Option: |
1.5 meter (4.9 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.3x116cm |
|
Weight: |
0.1kg |
Description

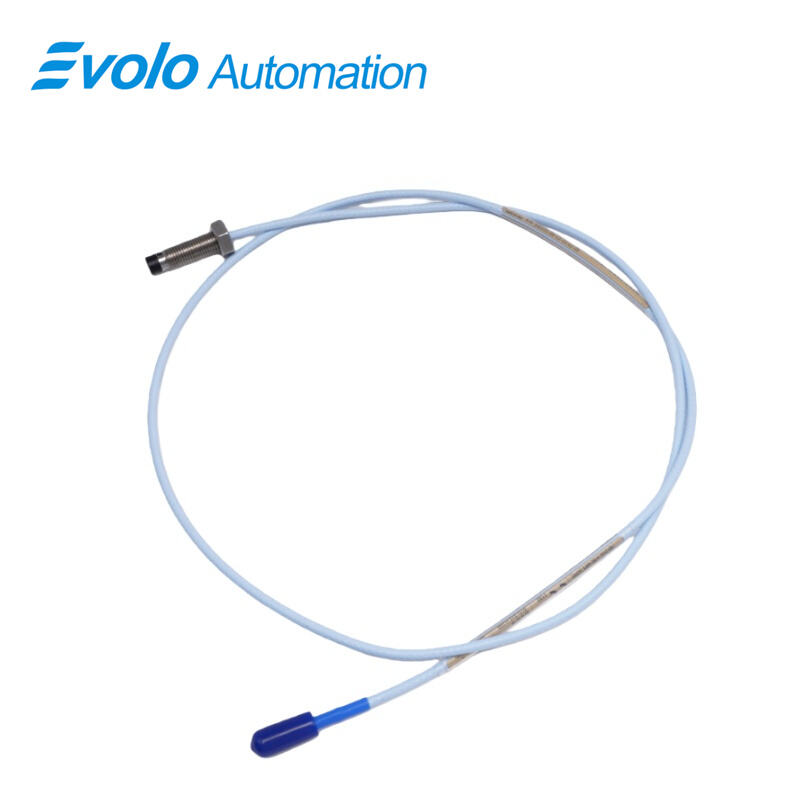

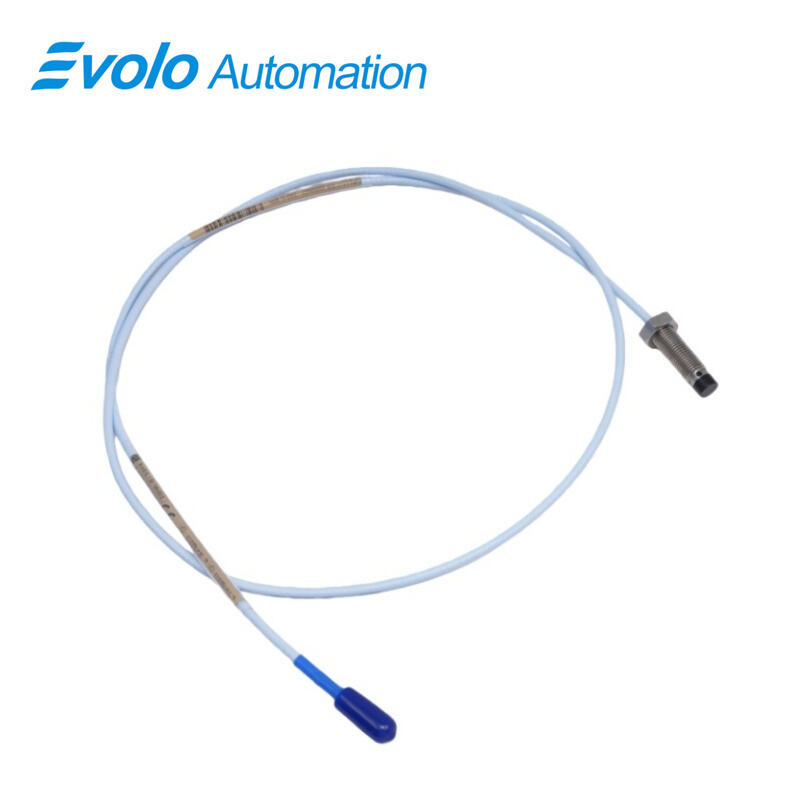

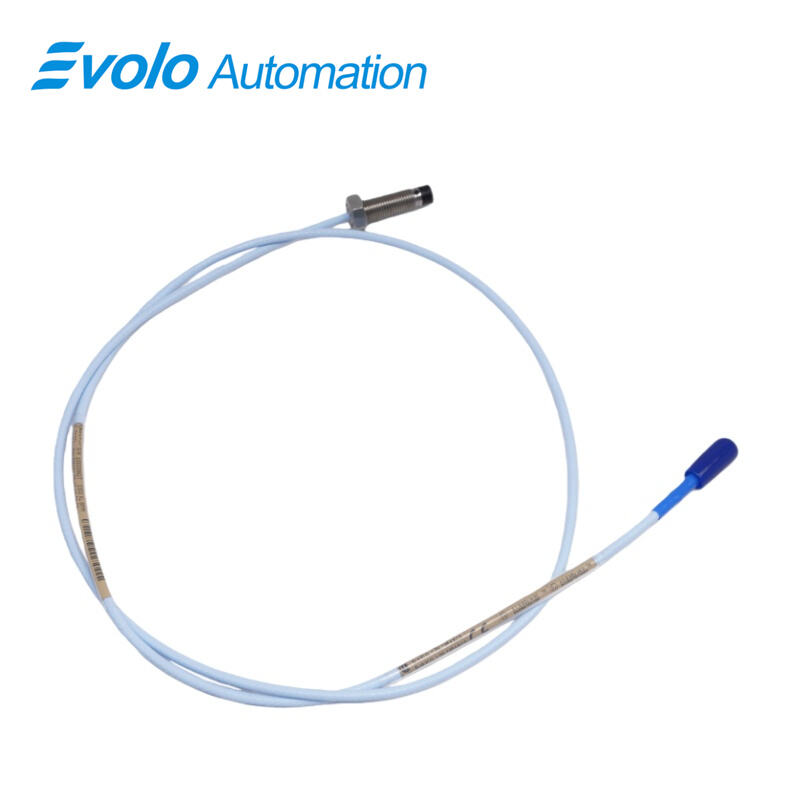

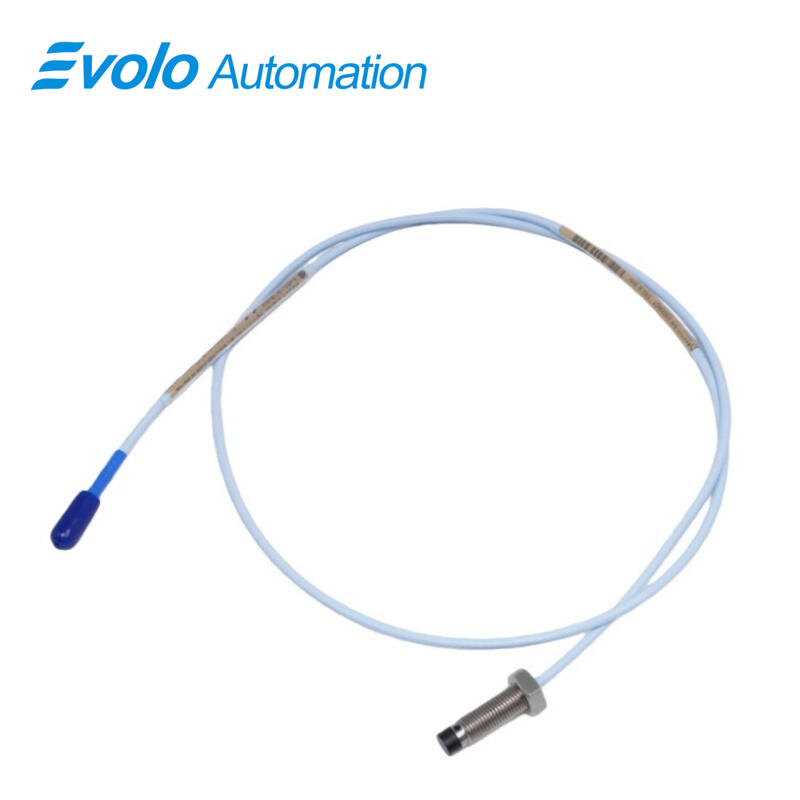

The 330101-00-12-15-02-00 3300 XL 8 mm Proximity Probe is a 1.2-inch stainless steel probe with 1.5-meter standard cable and 3/8-24 UNF thread designed for vibration and position measurement on fluid-film bearing machines. The 330101-00-12-15-02-00 3300 XL probe features a 2 mm linear range, 50 Ω output resistance, less than 2 mV/V supply sensitivity, and extension cable capacitance of 69.9 pF/m (21.3 pF/ft). It supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and operates in temperatures from -52°C to +177°C (-62°F to +350°F). The 330101-00-12-15-02-00 3300 XL probe uses a Miniature coaxial ClickLoc connector and incorporates TipLoc molding and CableLoc design with 330 N pull strength, ensuring secure attachment and accurate static and dynamic measurements in tight installations.
Applications
Measure Radial Shaft Vibration
The 330101-00-12-15-02-00 3300 XL probe records radial vibration on shafts in fluid-film bearing compressors. Using its 2 mm linear range and 50 Ω output, the 330101-00-12-15-02-00 3300 XL probe ensures precise readings for shafts smaller than 51 mm (2 in).
Measure Axial Position on Flat Targets
The 330101-00-12-15-02-00 3300 XL probe measures thrust or axial movement on flat targets down to 15 mm (0.6 in) diameter. The recommended gap of 1.0 mm allows the 330101-00-12-15-02-00 3300 XL probe to capture accurate axial position in tight installations.
Transmit Keyphasor and Tachometer Signals
The 330101-00-12-15-02-00 3300 XL probe delivers Keyphasor and zero-speed signals. With supply sensitivity below 2 mV/V and extension cable capacitance of 69.9 pF/m, the 330101-00-12-15-02-00 3300 XL probe supports precise rotational speed monitoring.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Provide Accurate Vibration and Position Measurements
The 330101-00-12-15-02-00 3300 XL probe maintains 2 mm linear range and 50 Ω output resistance, delivering precise radial and axial readings in fluid-film bearing machines.
Operate in Extreme Temperature Conditions
The 330101-00-12-15-02-00 3300 XL probe works in -52°C to +177°C (-62°F to +350°F), enabling consistent monitoring in compressors and high-temperature machinery.
Secure Cable and Probe Attachment
The 330101-00-12-15-02-00 3300 XL probe uses TipLoc molding and CableLoc design with 330 N pull strength, along with ClickLoc connectors, allowing the 330101-00-12-15-02-00 3300 XL probe to maintain connection under vibration and movement.
Enable Monitoring in Small-Shaft and Restricted Areas
The 330101-00-12-15-02-00 3300 XL probe measures targets in tight spaces or limited side-view locations. With 1.5-meter cable, 3/8-24 UNF thread, and 2 mm linear range, the 330101-00-12-15-02-00 3300 XL probe provides accurate readings where larger probes cannot fit.
