Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-12-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.2 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.3x121cm |
|
Weight: |
0.06kg |
Description

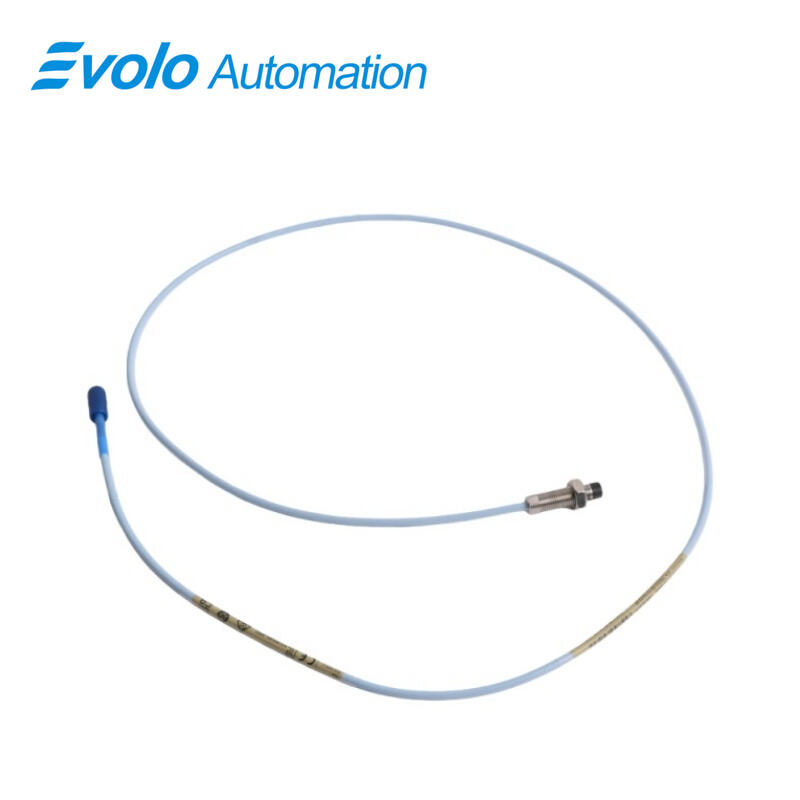

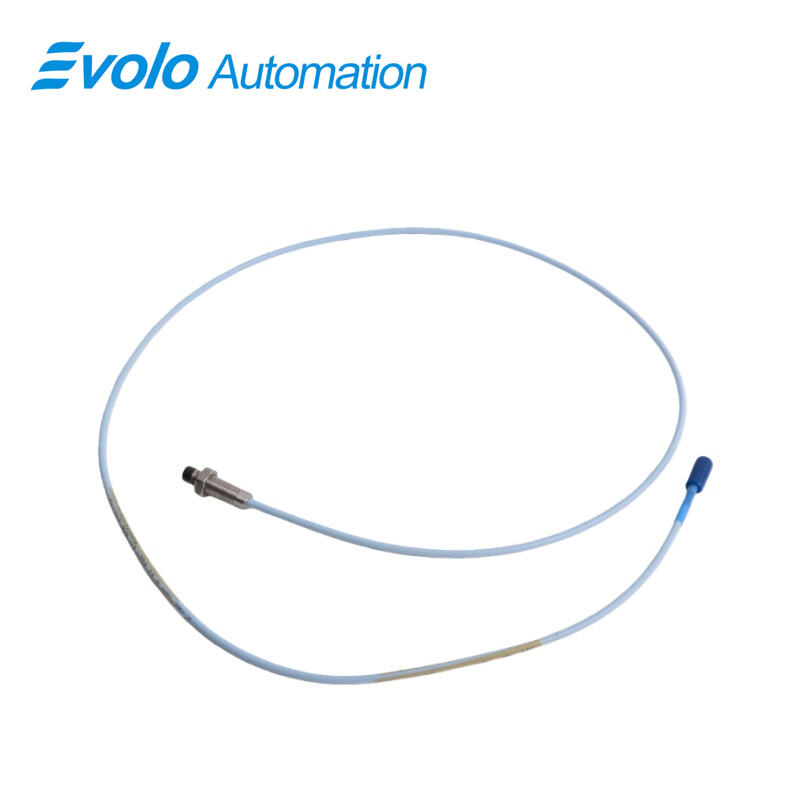

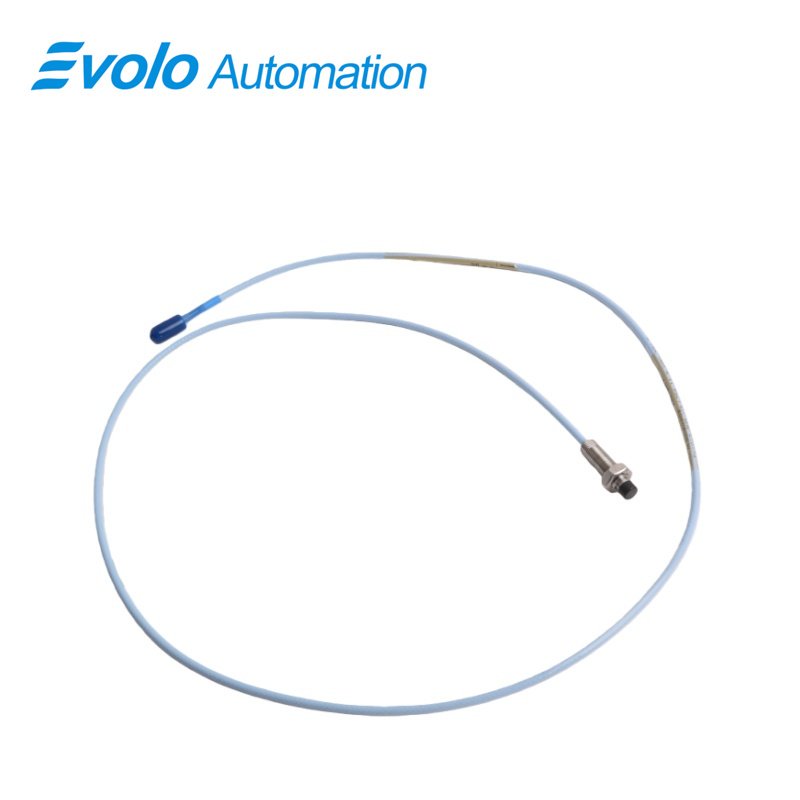

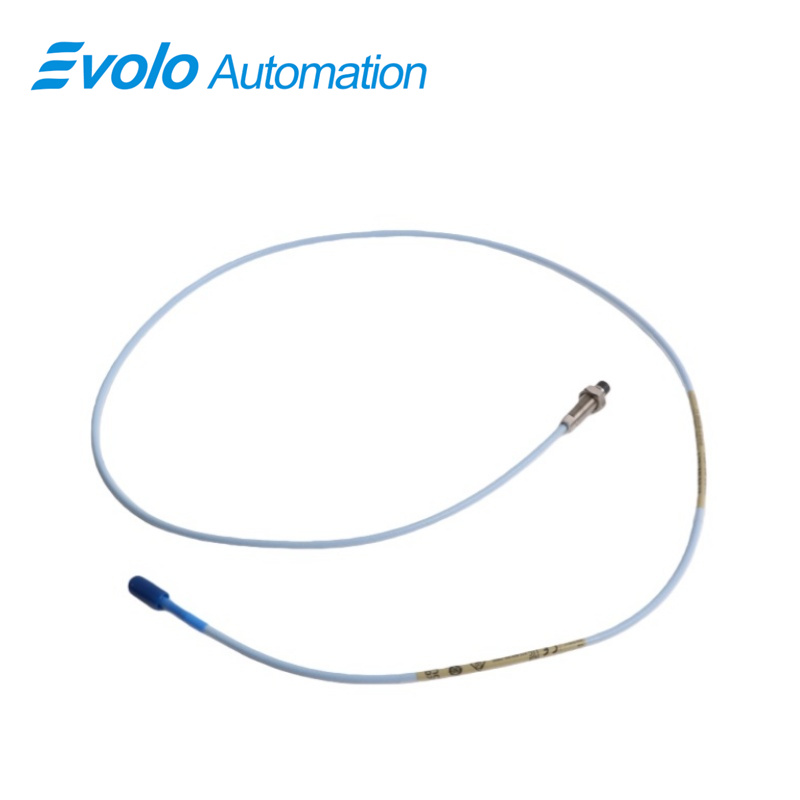

The 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe delivers precise position and vibration measurements in automated industrial systems. With a 2 mm linear range and 50 Ω output resistance, the 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe accurately monitors rotor displacement and shaft motion. Its 1.0-meter total length, miniature coaxial ClickLoc connector, and field wiring support from 16 to 24 AWG enable easy integration with control systems. Extension cable capacitance of 69.9 pF/m (21.3 pF/ft) maintains signal integrity over distances up to 305 meters. Operating across -52°C to +177°C, the 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe performs in extreme environments. Supply sensitivity under 2 mV/V reduces voltage fluctuation effects. Patented TipLoc and CableLoc designs provide 330 N pull strength, while optional FluidLoc cables prevent oil ingress, ensuring consistent data for automation monitoring.
Applications
Measure Turbine Rotor Clearance
The 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe measures rotor-to-stator distances from 0 to 2 mm with ±2% linear range accuracy, enabling automated turbine control and real-time monitoring.
Monitor Pump Vibration in Automation Systems
With a 0–10 kHz frequency response, the 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe detects high-frequency vibrations, supporting predictive maintenance in pumps and fluid-film bearings.
Generate Keyphasor Reference Signals
The 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe produces precise output for speed and phase monitoring in automated rotating equipment, supporting timing-based control systems.
Track Compressor Shaft Motion
Using its linear range of 2 mm and extension cable capacitance of 69.9 pF/m, the 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe ensures accurate shaft displacement readings for automated process adjustments.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High-Frequency Detection
Supports 0–10 kHz for dynamic position and vibration measurements using the 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe, ideal for automated monitoring of high-speed machinery.
Extreme Temperature Operation
Operates from -52°C to +177°C, allowing the 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe to perform in harsh industrial environments without additional climate control.
Secure Cable and Tip Bonding
Patented TipLoc and CableLoc designs provide 330 N pull strength; the 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe also offers optional FluidLoc cables to prevent oil or fluid ingress.
Long-Distance Signal Integrity
With 50 Ω output resistance, <2 mV/V supply sensitivity, and 69.9 pF/m capacitance, the 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe maintains accurate readings over field wiring up to 305 meters.
