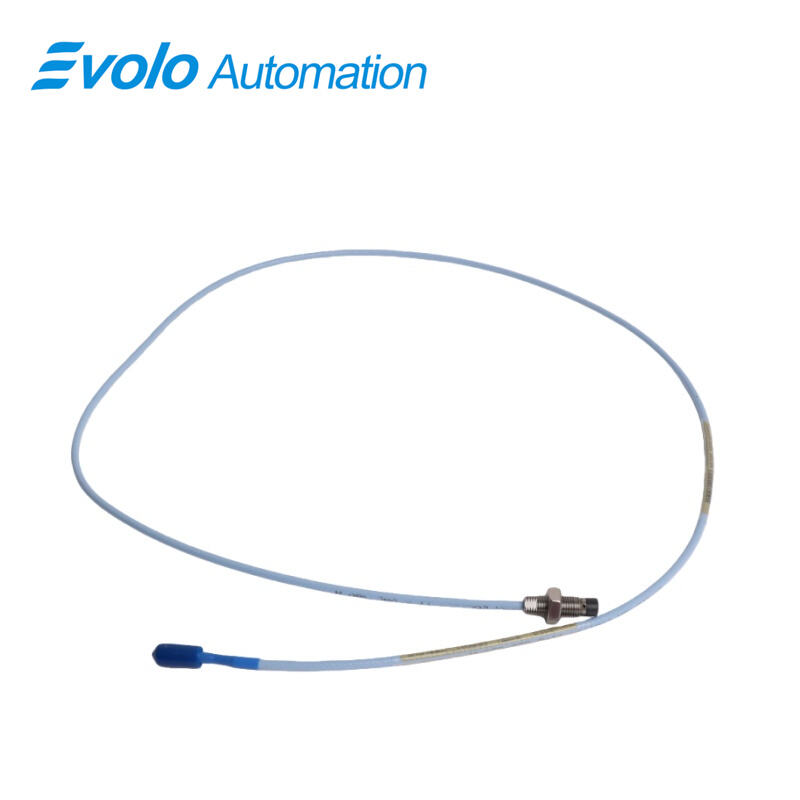

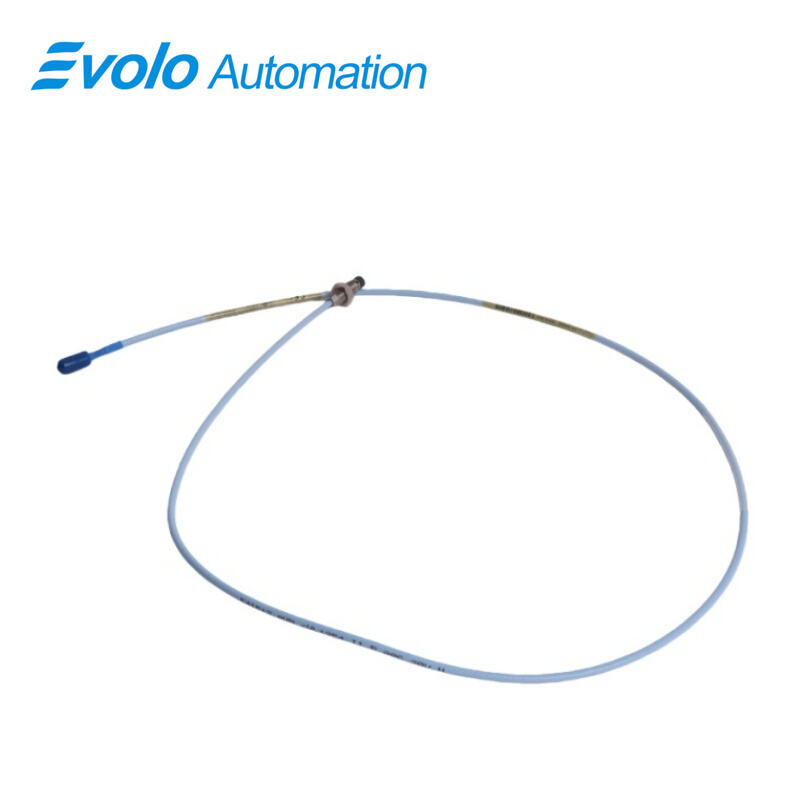

330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-10-10-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes provides precise output voltage proportional to the distance between the probe tip and conductive surfaces, supporting both static (position) and dynamic (vibration) measurements. With a 1.0 in overall case length, 1.0-meter total cable, and 3/8-24 UNF thread with 0.563 in engagement, the 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes ensures accurate alignment in automated systems. It features a miniature coaxial ClickLoc connector, optional FluidLoc cable, and 2 mm (80 mils) linear range, delivering consistent signals. Supply sensitivity is under 2 mV per volt, and output resistance is 50 Ω, making it ideal for high-precision monitoring. Operating range is -52°C to +177°C (-62°F to +350°F), with CSA, ATEX, and IECEx approvals for industrial automation environments. Extension cable capacitance is 69.9 pF/m, and field wiring supports 0.2 to 1.5 mm² (16–24 AWG).

Applications

Monitor Shaft Radial Vibration
The 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes measures radial vibration on shafts in fluid-film bearing machines. With a linear range of 2 mm (80 mils) and a recommended gap setting of 1.0 mm (40 mils), the 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes ensures precise displacement readings in automated systems.

Axial (Thrust) Position Measurement
Using the 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes, axial shaft movement can be monitored accurately. Its 0.563 in maximum thread engagement and 3/8-24 UNF probe case thread provide secure mounting in automated machinery.

Keyphasor Signal Generation
The 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes outputs signals with 50 Ω resistance and less than 2 mV change per volt supply variation, ideal for Keyphasor reference or zero-speed detection.

Installation in Confined Spaces
The 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes features a 1.0 in case length and 1.0-meter total cable, enabling installation in tight counterbores or side-restricted areas while maintaining measurement accuracy.

Specifications

Competitive Advantage

High Cable Pull Strength
The 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes uses a patented CableLoc design providing 330 N (75 lbf) pull strength, securing probe-to-cable connections in automated systems.

Robust Probe Tip Bonding
Patented TipLoc molding on the 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes ensures a strong bond between the probe tip and probe body, maintaining consistent measurement under vibration.

Fluid and Chemical Protection
With an optional FluidLoc cable and operating range of -52°C to +177°C (-62°F to +350°F), the 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes prevents ingress of oil and process liquids in harsh automation environments.

Standardized Output for Automation
The 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probes delivers a predictable linear output of 2 mm per 80 mils, simplifying system calibration and automation control integration.
