330101-00-10-10-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-10-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

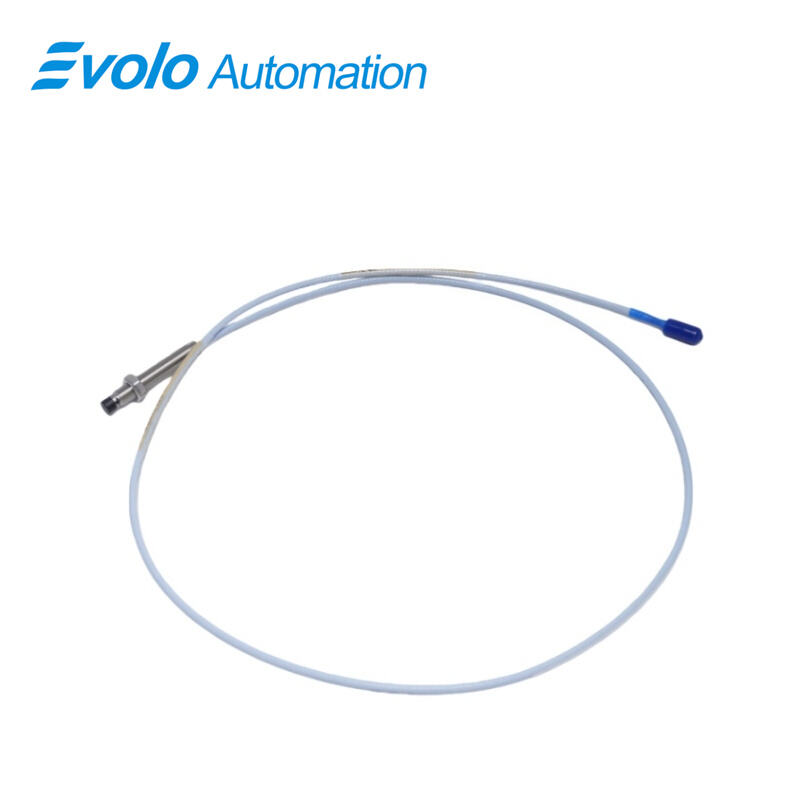

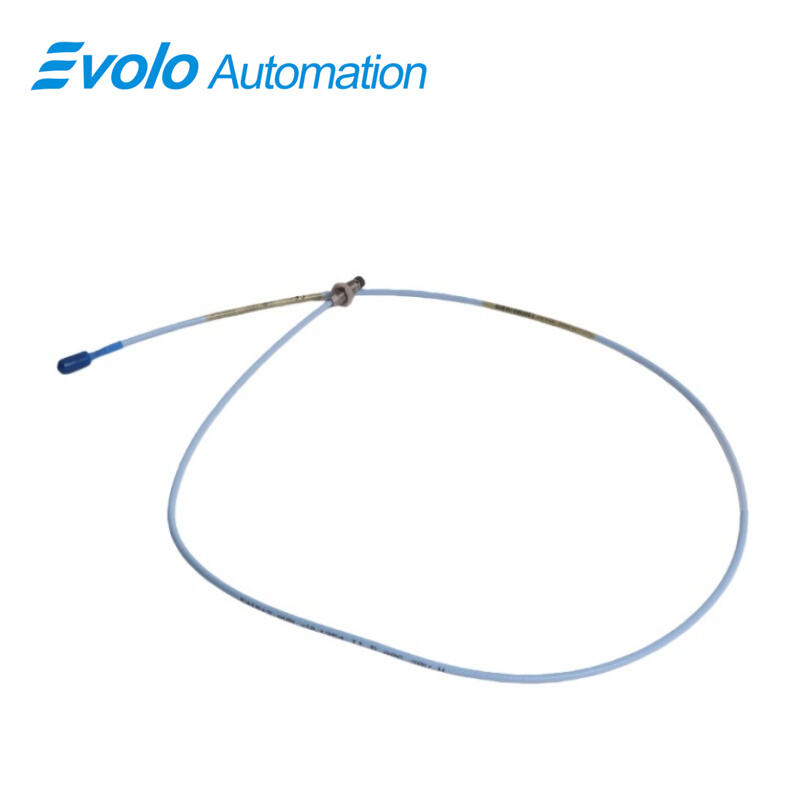

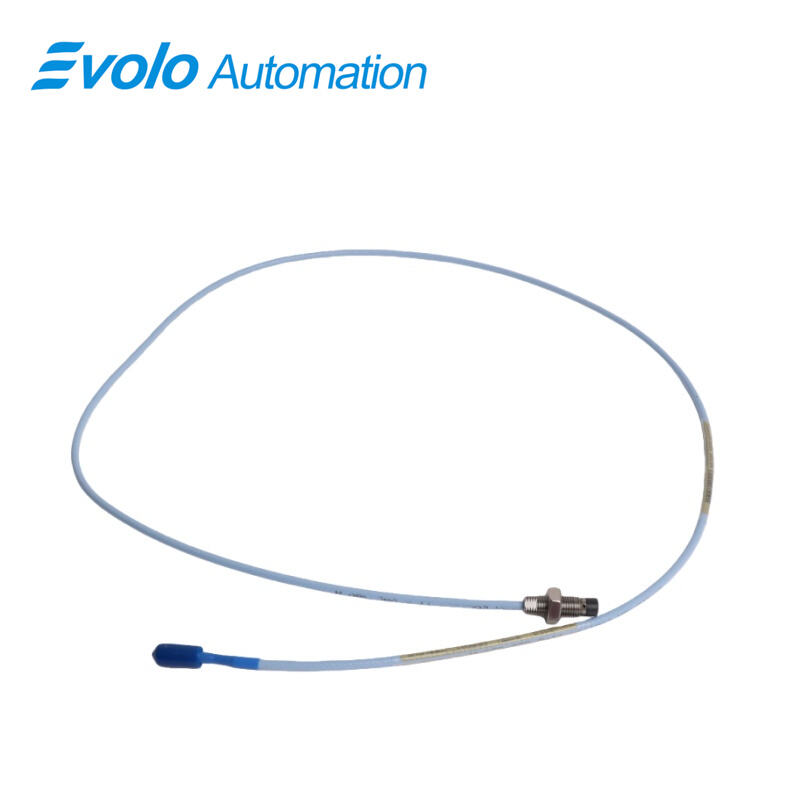

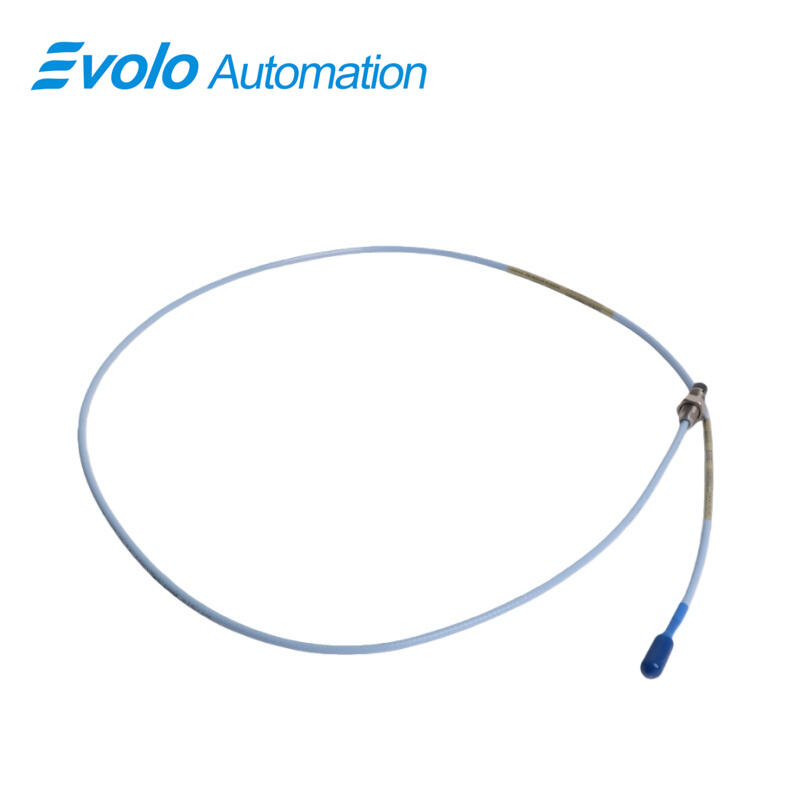

The 330101-00-10-10-01-00 3300 XL 8 mm Proximity Probe delivers output voltage directly proportional to the distance between the probe tip and the target conductive surface, enabling accurate static position and dynamic vibration measurements. With a 2 mm (80 mils) linear range and a 3/8-24 UNF probe thread with 0.563 in maximum engagement, the 330101-00-10-10-01-00 3300 XL 8 mm supports precise monitoring on fluid-film bearing machines and Keyphasor reference applications. The probe comes with a miniature coaxial ClickLoc connector with protector and a 1.0-meter standard cable, offering 330 N (75 lbf) pull strength via patented TipLoc and CableLoc designs, preventing accidental detachment and ensuring continuous signal transmission. Extension cable capacitance is 69.9 pF/m (21.3 pF/ft), maintaining low signal distortion, while output resistance is 50 Ω and supply sensitivity remains under 2 mV per volt. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F), allowing the 330101-00-10-10-01-00 3300 XL 8 mm to perform reliably in extreme industrial environments. Optional FluidLoc cable prevents oil or liquid leakage, and full interchangeability with other 3300 series 5 mm and 8 mm components simplifies automated system installation and maintenance.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330101-00-10-10-01-00 3300 XL 8 mm uses a 2 mm (80 mils) linear range and 3/8-24 UNF threaded probe tip to provide precise vibration measurements on rotating machinery bearings. Its miniature coaxial ClickLoc connector ensures reliable signal transfer in automated monitoring systems.

Track Shaft Position in Rotating Equipment
With a 1.0-meter standard cable and extension capacitance of 69.9 pF/m (21.3 pF/ft), the 330101-00-10-10-01-00 3300 XL 8 mm delivers accurate static position readings, supporting automated alignment checks and Keyphasor reference inputs.

Enable Keyphasor Reference and Speed Monitoring
The 330101-00-10-10-01-00 3300 XL 8 mm can generate Keyphasor and speed signals compatible with 3300 series monitoring systems. Supply sensitivity under 2 mV per volt ensures minimal signal drift for speed-based automation.

Monitor Machinery in Extreme Temperatures
Operating from -52°C to +177°C (-62°F to +350°F), the 330101-00-10-10-01-00 3300 XL 8 mm provides continuous monitoring under extreme environmental conditions, enabling automated systems to detect anomalies without interruption.

Specifications

Competitive Advantage

High Pull-Strength Cable Connection
The 330101-00-10-10-01-00 3300 XL 8 mm uses a patented CableLoc design, providing 330 N (75 lbf) pull strength. This high mechanical retention prevents accidental cable detachment in automated vibration monitoring setups, ensuring continuous signal acquisition without interruptions.

Accurate Measurements Under Voltage Fluctuations
With supply sensitivity below 2 mV per volt and 50 Ω output resistance, the 330101-00-10-10-01-00 3300 XL 8 mm maintains consistent output voltage despite input variations. This allows automated control systems to rely on precise displacement and vibration readings for real-time monitoring.

Extended Linear Range for Precise Positioning
The 2 mm (80 mils) linear range ensures that small shaft or rotor displacements generate measurable voltage changes. This makes the 330101-00-10-10-01-00 3300 XL 8 mm ideal for Keyphasor reference, speed monitoring, and position tracking in automated machinery.

Extreme Temperature Operation
Operating from -52°C to +177°C (-62°F to +350°F), the 330101-00-10-10-01-00 3300 XL 8 mm can be deployed in high-temperature or cold-start environments. Automation systems can continuously collect data without the need for protective modifications or environmental controls.
