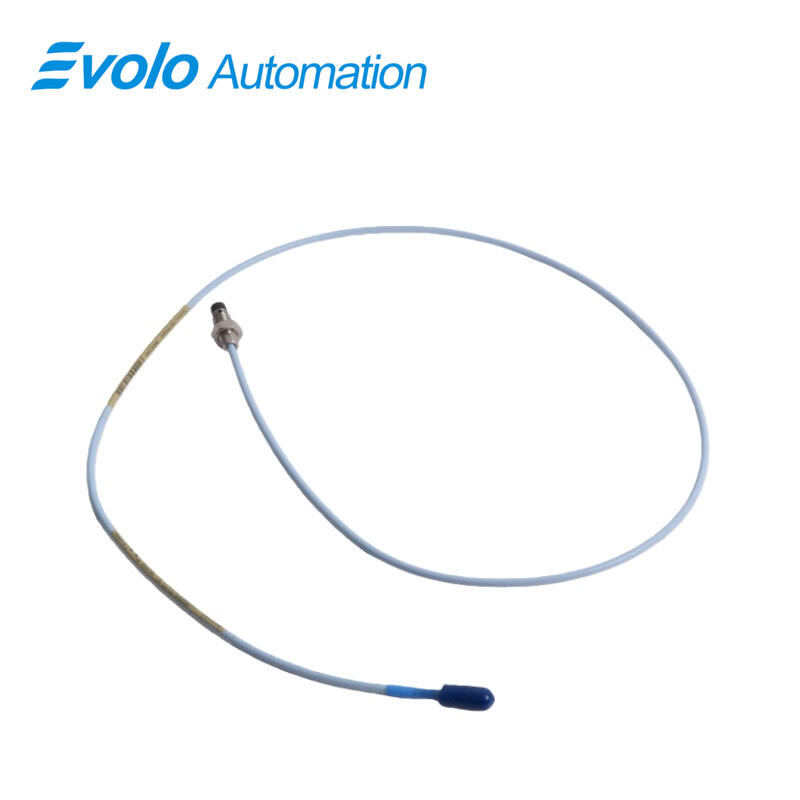

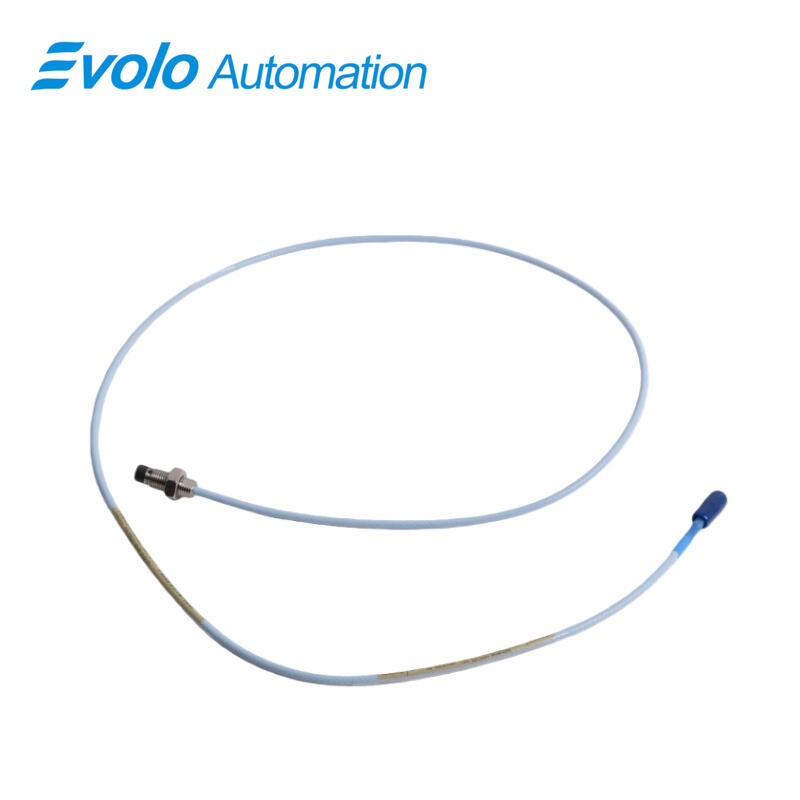

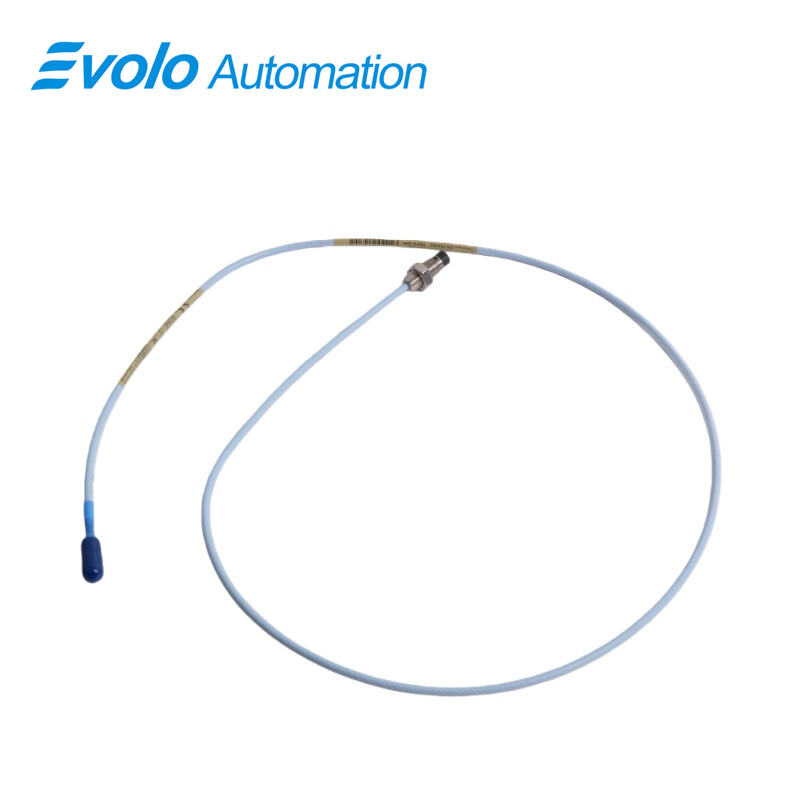

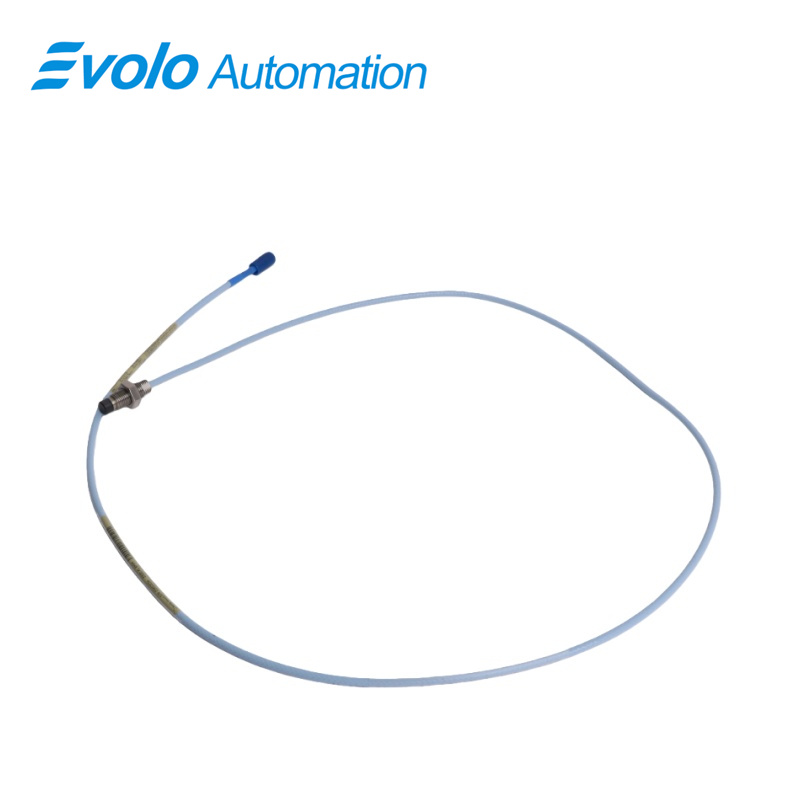

330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-10-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for industrial automation and predictive maintenance applications. The 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling both static position and dynamic vibration measurements. With a linear range of 2 mm (80 mils), 50 Ω output resistance, and supply sensitivity of less than 2 mV per volt, the 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe delivers highly accurate and repeatable data. Its 3/8-24 UNF probe thread with a maximum 0.563 in thread engagement, 0.5-meter total length, and miniature coaxial ClickLoc connector allow easy integration with extension cables and Proximitor sensors. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F), and the probe supports field wiring from 0.2 to 1.5 mm² (16–24 AWG). Standard 3300 XL 8 mm systems comply with API 670 for mechanical configuration, linear range, accuracy, and temperature stability, and all 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe components are backward compatible with 3300 series 5 mm and 8 mm transducer systems. Enhanced designs include a patented TipLoc molding for a strong probe tip bond and CableLoc design providing 330 N (75 lbf) pull strength, with optional FluidLoc cables to prevent oil or fluid leakage. The 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe is ideal for fluid-film bearing machines, Keyphasor reference, speed measurements, and advanced automated monitoring systems.

Applications

Vibration Monitoring on Fluid-Film Bearing Machines
The 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe is ideal for measuring radial and axial vibration on fluid-film bearing machines. With a linear range of 2 mm (80 mils) and output resistance of 50 Ω, the 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe provides precise, real-time vibration data. Its operating temperature range of -52°C to +177°C (-62°F to +350°F) allows deployment in extreme industrial conditions, ensuring reliable automation monitoring and predictive maintenance performance.

Position and Keyphasor Signal Measurement
The 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe delivers accurate static position measurements and Keyphasor reference signals for rotational speed monitoring. With a 3/8-24 UNF probe thread, maximum 0.563 in thread engagement, and a 0.5-meter total length, the 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe integrates seamlessly with extension cables and Proximitor sensors for automated control systems.

Speed and Automated Machinery Monitoring
The 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe supports dynamic speed measurement in rotating machinery and automated monitoring platforms. Its miniature coaxial ClickLoc connector and field wiring support from 0.2 to 1.5 mm² (16–24 AWG) allow fast, secure installation. The probe’s extension cable capacitance of 69.9 pF/m ensures minimal signal distortion, enhancing the reliability of industrial automation systems.

Specifications

Competitive Advantage

High Accuracy and Linear Range
With a linear range of 2 mm (80 mils) and supply sensitivity of less than 2 mV per volt change, the 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe ensures precise position and vibration measurements critical for automated condition monitoring systems.

Durable Construction for Harsh Environments
The 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe is designed for extreme temperatures (-52°C to +177°C) and supports CSA, ATEX, and IECEx approvals, allowing safe use in hazardous industrial environments. The probe’s robust 3/8-24 UNF threaded case, TipLoc molding, and CableLoc design provide mechanical reliability and 330 N (75 lbf) pull strength for secure probe and cable attachment.

Seamless System Compatibility
The 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe is backward compatible with 3300 series 5 mm and 8 mm transducer systems, enabling easy integration into existing automated monitoring setups. Optional FluidLoc cable prevents oil or fluid leakage, enhancing system reliability in industrial automation applications.

Optimized for Automated Control Systems
The 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe provides accurate Keyphasor, speed, and vibration data to machinery control systems. Its miniature coaxial ClickLoc connector, 0.5-meter cable length, and low extension cable capacitance ensure high-fidelity signal transmission for automated diagnostic and monitoring applications.
