330101-00-08-10-11-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-08-10-11-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

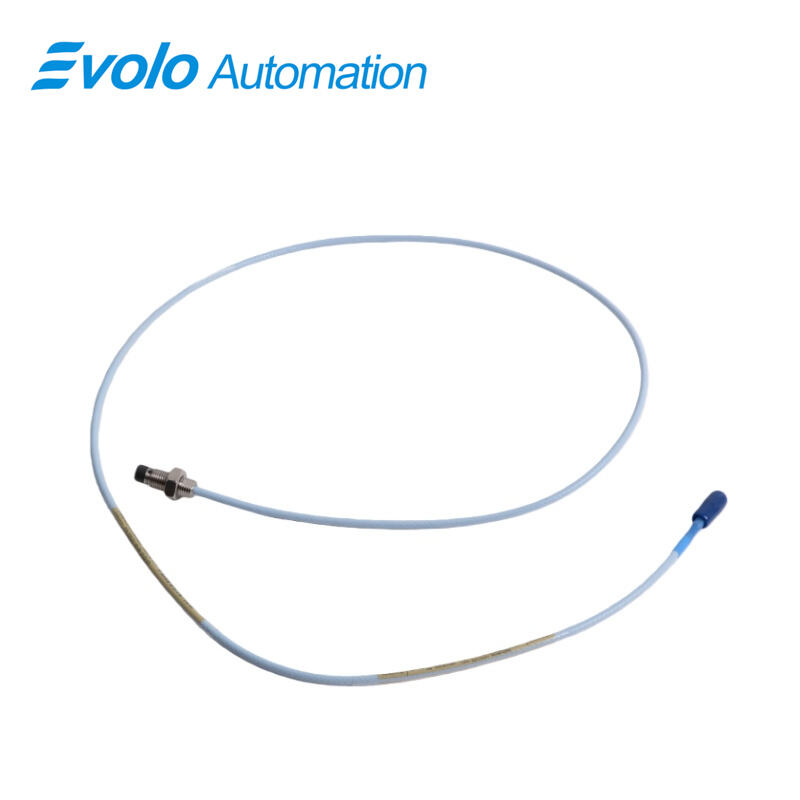

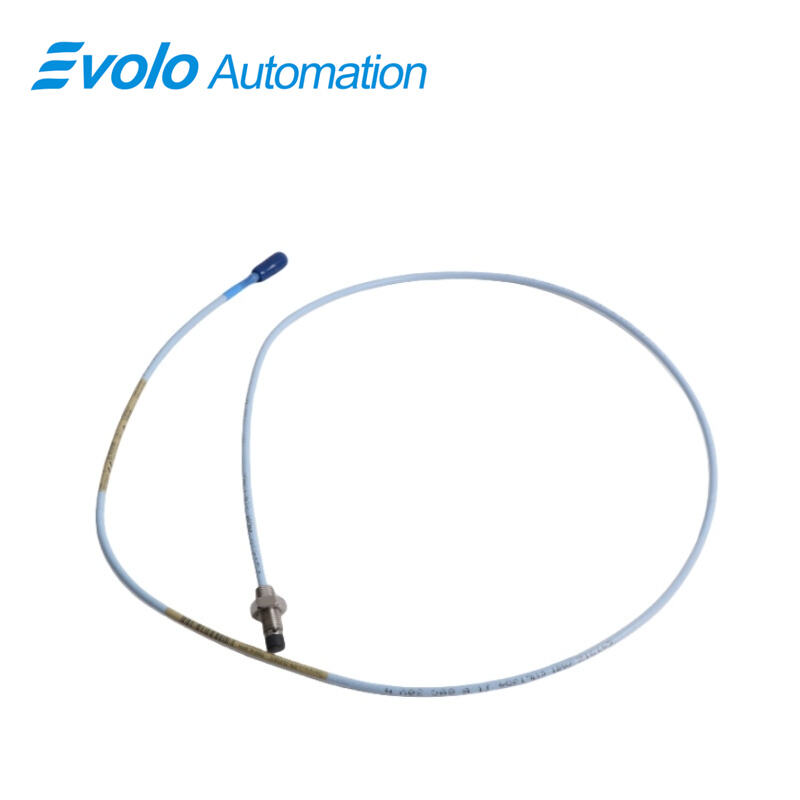

The 330101-00-08-10-11-05 3300 XL 8 mm Proximity Probe measures both static position and dynamic vibration for automated rotating machinery. The 330101-00-08-10-11-05 converts the gap between the probe tip and conductive surfaces into a proportional voltage signal, supporting automation systems for condition monitoring.

With a 0.8 in overall case length, 1.0-meter total cable, and 3/8-24 UNF threaded case with 0.563 in engagement, the 330101-00-08-10-11-05 fits in compact bearing housings. Its 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance ensure accurate voltage readings. The miniature ClickLoc connector with FluidLoc cable prevents oil migration along the cable. Operating from -52°C to +177°C, the 330101-00-08-10-11-05 carries CSA, ATEX, and IECEx approvals, enabling use in automated industrial and hazardous environments.

The 330101-00-08-10-11-05 supports interchangeable probes, extension cables, and Proximitor sensors without bench calibration, improving maintenance efficiency in automation systems. Its patented TipLoc molding and CableLoc design enhance probe-to-cable attachment, while optional FluidLoc cable prevents fluid leaks.

Applications

Measure Shaft Vibration on Fluid-Film Bearings

The 330101-00-08-10-11-05 3300 XL 8 mm Proximity Probe monitors radial vibration on shafts using its 2 mm (80 mils) linear range. With a 50 Ω output resistance and 69.9 pF/m extension cable capacitance, it delivers accurate voltage readings to automated monitoring systems.

Track Axial (Thrust) Position

Equipped with a 0.8 in case length and 3/8-24 UNF threaded probe, the 330101-00-08-10-11-05 can measure axial displacement on tight bearing housings, supporting automated alignment and control processes.

Provide Keyphasor Signals for Rotational Speed

Using the 1.0-meter FluidLoc cable and ClickLoc connector, the 330101-00-08-10-11-05 transmits clean position signals for speed and phase monitoring in industrial automation systems.

Condition Monitoring in Hazardous Areas

Certified CSA, ATEX, and IECEx, the 330101-00-08-10-11-05 is suitable for automated systems in explosive or extreme-temperature environments (-52°C to +177°C).

Specifications

Competitive Advantage

Quick Installation with ClickLoc Connector

The 330101-00-08-10-11-05 uses miniature ClickLoc connectors to securely attach probe and cable in automation setups, reducing installation time by eliminating loose connections.

Secure Probe-to-Cable Attachment

Patented CableLoc design provides 330 N (75 lbf) pull strength, ensuring the 330101-00-08-10-11-05 maintains accurate readings even under vibration or machine movement.

Easy Component Interchange

Probes, extension cables, and Proximitor sensors for the 330101-00-08-10-11-05 are fully interchangeable without bench calibration, streamlining maintenance in automated systems.

Fluid Containment in Industrial Machines

Optional FluidLoc cable prevents oil or liquids from leaking through the probe cable interior, protecting the automated system’s electrical signal and reducing downtime.

High Accuracy Voltage Output

The 330101-00-08-10-11-05 maintains less than 2 mV change per volt input variation, allowing precise feedback to automation control units.
