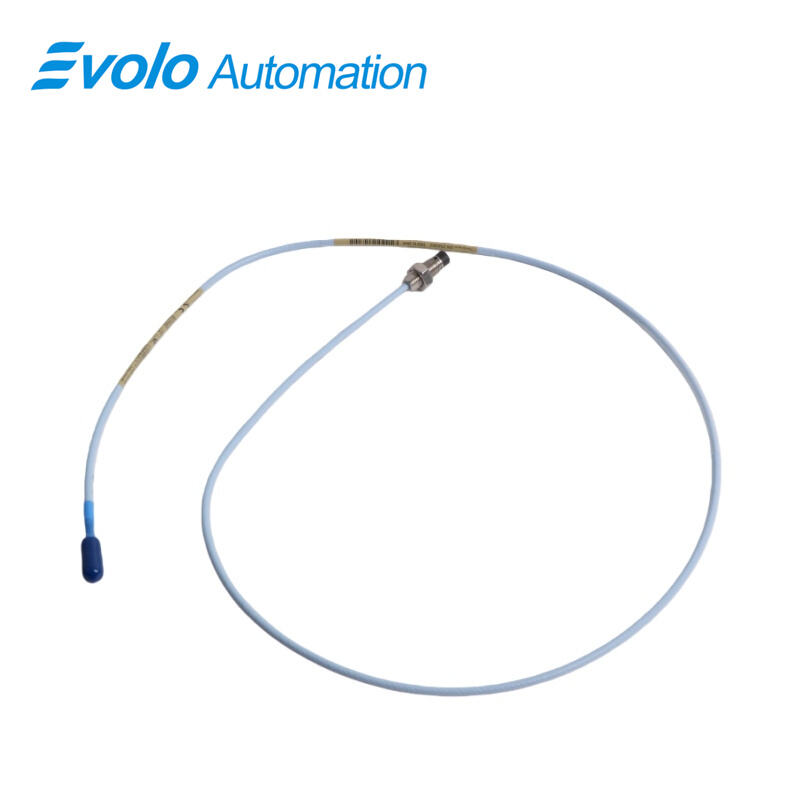

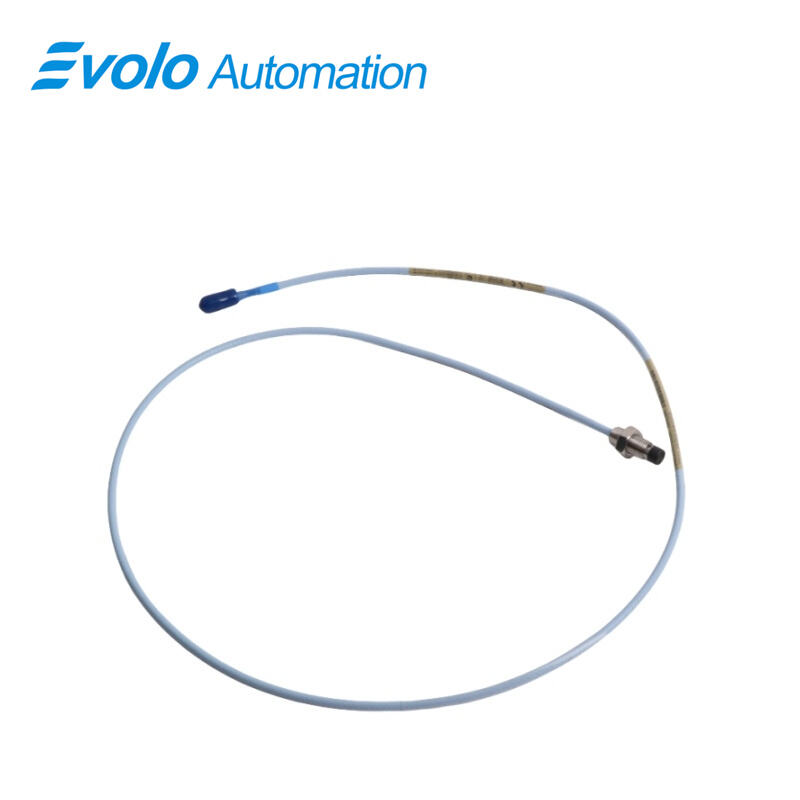

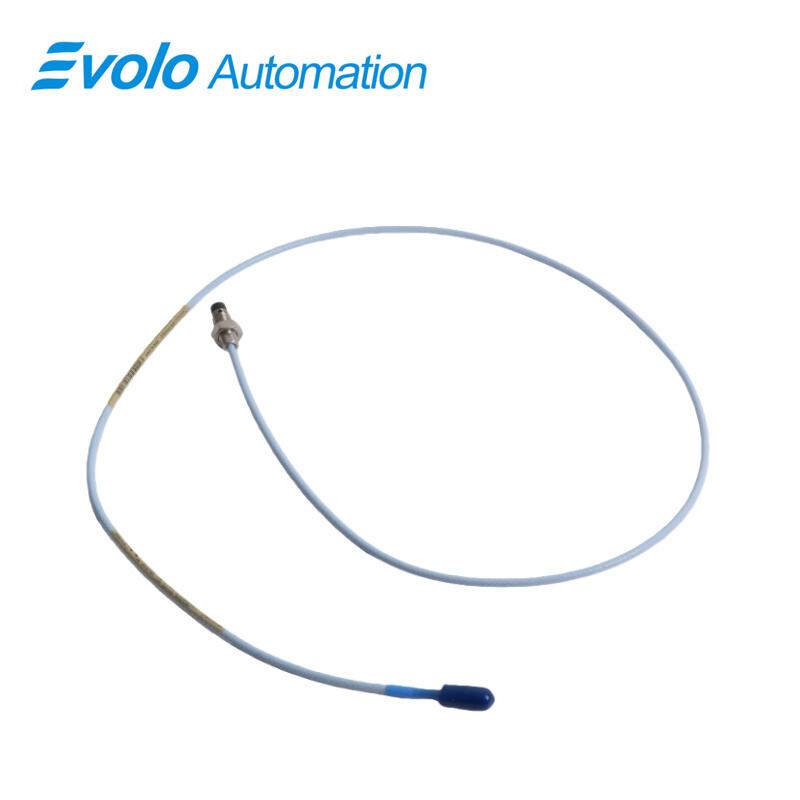

330101-00-08-10-11-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-08-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-08-10-11-00 3300 XL 8 mm Proximity Probe is a precision eddy current transducer designed for measuring both static (position) and dynamic (vibration) movement on fluid-film bearing machines. This 330101-00-08-10-11-00 3300 XL 8 mm Proximity probe features a 2 mm (80 mils) linear range, a 3/8-24 UNF threaded case, and a 1.0 m (3.3 ft) total length with a miniature coaxial ClickLoc connector and optional FluidLoc cable for leak prevention. Operating from -52°C to +177°C (-62°F to +350°F), the 330101-00-08-10-11-00 3300 XL 8 mm Proximity probe provides less than 2 mV output variation per volt input change, with a 50 Ω output resistance and 69.9 pF/m extension cable capacitance. Fully compliant with API 670 standards, the 330101-00-08-10-11-00 3300 XL 8 mm Proximity probe supports interchangeable installation with existing 5 mm and 8 mm 3300 series probes and extension cables, simplifying upgrades without recalibration. The patented TipLoc molding and CableLoc design provide a secure bond between probe tip and cable, with 330 N pull strength. Applications for the 330101-00-08-10-11-00 3300 XL 8 mm Proximity probe include vibration monitoring, shaft position measurement, Keyphasor reference, and speed detection on turbines, compressors, pumps, and motors, enabling precise automation feedback and machine protection.

Applications

Shaft Vibration Monitoring on Turbines
The 330101-00-08-10-11-00 3300 XL 8 mm probe measures radial vibration on fluid-film bearing turbines with a 2 mm linear range, providing real-time feedback for automated monitoring and early detection of unbalanced or misaligned shafts.

Position Measurement on Compressors
With a 1.0 m total length and 3/8-24 UNF threaded case, the 330101-00-08-10-11-00 3300 XL 8 mm probe captures precise shaft position on centrifugal and refrigeration compressors, feeding accurate data to control systems for automated gap and clearance adjustments.

Speed Detection and Keyphasor Reference
The 330101-00-08-10-11-00 3300 XL 8 mm probe, paired with its ClickLoc or FluidLoc cable, delivers Keyphasor signals for speed measurement, enabling automation systems to synchronize rotational machinery and optimize operational efficiency.

Specifications

Competitive Advantage

High-Precision Output
The 330101-00-08-10-11-00 3300 XL 8 mm probe offers 2 mm linear range and <2 mV/V supply sensitivity, ensuring accurate distance-to-voltage conversion for precise automation inputs.

Interchangeable Components
Compatible with 3300 series 5 mm and 8 mm probes and extension cables, the 330101-00-08-10-11-00 3300 XL 8 mm probe reduces installation time and eliminates the need for recalibration during system upgrades.

Robust Cable and Tip Bond
Patented TipLoc molding and CableLoc design secure the probe tip and cable, with 330 N pull strength, supporting long-term automated monitoring without signal disruption.

High-Temperature Operation
Operating from -52°C to +177°C, the 330101-00-08-10-11-00 3300 XL 8 mm probe is suitable for extreme industrial environments, maintaining automation functionality under thermal stress.
