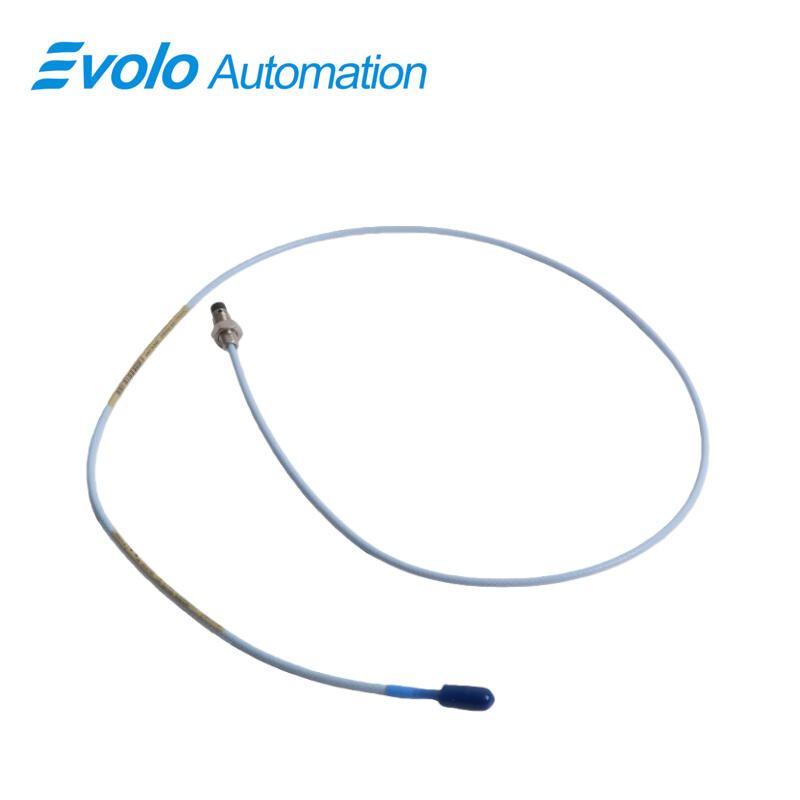

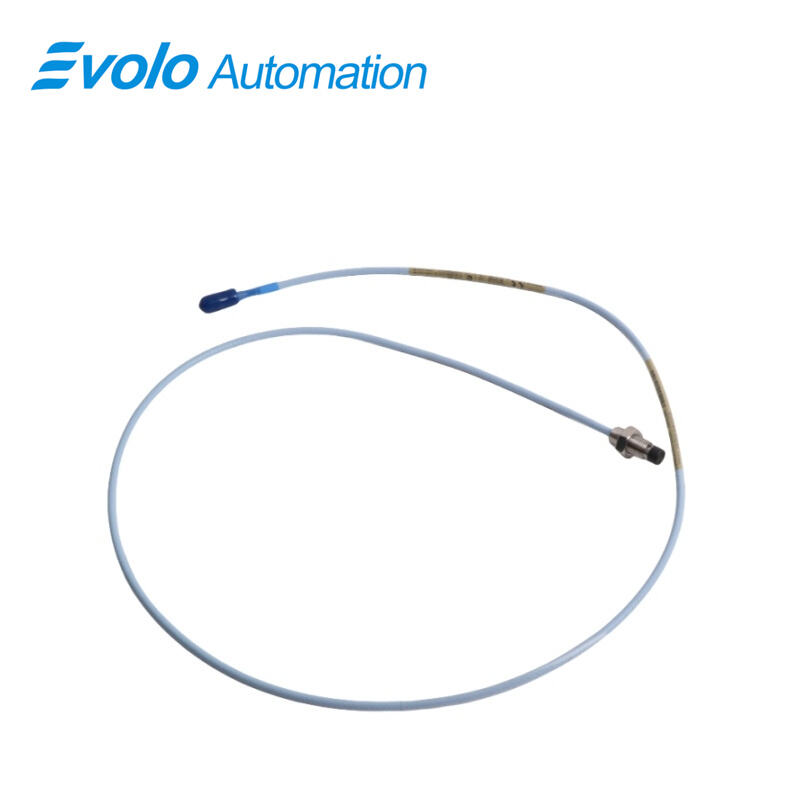

330101-00-08-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-08-10-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-08-10-02-05 3300 XL 8 mm Proximity Probe is an advanced eddy-current proximity transducer designed for precision monitoring in industrial automation systems. This probe provides an output voltage directly proportional to the distance between the probe tip and the conductive target surface, allowing accurate measurement of both static (position) and dynamic (vibration) values. Engineered for demanding applications, the 3300 XL 8 mm probe operates reliably in extreme temperatures ranging from -52°C to +177°C (-62°F to +350°F) and offers exceptional linearity within a 2 mm range (80 mils). The miniature coaxial ClickLoc connector and standard cable, featuring a 69.9 pF/m extension capacitance, ensure stable signal transmission, while the robust 3/8-24 UNF threaded probe case with 0.563 in maximum thread engagement enables secure mounting. Designed for full interchangeability, the 3300 XL system complies with API 670 standards, supports backward compatibility with 3300 non-XL probes and sensors, and includes patented TipLoc and CableLoc technologies, providing superior mechanical strength, including 330 N (75 lbf) pull resistance. Optional FluidLoc cable protection prevents fluid leakage in oil-lubricated machinery, making it ideal for precise vibration and shaft position monitoring in fluid-film bearing systems, speed sensing, and Keyphasor reference applications. CSA, ATEX, and IECEx approvals ensure safe deployment in hazardous industrial environments. The 3300 XL 8 mm Proximity Probe represents the latest evolution in high-performance, non-contact displacement sensing for automation, providing unmatched reliability, accuracy, and operational durability.

Applications

1. Vibration Monitoring of Rotating Machinery
The 3300 XL 8 mm probe measures dynamic shaft vibration with high sensitivity, detecting vibration amplitudes in fluid-film bearings as small as 2 µm, enabling predictive maintenance in turbines, compressors, and generators.

2. Shaft Position Measurement
Used for static displacement monitoring, the probe accurately measures shaft runout and radial position within ±2 mm, ensuring precise alignment in automated industrial machinery.

3. Speed Measurement and Keyphasor Reference
The system provides reliable speed sensing and timing reference signals for rotating equipment, supporting rotational speeds up to 20,000 RPM in gas and steam turbines.

4. API 670-Compliant Machine Monitoring
Integrated into compliance-driven machinery, the 3300 XL probe ensures vibration and position monitoring meet American Petroleum Institute API 670 standards, critical for refineries and power generation.

5. Hazardous Environment Automation
With CSA, ATEX, and IECEx approvals, this probe is ideal for explosive and hazardous industrial areas, monitoring critical equipment without compromising safety or performance.

Specifications

Competitive Advantage

1. Superior Temperature and Environmental Tolerance
Operates reliably between -52°C and +177°C, ensuring performance in extreme conditions where conventional probes fail.

2. High Mechanical and Electrical Robustness
Patented TipLoc and CableLoc designs provide 330 N pull strength and enhanced probe-cable integrity, reducing maintenance downtime.

3. Full Interchangeability and Backward Compatibility
Compatible with both XL and standard 3300 series probes, extension cables, and Proximitor sensors, simplifying inventory and reducing calibration efforts.

4. Enhanced Signal Accuracy and Stability
Less than 2 mV change per volt of input variation ensures precise gap-to-voltage measurement, critical for accurate automation control and vibration analysis.

5. Optional Fluid Protection
FluidLoc option prevents oil leakage through cables in lubricated systems, maintaining machine cleanliness and extending equipment service life.
