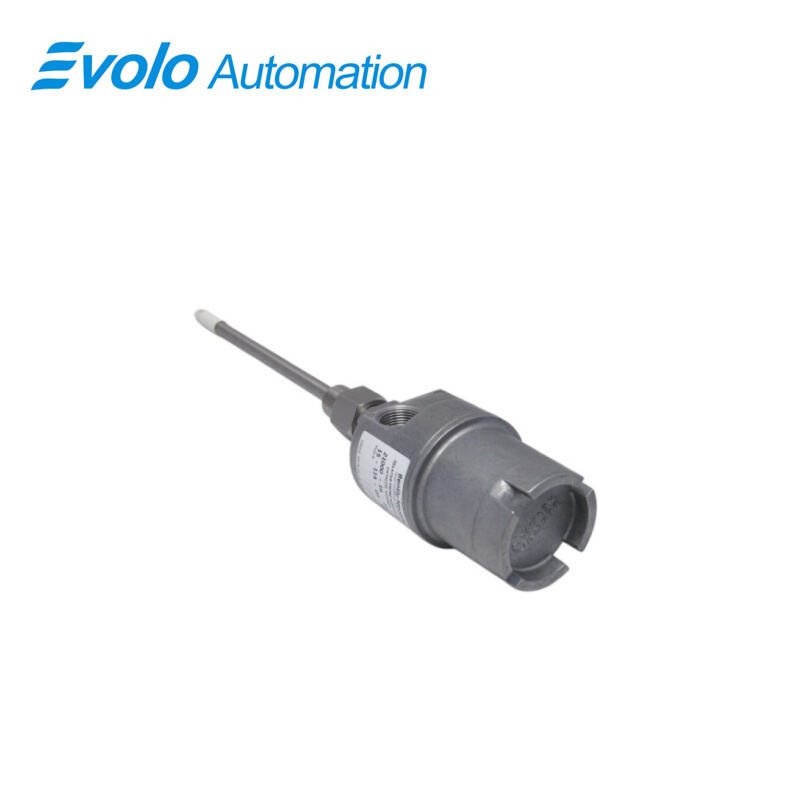

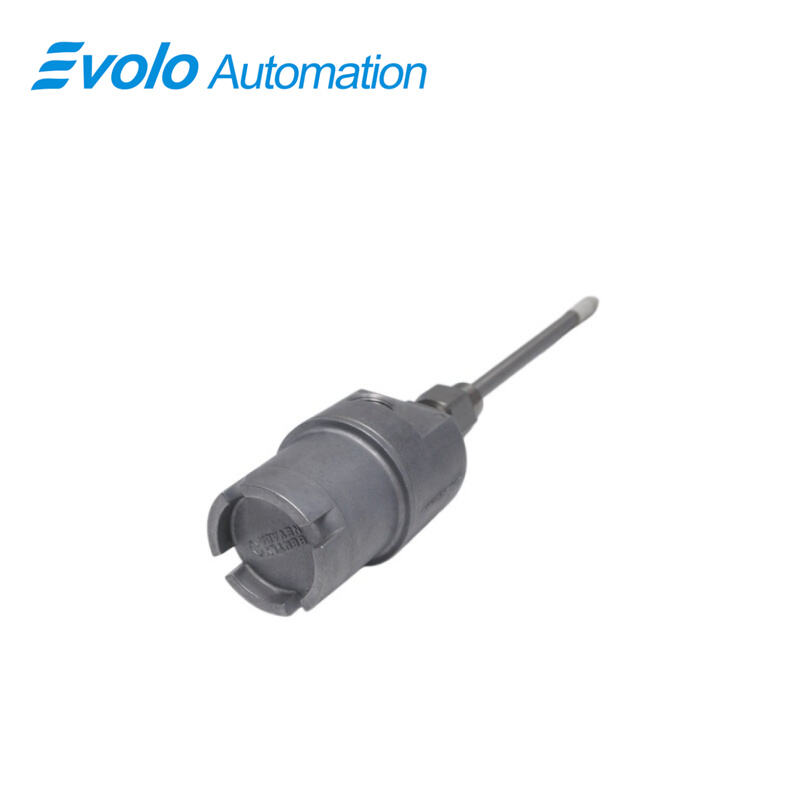

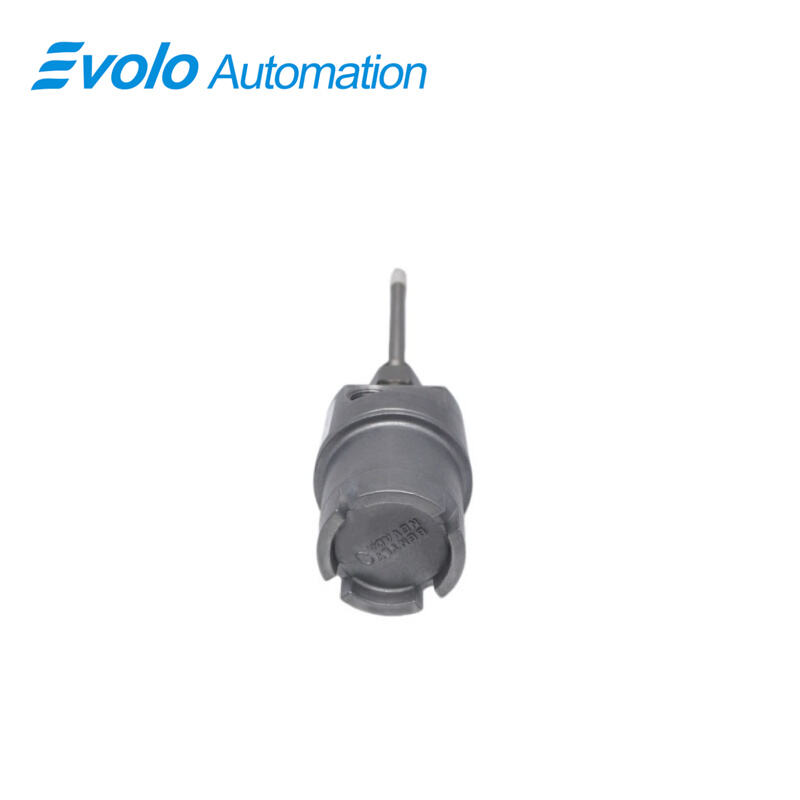

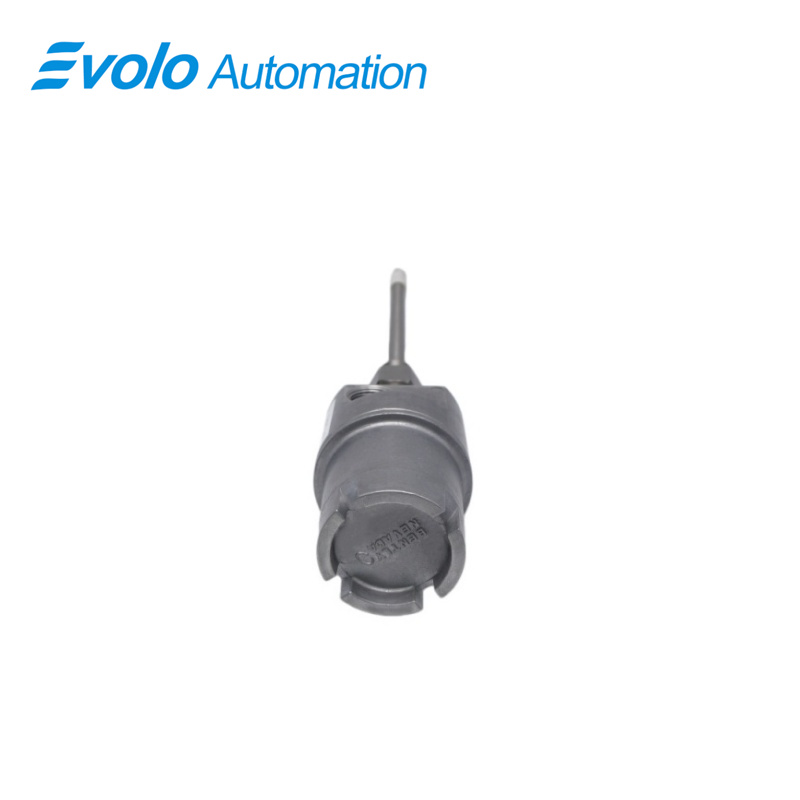

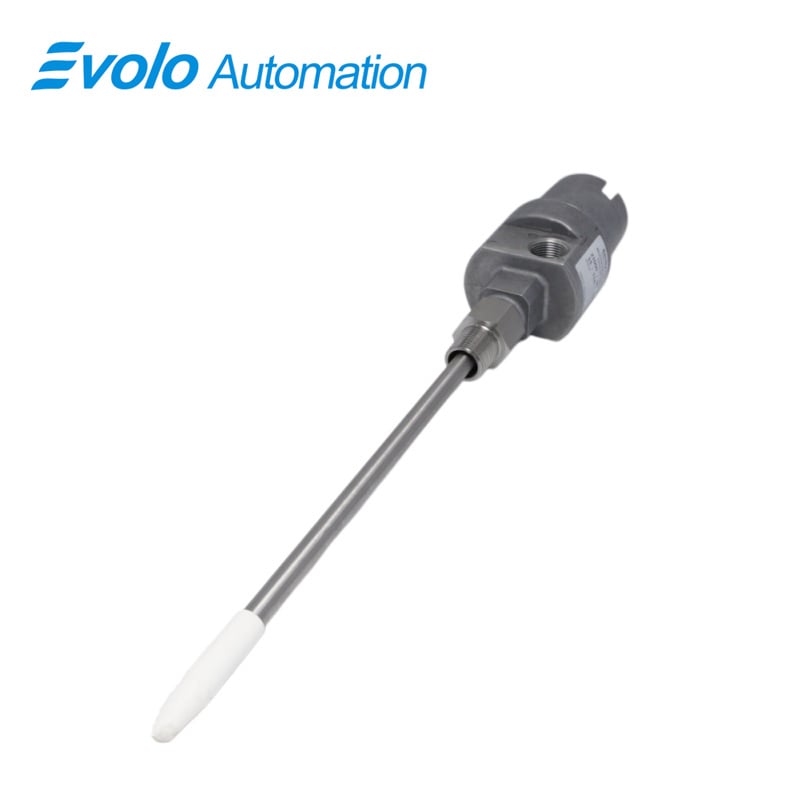

21000-16-10-15-114-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-16-10-15-114-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 21000-16-10-15-114-03-02 Proximity Probe Housing Assembly integrates a 3300 XL 8 mm probe with a 1.0 m (39 in) coaxial cable. Probe penetration reaches 11.4 in with a 1.5 in standoff adapter, mounted using a 3/4-14 NPT thread. The aluminum body with 304 stainless steel sleeve weighs 1.38 kg and measures 49×8.5×8.5 cm. The 21000-16-10-15-114-03-02 includes fittings for 3/4-14 NPT, a 3/4-14 to 1/2-14 NPT reducer, and cable seal grips for 1/8 in to 3/8 in cables. It offers a linear measuring range of 2 mm (80 mils) with ±0.01 mm resolution. The 21000-16-10-15-114-03-02 provides precise gap-to-voltage measurements for automated shaft position and vibration monitoring on turbines, compressors, pumps, and motors. Its extended 11.4 in probe penetration ensures accurate distance measurement on large-diameter shafts, while compatibility with 3300 and 9000 monitoring systems allows real-time automated control and maintenance alerts.

Applications

Shaft Misalignment Detection
The 21000-16-10-15-114-03-02 measures shaft position with ±0.015 mm resolution and 2.5 mm range, detecting misalignment greater than 0.06 mm on turbines and compressors.

Pump Vibration Monitoring
The 21000-16-10-15-114-03-02 tracks vibration amplitudes above 0.06 mm on pumps, using 11.4 in probe penetration to maintain precise tip-to-shaft distance.

Automated Speed Adjustment
The 21000-16-10-15-114-03-02 provides real-time gap-to-voltage data to monitoring systems, enabling automated load or speed adjustments when shaft displacement exceeds 1.2 mm.

Motor Performance Tracking
The 21000-16-10-15-114-03-02 monitors electric motor shafts up to 2.5 mm range, providing automated alerts when deviations exceed 0.06 mm for predictive maintenance.

Specifications

Competitive Advantage

Extended Measurement Range
With 2.5 mm linear range and ±0.015 mm resolution, the 21000-16-10-15-114-03-02 provides actionable data for automated shaft position monitoring.

Long Probe Penetration
The 21000-16-10-15-114-03-02 11.4 in probe penetration allows measurement on large-diameter turbines, compressors, and pumps.

Industrial-Grade Construction
Aluminum body with 316 stainless steel sleeve and 1.45 kg weight allows the 21000-16-10-15-114-03-02 to withstand mechanical stress in harsh industrial environments.

Flexible Installation and Cable Management
The 21000-16-10-15-114-03-02 supports 1inch NPT mounting, reducer fittings, and cable seal grips for 1/8 in to 7/16 in cables, maintaining low-noise signal transmission.
