Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
190501-00-00-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Mounting Hardware Option: |
No stud |
|
Connection Option: |
MIL-C-5015 connection interface |
|
Agency Approval Option: |
CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1) |
|
Dimension: |
8.3x3.5x3.2cm |
|
Weight: |
0.3kg |
Description

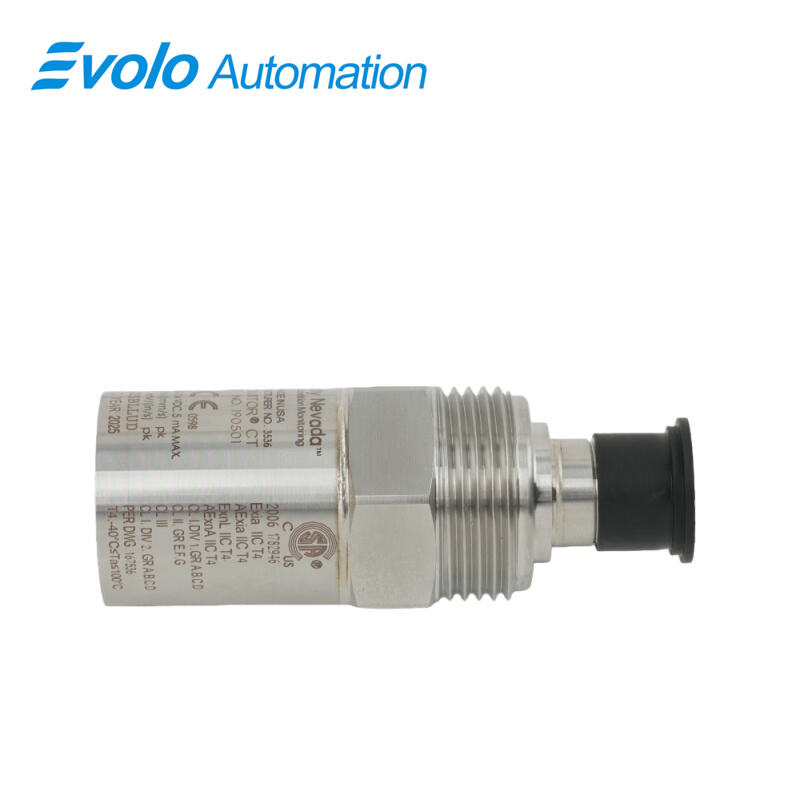

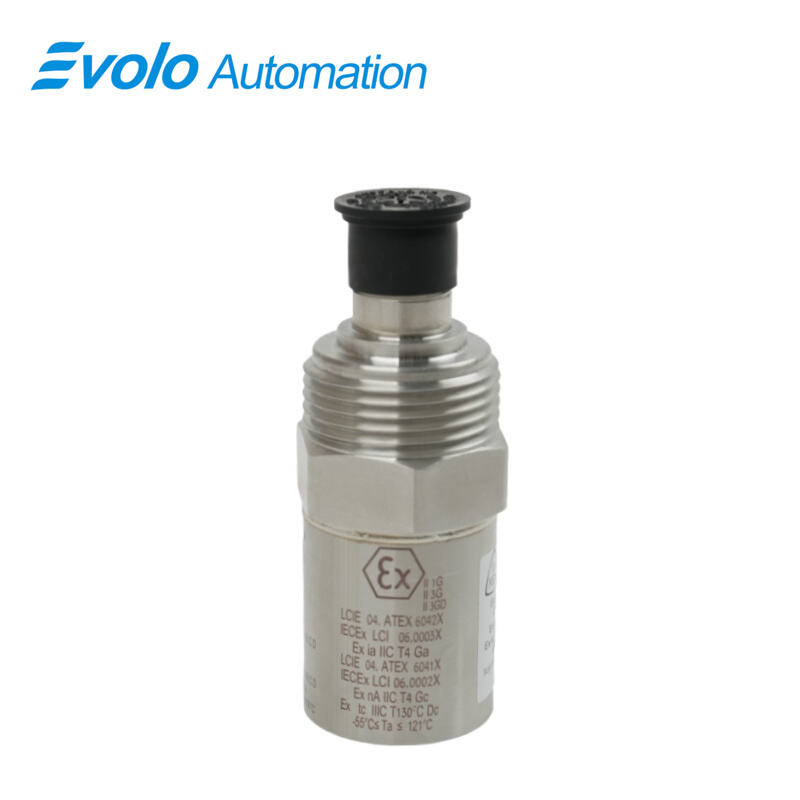

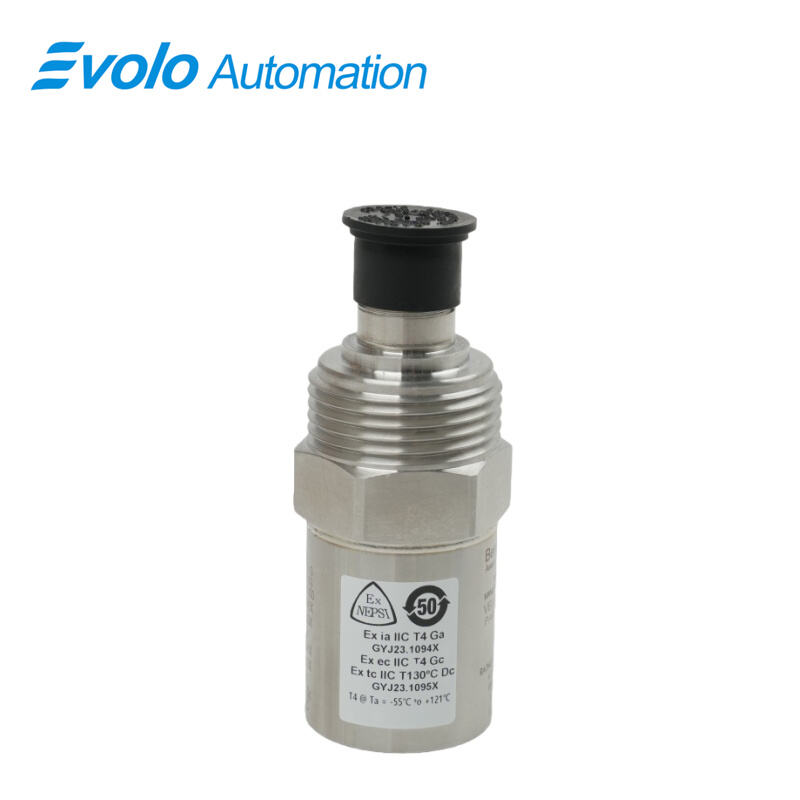

The 190501-00-00-CN Velomitor CT Velocity Transducer measures low-frequency casing vibration on cooling tower and air-cooled heat exchanger fans operating from 90 to 300 rpm. The 190501-00-00-CN provides 3.94 mV/mm/s sensitivity and a 3.0 Hz to 900 Hz frequency response, with -40°C to +85°C operating range. Its 316L stainless steel case and MIL-C-5015 2-pin connector ensure secure installation, supporting 4.5 N-m mounting torque and any orientation on a 33 mm diameter surface. The 190501-00-00-CN Velomitor CT can withstand 5000 g peak shock and 100% condensing humidity, while providing accurate vibration velocity data to PLCs, DCS, or SCADA systems for automated fan monitoring and control. Its low-frequency response allows the 190501-00-00-CN to detect both fan motor and speed reducer vibration amplitudes for automated maintenance and process optimization.
Applications
Measure Cooling Tower Fan Vibration Using the 190501-00-00-CN
Install the 190501-00-00-CN Velomitor CT on cooling tower fans to monitor vibration velocity from 90–300 rpm. The 190501-00-00-CN provides 3.94 mV/mm/s output and 3.0 Hz–900 Hz frequency response for automated PLC or SCADA data acquisition.
Monitor Air-Cooled Heat Exchanger Fans Using the 190501-00-00-CN
The 190501-00-00-CN measures fan motor and speed reducer vibration amplitudes, allowing precise automated analysis of low-frequency vibration for maintenance planning.
Integrate Vibration Data into PLCs or SCADA Using the 190501-00-00-CN
The 190501-00-00-CN Velomitor CT connects via MIL-C-5015 2-pin interface and provides 4–20 mA compatible signals for automated control systems.
Schedule Predictive Maintenance Using the 190501-00-00-CN
Using the 190501-00-00-CN, operators can collect repeatable vibration data under -40°C to +85°C operating conditions and 100% condensing humidity, enabling automated maintenance scheduling.
Specifications
|
Sensitivity: |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Frequency Response: |
3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB or 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB |
|
Temperature Sensitivity: |
-8% to +5% typical over the operating temperature range |
|
Case Material: |
316L stainless steel |
|
Connector: |
2-pin 316L stainless steel MIL-C-5015, top |
|
Mounting Torque： |
4.5 N-m ± 0.6 N-m (40 in– lbf ± 5 in-lbf) |
|
Mounting Angle： |
Any orientation |
|
Mounting Surface： |
33 mm diameter (1.3 in diameter) |
|
Operating Temperature: |
-40°C to +85°C (-40°F to +185°F) |
|
Storage Temperature: |
-40°C to +100°C (-40°F to +212°F) |
|
Shock Limit: |
5000 g pk, maximum |
|
Humidity Limit: |
100% condensing, non-submerged |
Competitive Advantage
Rapid Integration with Automation Systems Using the 190501-00-00-CN
The 190501-00-00-CN Velomitor CT supports MIL-C-5015 connectors and 4.5 N-m mounting torque, allowing quick installation on fan assemblies and connection to PLCs or SCADA.
Operate in Harsh Fan Environments with the 190501-00-00-CN
The 190501-00-00-CN has a 316L stainless steel case, can operate from -40°C to +85°C, and withstand 100% condensing humidity, enabling use in outdoor and high-moisture locations.
Accurate Low-Frequency Measurement with the 190501-00-00-CN
With 3.0 Hz to 900 Hz frequency response and 3.94 mV/mm/s sensitivity, the 190501-00-00-CN provides precise velocity measurements for automated vibration analysis.
Flexible Mounting on Fan Casings Using the 190501-00-00-CN
The 190501-00-00-CN Velomitor CT mounts on 33 mm diameter surfaces at any orientation, simplifying installation in varied fan geometries.
