Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
190501-00-00-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Mounting Hardware Option: |
No stud |
|
Connection Option: |
MIL-C-5015 connection interface |
|
Agency Approval Option: |
CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1) |
|
Dimension: |
8.3x3.5x3.2cm |
|
Weight: |
0.3kg |
Description

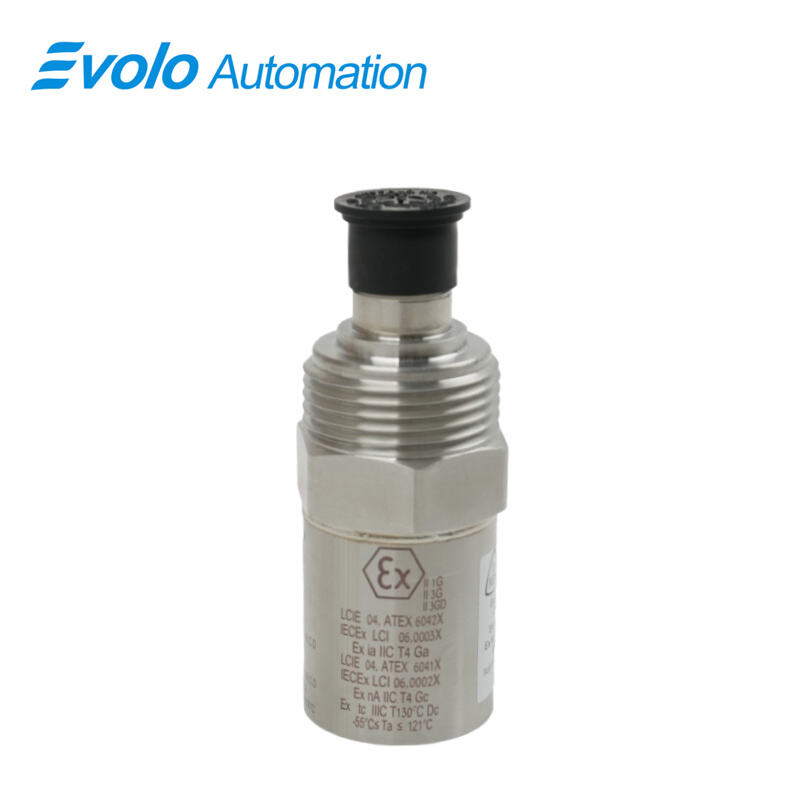

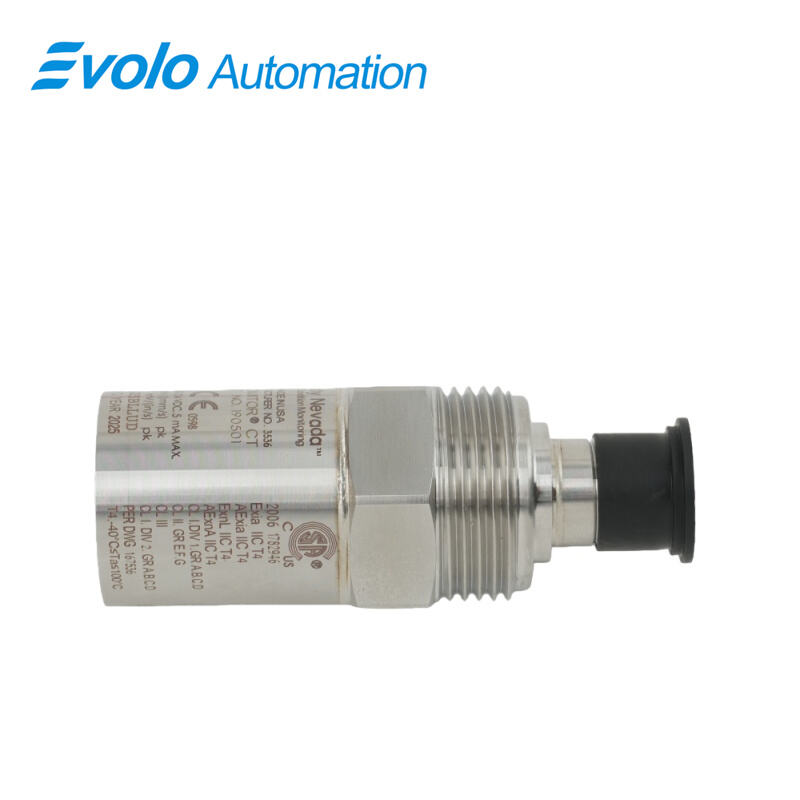

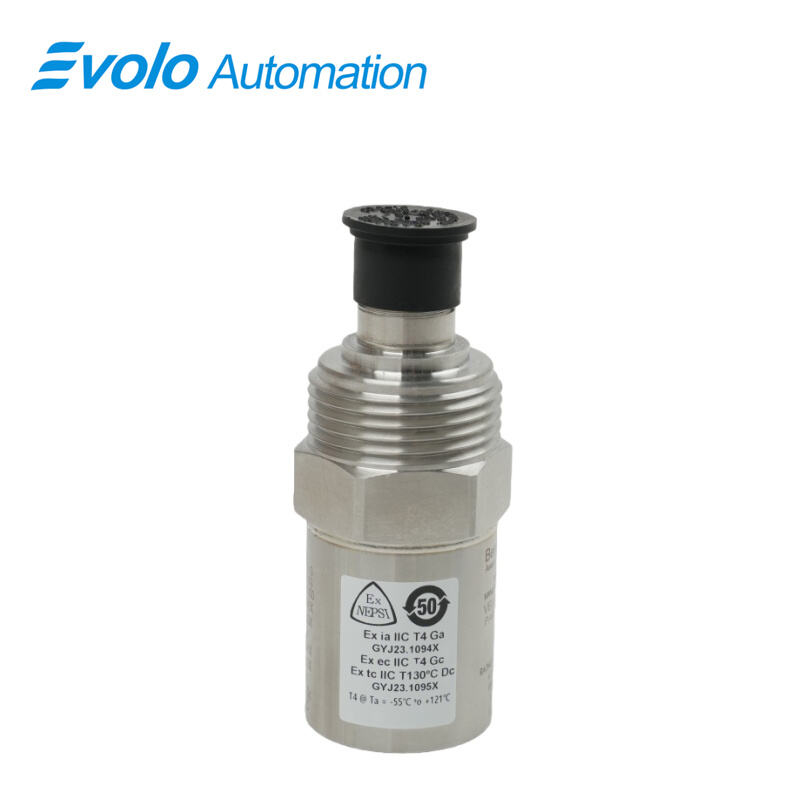

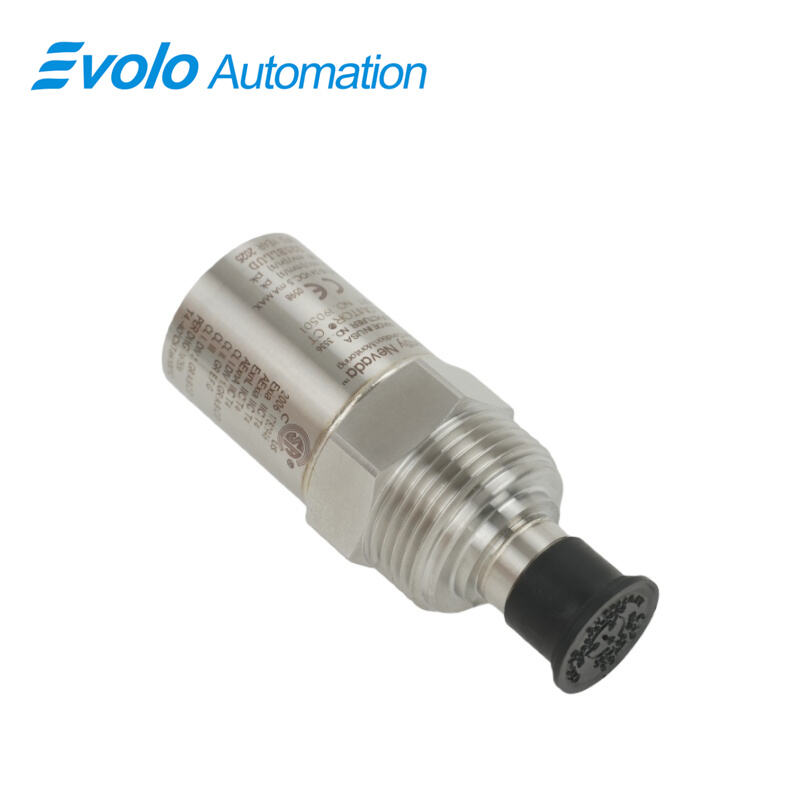

The 190501-00-00-05 Velomitor CT Velocity Transducer is engineered to measure vibration velocity on cooling tower and air-cooled heat exchanger fan assemblies operating from 90 to 300 rpm. With a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%, the 190501-00-00-05 Velomitor CT captures low-frequency vibration signals precisely. Its frequency response ranges from 3.0 Hz to 900 Hz (180–54,000 cpm) ±1.0 dB or 1.5 Hz to 1.0 kHz (90–60,000 cpm) ±3.0 dB, enabling detection of both fan and motor-generated vibrations. Constructed from 316L stainless steel, the 190501-00-00-05 Velomitor CT withstands operating temperatures from -40°C to +85°C and storage up to +100°C, while surviving shock events up to 5000 g pk. The 2-pin MIL-C-5015 top connector ensures reliable signal transmission, and mounting on a 33 mm diameter surface at any orientation with 4.5 N-m ±0.6 N-m torque is supported. Approved by CSA/NRTL/C, ATEX, and IECEx standards, the 190501-00-00-05 Velomitor CT Velocity Transducer provides precise vibration velocity measurements for automated monitoring of industrial fans and heat exchanger systems.
Applications
Fan Casing Vibration Measurement
The 190501-00-00-05 Velomitor CT Velocity Transducer measures vibration velocity on cooling tower and air-cooled heat-exchanger fan casings operating at 90–300 rpm. Its low-frequency response from 3.0 Hz to 900 Hz (180–54,000 cpm) ±1.0 dB allows precise monitoring of fan-generated vibrations.
Motor and Speed Reducer Vibration Analysis
Equipped with a sensitivity of 3.94 mV/mm/s (100 mV/in/s) ±5%, the 190501-00-00-05 Velomitor CT detects vibration amplitudes from fan motors and speed reducers, supporting preventive maintenance in automated industrial systems.
Environmental Monitoring in Harsh Conditions
The 190501-00-00-05 Velomitor CT Velocity Transducer operates from -40°C to +85°C and tolerates humidity up to 100% condensing, enabling reliable vibration monitoring in outdoor cooling towers and industrial heat exchangers.
Specifications
|
Sensitivity: |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Frequency Response: |
3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB or 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB |
|
Temperature Sensitivity: |
-8% to +5% typical over the operating temperature range |
|
Case Material: |
316L stainless steel |
|
Connector: |
2-pin 316L stainless steel MIL-C-5015, top |
|
Mounting Torque： |
4.5 N-m ± 0.6 N-m (40 in– lbf ± 5 in-lbf) |
|
Mounting Angle： |
Any orientation |
|
Mounting Surface： |
33 mm diameter (1.3 in diameter) |
|
Operating Temperature: |
-40°C to +85°C (-40°F to +185°F) |
|
Storage Temperature: |
-40°C to +100°C (-40°F to +212°F) |
|
Shock Limit: |
5000 g pk, maximum |
|
Humidity Limit: |
100% condensing, non-submerged |
Competitive Advantage
Flexible Installation on Any Orientation
With a mounting torque of 4.5 N-m ±0.6 N-m on a 33 mm diameter surface, the 190501-00-00-05 Velomitor CT can be installed in any orientation, providing versatile deployment in tight or unconventional spaces.
Durable Stainless Steel Construction
The 316L stainless steel case and 2-pin MIL-C-5015 connector of the 190501-00-00-05 Velomitor CT Velocity Transducer resist corrosion and mechanical shocks up to 5000 g pk, ensuring long-term operation in industrial environments.
Certified for Hazardous Areas
The 190501-00-00-05 Velomitor CT carries CSA/NRTL/C, ATEX, and IECEx approvals, allowing safe deployment in Class I, Division 1 and Zone 0/1 hazardous areas without additional protective measures.
Accurate Low-Frequency Measurement
The 190501-00-00-05 Velomitor CT Velocity Transducer captures low-frequency vibrations with ±1.0 dB accuracy, providing actionable data for automated vibration monitoring and predictive maintenance systems.
