Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
531X121PCRALG1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
531X121PCRALG1 |
|
Product Type |
Power Connect Card |
|
Dimensions |
27.8×21.2×2.5 cm |
|
Weight |
0.58 kg |
|
Operating Voltage Range |
18–32 V DC |
|
Power Consumption |
12.5 W |
|
Operating Temperature Range |
0°C to +60°C |
|
Storage Temperature Range |
-20°C to +70°C |
|
Humidity |
5%–95% RH non-condensing |
Description

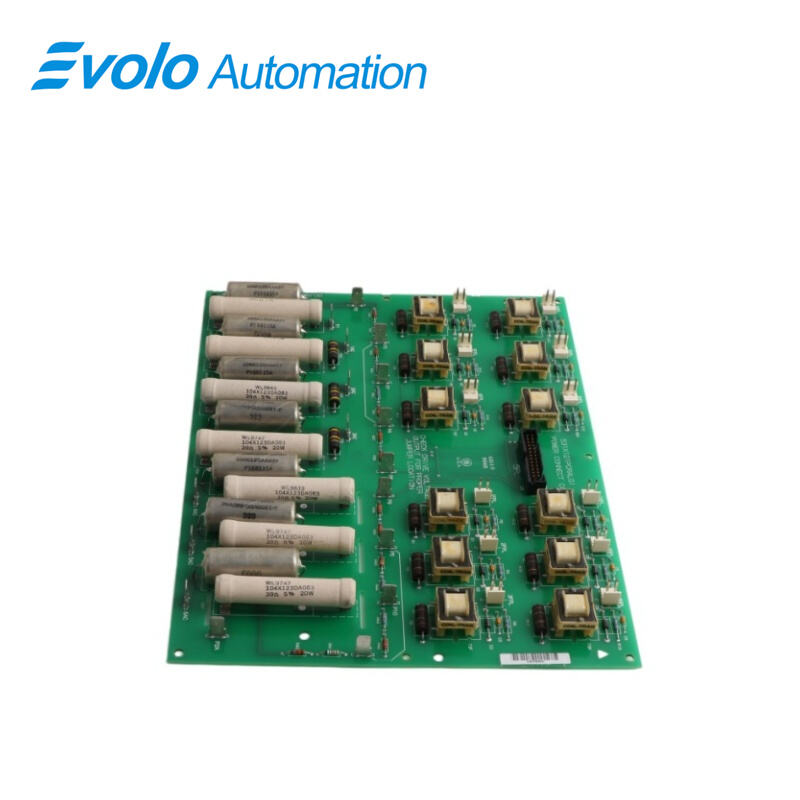

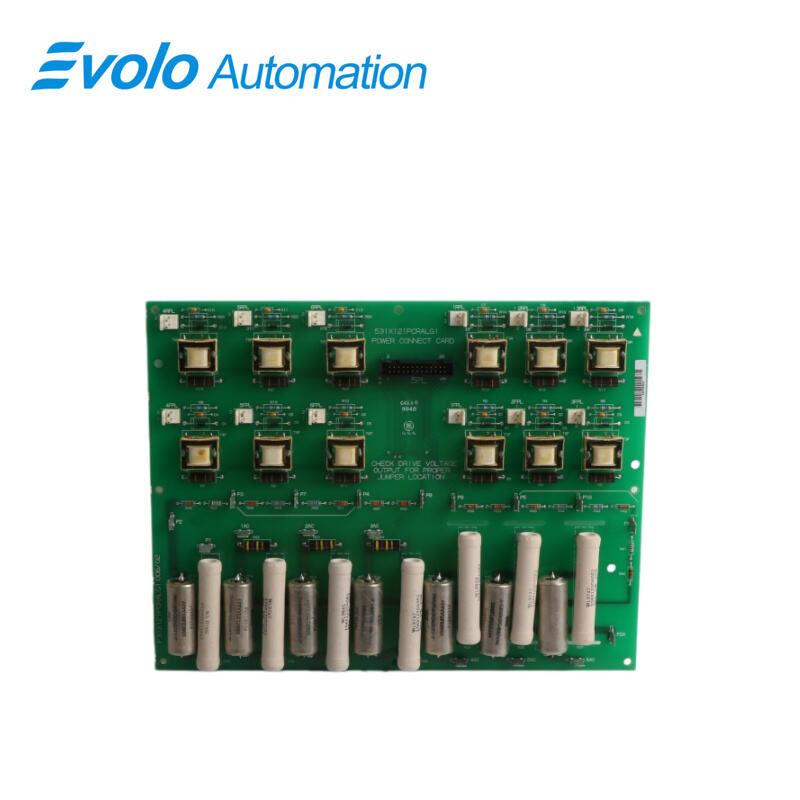

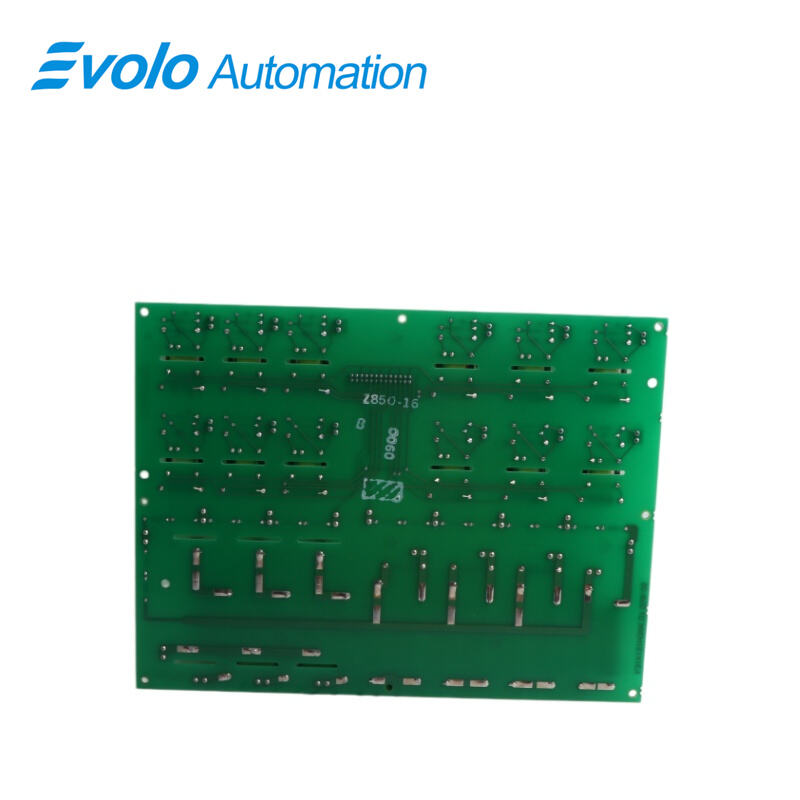

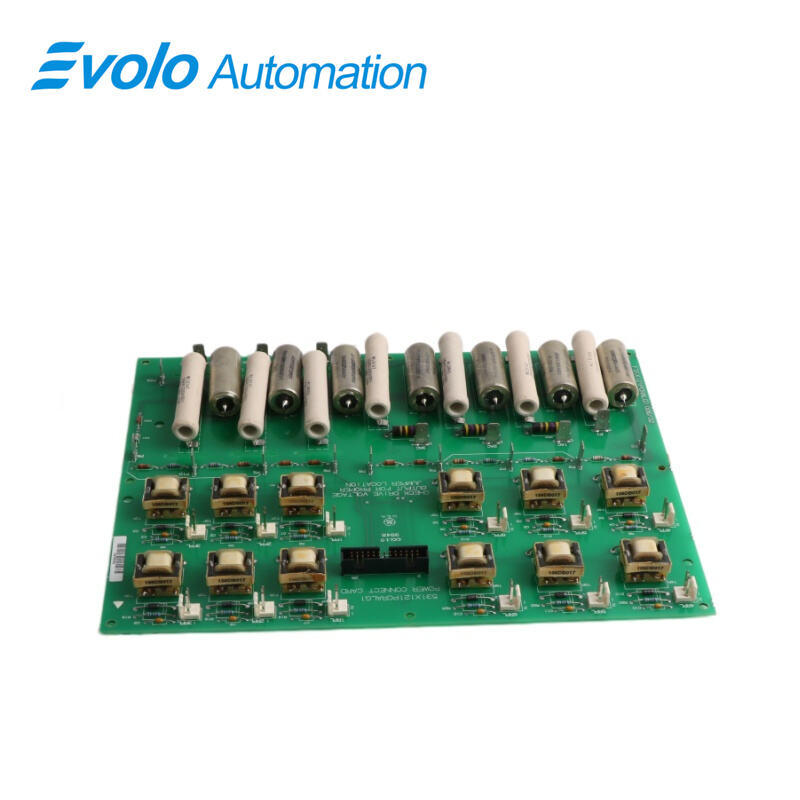

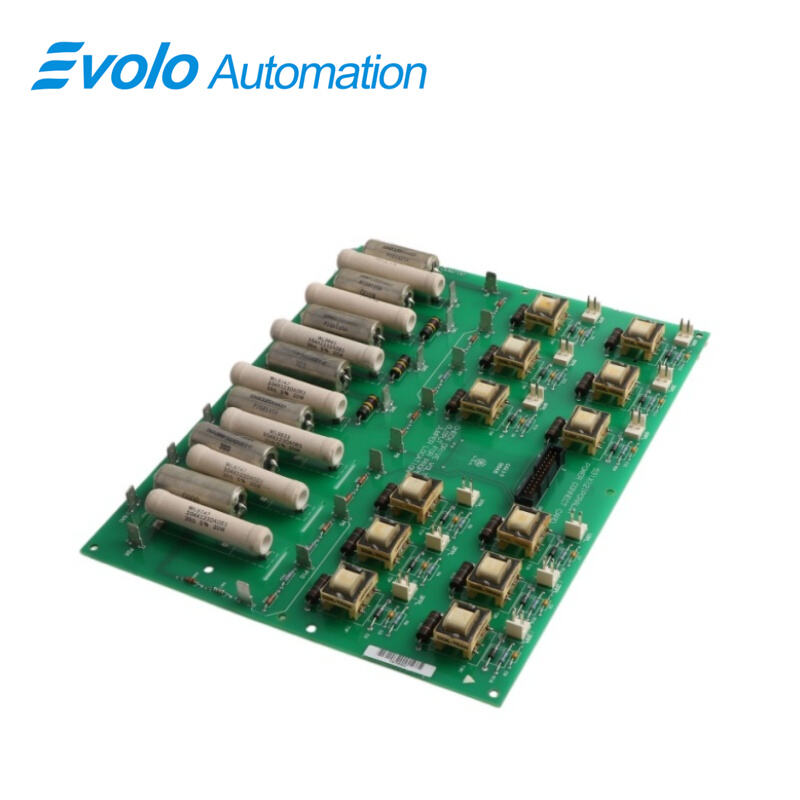

The General Electric 531X121PCRALG1 Power Connect Card is designed to manage power distribution and connectivity within industrial control systems. It ensures stable and reliable power supply, facilitating effective operation and integration of various system components. This card supports optimal performance and enhances overall system reliability.
Applications
Precision strip steel plant: Used for internal power distribution in rolling mill automation control cabinets, ensuring stable tension control logic under a 24V reference voltage.
Paper processing plant: Deployed in the power interface layer of rewinder drive systems, using low power consumption to reduce temperature rise risk inside sealed cabinets.
Rubber tire plant: Applied in internal mixer control units, wide voltage input effectively resists voltage fluctuations caused by heavy equipment startup.
Metal smelting plant: Installed in blast furnace feeding control systems, adapting to drastic environmental temperature changes in harsh industrial zones.
Automotive manufacturing plant: Used for power connection of stamping line servo drives, high humidity resistance ensures reliable operation under various workshop conditions.
Features
Overload protection automatically cuts power when current exceeds the set threshold, preventing system damage. High energy efficiency is achieved through advanced power management, reducing overall consumption.
The front panel provides six female connectors for secure wiring and a USB port for easy configuration and data transfer, along with LED indicators for clear status monitoring.
A communication interface may also be included, enabling data exchange and remote monitoring with control systems for real-time power management.
FAQ
Q: What is the supported DC input voltage range for the 531X121PCRALG1?
A: This power connector supports input voltages from 18V DC to 32V DC, accommodating various industrial voltage standards.
Q: Is the 531X121PCRALG1 power-consuming at full load?
A: This model is highly energy-efficient, with a maximum power consumption of only 12.5 watts, helping to reduce overall system heat emissions.
Q: Can the 531X121PCRALG1 operate in extremely humid environments?
A: It can operate within a relative humidity range of 5% to 95%, but the environment must be non-condensing.
Q: What are the storage temperature requirements for the 531X121PCRALG1 if the factory is shut down?
A: Its safe storage temperature range is -20°C to +70°C, suitable for most industrial warehouse environments.
Q: Will the 531X121PCRALG1 still function normally when the ambient temperature reaches 60°C?
A: Yes, this board is designed to operate at a maximum temperature of +60°C and can withstand the harsh environment inside industrial control cabinets.
