Siemens 6GK1905-0FA00 SIMATIC NET Conector Potentiae Masculus 7/8-Pollicis Quinque-Polares

Conspectus

SIEMENS SIMATIC NET

6GK1905-0FA00 SIMATIC NET Conector masculin de alimention de 7/8-pollici, 5 poli

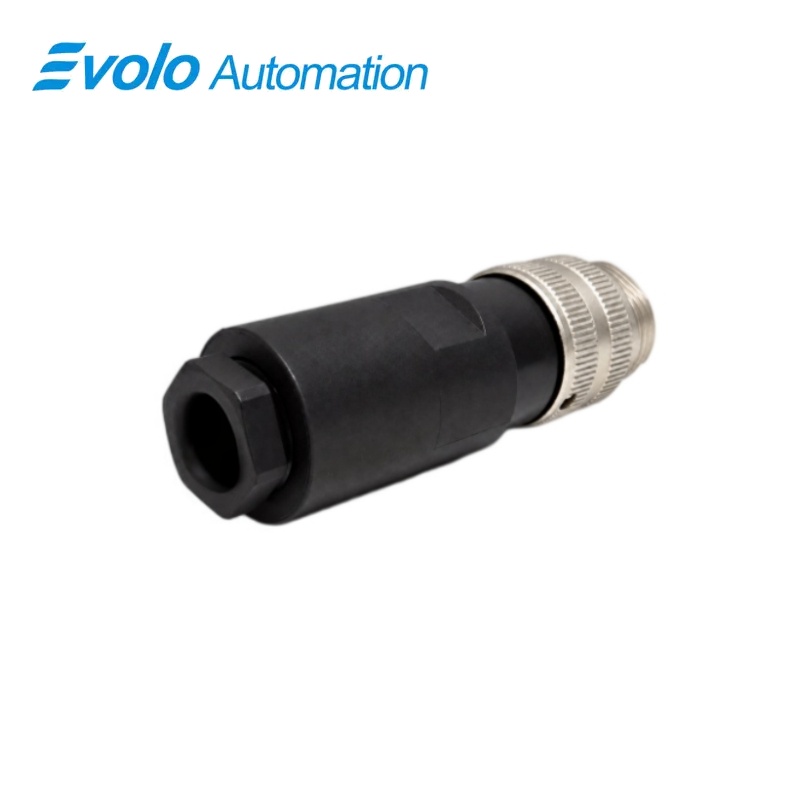

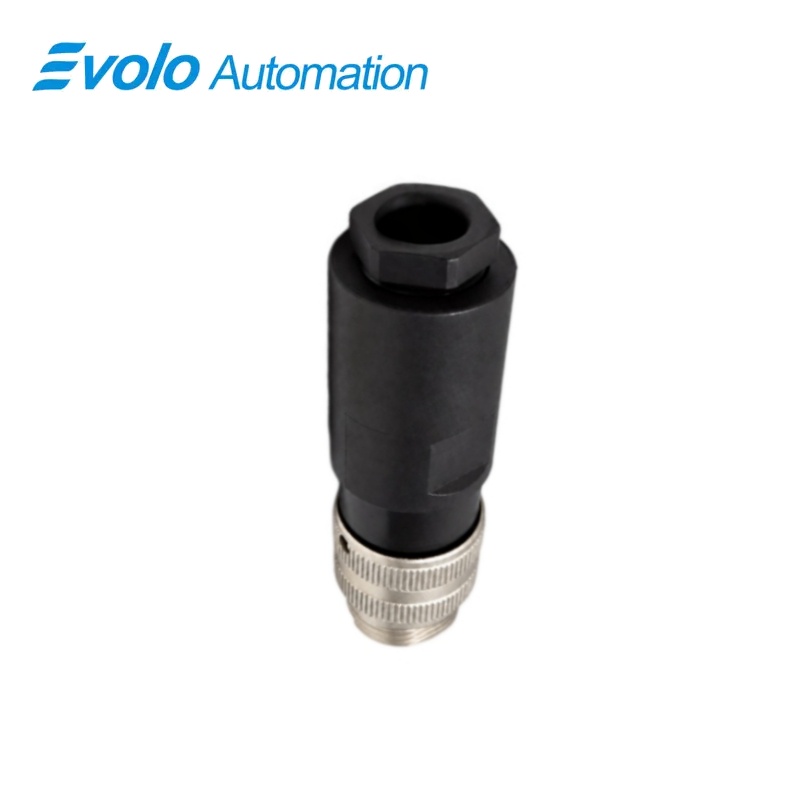

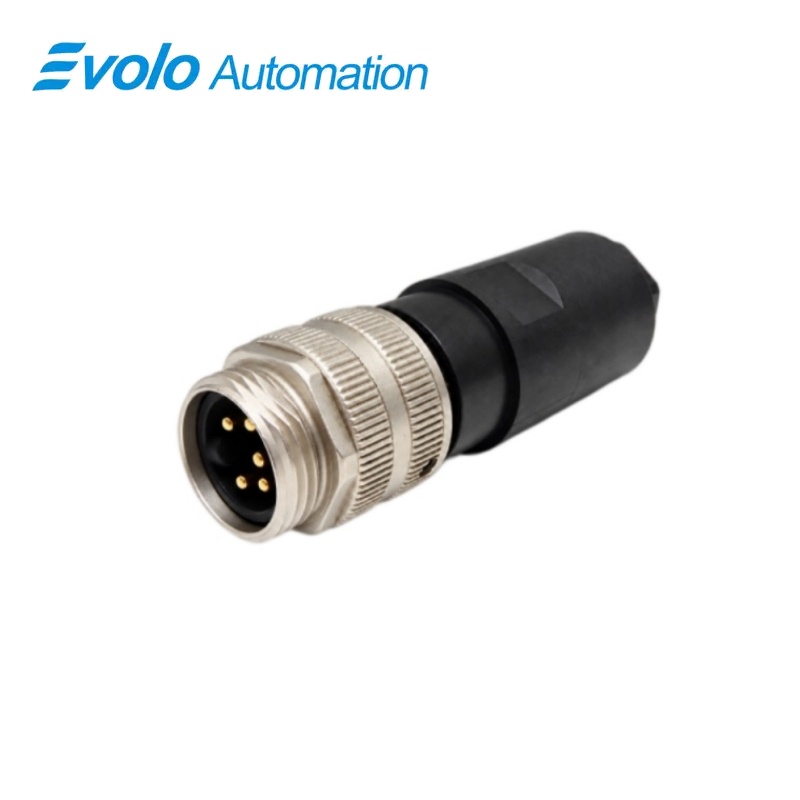

Conector masculin de alimention de 5 poli, diametro 7/8-pollici, cum exsitu axial de cable, contactus per viretta e custodia metallic pro montagio in situ.

Ad Primum Aspectum

Nota	Siemens
Modellum	6GK1905-0FA00
Typus Producti	Conector de alimention pro montagio in situ
Functio principalis	Connexio de cables de alimention in situ
Applicatio	Apparatus ET 200 con interfacie de alimention correspondente de 7/8-pollici

Interfacie masculin pro connexio

Le conector usa un inserto de contactu masculin e se connexe al correspondente conector femminin.

Praeparatio Cavi

Le conector accepta cables de diametro 10–12 mm e conductores de sectio 1,5 mm².

Protection in situ

The enclosure provides an IP65/IP67 protection rating with integrated strain relief.

Product Overview

6GK1905-0FA00 is a field-assembled power connector for ET 200 equipment with a matching 7/8-inch connection, using five screw-connected contacts and an axial cable exit.

Its metal enclosure and threaded locking arrangement suit field connections, while cable diameter, conductor size and installation clearance must match the connector geometry.

Focus ordinandi: Select the male insert for the required mating interface, confirm a 10–12 mm cable jacket and 1.5 mm² conductors, and account for the manufacturer’s five-piece packing unit.

Key Functions

Terminate a five-core power cable

Integrated screw contacts provide the field-wiring termination for the five-core power connection.

Keep the cable in line with the plug

The 180° cable outlet routes the cable axially rather than turning it through an angled housing.

Retain and protect the assembled cable

Conector combinat cu o carcasă metalică, blocare filetată și reducător de tensiune integrat, cu protecție IP65/IP67.

Official Specifications

Interfață de cuplare	Inserție contact masculină de 7/8 inch; 5 poli
Currens nominalis	9 A
Terminus conductoris	Contacte filetate integrate pentru cablu de alimentare cu cinci nuclee
Egressus Cavis	Axial, 180°
Secțiune transversală a conductorului conectabil	1,5 mm²
Diametro del cavo collegabile	10–12 mm
Claude materia	Metal
Mechanismus claudendi	Union filetada
Dimensiuni (lățime × înălțime × adâncime)	27 × 27 × 83 mm
Ponderis netum	50 g
Gradus praesidium	IP65/IP67
Operans ambientium temperatus	−40 usque ad +70 °C
Temperatura servandi et transportandi	−40 ad +80 °C
Retentio Cavi	Reducător de tensiune integrat
Contentum Silicium	Sine silicio

Fons officialis: Ficha de datos de producto Siemens · Producta Supplementaria Siemens

Quaestiones Frequenter Rogatae

Qualem sexum connexivum praebere debeo pro 6GK1905-0FA00?

Conector habet insertum contactus masculinum et requirit correspondens coniunctionem socket 7/8-pollicem.

Num vagina cavi diametri 9 mm convenit ad specificatum intervallum cavi 6GK1905-0FA00?

Diametrum specificatum cavi connectibilis est 10–12 mm; ergo vagina 9 mm extra hoc intervallum cadit.

Necessene est mihi instrumentum FastConnect ad perforandum insulationem ut coniungam 6GK1905-0FA00?

Conector utitur contactibus integralibus a vitiis pro cable electrico quinque-nucleato, non autem terminatione FastConnect.

Quantum profundiatis in linea recta conectoris debet reservari pro 6GK1905-0FA00?

Corpus conectoris est 83 mm profundum et utitur egressu axiali cavi; igitur installatio quoque spatium requirit pro cable quod ex parte posteriori exit.

Quae magnitudo conductoris specificatur pro 6GK1905-0FA00?

Secio transversa conductoris connectibilis est 1.5 mm².

Num 6GK1905-0FA00 uti potest ubi connexio protectionem IP65 vel IP67 requirit?

Gradus protectionis connectoris specificatus est IP65/IP67.

Quot connexiones 6GK1905-0FA00 in unitate emballagii Siemens continentur?

Unitas emballagii Siemens quinque connexiones masculinas continet.

Compatibility & Ordering Notes

Antequam 6GK1905-0FA00 ordinatur: Utere articulo masculino, adaequa geometriam cavi et cavi, et distinguere unitatem emballagii fabricantis quinque-partitam a numero connexionum singularum necessariarum.

Index compatibilitatis pro 6GK1905-0FA00

• Utere feminea connexione electrica 7/8-pollicis congruente; 6GK1905-0FB00 est articulus correspondens connexionalis in catalogo accessoriorum Siemens.
• Parate calem electricam quinque-nuclearem cum conductoribus 1.5 mm² et diametro totali 10–12 mm.
• Admittite exitum axiale calem et profunditatem connexoris 83 mm in apparatu installato.
• Appllicate dispositionem roscatae fixationis et relaxationis tensionis durante confectione.
• Pro apparatibus cum spatio circumstante restricto, adhibete consilium Siemens ut exitus angulares calem utantur, ut contorni intercurrentes evitantur.
